DR01100416

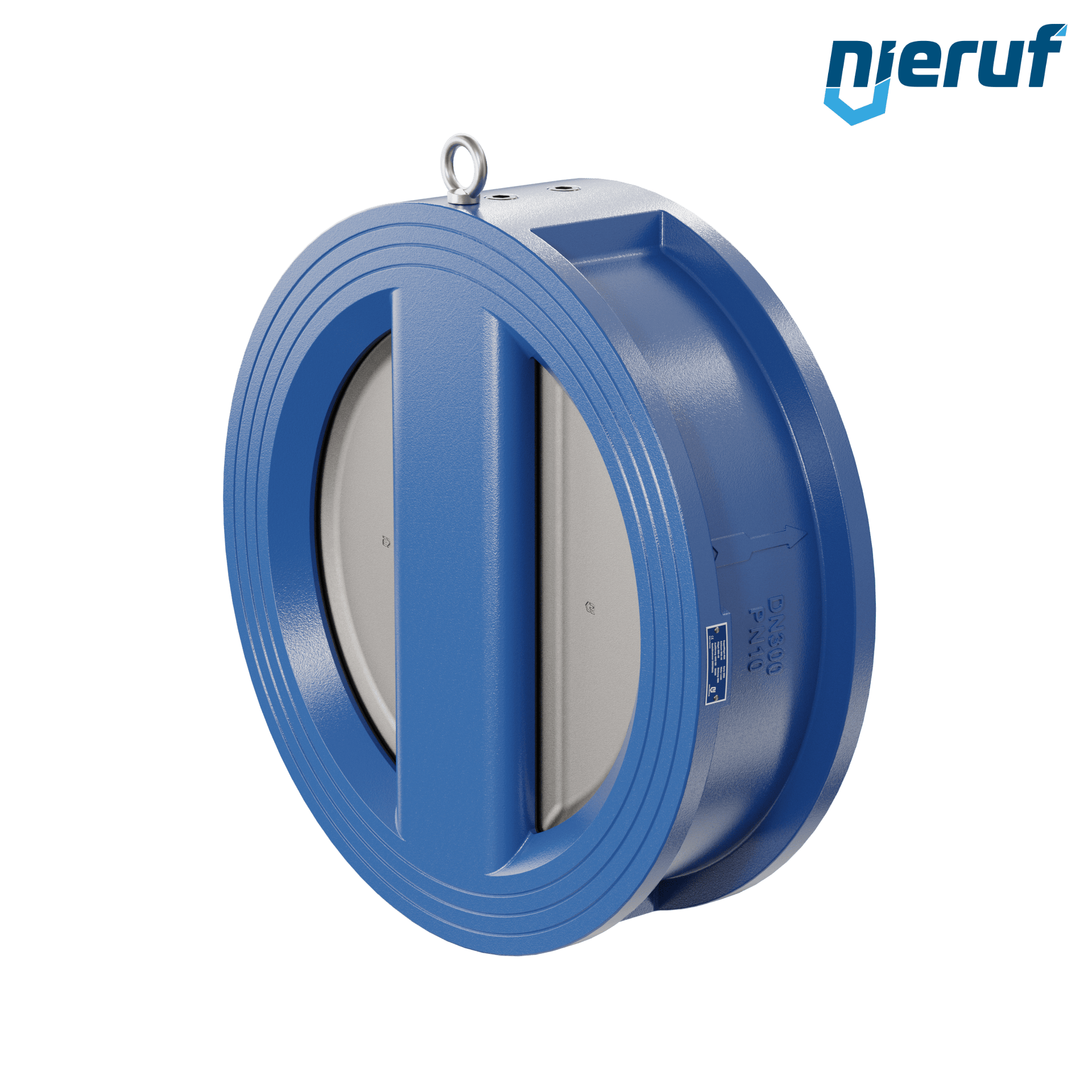

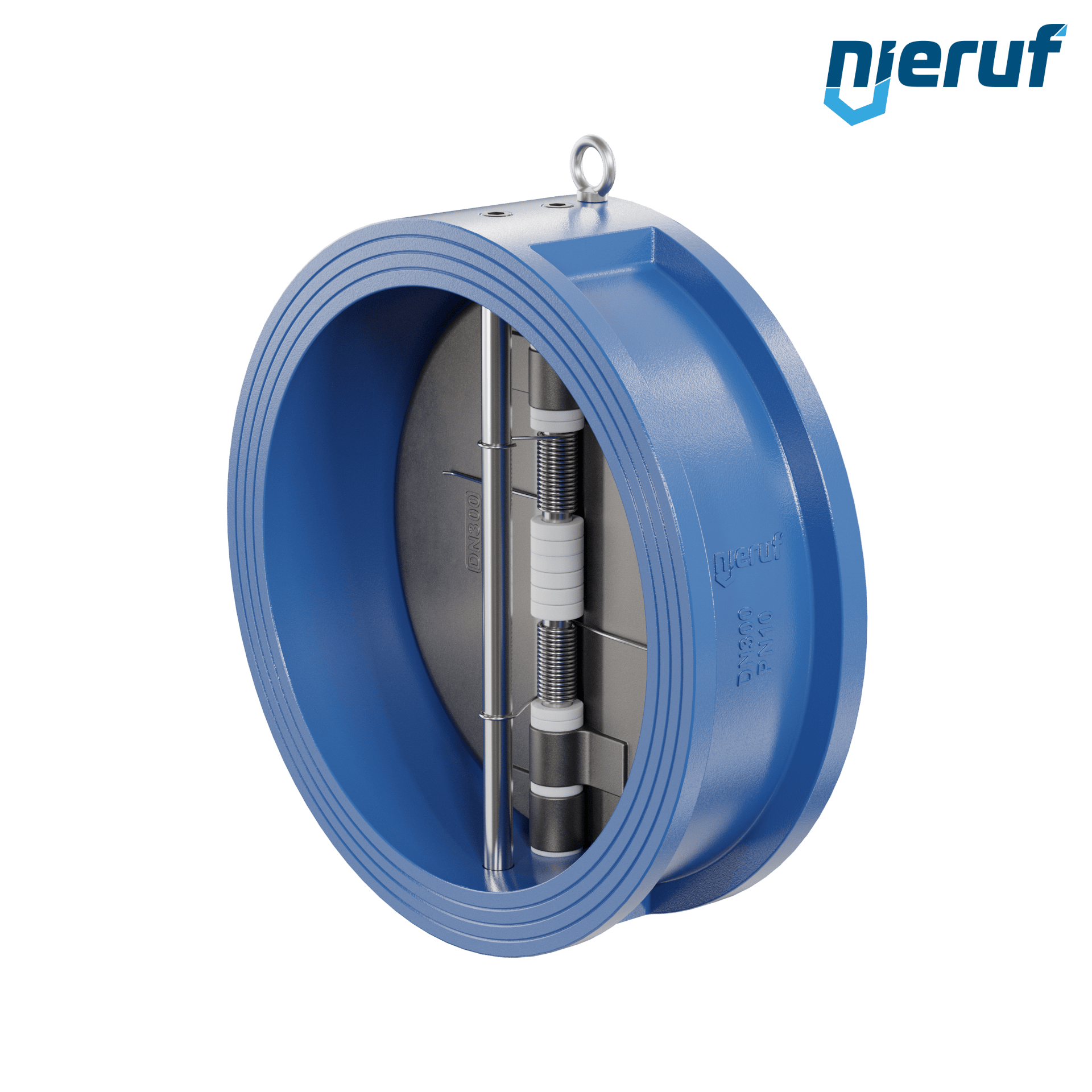

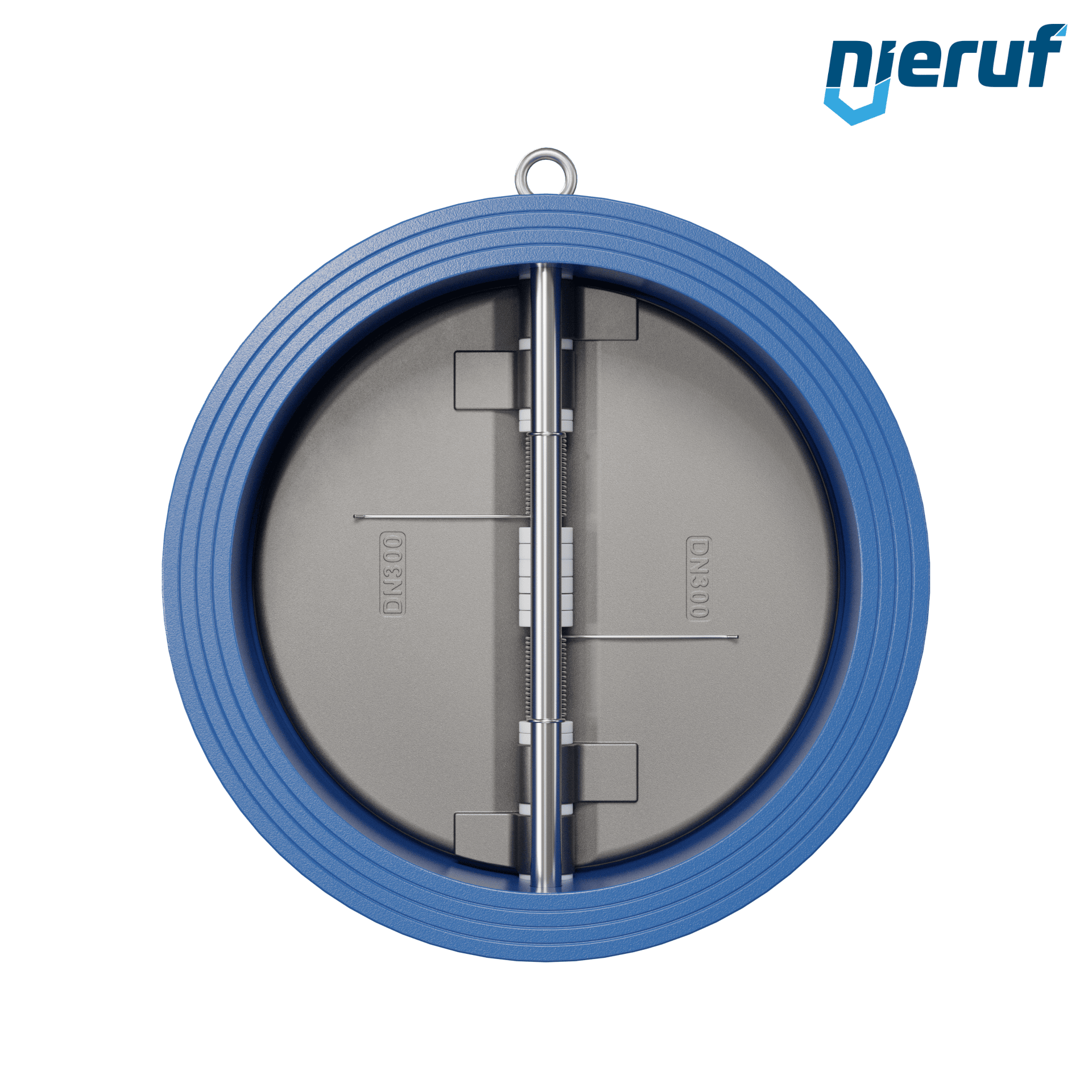

dual plate check valve DN300 DR01 ANSI 150 GGG40 epoxyd plated blue 180µm NBR
- Lead time
- On request
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
dual plate check valve DN300 DR01 ANSI 150 GGG40 epoxyd plated blue 180µm NBR
dual plate check valve DN300 seal NBR ASME B16.5 / ANSI 150, body made of GGG40 epoxyd plated blue 180µm, wings made of GGG40
| product | dual plate check valve |
|---|---|
| type | DR01 ANSI 150 |
| manufacturer | NieRuf |
| design | dual plate check valve |
| diameter | DN300 |
| body material | GGG40 epoxyd plated blue 180µm |
| disc material | GGG40 nickel plated |
| seal | NBR |
| temperature | -10°C to +90°C |
| connection | flange |
| flange | ASME B16.5 / ANSI 150 |
| pressure range | 0 - 20 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | with spring made of stainless steel |
| installation position | direction of flow horizontal, vertical from below - up to DN200 also from above |
| product feature | API 594 / ASME B16. 10 / Class 150 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
dual plate check valve DN300 DR01 ANSI 150 GGG40 epoxyd plated blue 180µm NBR
Article no.
: DR01100416
product:
dual plate check valve
type:
DR01 ANSI 150
manufacturer:
NieRuf
design:
dual plate check valve
diameter:
DN300
body material:
GGG40 epoxyd plated blue 180µm
disc material:
GGG40 nickel plated
seal:
NBR
temperature:
-10°C to +90°C
connection:
flange
flange:
ASME B16.5 / ANSI 150
pressure range:
0 - 20 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
with spring made of stainless steel
installation position:
direction of flow horizontal, vertical from below - up to DN200 also from above
product feature:
API 594 / ASME B16. 10 / Class 150
