DR03100513
dual plate check valve DN150 DR03 ANSI 150 stainless steel 1.4408 metal
- Lead time
- On request
Questions about the article?
Our employee Richie Rost
will be happy to help you

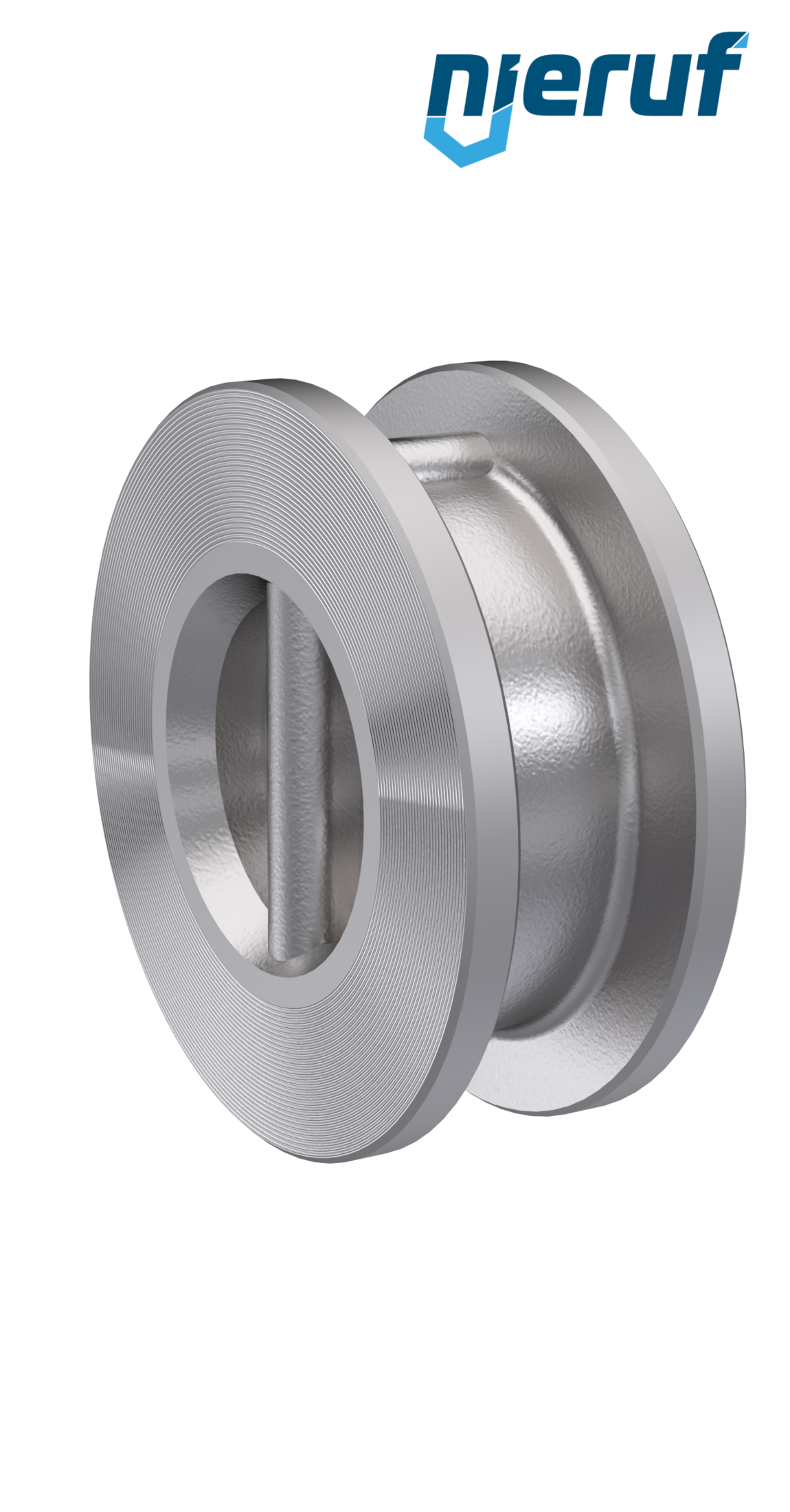

dual plate check valve DN150 DR03 ANSI 150 stainless steel 1.4408 metal
dual plate check valve DN150 ASME B16.5 / ANSI 150, body made of stainless steel 1.4408, wings made of stainless steel 1.4408 seal metal
| product | dual plate check valve |
|---|---|
| type | DR03 ANSI 150 |
| manufacturer | NieRuf |
| design | dual plate check valve |
| diameter | DN150 |
| body material | stainless steel 1.4408 |
| disc material | stainless steel 1.4408 |
| seal | metal |
| temperature | -196°C to +400°C |
| connection | flange |
| flange | ASME B16.5 / ANSI 150 |
| pressure range | 0 - 20 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate G |
| option | with spring made of Inconel X-750 |
| installation position | direction of flow horizontal, vertical from below - up to DN80 also from above |
| product feature | API 594 / ASME B16.05 / Class 150 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
dual plate check valve DN150 DR03 ANSI 150 stainless steel 1.4408 metal
Article no.
: DR03100513
product:
dual plate check valve
type:
DR03 ANSI 150
manufacturer:
NieRuf
design:
dual plate check valve
diameter:
DN150
body material:
stainless steel 1.4408
disc material:
stainless steel 1.4408
seal:
metal
temperature:
-196°C to +400°C
connection:
flange
flange:
ASME B16.5 / ANSI 150
pressure range:
0 - 20 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate G
option:
with spring made of Inconel X-750
installation position:
direction of flow horizontal, vertical from below - up to DN80 also from above
product feature:
API 594 / ASME B16.05 / Class 150
