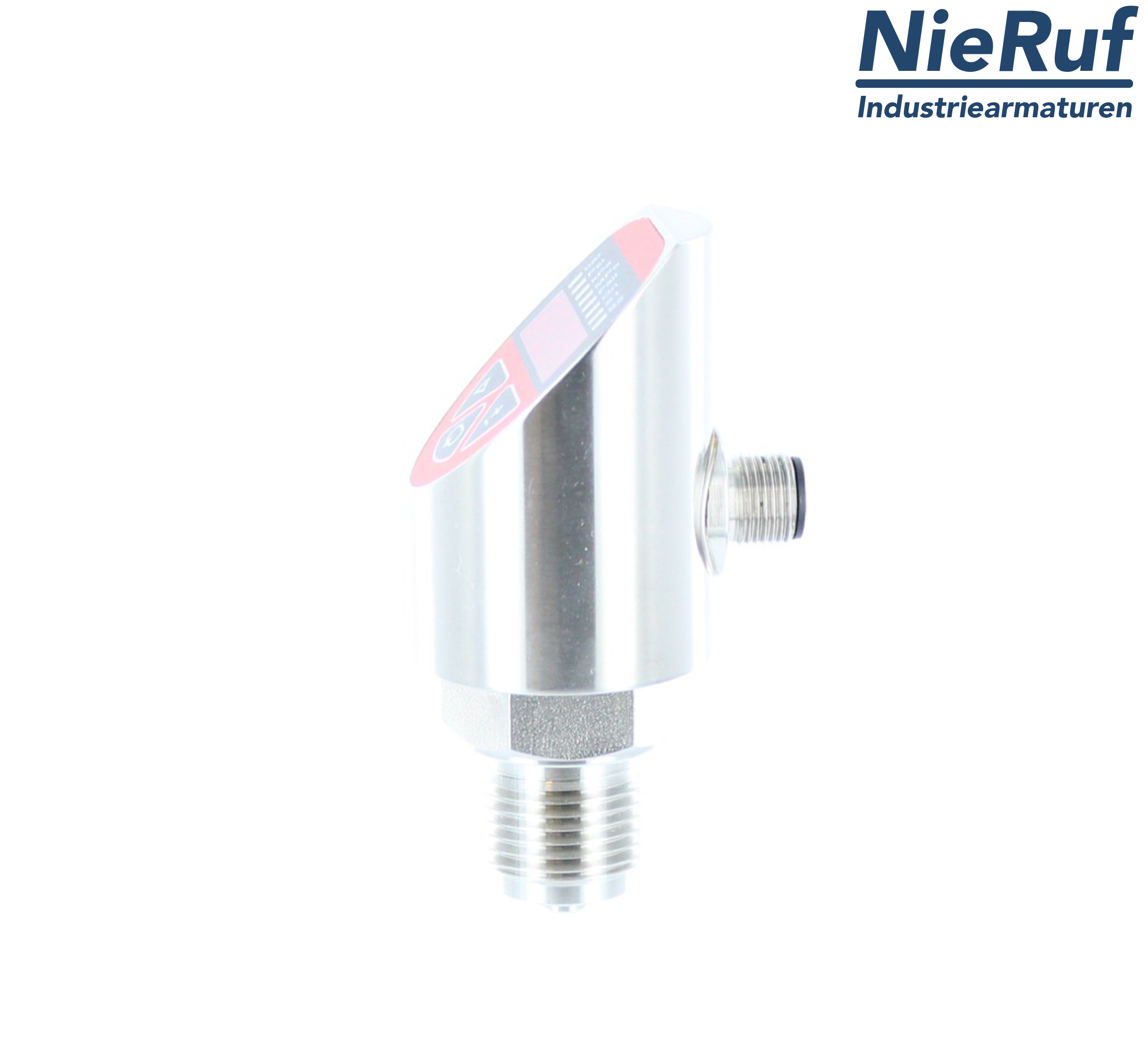

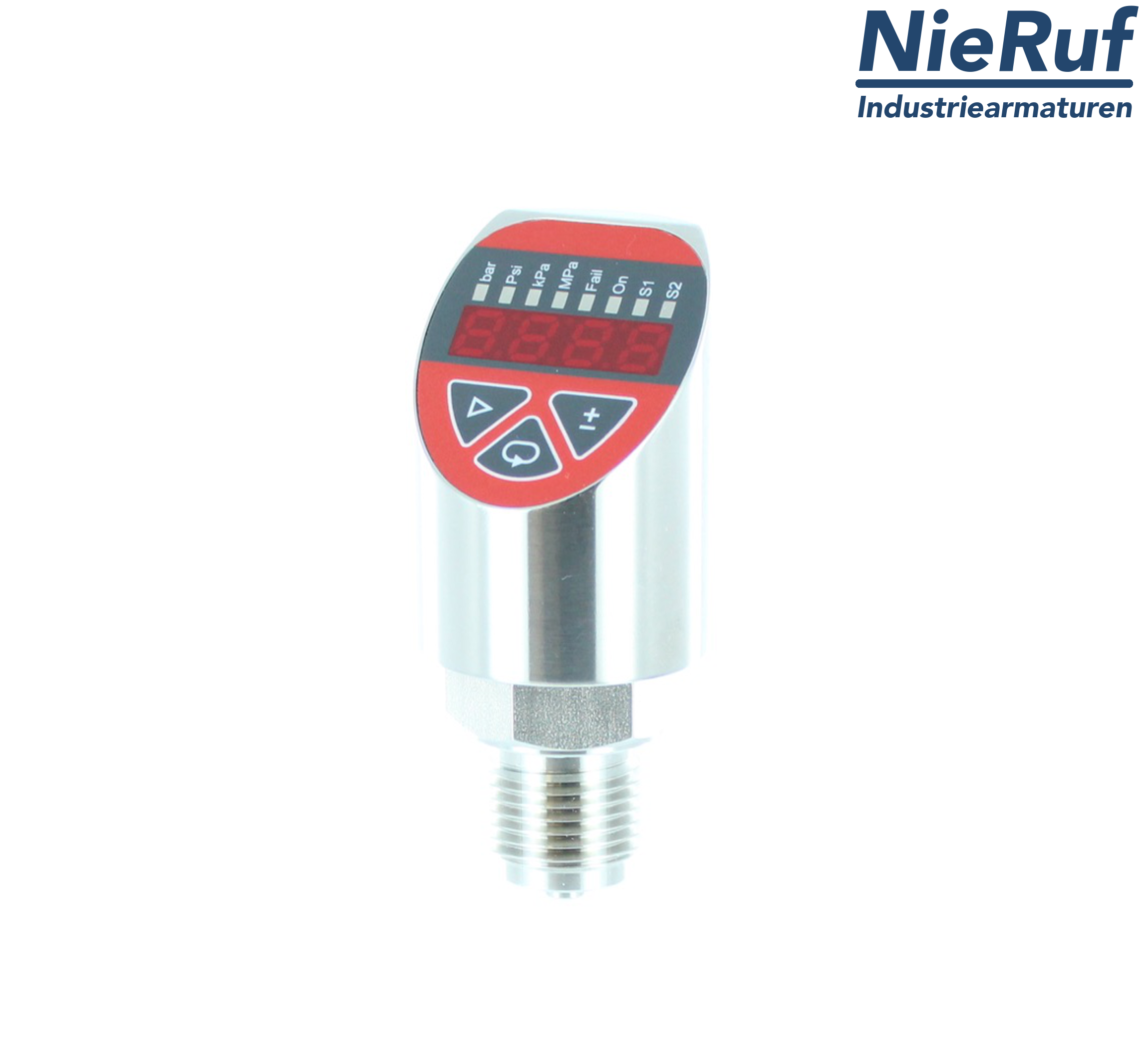

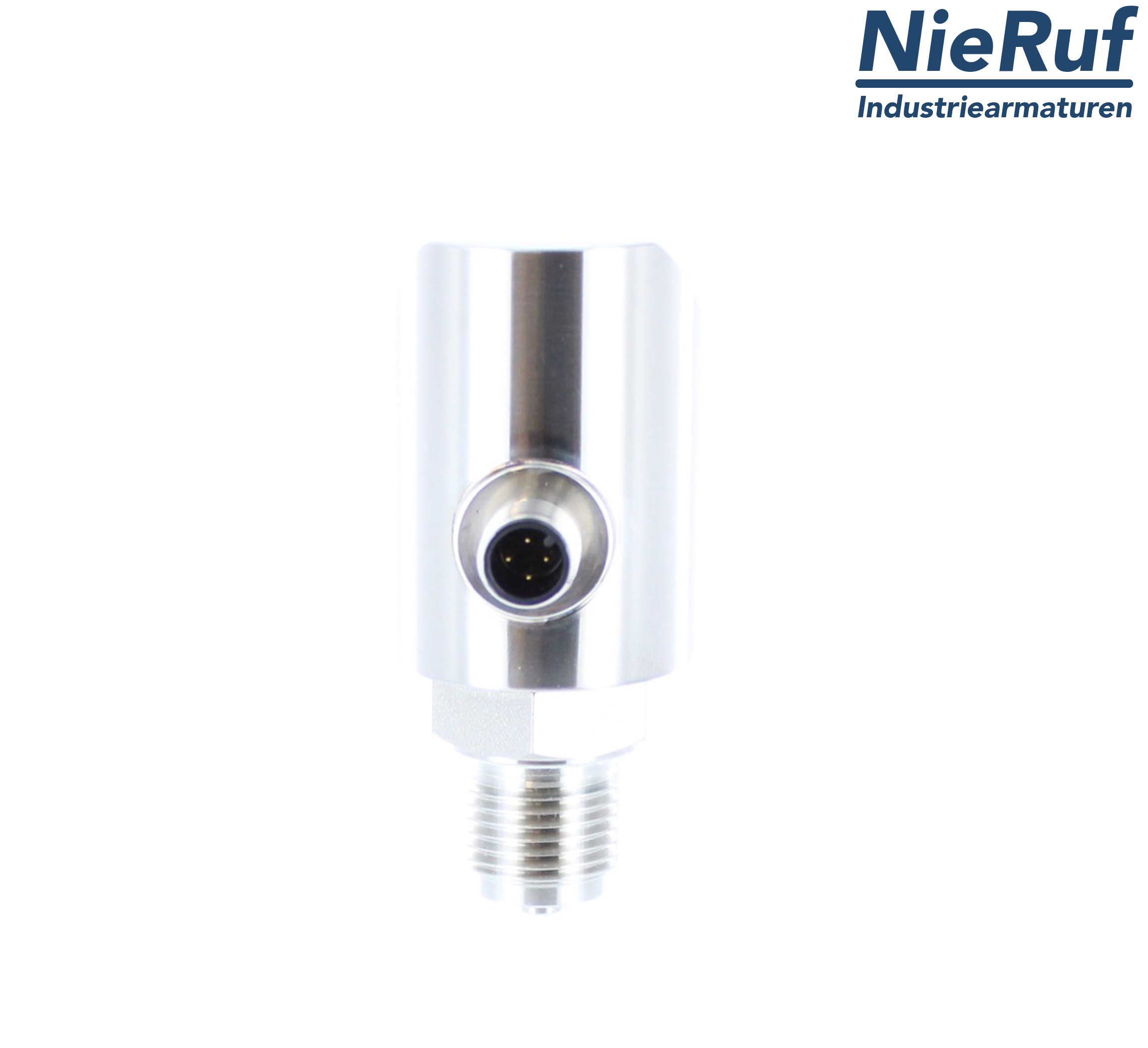

digital pressure sensor G 1/4" B pressure range 0,0 - 160,0 bar made of stainless steel 5-wire: 2xPNP, 1x4 - 20mA seal FPM for liquid and gaseous media
|product:||digital pressure sensor|
|diameter:||G 1/4" B|
|material connection:||stainless steel|
|media:||liquid and gaseous media|
|temperature:||-40°C up to +100°C|
|temperature ambiente:||-40°C up to +85°C|
|range of measurement:||0,0 - 160,0 bar|
|pressure version:||relative pressure|
|output:||5-wire: 2xPNP, 1x4 - 20mA|
|product feature:||High-quality pressure switch with 4-digit digital display and internal ceramic membrane.|
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
digital pressure sensor G 1/4" B 5-wire: 2xPNP, 1x4 - 20mA FPM 0,0 - 160,0 bar
product: digital pressure sensor
diameter: G 1/4" B
connection: male thread
material connection: stainless steel
material: chromium-nickel steel
media: liquid and gaseous media
temperature: -40°C up to +100°C
temperature ambiente: -40°C up to +85°C
range of measurement: 0,0 - 160,0 bar
pressure version: relative pressure
accuracy: ≤ 0,5%
output: 5-wire: 2xPNP, 1x4 - 20mA
plug: plug M12
product feature: High-quality pressure switch with 4-digit digital display and internal ceramic membrane.
