DS03091203.1

digital pressure sensor G 1/2" B IB 5-wire: 2xPNP, 1x4 - 20mA EPDM 0,0 - 16,0 bar

€651.10*

€774.81 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 2 - 3 weeks

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

Downloads

Datasheet

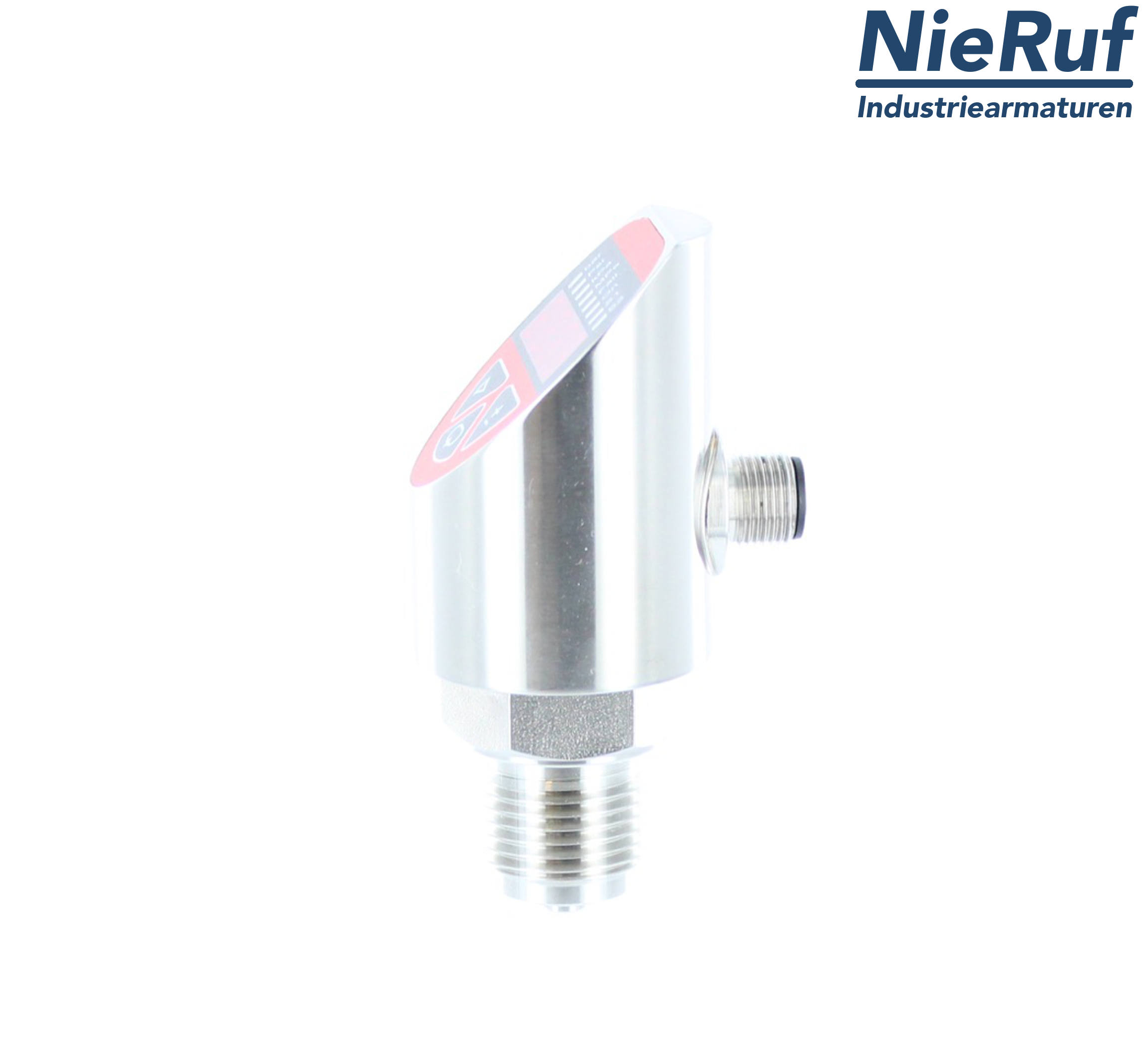

digital pressure sensor G 1/2" B IB 5-wire: 2xPNP, 1x4 - 20mA EPDM 0,0 - 16,0 bar

digital pressure sensor G 1/2" B IB pressure range 0,0 - 16,0 bar made of stainless steel 5-wire: 2xPNP, 1x4 - 20mA seal EPDM for liquid and gaseous media

product	digital pressure sensor
type	DS03
manufacturer	NieRuf
diameter	G 1/2" B IB
connection	male thread
material connection	stainless steel
material	chromium-nickel steel
seal	EPDM
media	liquid and gaseous media
temperature	-40°C up to +100°C
temperature ambiente	-40°C up to +85°C
membrane	ceramic
range of measurement	0,0 - 16,0 bar
pressure version	relative pressure
accuracy	≤ 0,5%
output	5-wire: 2xPNP, 1x4 - 20mA

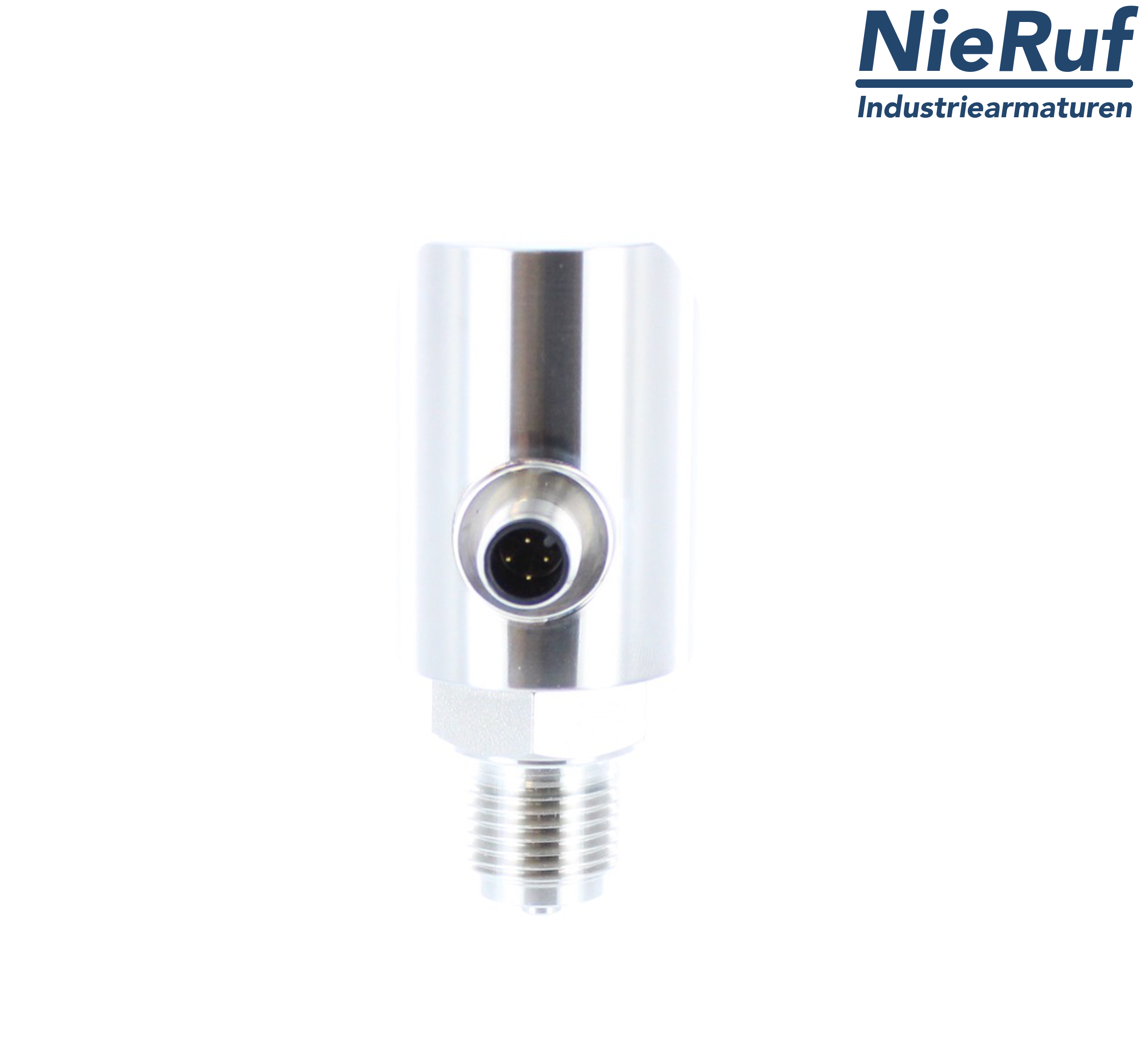

plug	plug M12 (inclusive)

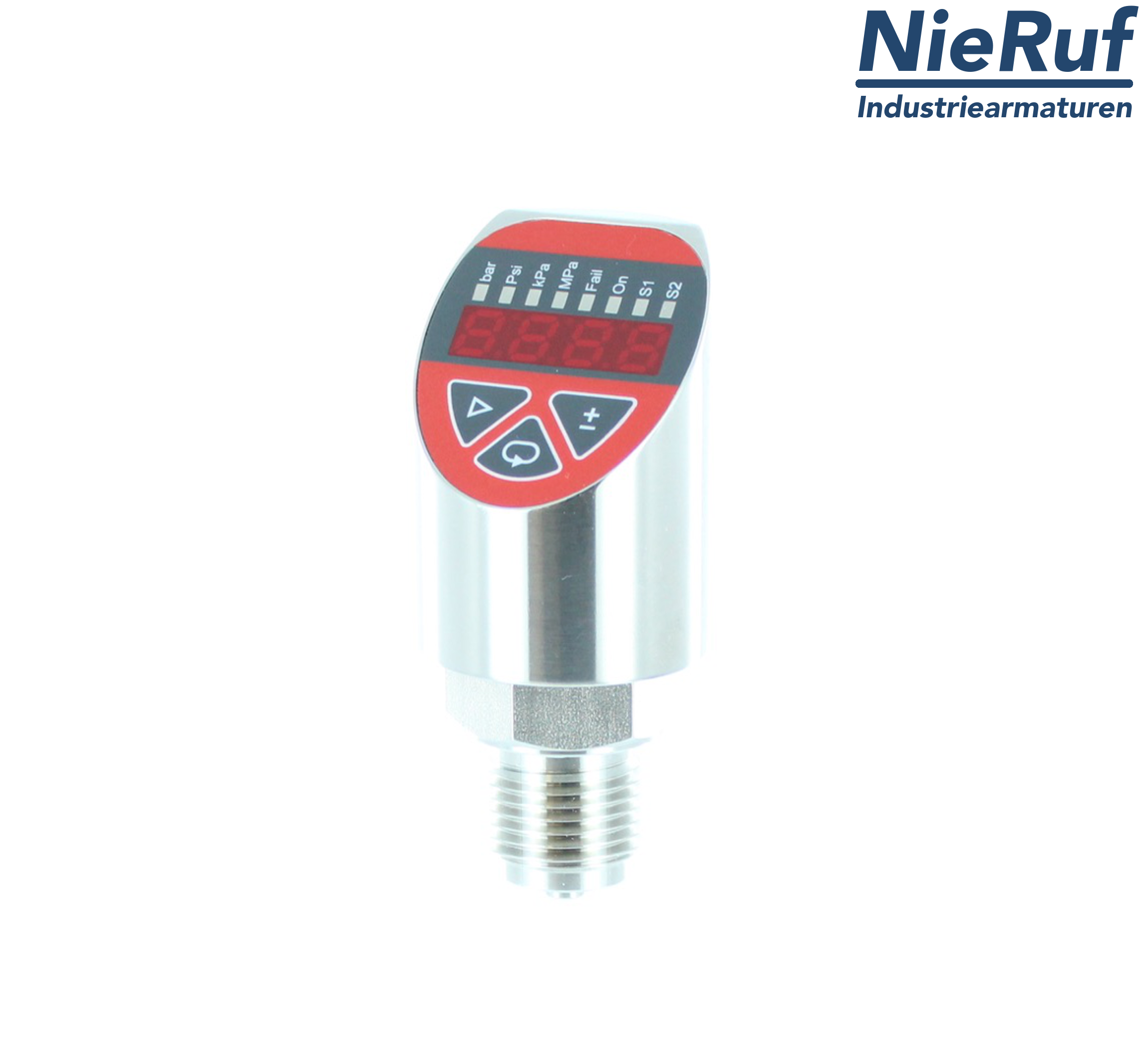

product feature	High-quality pressure switch with 4-digit digital display and internal ceramic membrane.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

digital pressure sensor G 1/2" B IB 5-wire: 2xPNP, 1x4 - 20mA EPDM 0,0 - 16,0 bar

Article no. : DS03091203.1
product: digital pressure sensor
type: DS03
manufacturer: NieRuf
diameter: G 1/2" B IB
connection: male thread
material connection: stainless steel
material: chromium-nickel steel
seal: EPDM
media: liquid and gaseous media
temperature: -40°C up to +100°C
temperature ambiente: -40°C up to +85°C
membrane: ceramic
range of measurement: 0,0 - 16,0 bar
pressure version: relative pressure
accuracy: ≤ 0,5%
output: 5-wire: 2xPNP, 1x4 - 20mA
plug: plug M12 (inclusive)
product feature: High-quality pressure switch with 4-digit digital display and internal ceramic membrane.
