DS03060103

digital pressure sensor G 1/2" B 4-wire: 1xPNP, 1x4 - 20mA FPM 0,0 - 4,0 bar

€366.30*

€435.90 VAT included.

Delivery time: 2 - 3 weeks

Delivery information

Our employee <strong>Daniel Beck</strong><br />will be happy to help you

Questions about the article?

Our employee Daniel Beck
will be happy to help you

Tel: +49714396669-04

E-Mail: beck@nieruf.com


Product number: DS03060103

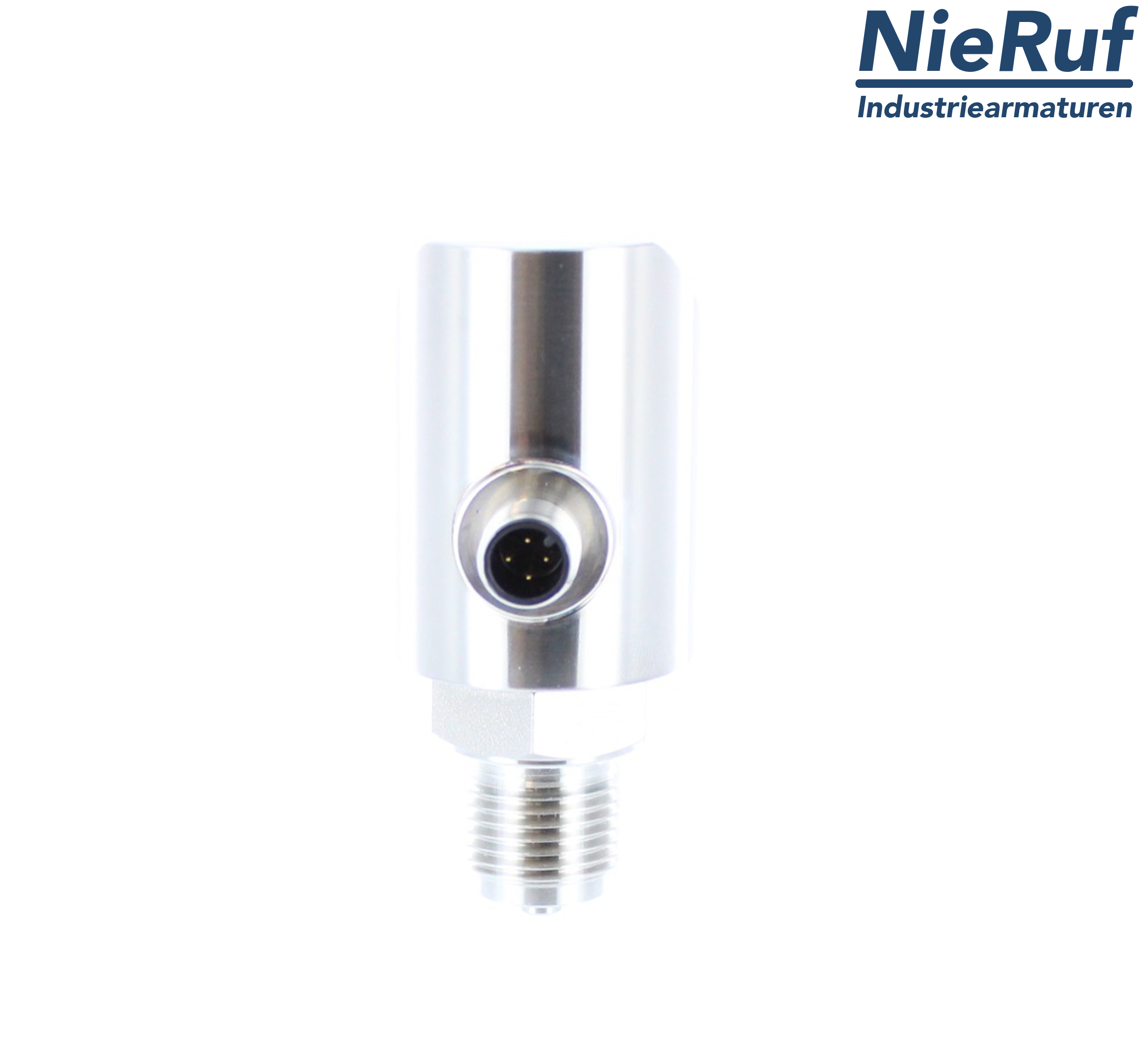

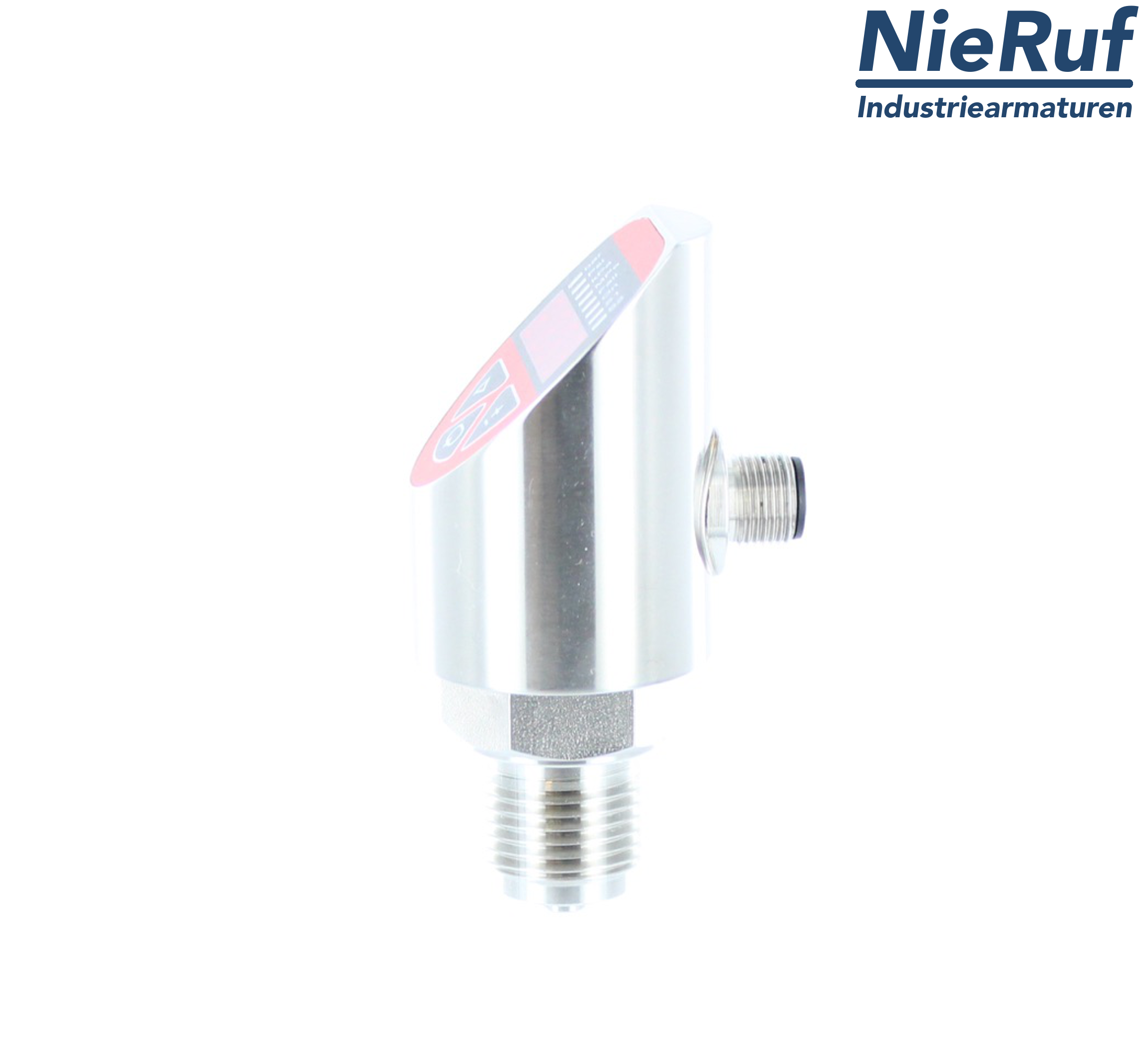

digital pressure sensor G 1/2" B 4-wire: 1xPNP, 1x4 - 20mA FPM 0,0 - 4,0 bar

digital pressure sensor G 1/2" B pressure range 0,0 - 4,0 bar made of stainless steel 4-wire: 1xPNP, 1x4 - 20mA seal FPM for liquid and gaseous media

product: digital pressure sensor
type: DS03
manufacturer: NieRuf
diameter: G 1/2" B
connection: male thread
material connection: stainless steel
material: chromium-nickel steel
seal: FPM
media: liquid and gaseous media
temperature: -40°C up to +100°C
temperature ambiente: -40°C up to +85°C
membrane: ceramic
range of measurement: 0,0 - 4,0 bar
pressure version: relative pressure
accuracy: ≤ 0,5%
output: 4-wire: 1xPNP, 1x4 - 20mA
plug: plug M12

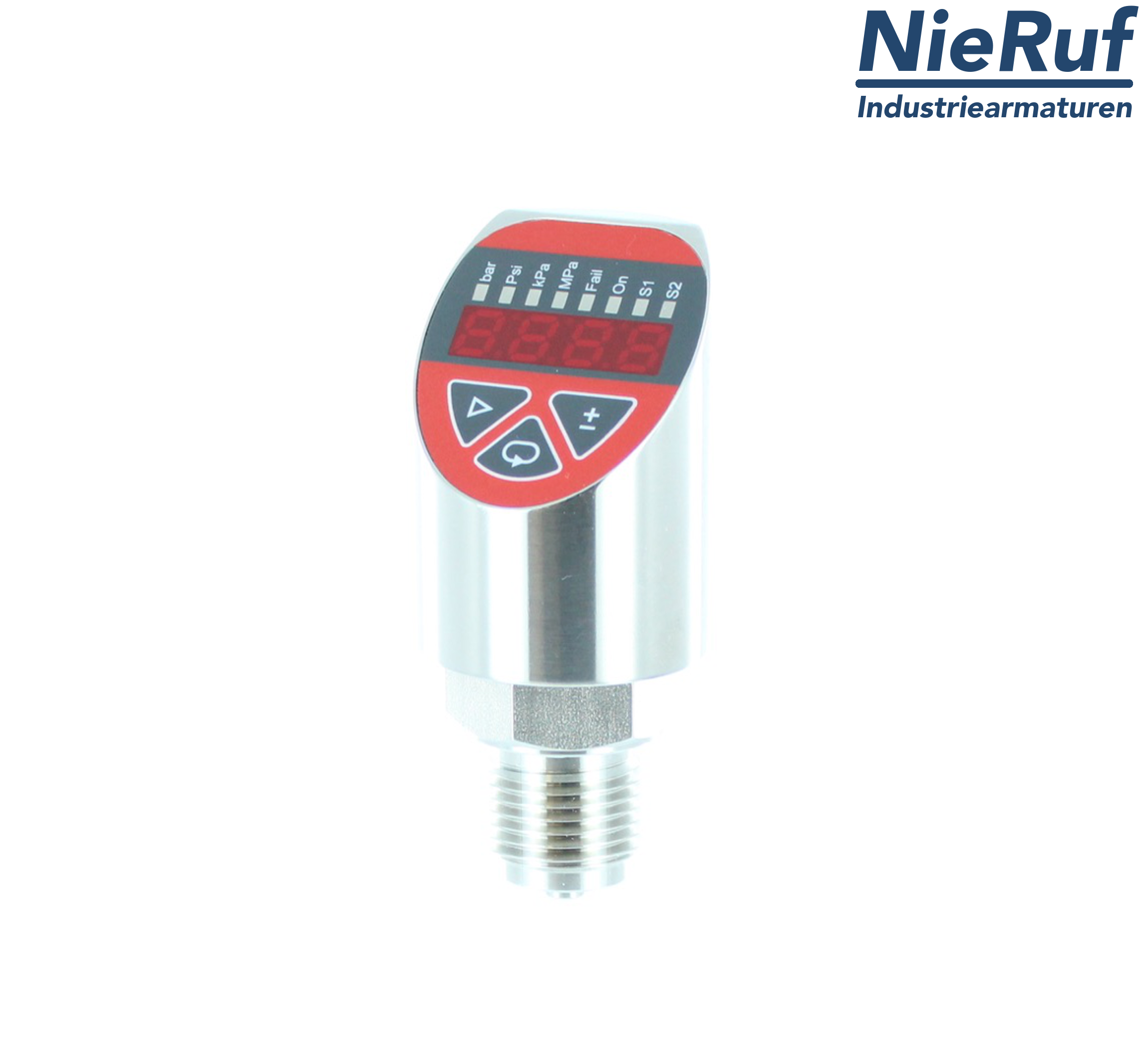

product feature: High-quality pressure switch with 4-digit digital display and internal ceramic membrane.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

digital pressure sensor G 1/2" B 4-wire: 1xPNP, 1x4 - 20mA FPM 0,0 - 4,0 bar

Article no. : DS03060103
product: digital pressure sensor
type: DS03
manufacturer: NieRuf
diameter: G 1/2" B
connection: male thread
material connection: stainless steel
material: chromium-nickel steel
seal: FPM
media: liquid and gaseous media
temperature: -40°C up to +100°C
temperature ambiente: -40°C up to +85°C
membrane: ceramic
range of measurement: 0,0 - 4,0 bar
pressure version: relative pressure
accuracy: ≤ 0,5%
output: 4-wire: 1xPNP, 1x4 - 20mA
plug: plug M12
product feature: High-quality pressure switch with 4-digit digital display and internal ceramic membrane.
