DS03131003
digital pressure sensor G 1/2" B 4-wire: 2xPNP EPDM 0,0 - 100,0 bar
- Lead time
- 2 - 3 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads

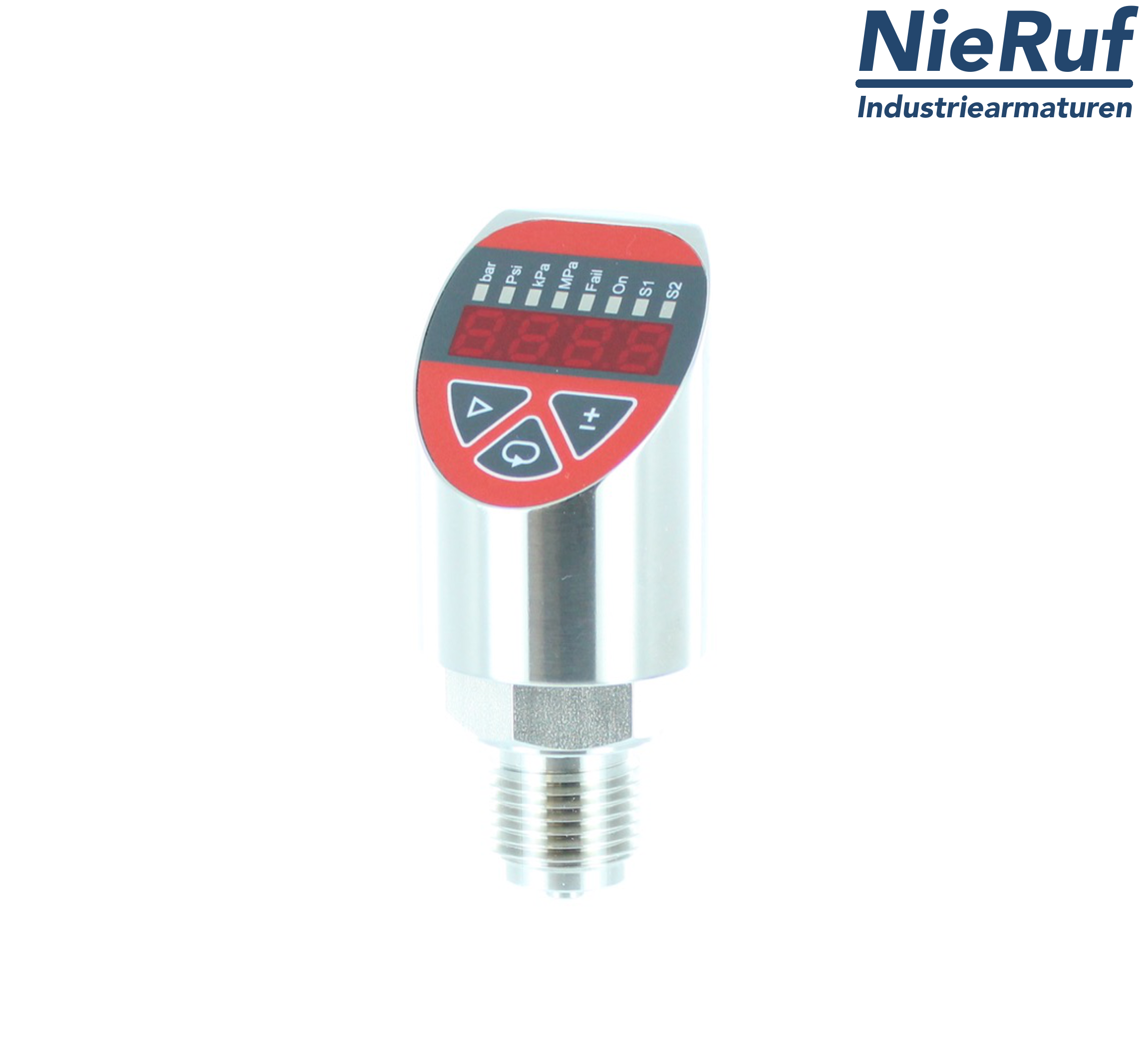

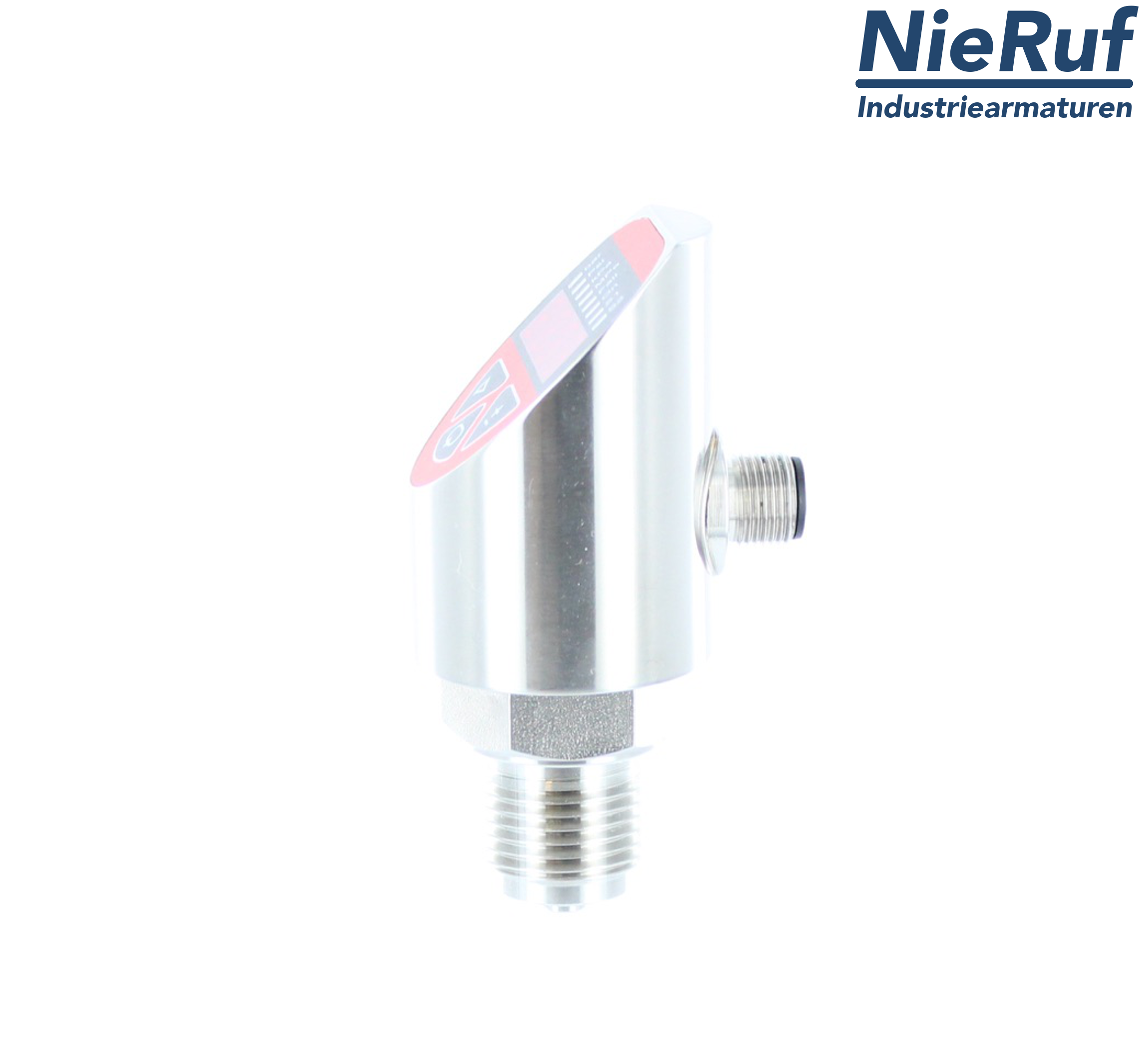

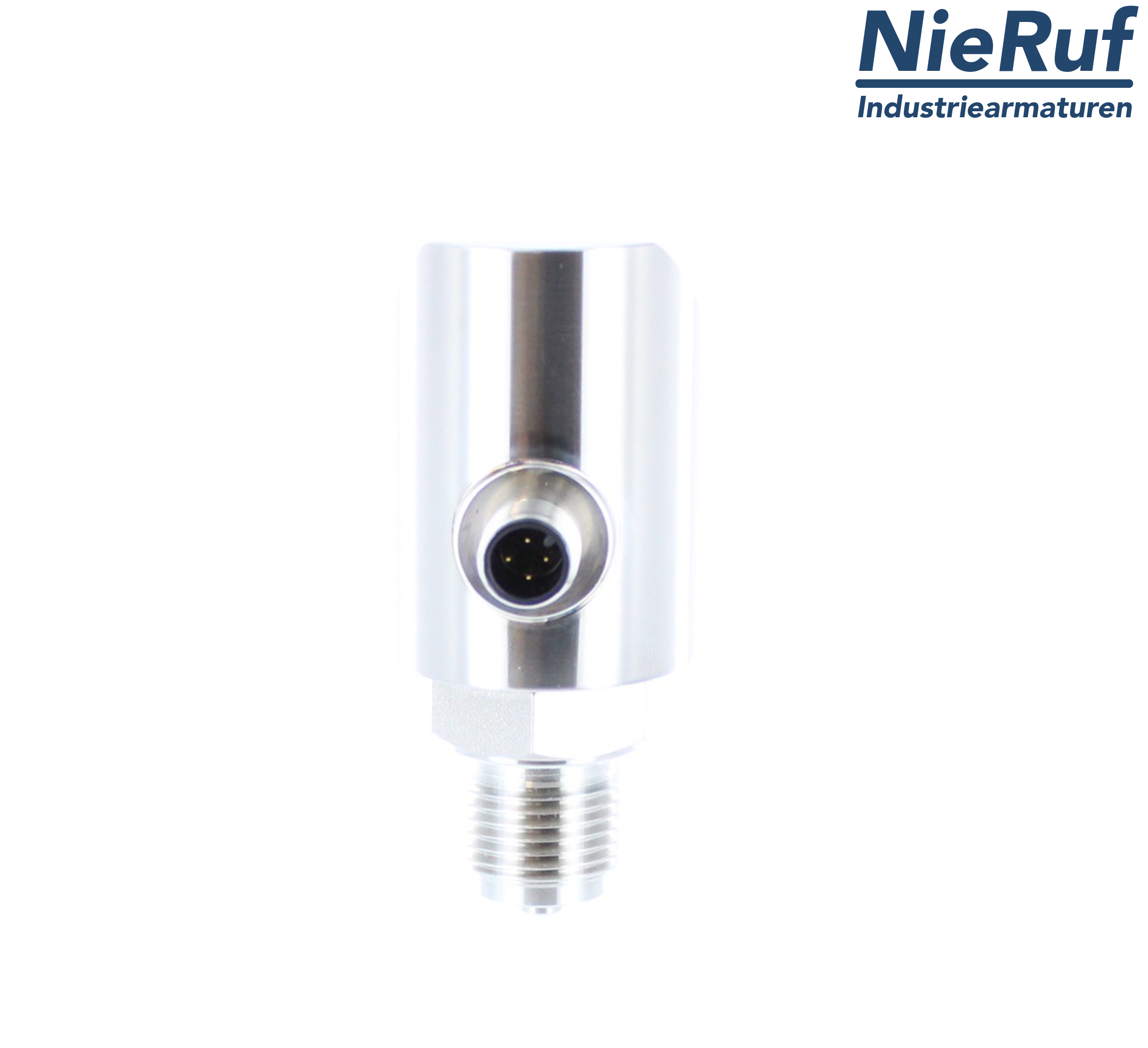

digital pressure sensor G 1/2" B 4-wire: 2xPNP EPDM 0,0 - 100,0 bar
digital pressure sensor G 1/2" B pressure range 0,0 - 100,0 bar made of stainless steel 4-wire: 2xPNP seal EPDM for liquid and gaseous media male thread
| product | digital pressure sensor |
|---|---|
| type | DS03 |
| manufacturer | NieRuf |
| diameter | G 1/2" B |
| connection | male thread |
| material connection | stainless steel |
| material | chromium-nickel steel |
| seal | EPDM |
| media | liquid and gaseous media |
| temperature | -40°C up to +100°C |
| temperature ambiente | -40°C up to +85°C |
| membrane | ceramic |
| range of measurement | 0,0 - 100,0 bar |
| pressure version | relative pressure |
| accuracy | ≤ 0,5% |
| output | 4-wire: 2xPNP |
| plug | plug M12 (inclusive) |
| product feature | High-quality pressure switch with 4-digit digital display and internal ceramic membrane. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
digital pressure sensor G 1/2" B 4-wire: 2xPNP EPDM 0,0 - 100,0 bar
Article no.
: DS03131003
product:
digital pressure sensor
type:
DS03
manufacturer:
NieRuf
diameter:
G 1/2" B
connection:
male thread
material connection:
stainless steel
material:
chromium-nickel steel
seal:
EPDM
media:
liquid and gaseous media
temperature:
-40°C up to +100°C
temperature ambiente:
-40°C up to +85°C
membrane:
ceramic
range of measurement:
0,0 - 100,0 bar
pressure version:
relative pressure
accuracy:
≤ 0,5%
output:
4-wire: 2xPNP
plug:
plug M12 (inclusive)
product feature:
High-quality pressure switch with 4-digit digital display and internal ceramic membrane.
