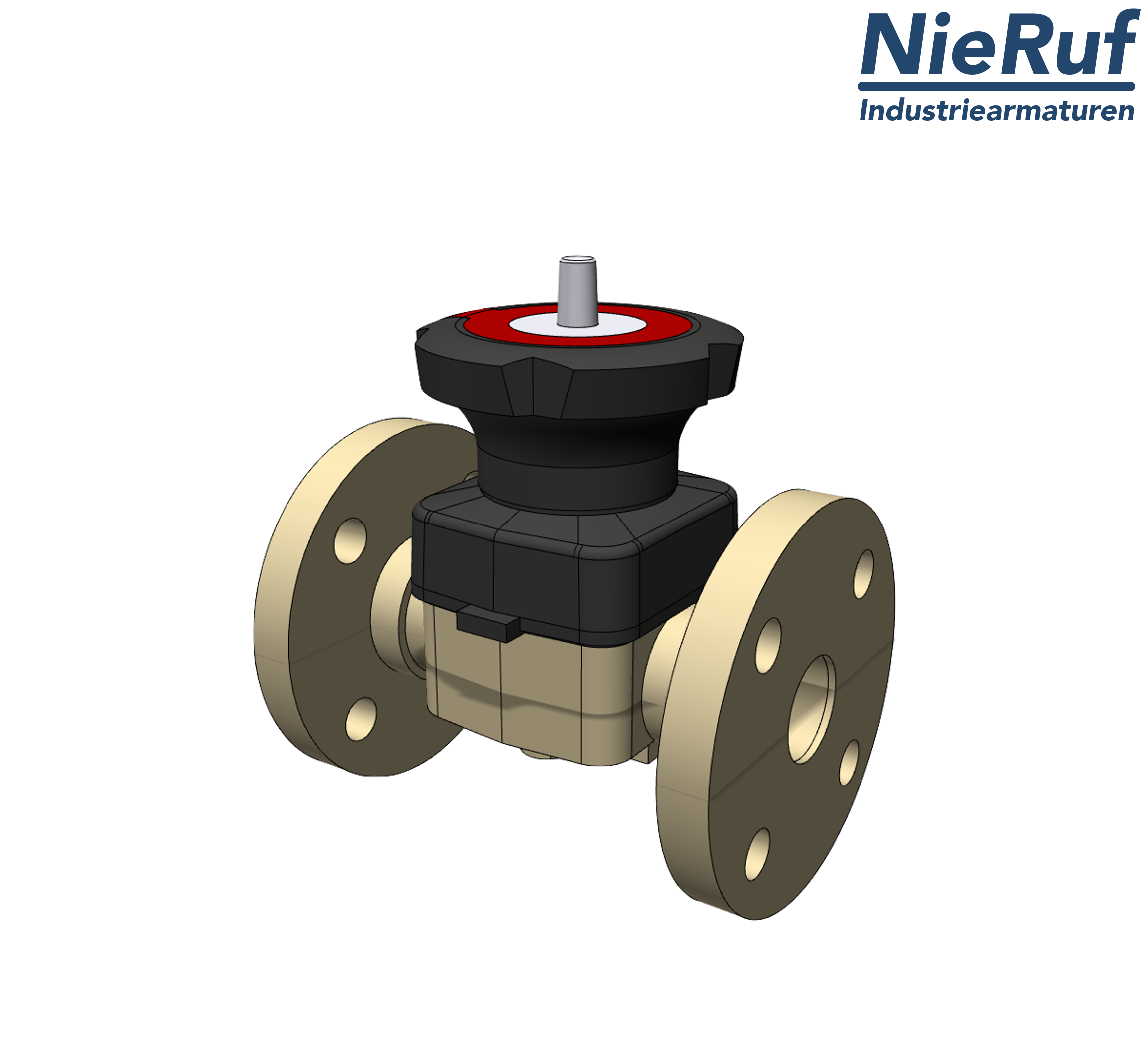

diaphragm valve PP-H DN32 flange PN10 / PN16 EPDM

MB01100306
Flange-pressure reducing valve DN 32 PN40 DM06 gunmetal/brass FKM 30 bar 3
quantity (pcs.):
132.20€ * 157.32€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
diaphragm valve PP-H DN32 flange PN10 / PN16 EPDM
diaphragm valve PP-H DN32 flange PN10 / PN16 EPDM-membrane handwheel made of PP-GR pressure: PN10 KVs value: 33 m3/h optimised fluid dynamic design
design: with handwheel
diameter: DN32
connection: flange PN10 / PN16
material: PP-H
actuator: handwheel made of PP-GR
diaphragm: EPDM
media: liquid and gaseous media
KVs-value m3/h: 33
temperature: 0°C up to +100°C
pressure range: PN10
product feature: optimised fluid dynamic design
product feature 2: fibreglass reinforced PP-GR make the diaphragm-valve suitable for aggressive chemically applications
diaphragm valve PP-H DN32 flange PN10 / PN16 EPDM

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

diaphragm valve PP-H DN32 flange PN10 / PN16 EPDM
