CV05021103

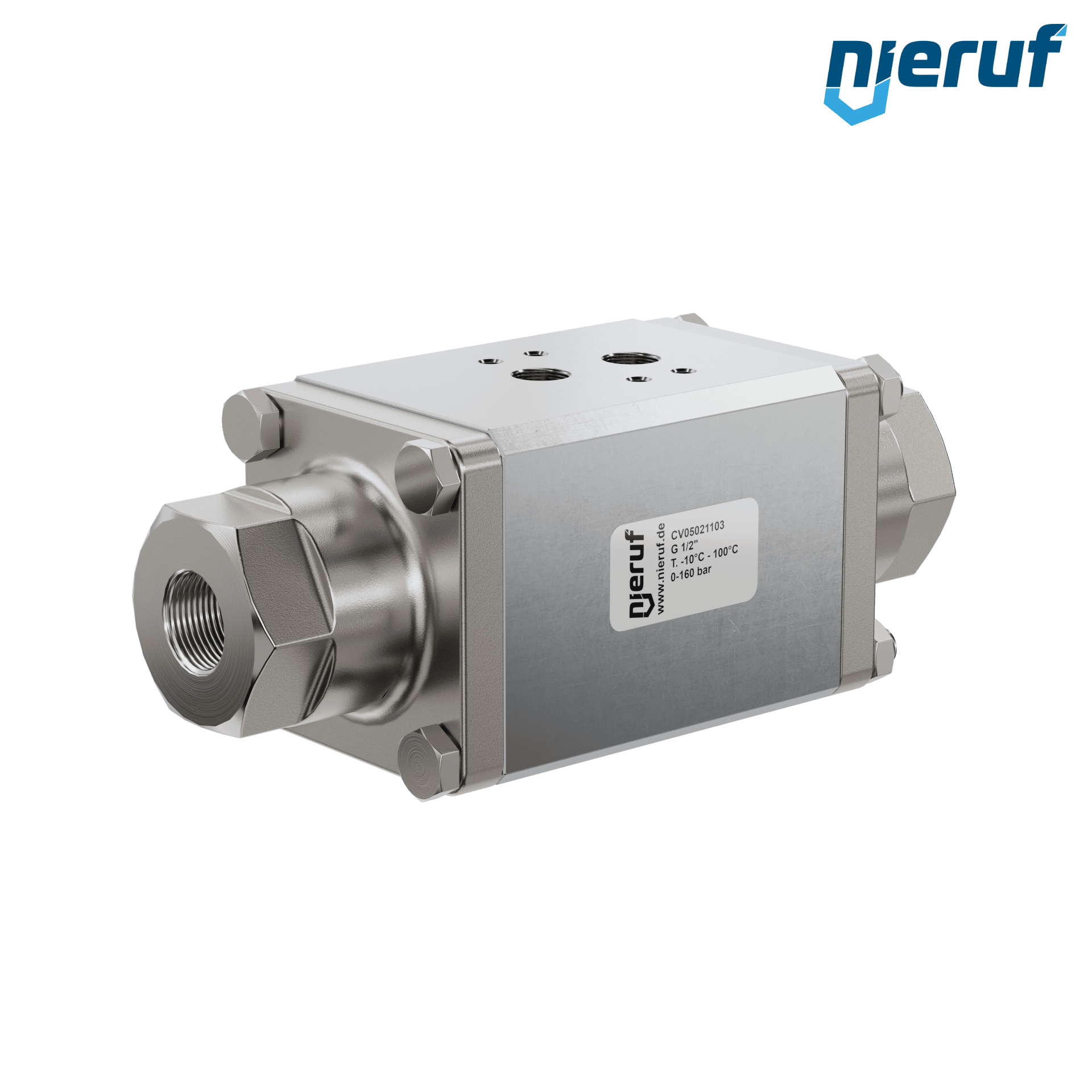

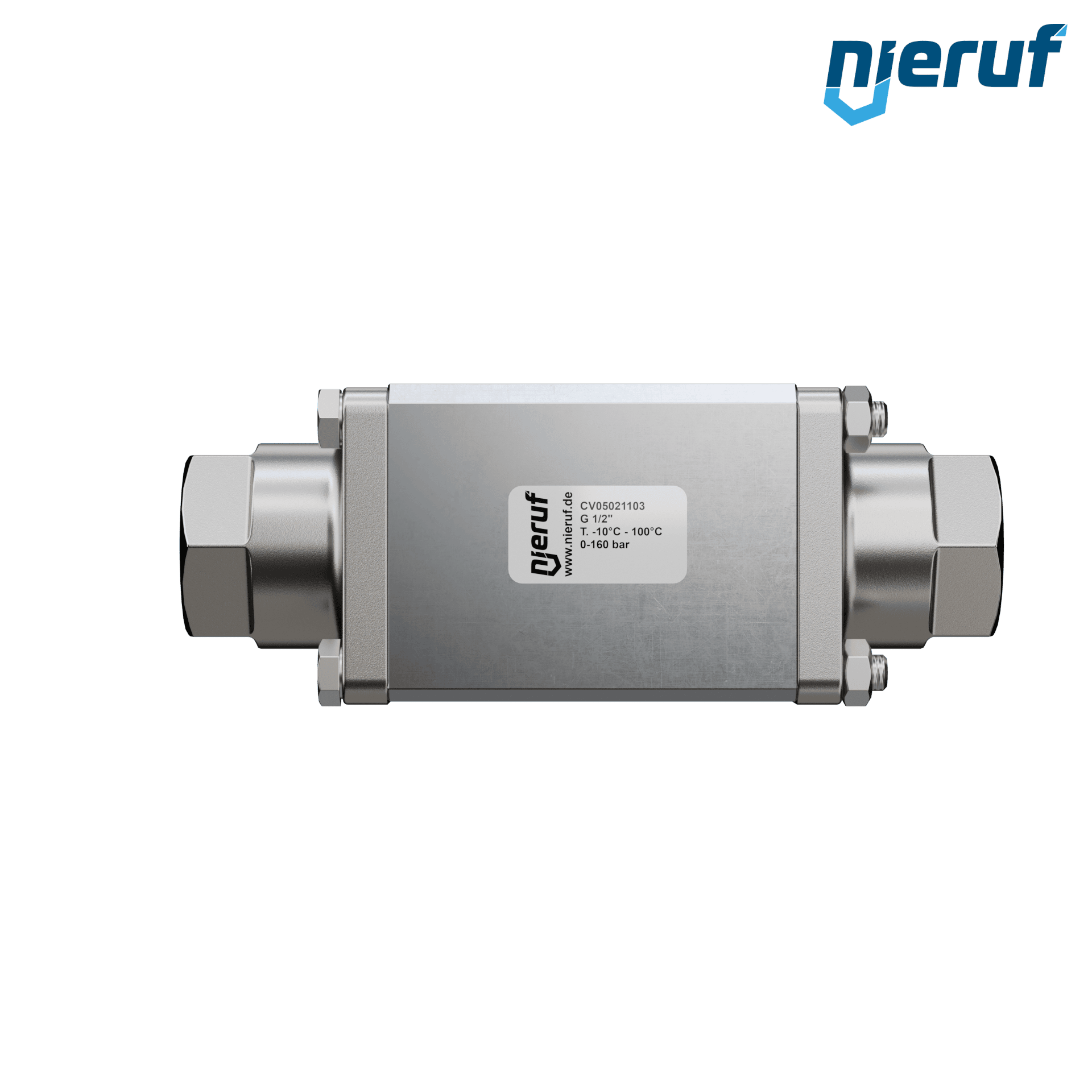

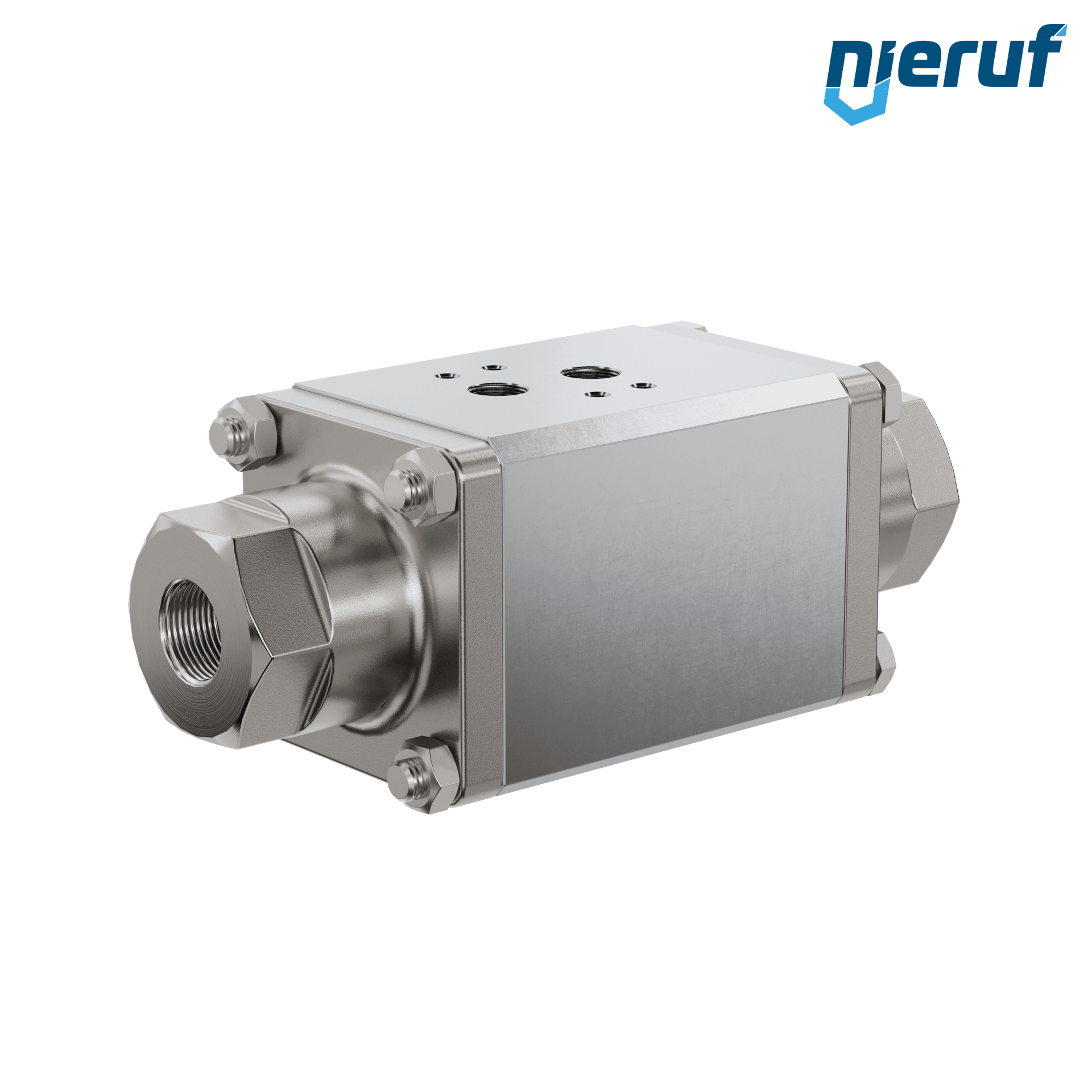

2/2-Way-Coaxial-valve CV05 1/2" inch fm - DN15 stainless steel max. 160 bar NO - for water application
- Lead time
- 2 - 3 weeks
Equipment
Questions about the article?
2/2 Way Coaxial-valve CV05 1/2" inch fm - DN15 made of brass, externally controlled up to max. 160 bar, NO - normally opened - for Water
| product | Coaxial-valve |
|---|---|
| type | CV05 |
| manufacturer | NieRuf |
| design | 2/2 Way-valve |
| diameter | DN15 - 1/2" inch |
| connection | female thread |
| material | stainless steel 1.4305 / AISI 303 |
| seal | FKM / PTFE |
| function | NO - normally open |
| control | externally controlled |
| media | Water |
| temperature | -10°C up to. +80°C |
| pressure range | 0 - 160 bar |
| installation position | any position |
| product feature | Double acting piston with returning spring, Backpressure-leakproof till 16 bar, bi-directional flow direction with short switching time |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
2/2-Way-Coaxial-valve CV05 1/2" inch fm - DN15 stainless steel max. 160 bar NO - for water application
Article no.
: CV05021103
product:
Coaxial-valve
type:
CV05
manufacturer:
NieRuf
design:
2/2 Way-valve
diameter:
DN15 - 1/2" inch
connection:
female thread
material:
stainless steel 1.4305 / AISI 303
seal:
FKM / PTFE
function:
NO - normally open
control:
externally controlled
media:
Water
temperature:
-10°C up to. +80°C
pressure range:
0 - 160 bar
installation position:
any position
product feature:
Double acting piston with returning spring, Backpressure-leakproof till 16 bar, bi-directional flow direction with short switching time
