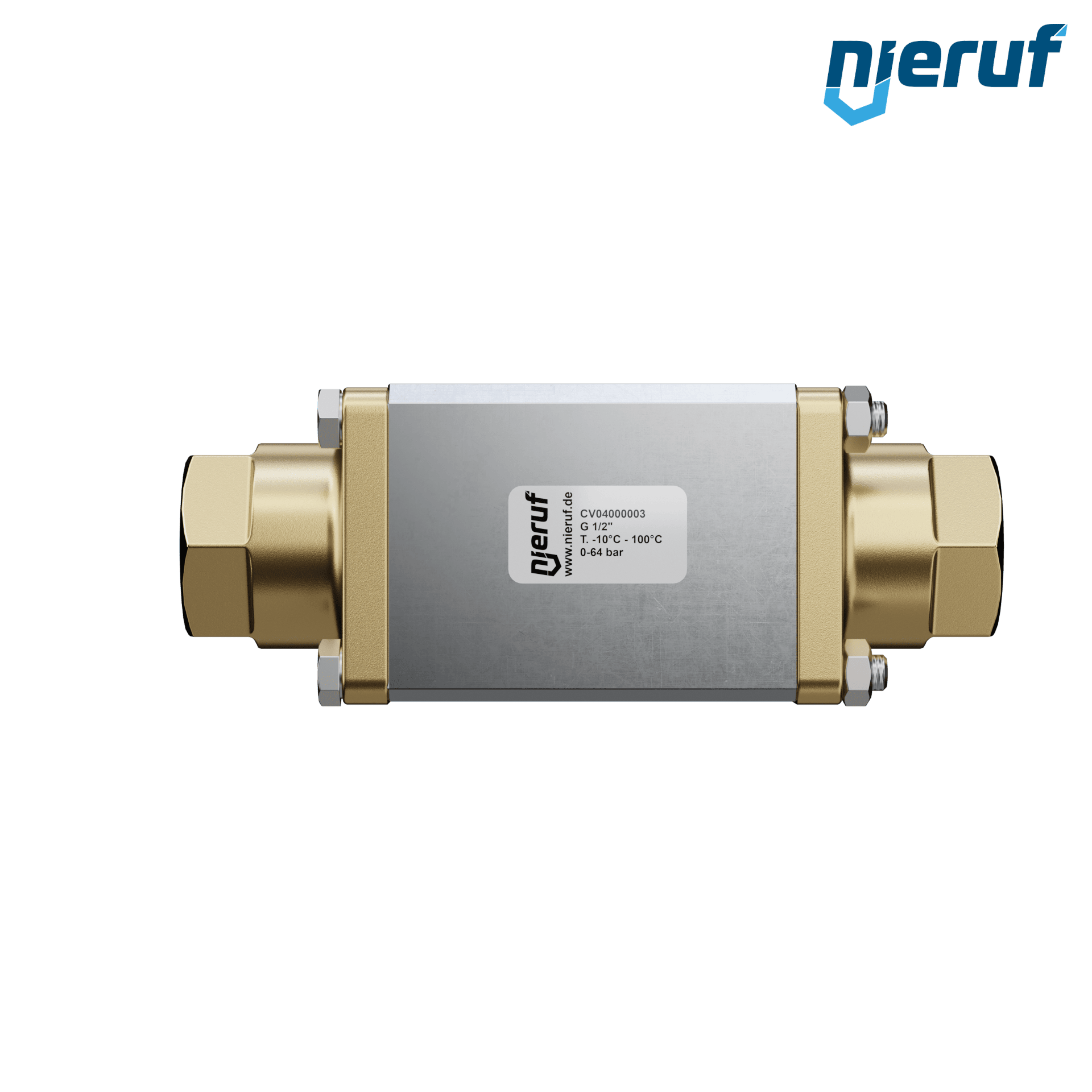

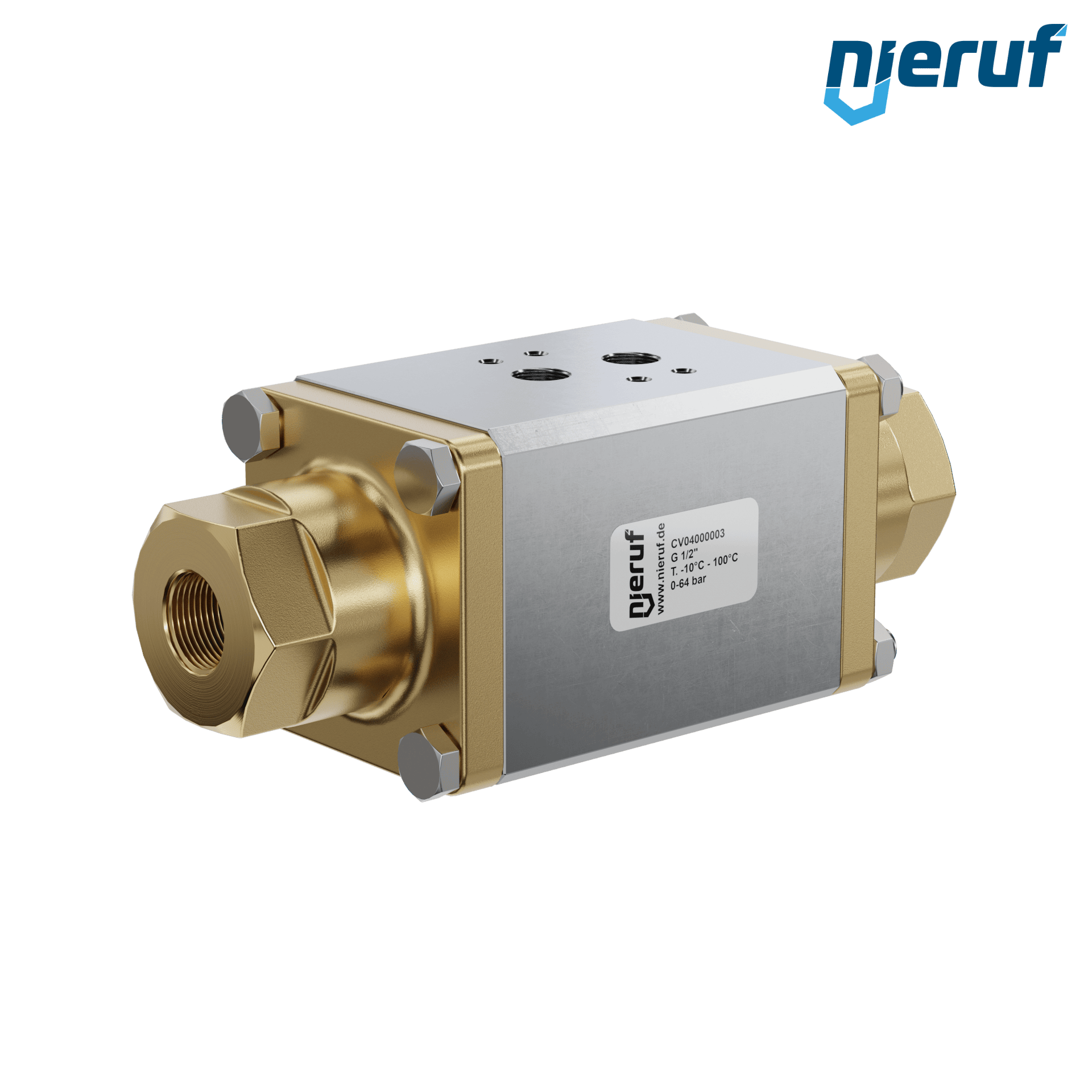

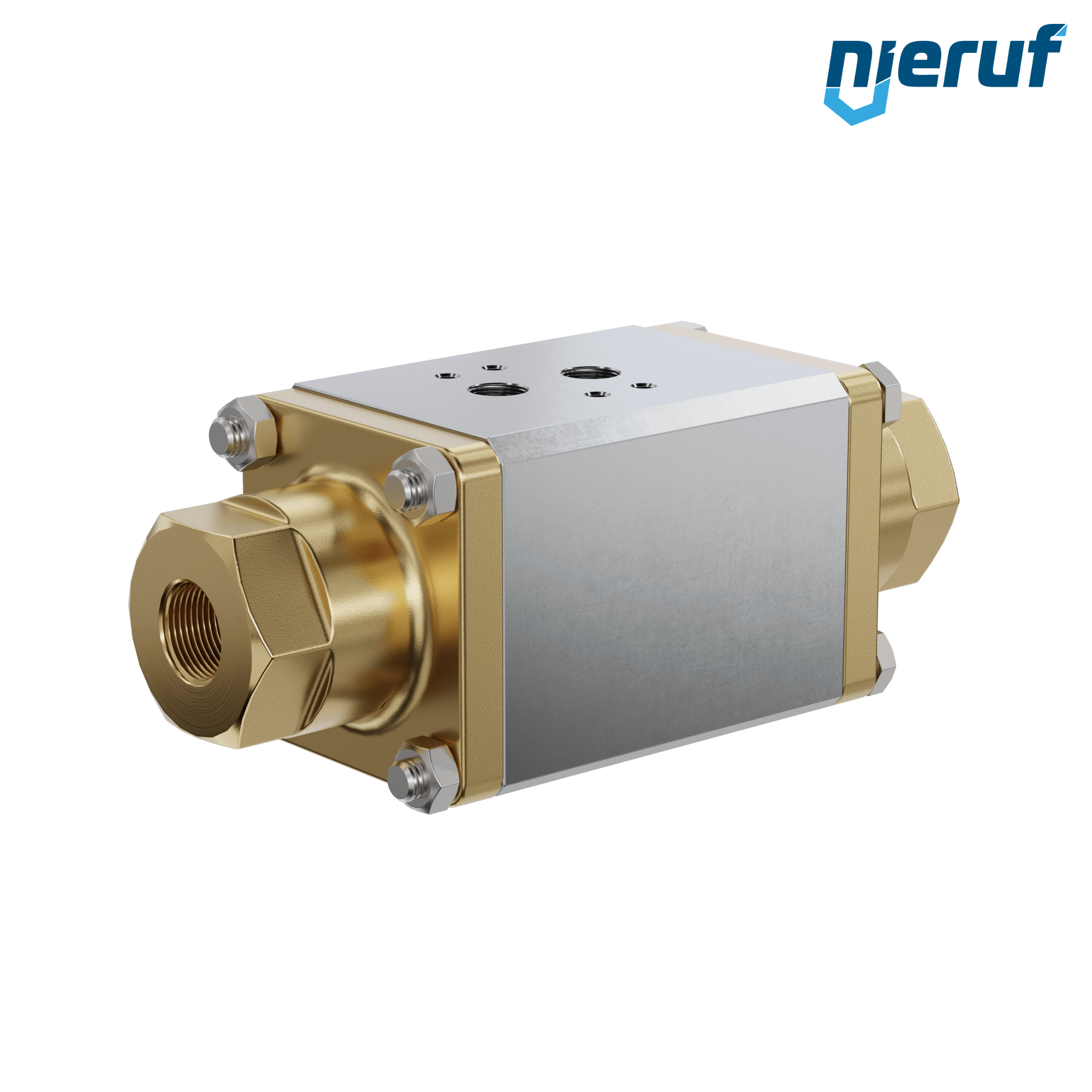

2/2 Way Coaxial-valve CV04 1/2" inch fm - DN15 made of brass, externally controlled up to max. 64 bar, NC - normally closed
| product | Coaxial-valve |
|---|---|
| type | CV04 |
| manufacturer | NieRuf |
| design | 2/2 Way-valve |
| diameter | DN15 - 1/2" inch |
| connection | female thread |
| material | brass |
| seal | FKM / PTFE |
| function | NC - normally closed |
| control | externally controlled |
| media | liquid and gaseous media |
| temperature | -10°C up to. +100°C |
| pressure range | 0 - 64 bar |
| installation position | any position |
| product feature | Double acting piston with returning spring, Backpressure-leakproof till 16 bar, bi-directional flow direction with short switching time |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
2/2-Way-Coaxial-valve CV04 1/2" inch fm - DN15 brass max. 64 bar NC
Article no.
: CV04000003
product:
Coaxial-valve
type:
CV04
manufacturer:
NieRuf
design:
2/2 Way-valve
diameter:
DN15 - 1/2" inch
connection:
female thread
material:
brass
seal:
FKM / PTFE
function:
NC - normally closed
control:
externally controlled
media:
liquid and gaseous media
temperature:
-10°C up to. +100°C
pressure range:
0 - 64 bar
installation position:
any position
product feature:
Double acting piston with returning spring, Backpressure-leakproof till 16 bar, bi-directional flow direction with short switching time

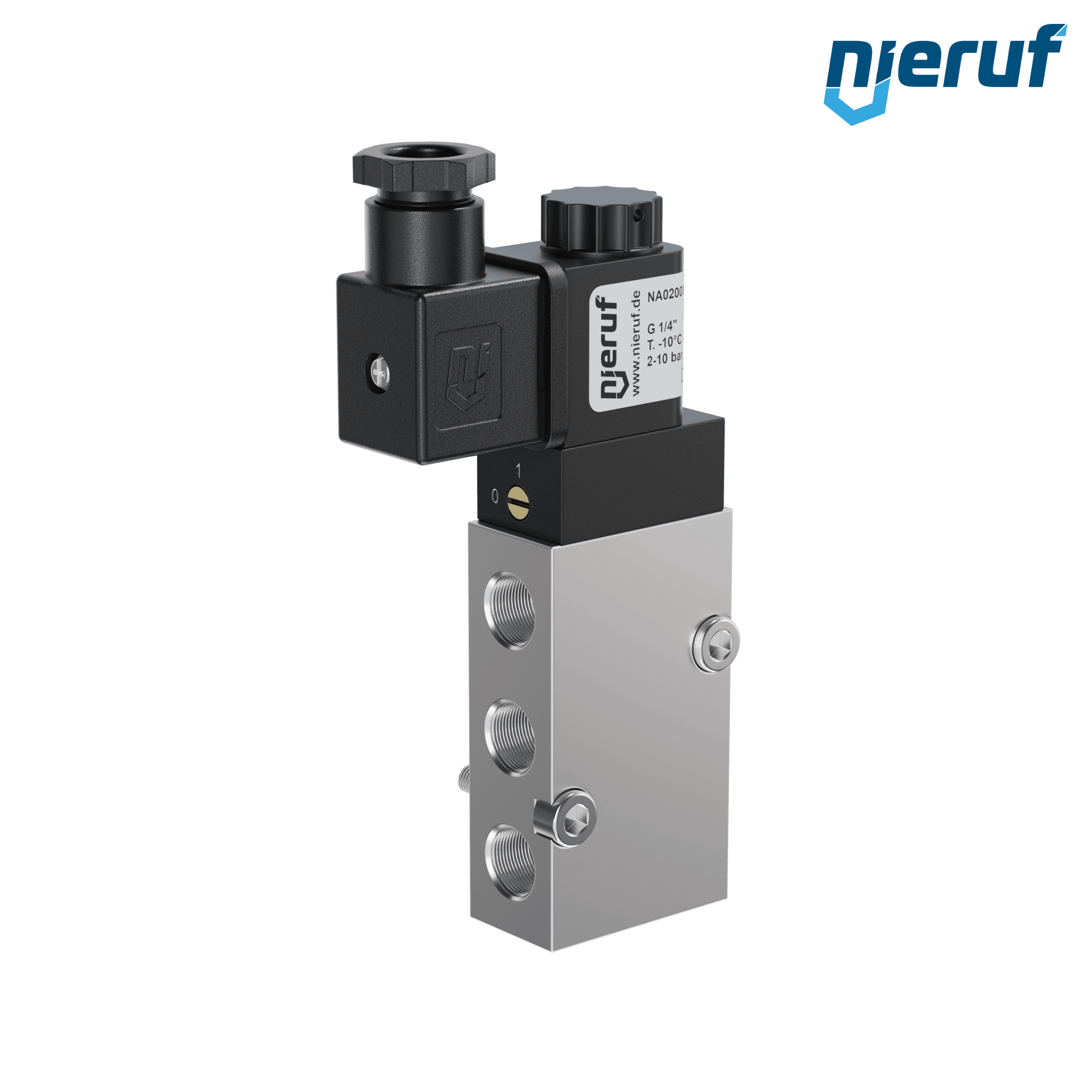

5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 230V 50Hz
