CV07001103
ATEX coaxial-valve CV07 1/2" inch fm - DN15 stainless steel 230V AC NO - for water application
- Lead time
- 2 - 3 weeks
Equipment
Questions about the article?

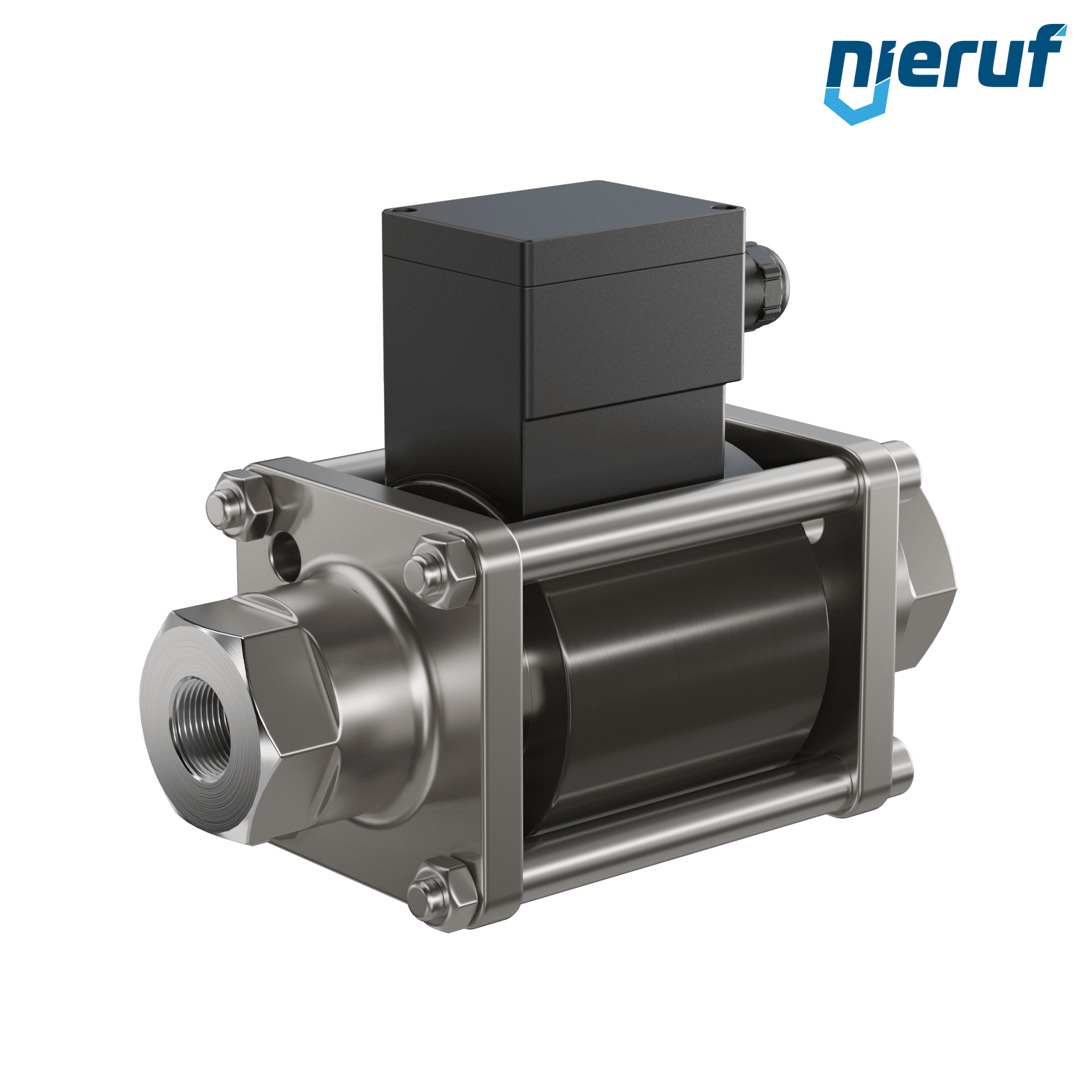

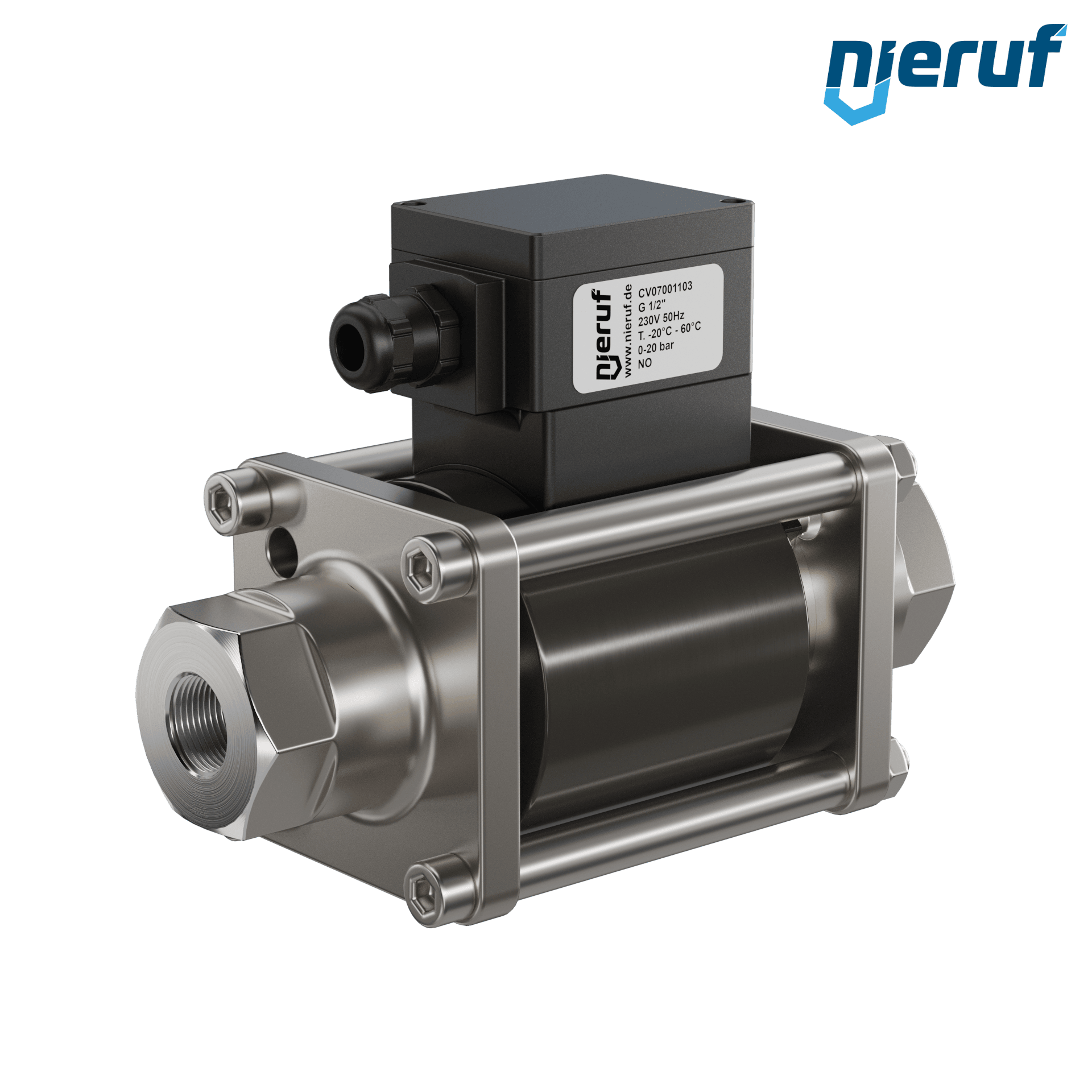

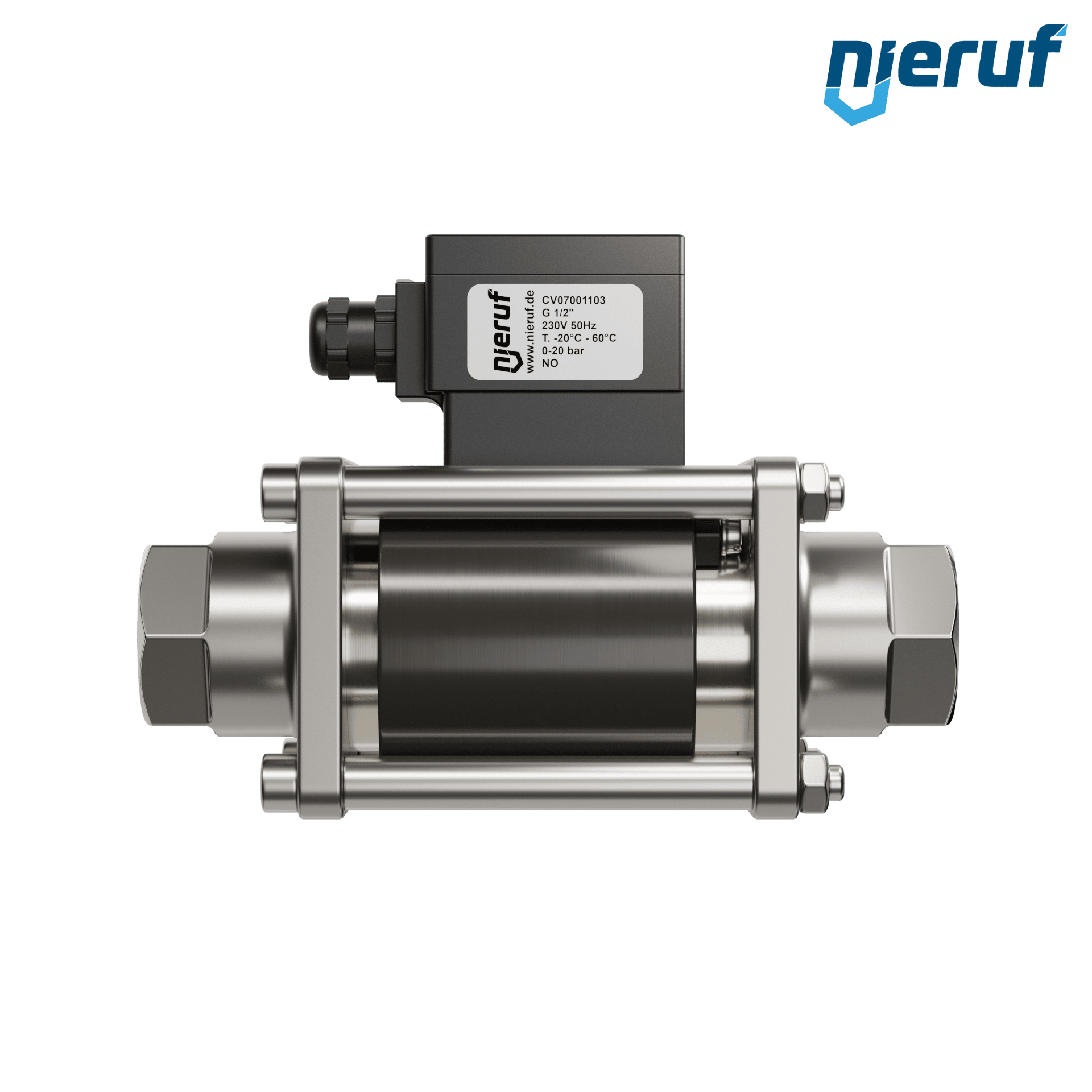

ATEX 2/2 Way Coaxial-valve CV07 1/2" inch fm - DN15 made of stainless steel, direct acting up to max. 20 bar, NO - normal open voltage 230V AC - for water
| product | Coaxial-valve |
|---|---|
| type | CV07 |
| manufacturer | NieRuf |
| design | 2/2 Way-valve |
| diameter | DN15 - 1/2" inch |
| connection | female thread |
| material | stainless steel 1.4305 / AISI 303 |
| seal | FKM / PTFE |
| function | NO - normally open |
| control | direct acting |
| voltage | 230V 50Hz |
| media | Water |
| temperature | -10°C up to. +60°C |
| pressure range | 0 - 20 bar |
| installation position | any position |
| Ex-proof | II 2G Ex em II T4 II 2D td A21 IP65 T130°C |
| product feature | Backpressure-leakproof till 16 bar, bi-directional flow direction |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ATEX coaxial-valve CV07 1/2" inch fm - DN15 stainless steel 230V AC NO - for water application
Article no.
: CV07001103
product:
Coaxial-valve
type:
CV07
manufacturer:
NieRuf
design:
2/2 Way-valve
diameter:
DN15 - 1/2" inch
connection:
female thread
material:
stainless steel 1.4305 / AISI 303
seal:
FKM / PTFE
function:
NO - normally open
control:
direct acting
voltage:
230V 50Hz
media:
Water
temperature:
-10°C up to. +60°C
pressure range:
0 - 20 bar
installation position:
any position
Ex-proof:
II 2G Ex em II T4 II 2D td A21 IP65 T130°C
product feature:
Backpressure-leakproof till 16 bar, bi-directional flow direction
