EF03001010
connector EF03 brass NBR D10mm
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads

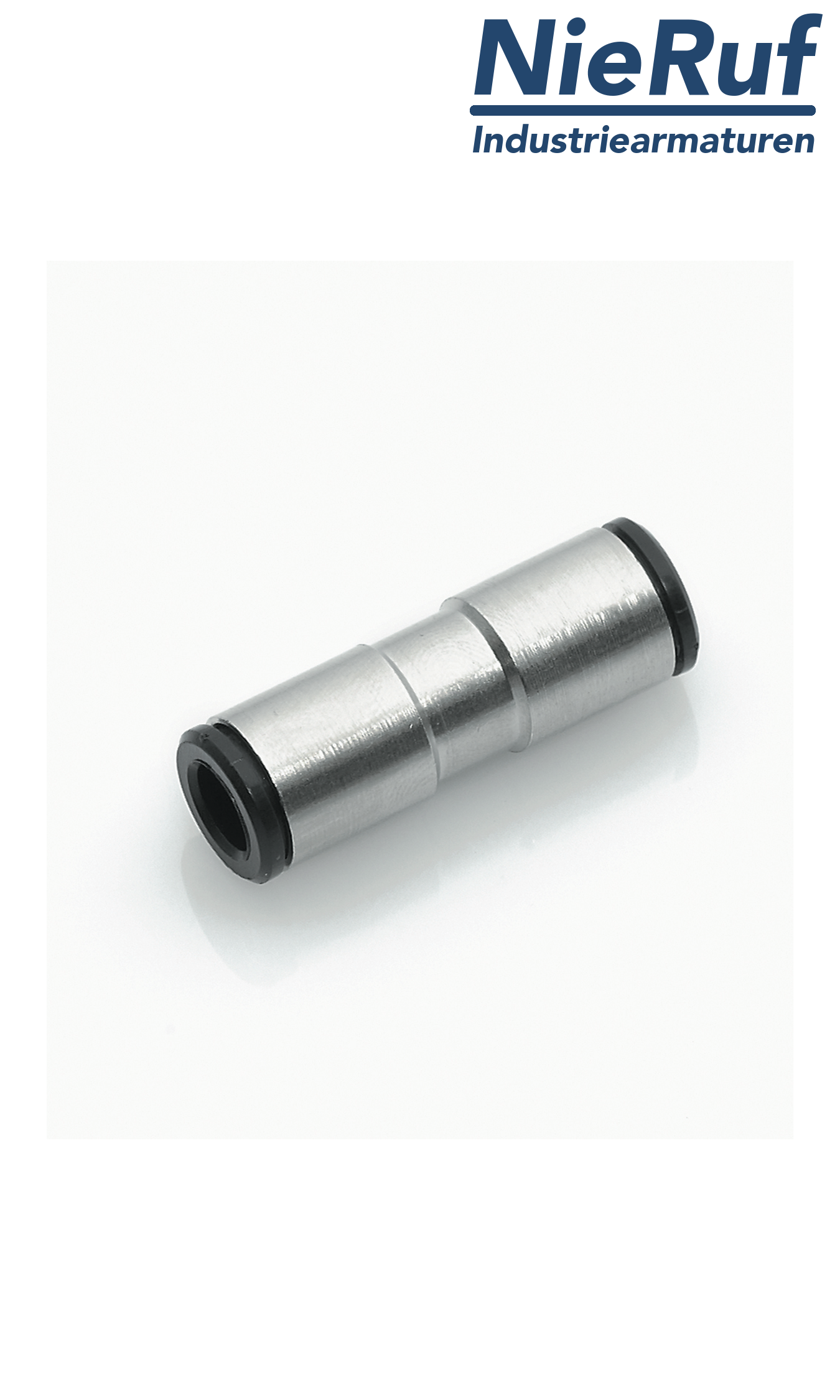

connector EF03 brass NBR D10mm
port connection connector made of brass with NBR-seal D10mm for lubricated & non-lubricated compressed air up to 16 bar
| product | port connection |
|---|---|
| type | EF03 |
| manufacturer | NieRuf |
| design | connector |
| tube connection 1 | D10mm |
| tube connection 2 | D10mm |
| body material | brass Ms58 nickel-plated |
| seal | NBR |
| collet | stainless steel 1.4401 |
| pressure ring | black plastic |
| thread | cylindrical |
| media | lubricated & non-lubricated compressed air |
| max. working pressure | up to 16 bar |
| product feature | connector to connect or to plug pipes in pneumatic- or pressure air applications. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
connector EF03 brass NBR D10mm
Article no.
: EF03001010
product:
port connection
type:
EF03
manufacturer:
NieRuf
design:
connector
tube connection 1:
D10mm
tube connection 2:
D10mm
body material:
brass Ms58 nickel-plated
seal:
NBR
collet:
stainless steel 1.4401
pressure ring:
black plastic
thread:
cylindrical
media:
lubricated & non-lubricated compressed air
max. working pressure:
up to 16 bar
product feature:
connector to connect or to plug pipes in pneumatic- or pressure air applications.
