PK06010007

compact-automatic-flange ball valve DN40 PK06 pneumatic actuator single acting

€416.20*

€495.28 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: 3 - 5 working days

Delivery information

Equipment

NA01010001

3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC

€40.00*

€47.60 VAT included.


PR02000000

Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black

€67.30*

€80.09 VAT included.


FD01000107

flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400

€2.40*

€2.86 VAT included.


VS01010107

joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel

€6.80*

€8.09 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: PK06010007

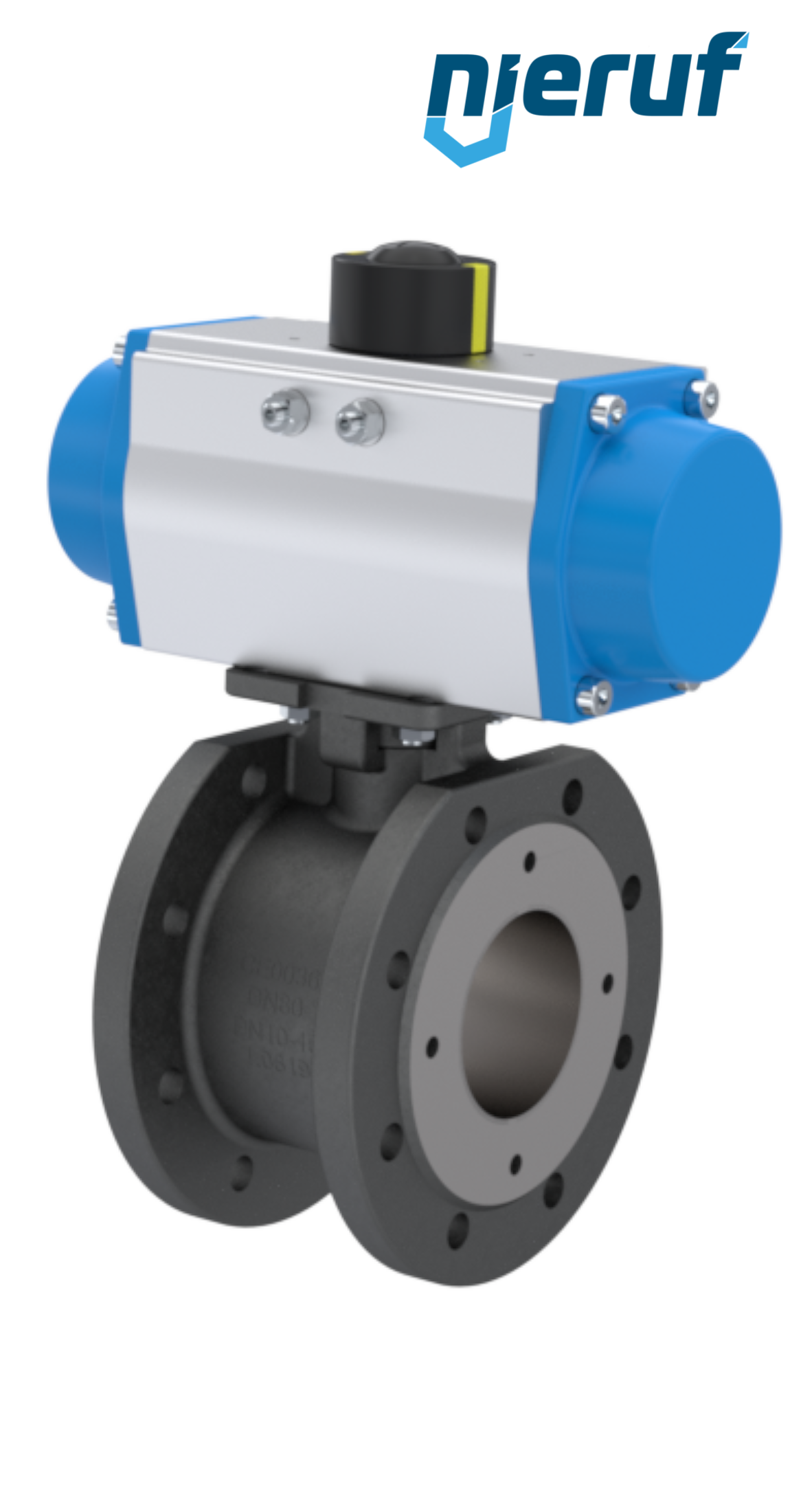

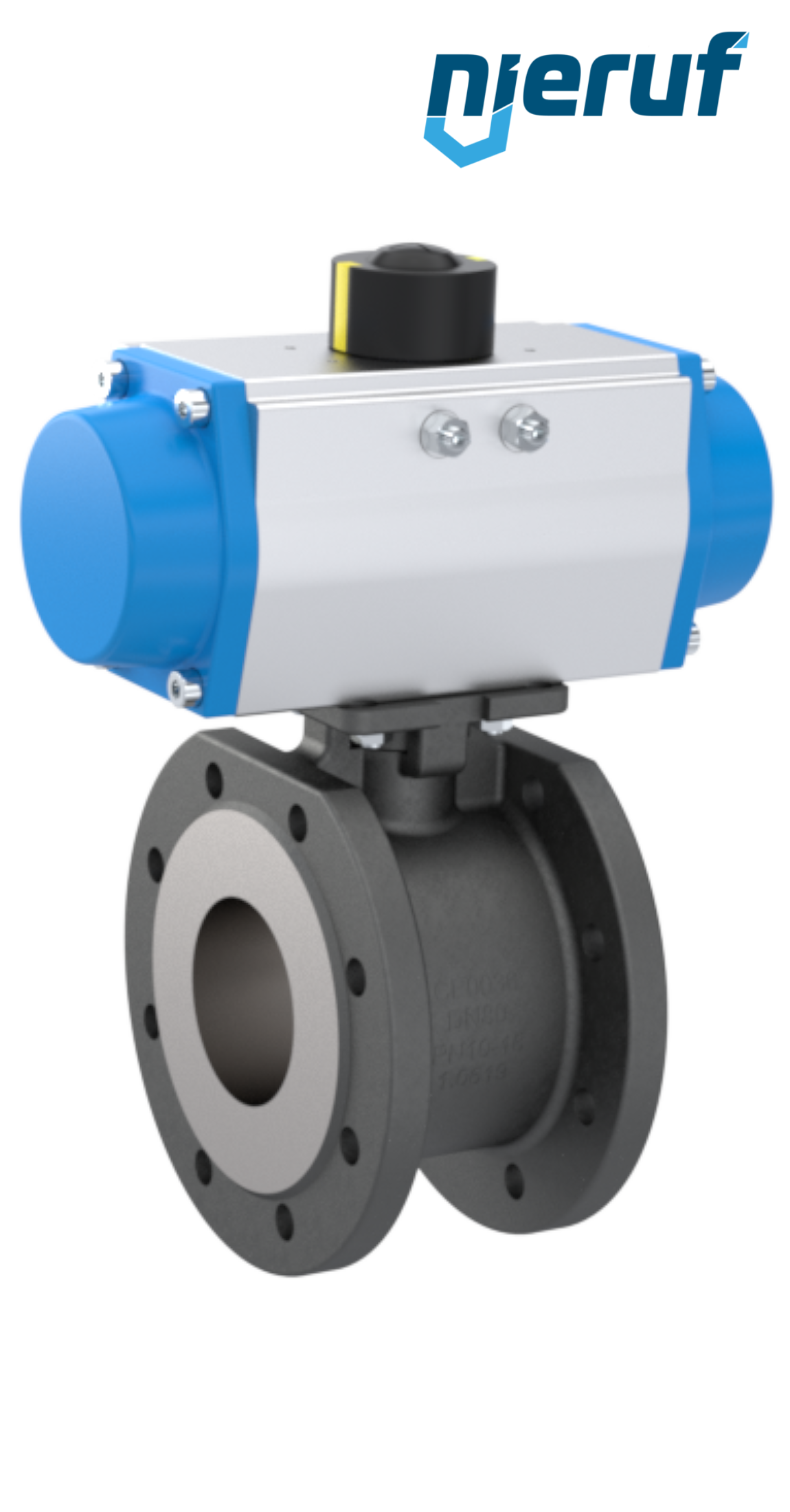

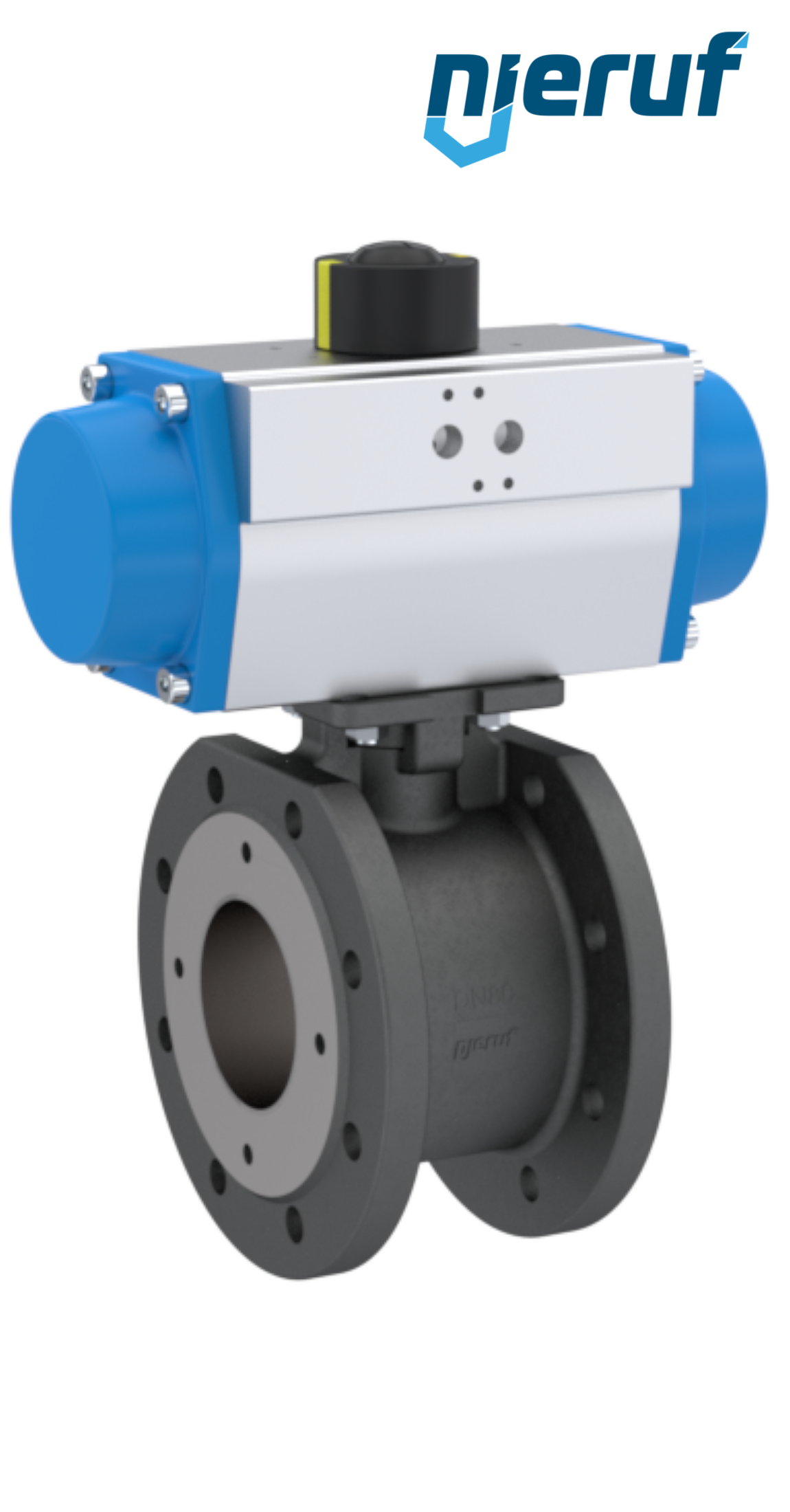

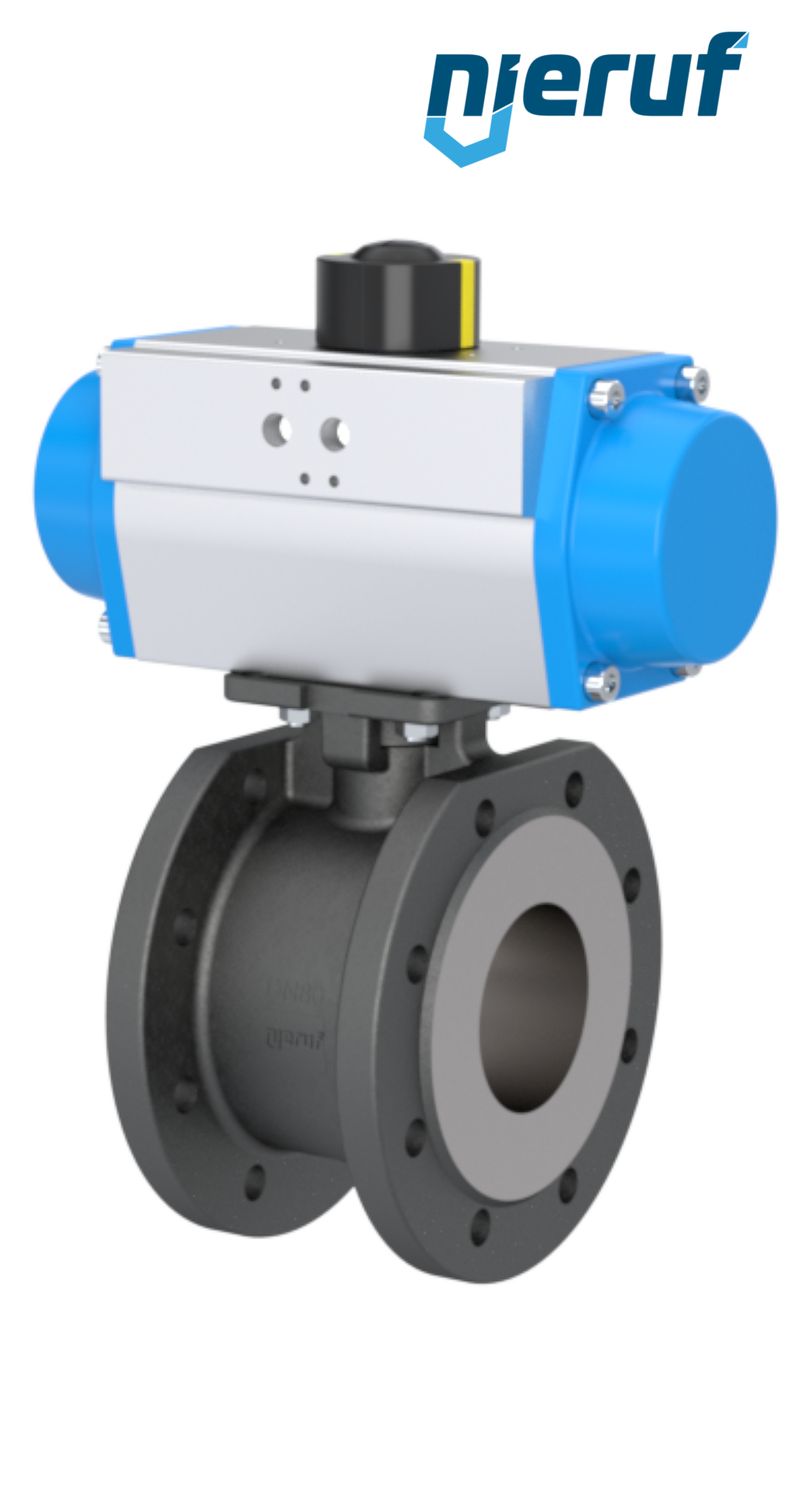

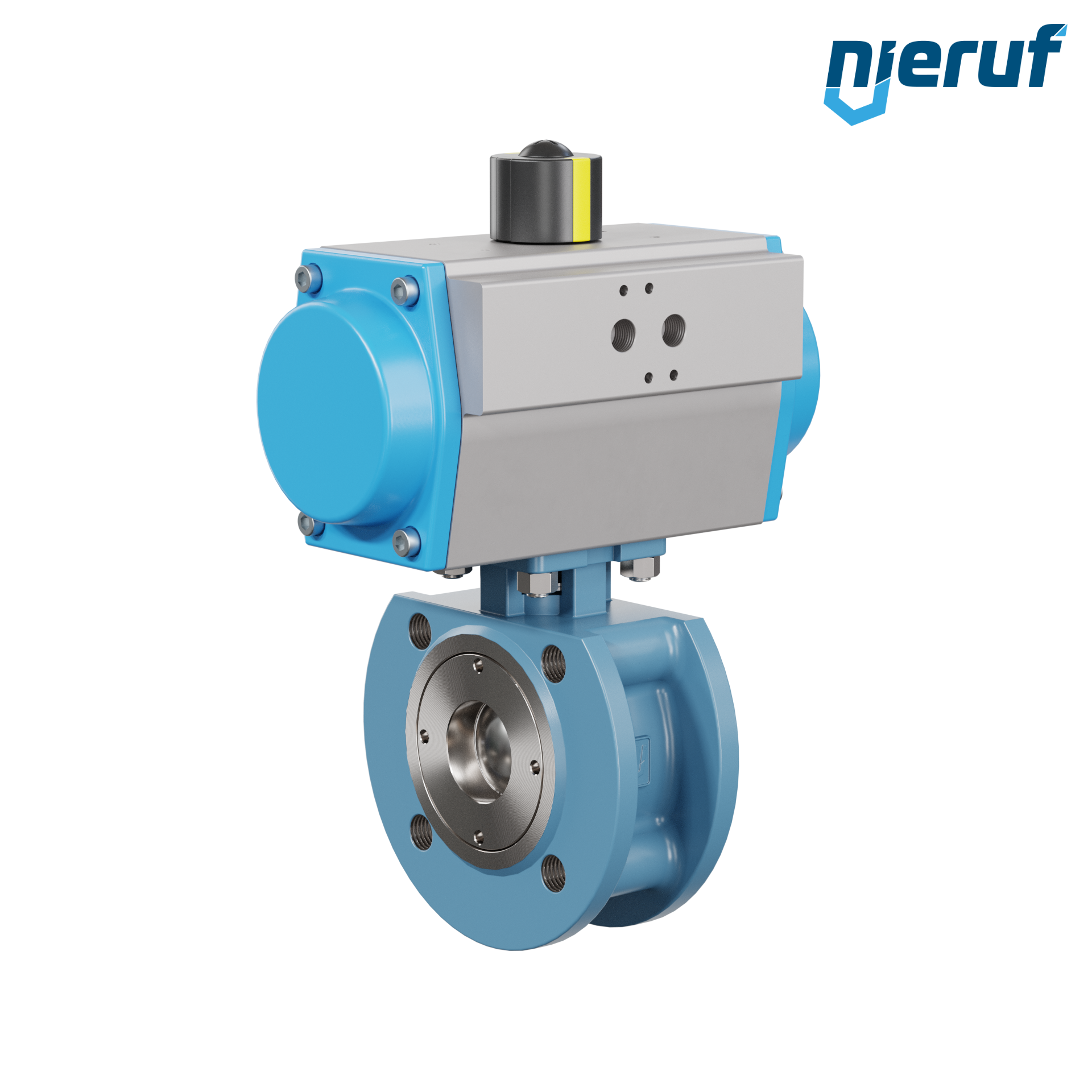

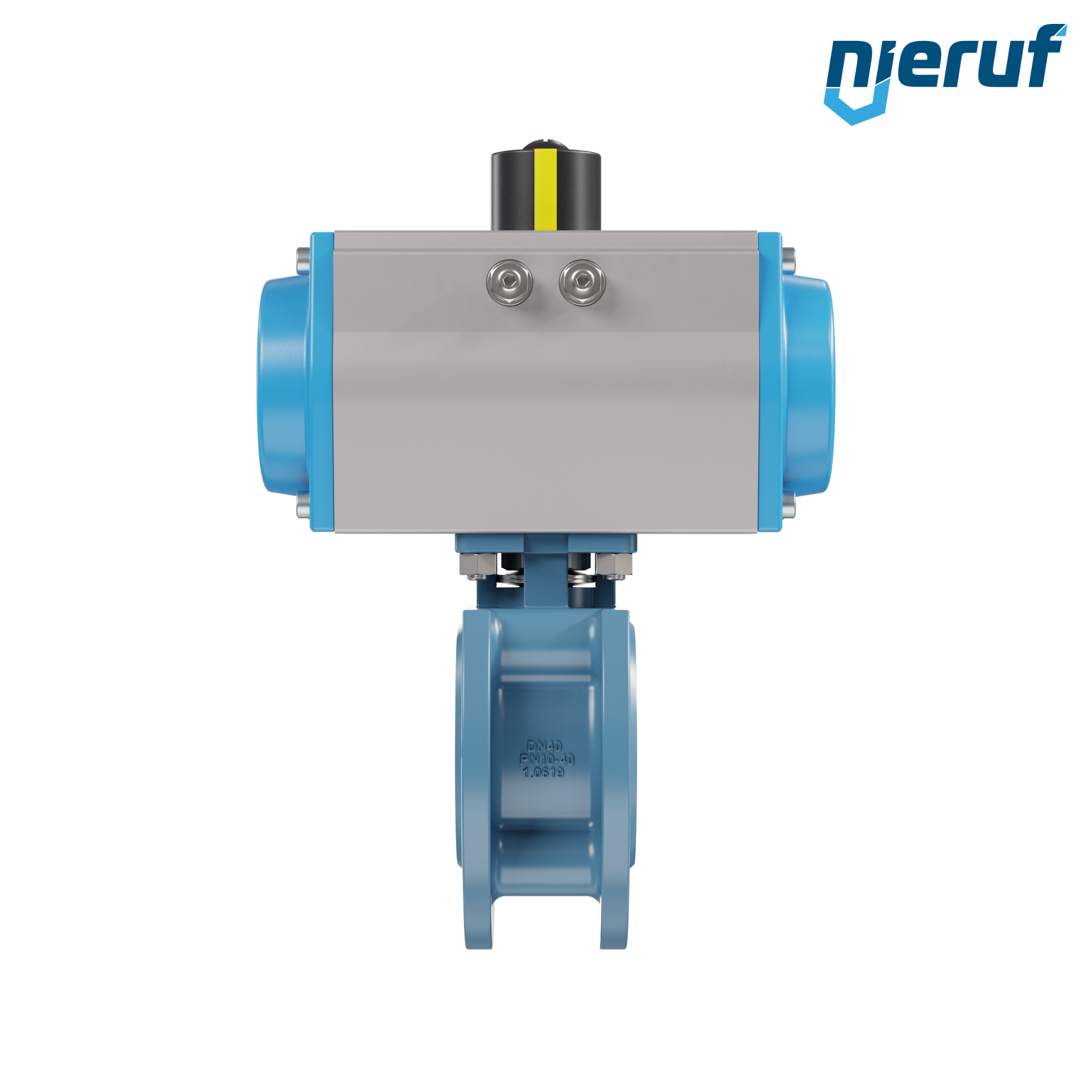

compact-automatic-flange ball valve DN40 PK06 pneumatic actuator single acting

compact-automatic-flange ball valve DN40 carbon steel 1.0619 PK06 pneumatic actuator GS083 made of aluminium (mode of function: GS = single acting)

product: compact-automatic-flange ball valve
type: PK06
manufacturer: NieRuf
diameter: DN40 - 1 1/2" inch
connection: flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam: PTFE
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN16
design: flange ball valve with pneumatic actuator (single acting normally closed)
body material: carbon steel 1.0619
ball material: stainless steel 1.4308
ball seal: PTFE + TFM
length: 65mm
actuator: pneumatic actuator GS083 made of aluminium (mode of function: GS = single acting - normally closed)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for: TA Luft
product description: This high quality automatic-carbon steel ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

compact-automatic-flange ball valve DN40 PK06 pneumatic actuator single acting

Article no. : PK06010007
product: compact-automatic-flange ball valve
type: PK06
manufacturer: NieRuf
diameter: DN40 - 1 1/2" inch
connection: flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam: PTFE
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN16
design: flange ball valve with pneumatic actuator (single acting normally closed)
body material: carbon steel 1.0619
ball material: stainless steel 1.4308
ball seal: PTFE + TFM
length: 65mm
actuator: pneumatic actuator GS083 made of aluminium (mode of function: GS = single acting - normally closed)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for: TA Luft
product description: This high quality automatic-carbon steel ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible.
