PK06010006

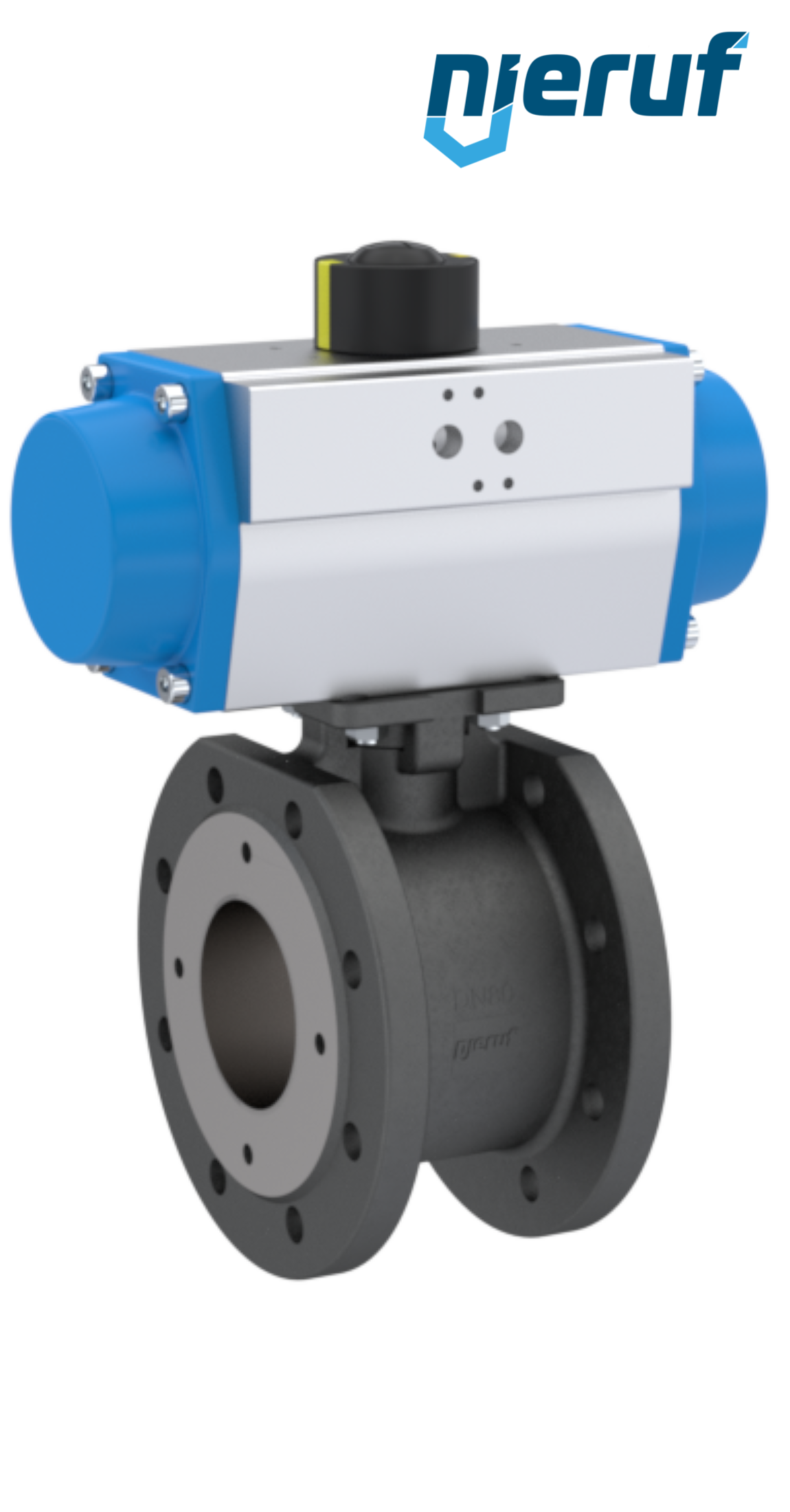

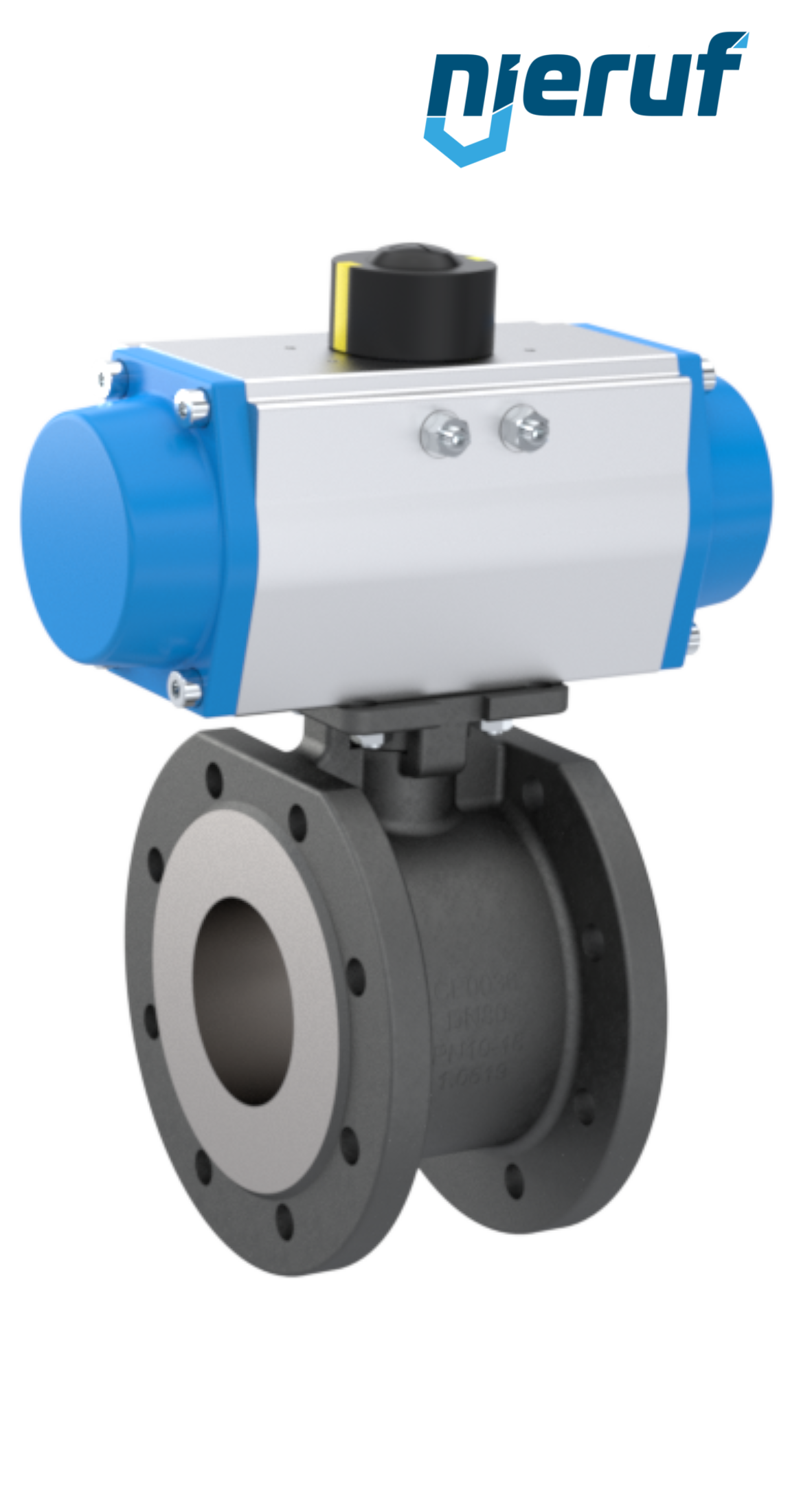

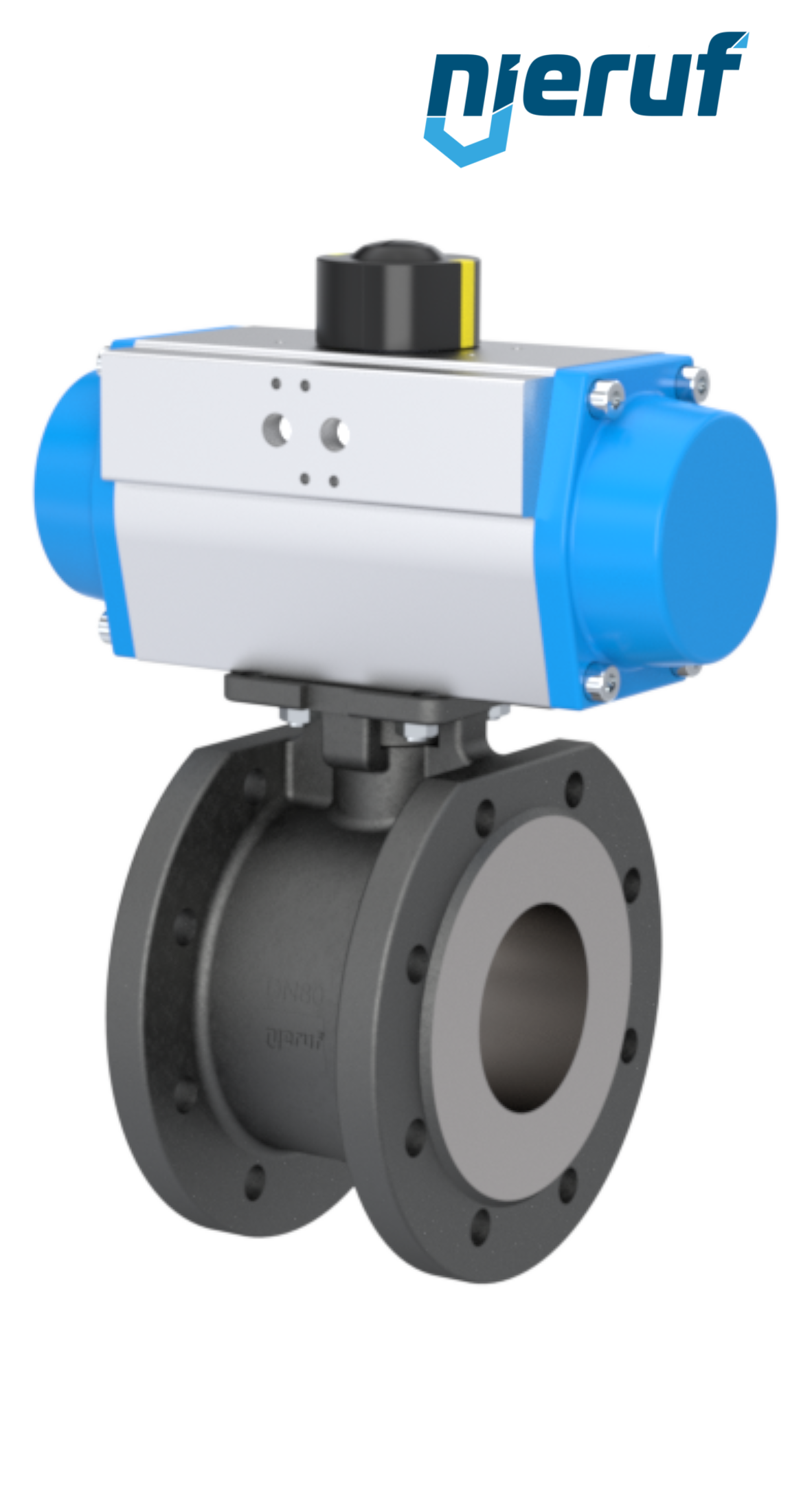

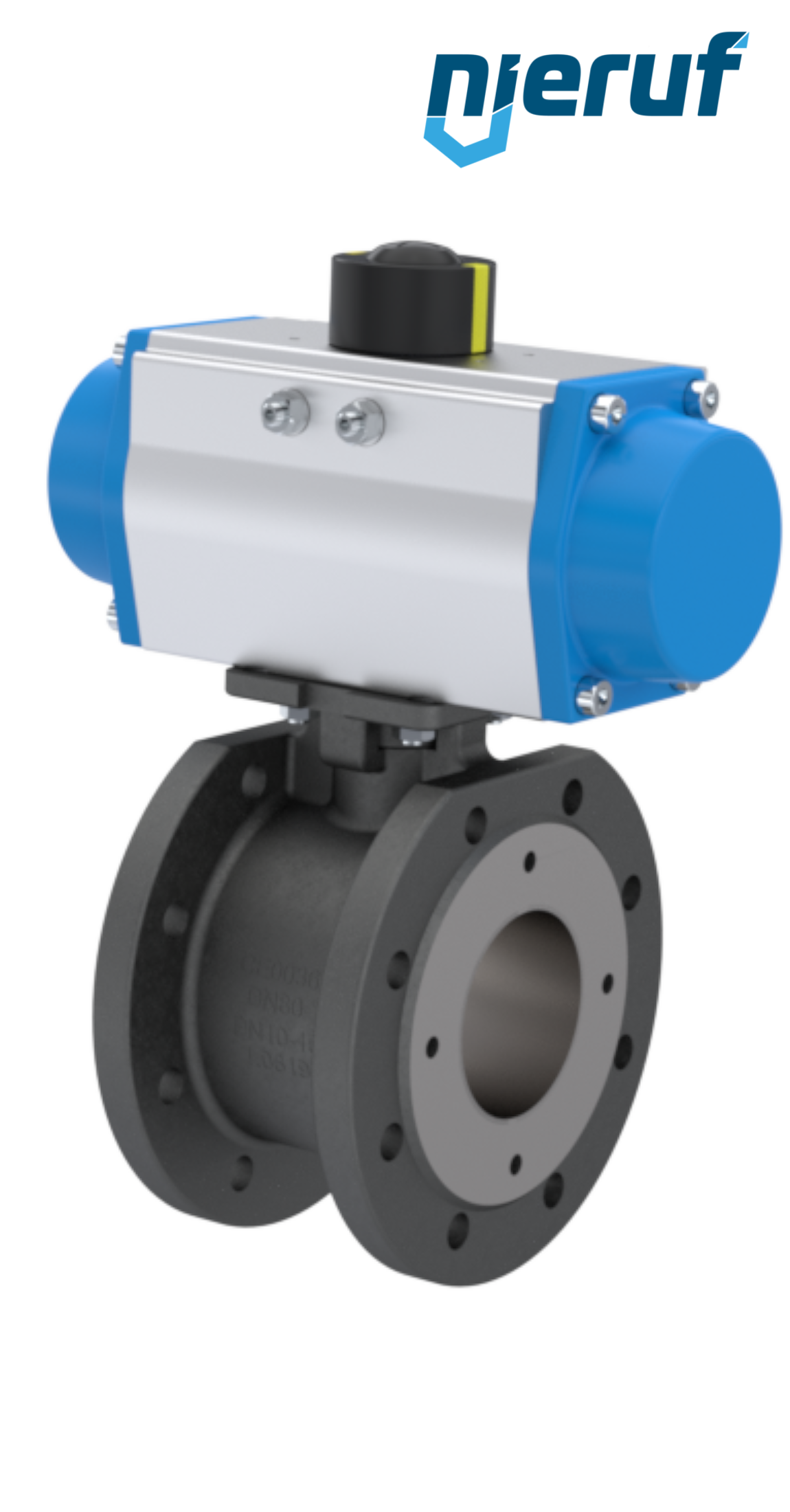

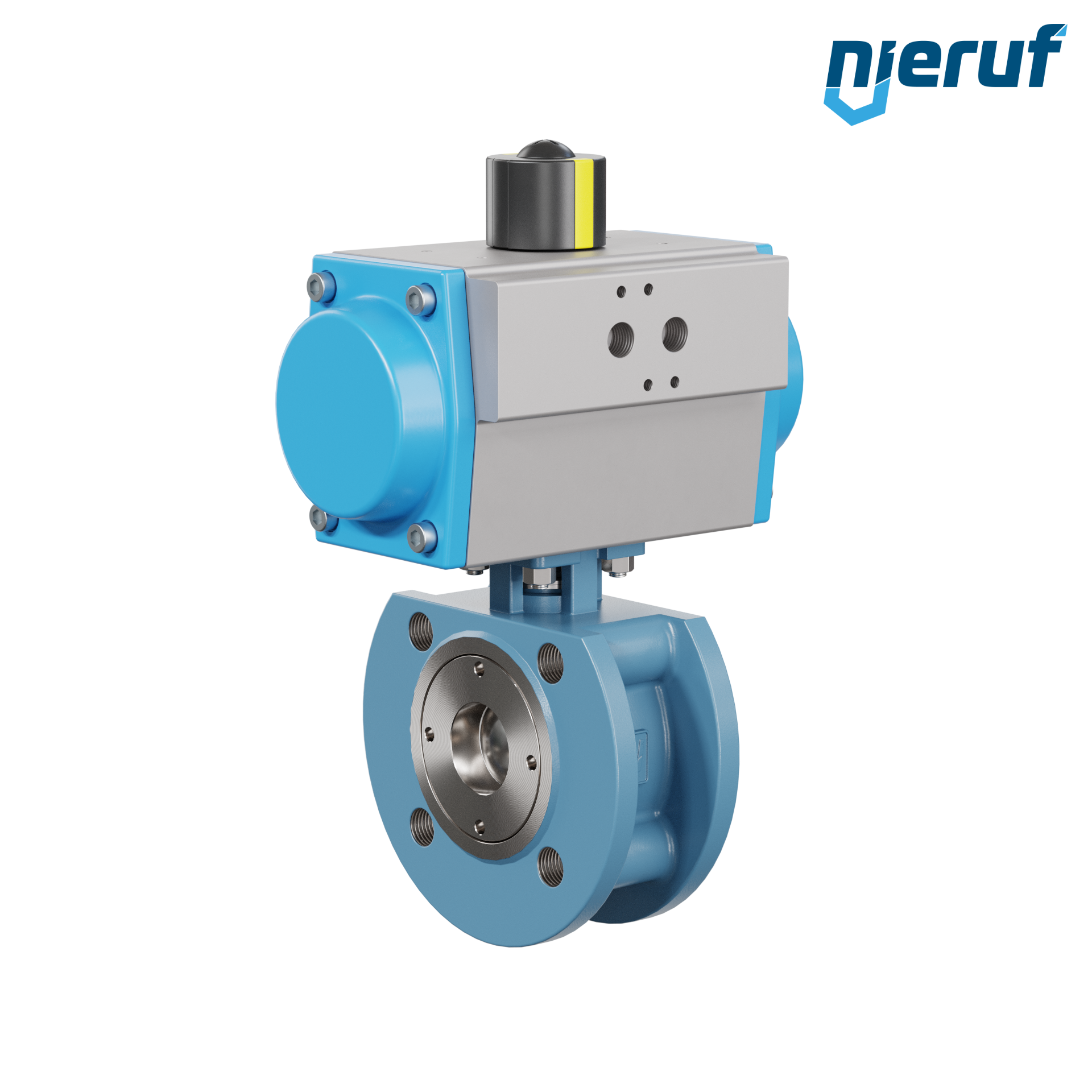

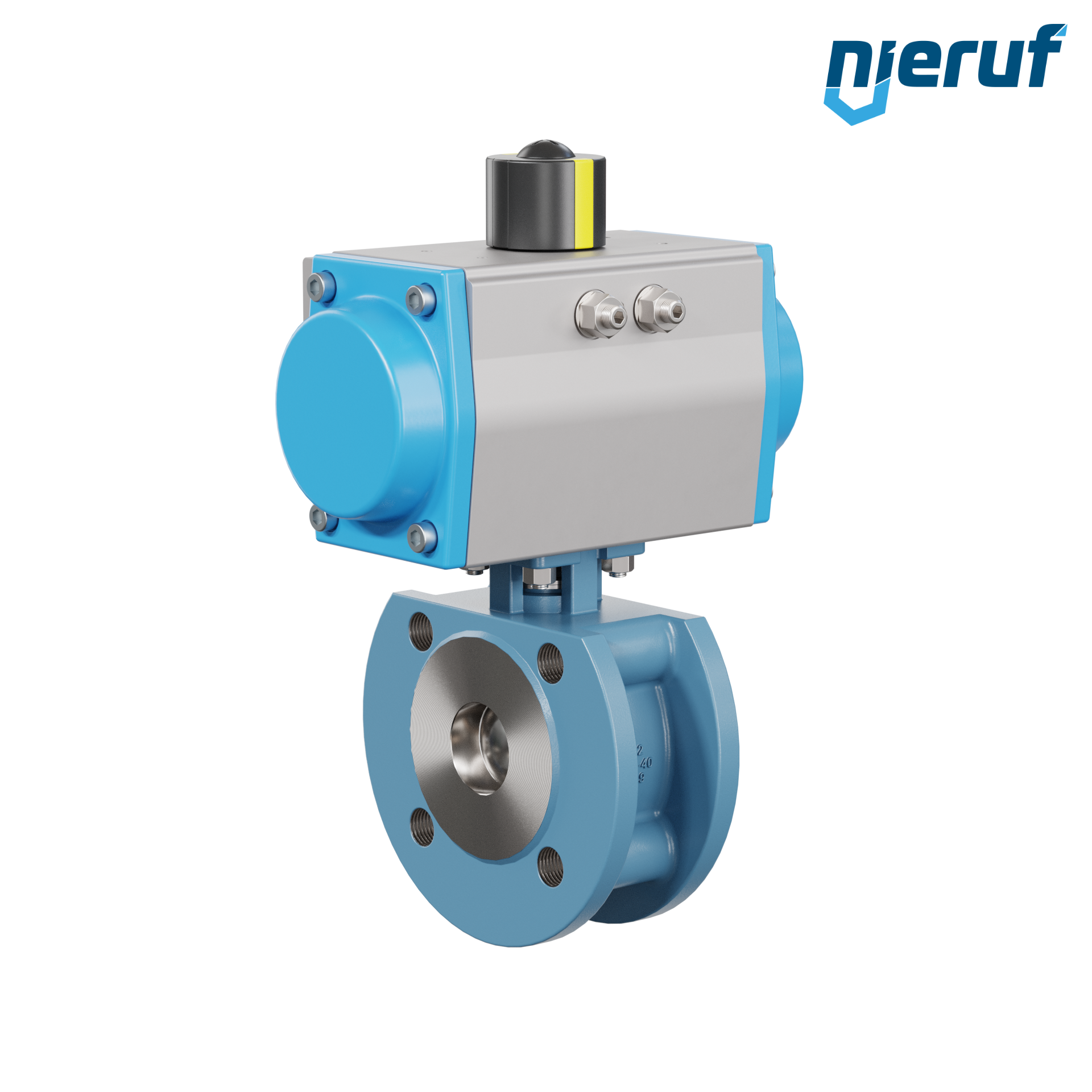

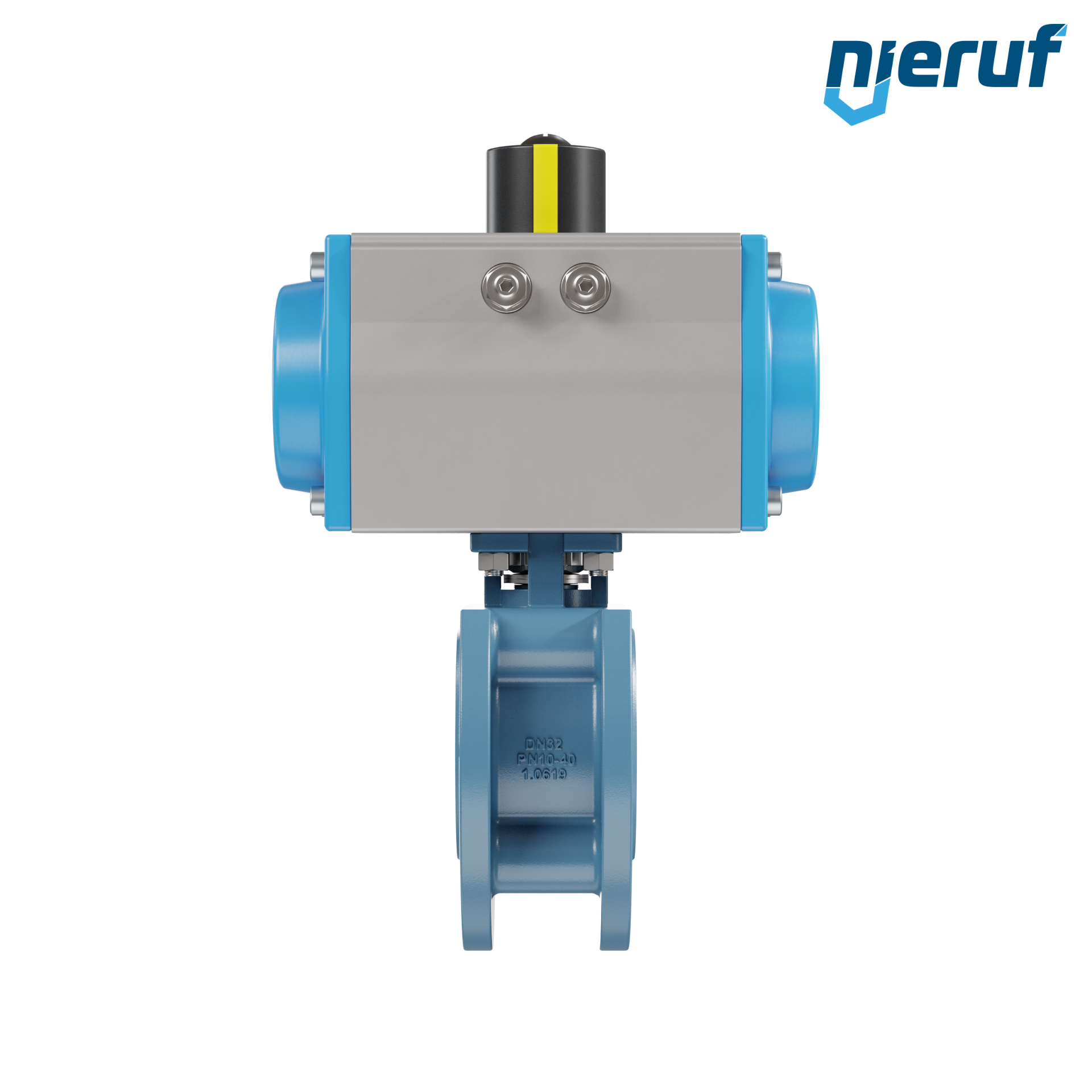

compact-automatic-flange ball valve DN32 PK06 pneumatic actuator single acting
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel
€8.09 VAT included.
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€80.09 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
compact-automatic-flange ball valve DN32 carbon steel 1.0619 PK06 pneumatic actuator GS075 made of aluminium (mode of function: GS = single acting)
product: | compact-automatic-flange ball valve |
---|---|
type: | PK06 |
manufacturer: | NieRuf |
diameter: | DN32 - 1 1/4" inch |
connection: | flange dimensions acc. DIN EN 1092-1 PN 16 |
Seal steam: | PTFE |
media: | liquid and gaseous media |
temperature: | ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
max. pressure: | PN16 |
design: | flange ball valve with pneumatic actuator (single acting normally closed) |
body material: | carbon steel 1.0619 |
ball material: | stainless steel 1.4308 |
ball seal: | PTFE + TFM |
length: | 60mm |
actuator: | pneumatic actuator GS075 made of aluminium (mode of function: GS = single acting - normally closed) |
actuator informations: | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
authorized for: | TA Luft |
product description: | This high quality automatic-carbon steel ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
compact-automatic-flange ball valve DN32 PK06 pneumatic actuator single acting
Article no.
: PK06010006
product:
compact-automatic-flange ball valve
type:
PK06
manufacturer:
NieRuf
diameter:
DN32 - 1 1/4" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN16
design:
flange ball valve with pneumatic actuator (single acting normally closed)
body material:
carbon steel 1.0619
ball material:
stainless steel 1.4308
ball seal:
PTFE + TFM
length:
60mm
actuator:
pneumatic actuator GS075 made of aluminium (mode of function: GS = single acting - normally closed)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for:
TA Luft
product description:
This high quality automatic-carbon steel ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible.
