GK17010001

three-pieces stainless steel ball valve DN8 - 1/4" inch butt welding

€13.70*

€16.30 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

GF01700001

welding nipple DN8 - 1/4" inch male stainless steel 316 L

€1.80*

€2.14 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: GK17010001

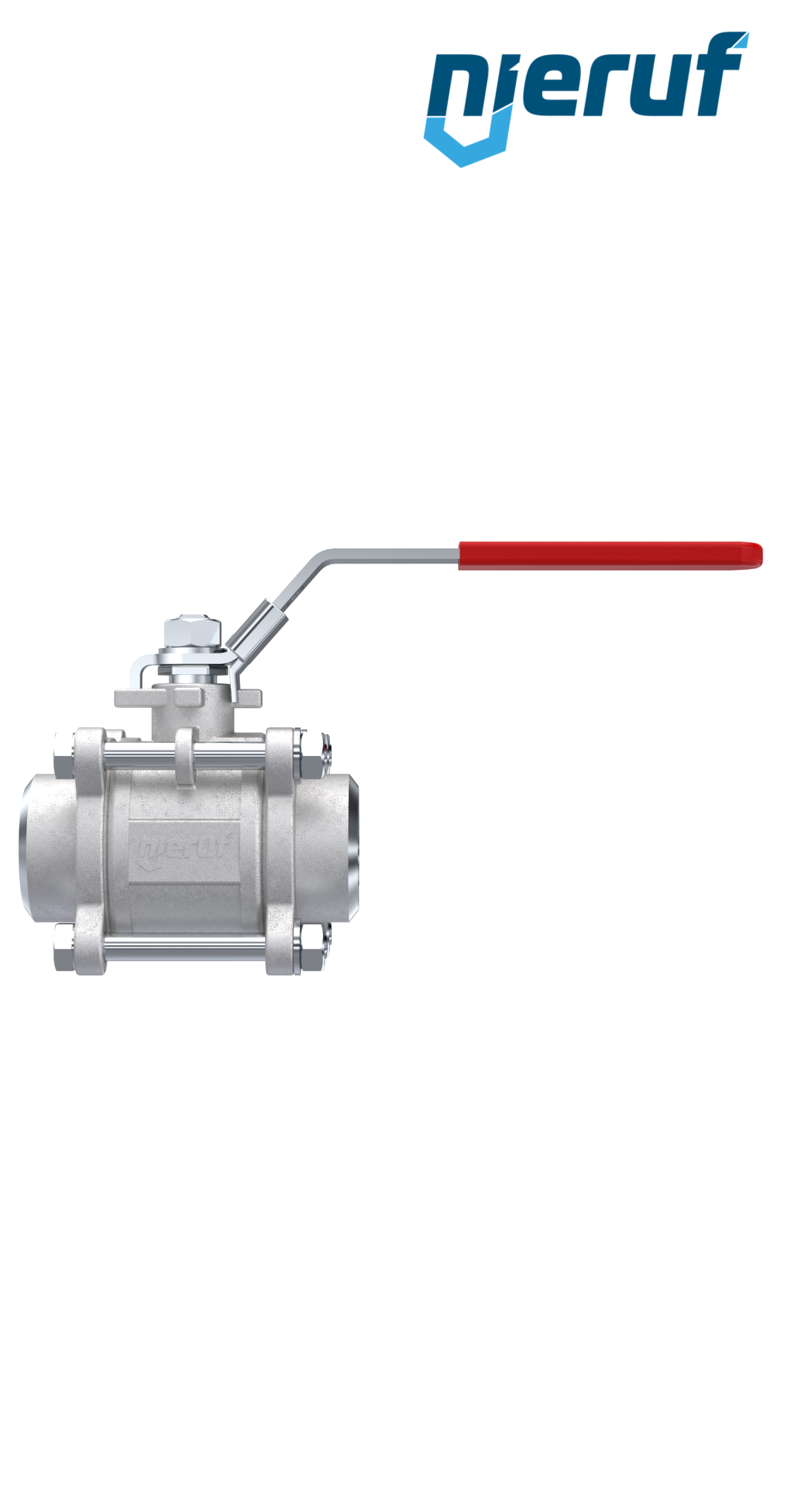

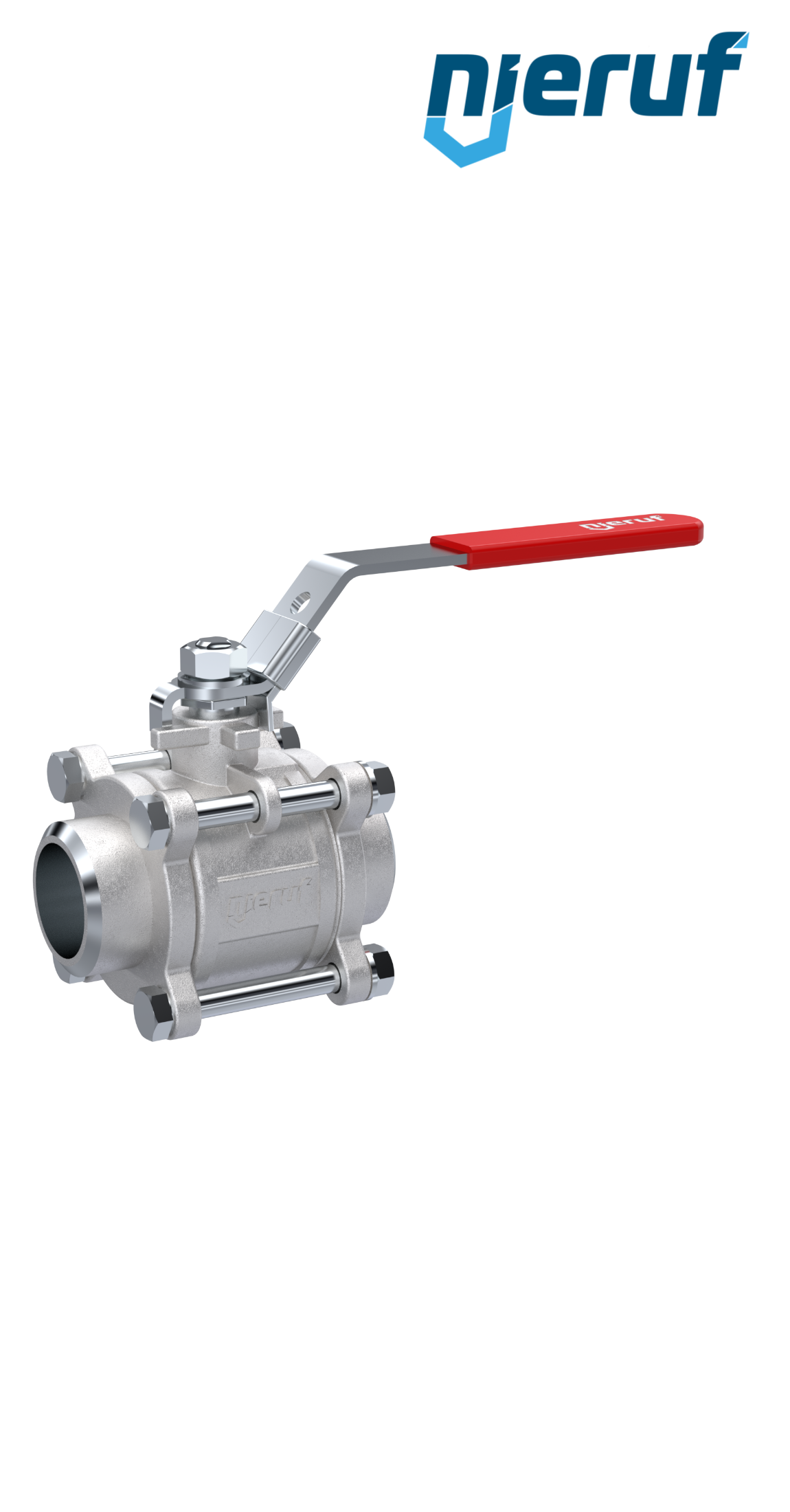

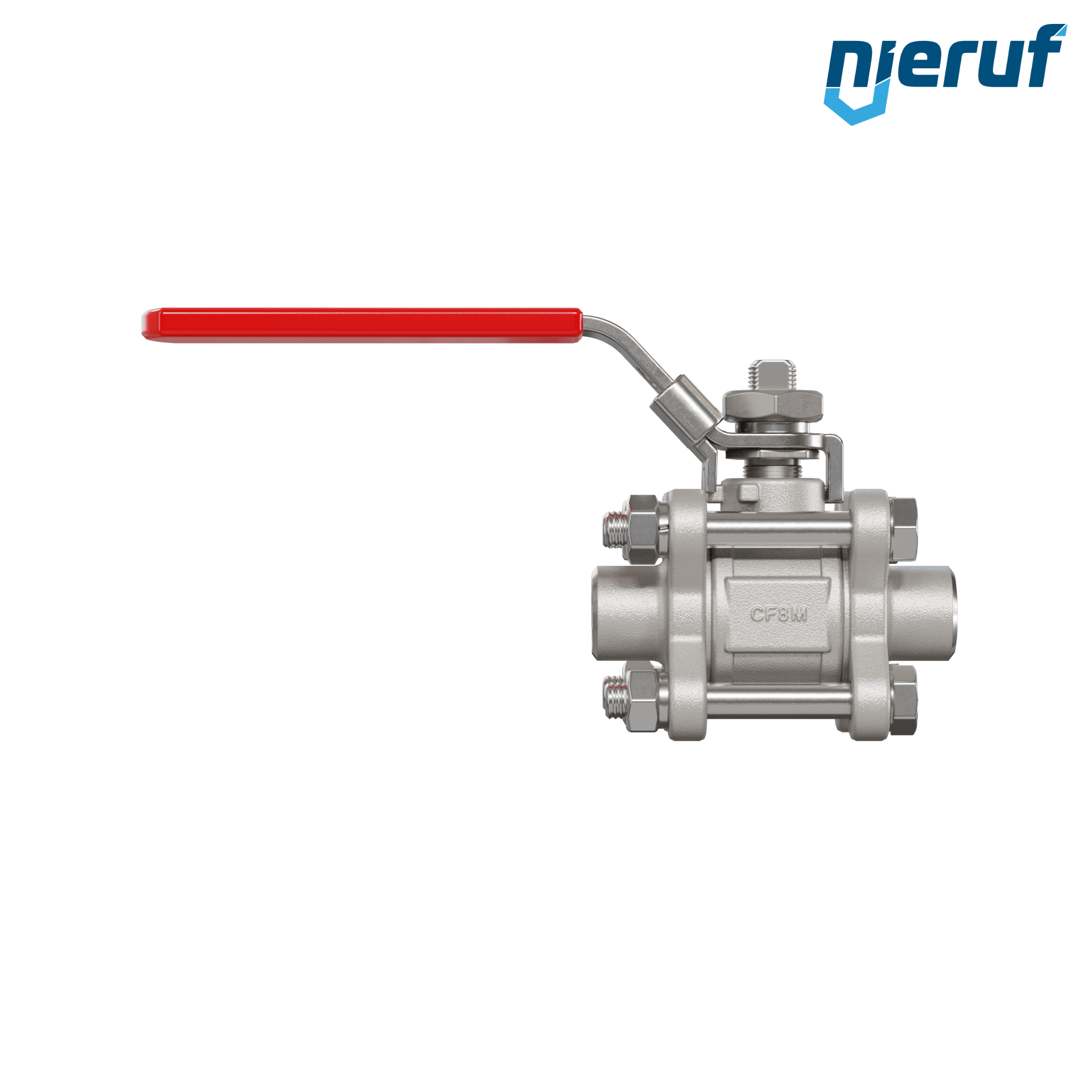

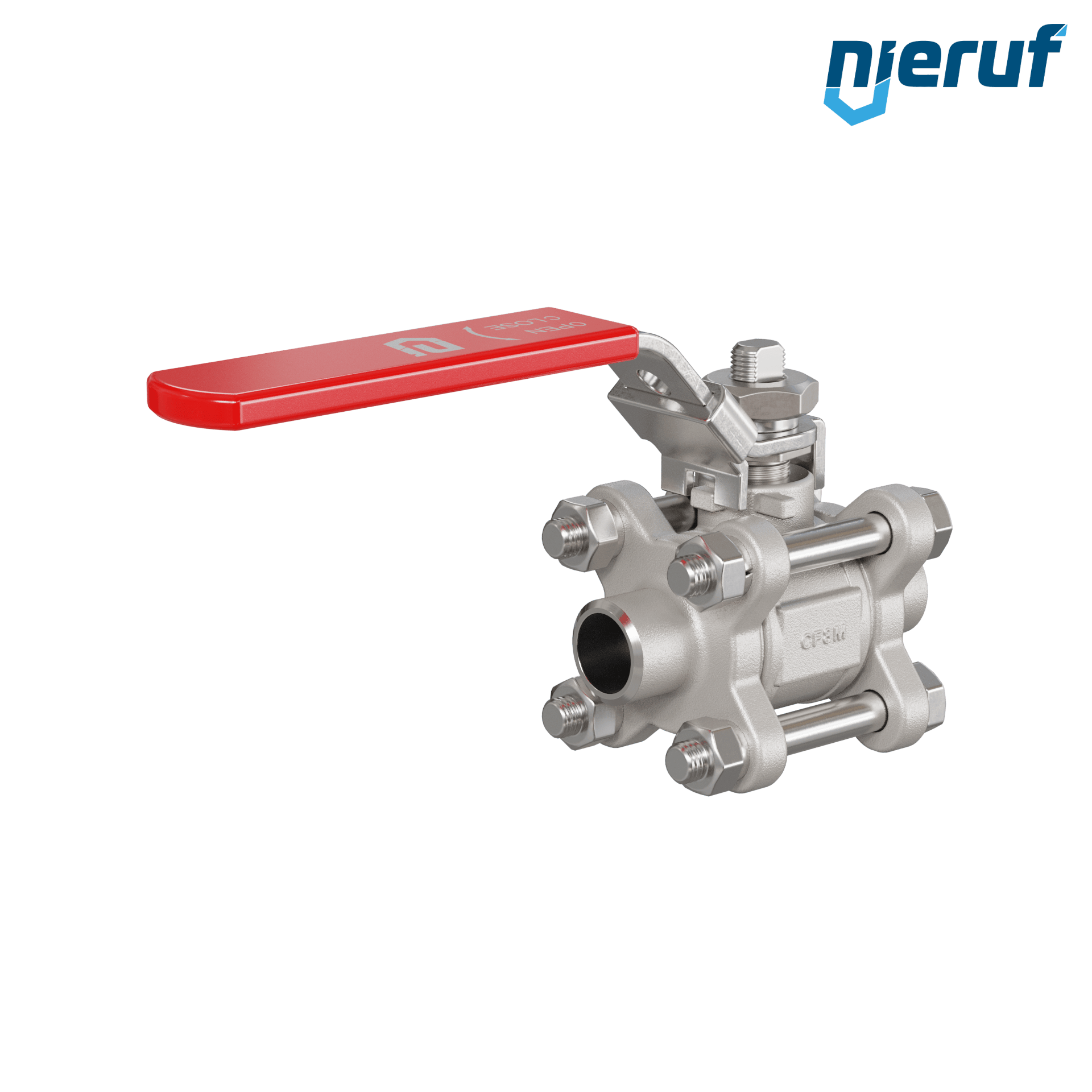

three-pieces stainless steel ball valve DN8 - 1/4" inch butt welding

three-pieces 2-way ball valve made of stainless steel 1.4408 DN8 - 1/4" inch butt welding for liquid and gaseous media

product: 3 pieces ball valve
type: GK17
manufacturer: NieRuf
diameter: DN8 - 1/4" inch
connection: butt welding
Seal steam: PTFE
ball seal: PTFE
media: liquid and gaseous media
temperature: - 20°C up to 180°C - depending on working pressure and media
max. pressure: 63 bar
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
length: 59mm
actuator: hand lever with red plastic cover
installation position: any position
product description: This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

three-pieces stainless steel ball valve DN8 - 1/4" inch butt welding

Article no. : GK17010001
product: 3 pieces ball valve
type: GK17
manufacturer: NieRuf
diameter: DN8 - 1/4" inch
connection: butt welding
Seal steam: PTFE
ball seal: PTFE
media: liquid and gaseous media
temperature: - 20°C up to 180°C - depending on working pressure and media
max. pressure: 63 bar
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
length: 59mm
actuator: hand lever with red plastic cover
installation position: any position
product description: This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems.
