GK17020004
three-pieces stainless steel ball valve DN20 - 3/4" inch female thread NPT
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you

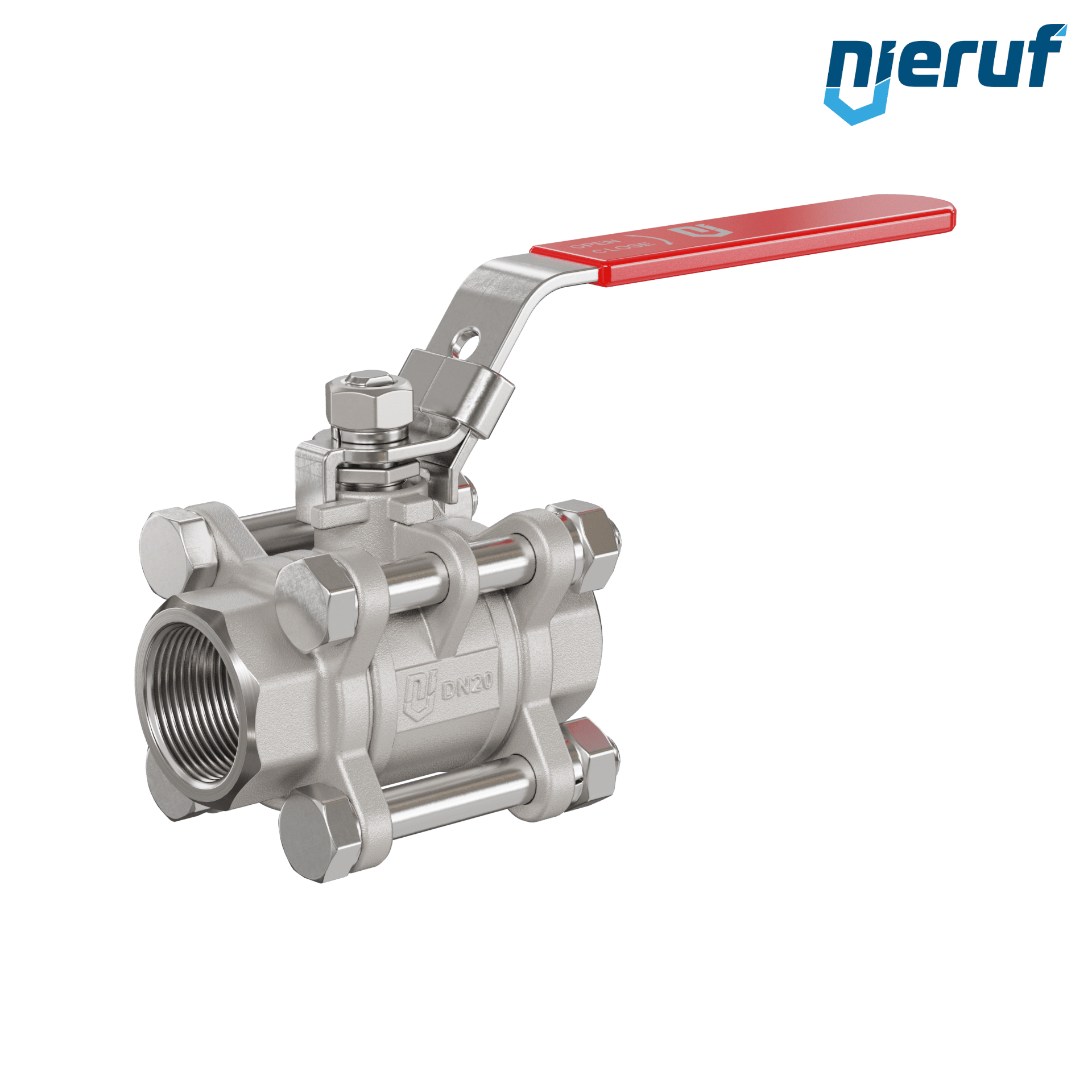

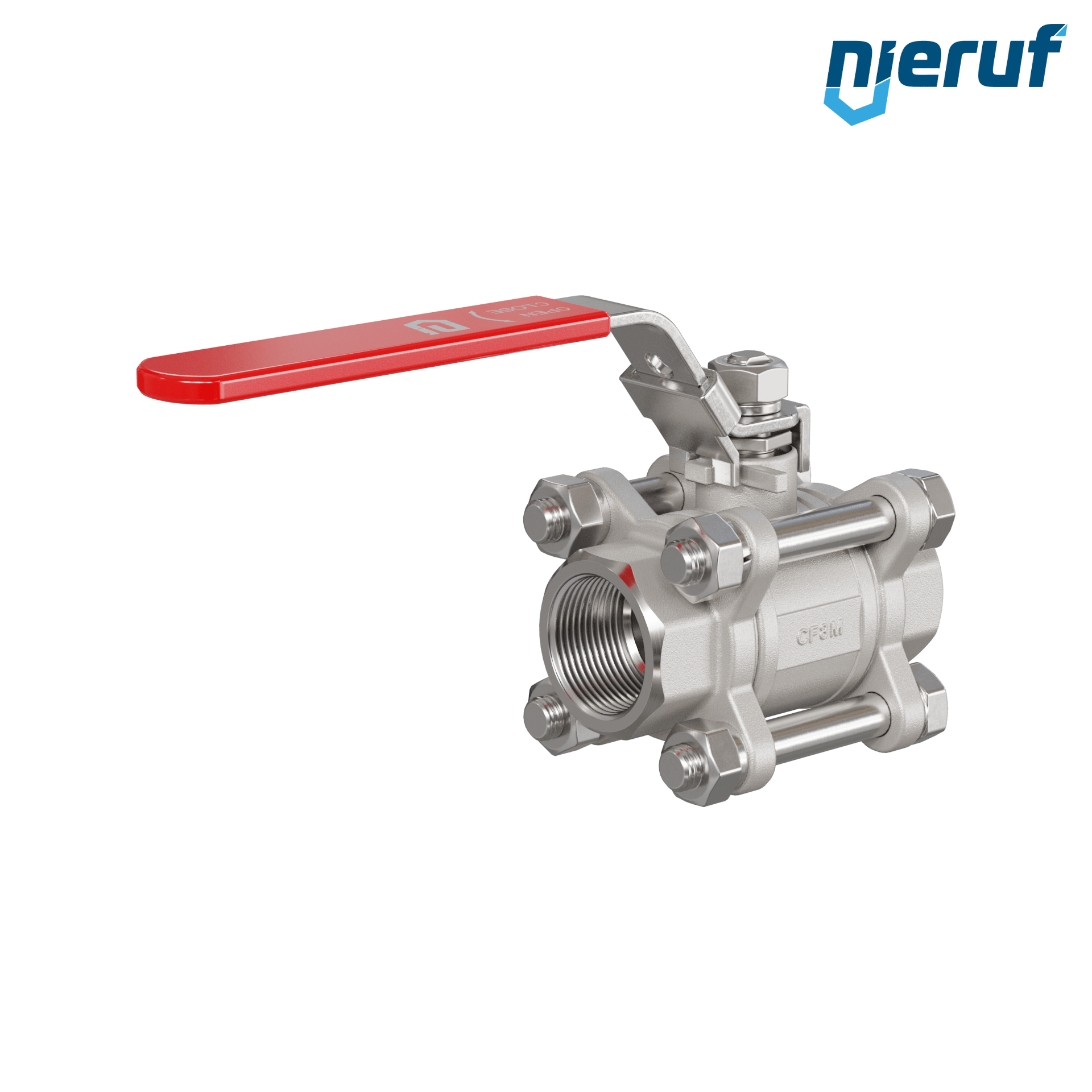

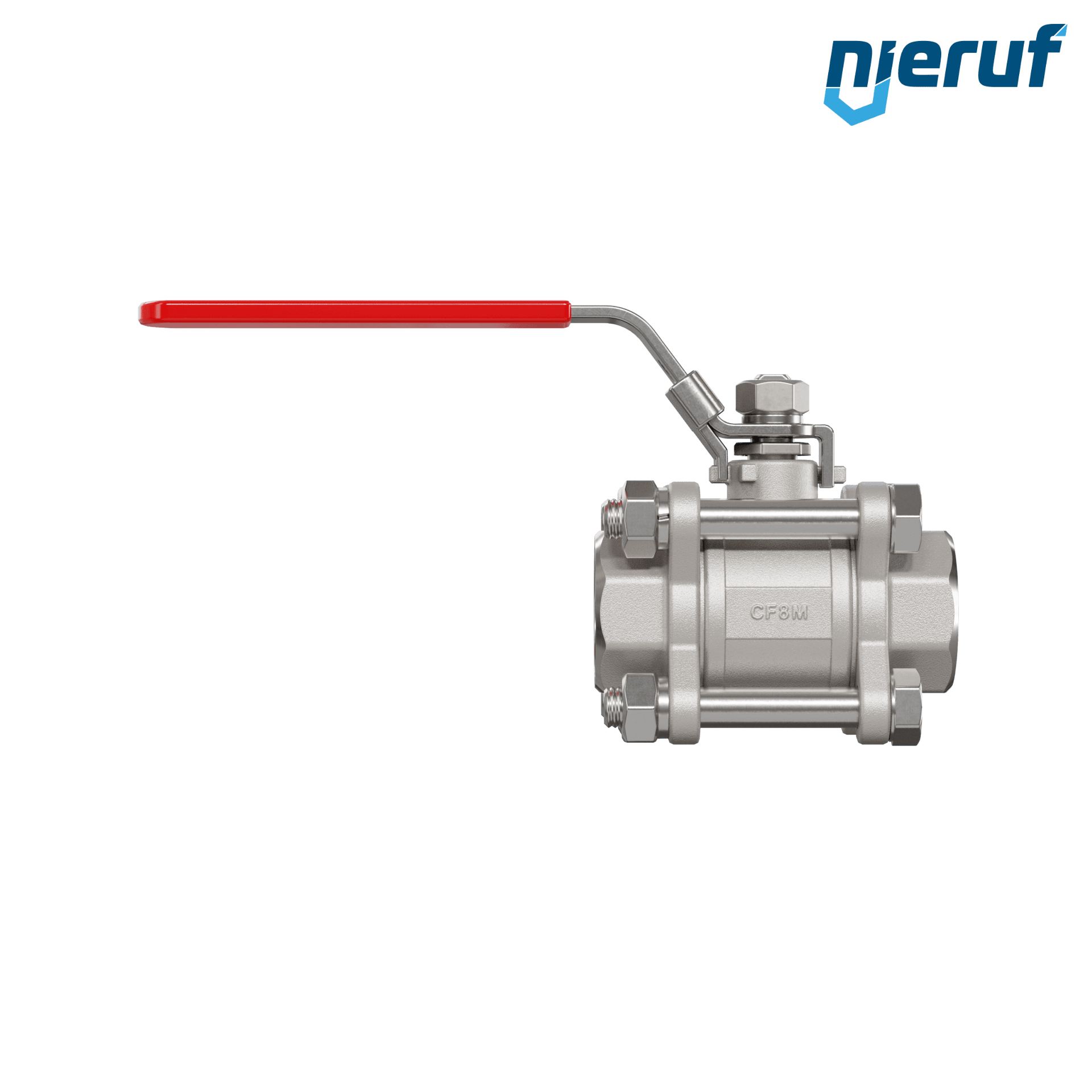

three-pieces stainless steel ball valve DN20 - 3/4" inch female thread NPT
three-pieces 2-way ball valve made of stainless steel 1.4408 DN20 - 3/4" inch female thread NPT for liquid and gaseous media
| product | 3 pieces ball valve |
|---|---|
| type | GK17 |
| manufacturer | NieRuf |
| diameter | DN20 - 3/4" inch |
| connection | female thread NPT |
| Seal steam | PTFE |
| ball seal | PTFE |
| media | liquid and gaseous media |
| temperature | - 20°C up to 180°C - depending on working pressure and media |
| max. pressure | 63 bar |
| design | full port design |
| body material | stainless steel 1.4408 / CF8M |
| ball material | stainless steel 1.4401 / AISI 316 |
| length | 70.6mm |
| actuator | hand lever with red plastic cover |
| installation position | any position |
| product description | This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
three-pieces stainless steel ball valve DN20 - 3/4" inch female thread NPT
Article no.
: GK17020004
product:
3 pieces ball valve
type:
GK17
manufacturer:
NieRuf
diameter:
DN20 - 3/4" inch
connection:
female thread NPT
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
- 20°C up to 180°C - depending on working pressure and media
max. pressure:
63 bar
design:
full port design
body material:
stainless steel 1.4408 / CF8M
ball material:
stainless steel 1.4401 / AISI 316
length:
70.6mm
actuator:
hand lever with red plastic cover
installation position:
any position
product description:
This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems.
