GK17000003

three-pieces stainless steel ball valve DN15 - 1/2" inch female thread

€17.70*

€21.06 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Equipment

GF01300003

hexagon nipple 1/2" inch male stainless steel 316

€1.90*

€2.26 VAT included.

Resistance check

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

NieRuf-Exchange

24 months warranty

Certified

Downloads

3D model

Datasheet

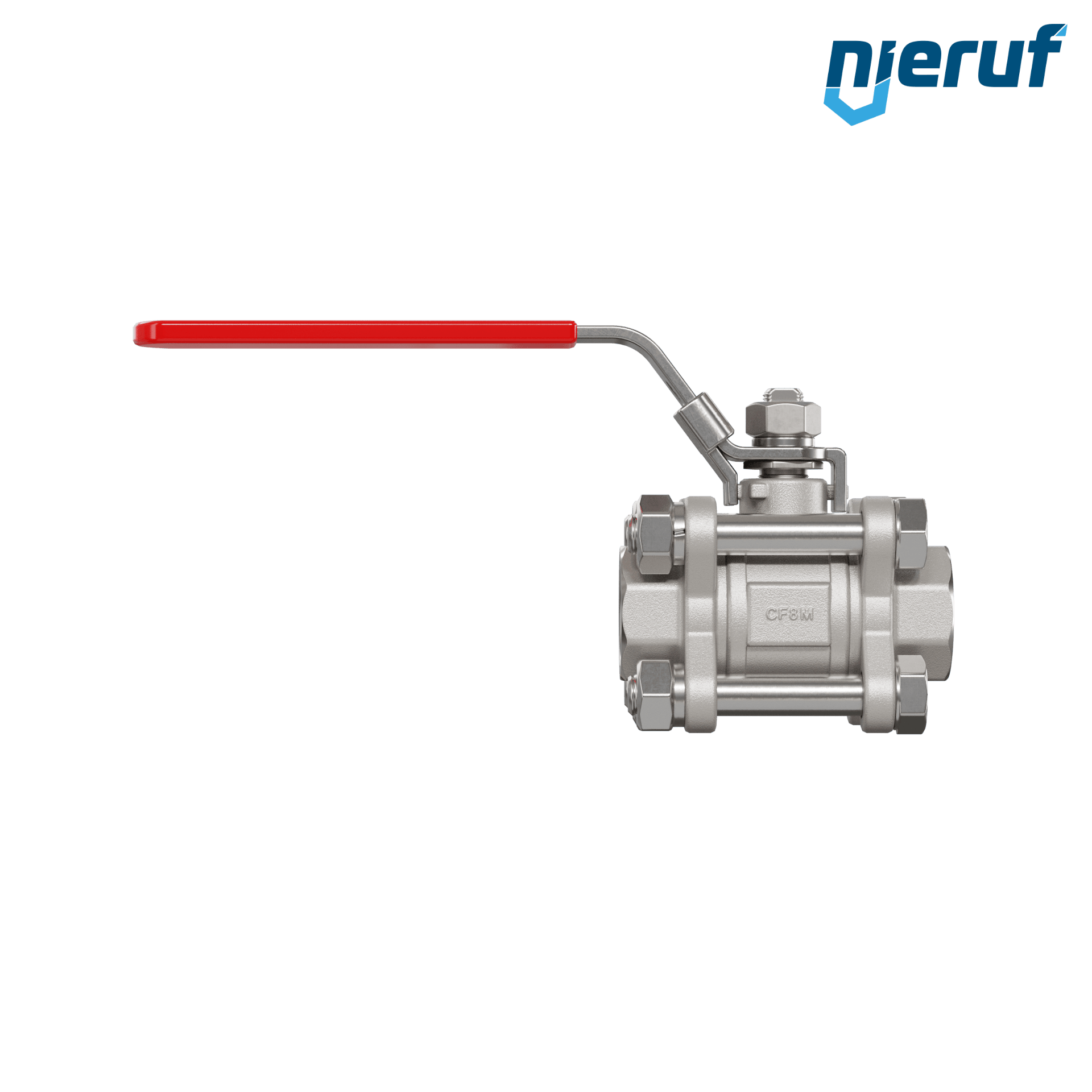

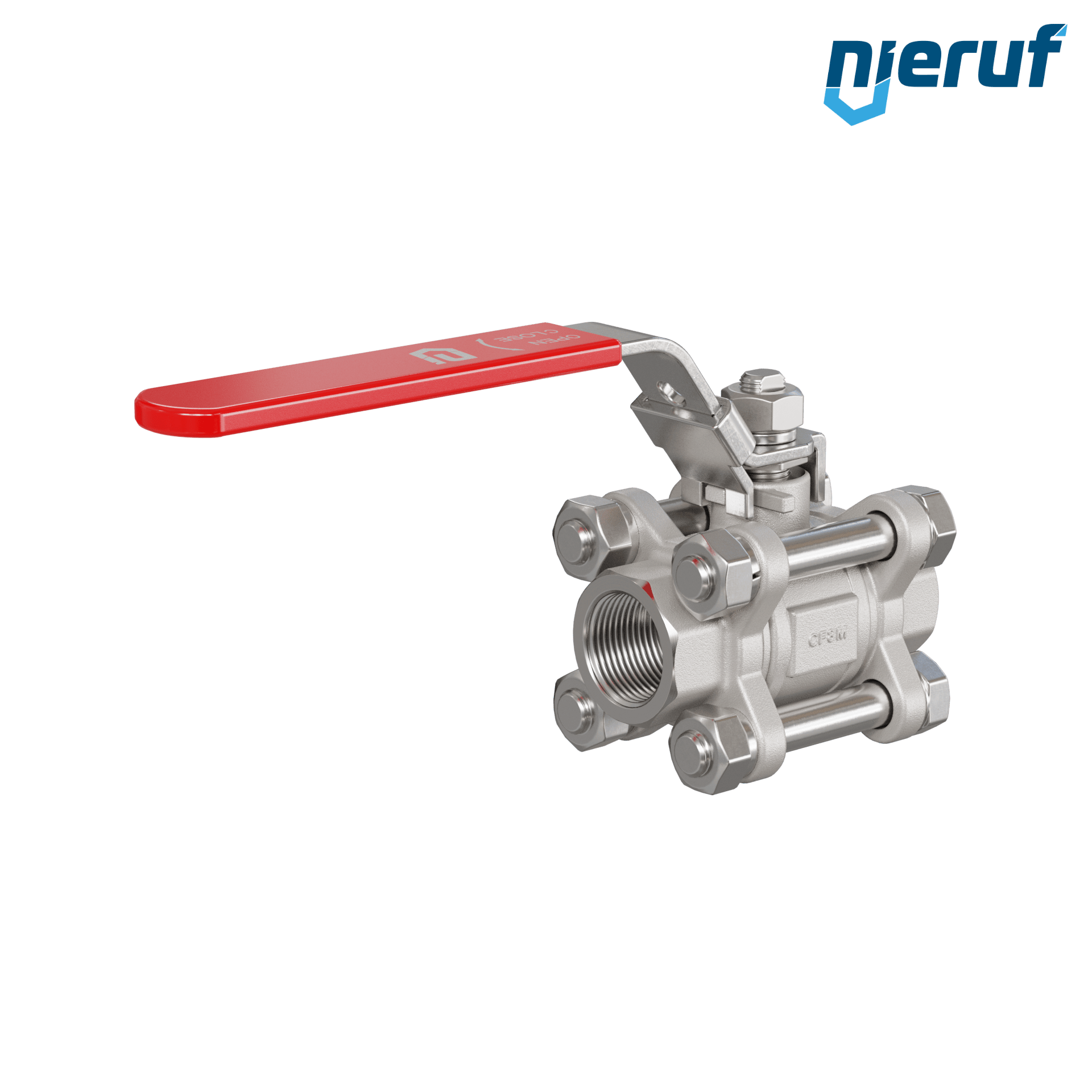

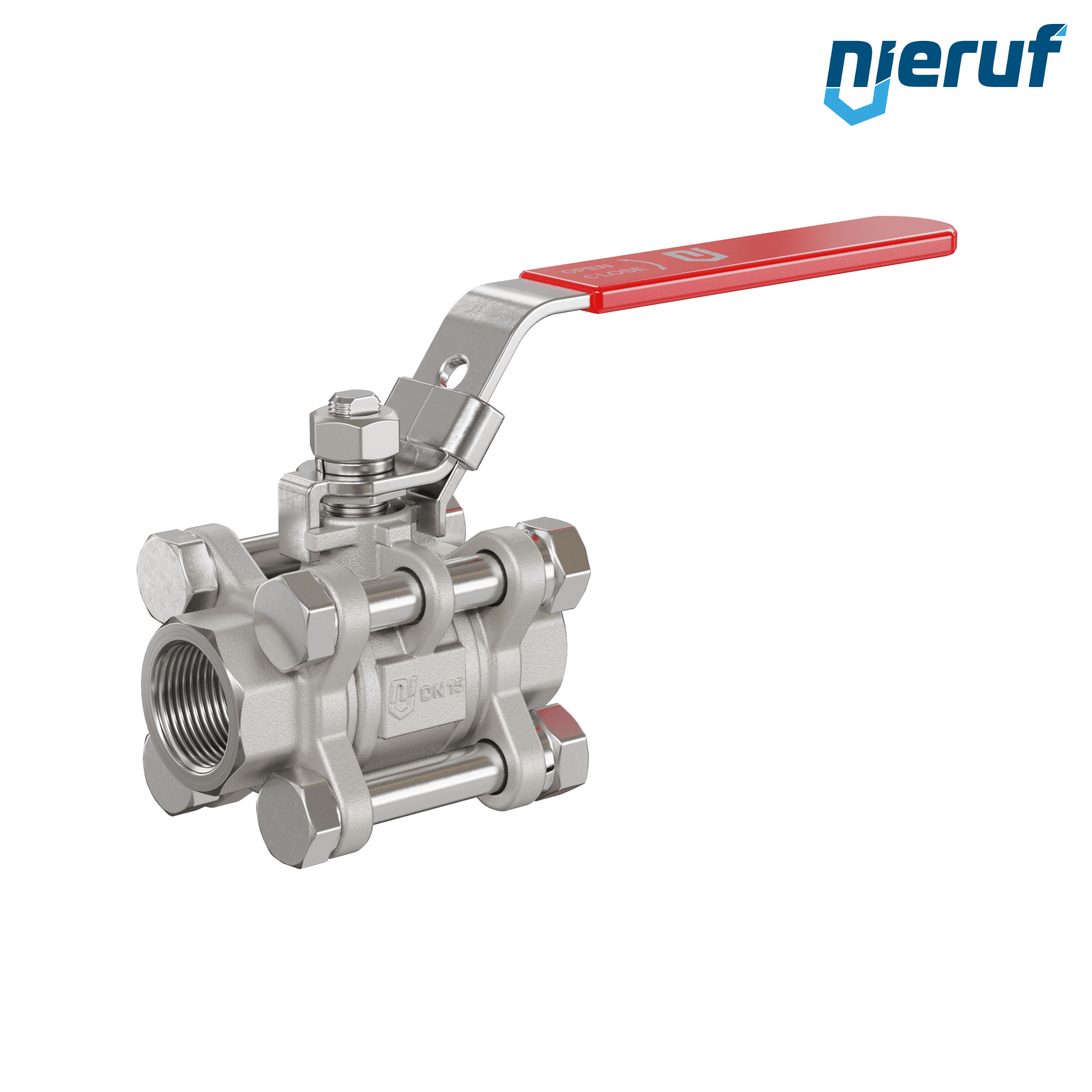

three-pieces stainless steel ball valve DN15 - 1/2" inch female thread

three-pieces 2-way ball valve made of stainless steel 1.4408 DN15 - 1/2" inch female thread for liquid and gaseous media

product	3 pieces ball valve
type	GK17
manufacturer	NieRuf
diameter	DN15 - 1/2" inch
connection	female thread BSP
Seal steam	PTFE
ball seal	PTFE
media	liquid and gaseous media
temperature	- 20°C up to 180°C - depending on working pressure and media
max. pressure	63 bar
design	full port design
body material	stainless steel 1.4408 / CF8M
ball material	stainless steel 1.4401 / AISI 316
length	63.3mm
actuator	hand lever with red plastic cover
installation position	any position
product description	This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

three-pieces stainless steel ball valve DN15 - 1/2" inch female thread

Article no. : GK17000003
product: 3 pieces ball valve
type: GK17
manufacturer: NieRuf
diameter: DN15 - 1/2" inch
connection: female thread BSP
Seal steam: PTFE
ball seal: PTFE
media: liquid and gaseous media
temperature: - 20°C up to 180°C - depending on working pressure and media
max. pressure: 63 bar
design: full port design
body material: stainless steel 1.4408 / CF8M
ball material: stainless steel 1.4401 / AISI 316
length: 63.3mm
actuator: hand lever with red plastic cover
installation position: any position
product description: This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems.
