PK02010105
drinking water pneumatic-ball valve DN25 - 1" inch actuator single acting normally closed PK02
- Lead time
- 3 - 5 working days
Equipment
Positioner PS01 for pneumatic actuators single acting air volume less than 5 l
€1,088.49 VAT included.
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
€54.98 VAT included.
Position indicator Typ PR01 for pneumatic actuator
€77.11 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

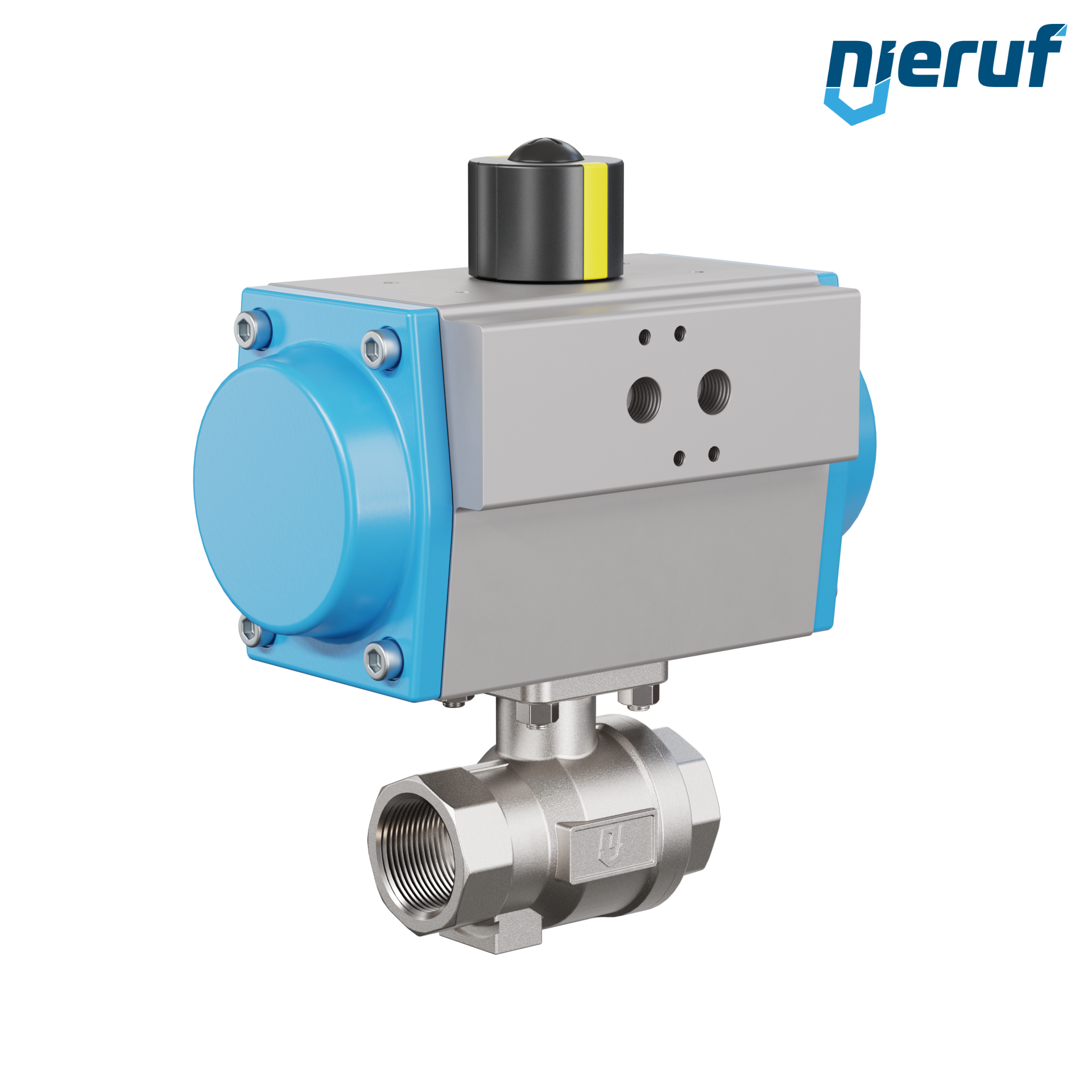

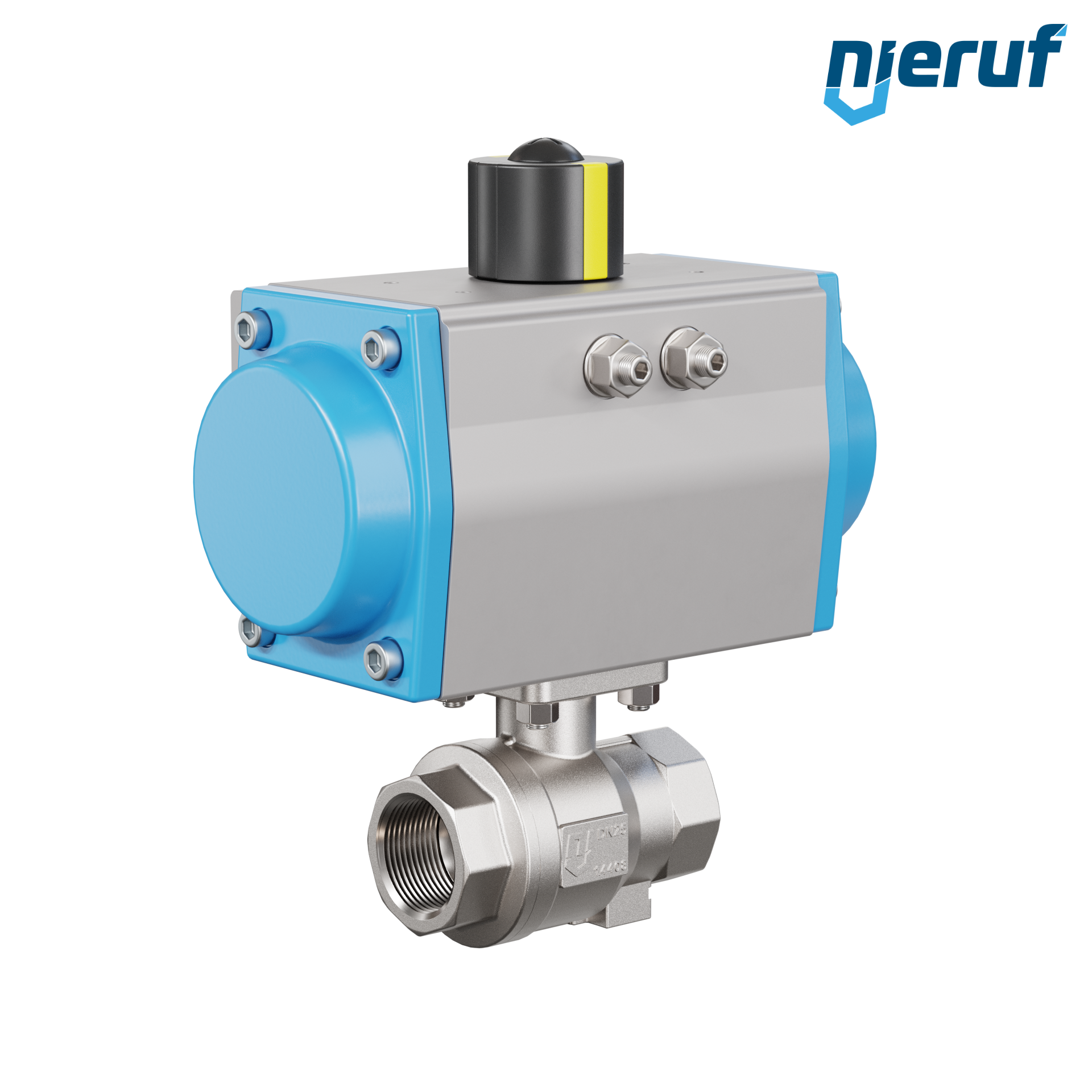

drinking water pneumatic-ball valve DN25 - 1" inch actuator single acting normally closed PK02
pneumatic-ball valve DVGW W drinking water approval DN25 - 1" inch PK02 pneumatic actuator GS075 (mode of function: GS = single acting - normally closed)
| product | pneumatic-ball valve |
|---|---|
| type | PK02 |
| manufacturer | NieRuf |
| diameter | DN25 - 1" inch |
| connection | female thread |
| Seal steam | PTFE |
| media | liquid and gaseous media |
| temperature | ball valve generally from 0°C up to +65°C (depending on working pressure and media) – pneumatic actuator: - 20°C bis + 80°C |
| max. pressure | PN10 |
| design | ball valve with pneumatic actuator (single acting normally closed) |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4408 |
| ball seal | PTFE |
| length | 182 mm |
| actuator | pneumatic actuator GS075 made of aluminium (mode of function: GS = single acting - normally closed)) |
| actuator informations | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| installation position | any position |
| authorized for | DVGW W drinking water approval |
| product description | This high quality stainless steel ball valve with pneumatic actuator (GD = double acting) needs filtered air as operating media acc. to Pneurop, ISO class 4 |
| fields of application | suitable for hazardous areas |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
drinking water pneumatic-ball valve DN25 - 1" inch actuator single acting normally closed PK02
Article no.
: PK02010105
product:
pneumatic-ball valve
type:
PK02
manufacturer:
NieRuf
diameter:
DN25 - 1" inch
connection:
female thread
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve generally from 0°C up to +65°C (depending on working pressure and media) – pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN10
design:
ball valve with pneumatic actuator (single acting normally closed)
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
ball seal:
PTFE
length:
182 mm
actuator:
pneumatic actuator GS075 made of aluminium (mode of function: GS = single acting - normally closed))
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
installation position:
any position
authorized for:
DVGW W drinking water approval
product description:
This high quality stainless steel ball valve with pneumatic actuator (GD = double acting) needs filtered air as operating media acc. to Pneurop, ISO class 4
fields of application:
suitable for hazardous areas
Equipment
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
Lead time: in stock
rotary elbow male adaptor parallel EF07 stainless steel FKM G1/4" D6mm
Lead time: 3 - 5 working days
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
Lead time: in stock
manual operated Block form flow regulator for 3/2 way valve
Lead time: in stock
Positioner PS01 for pneumatic actuators single acting air volume less than 5 l
Lead time: 2 - 3 weeks
