- Delivery time
- 3 - 5 working days
Equipment
Positioner PS01 for pneumatic actuators double acting air volume less than 5 l
€847.16 VAT included.
Questions about the article?

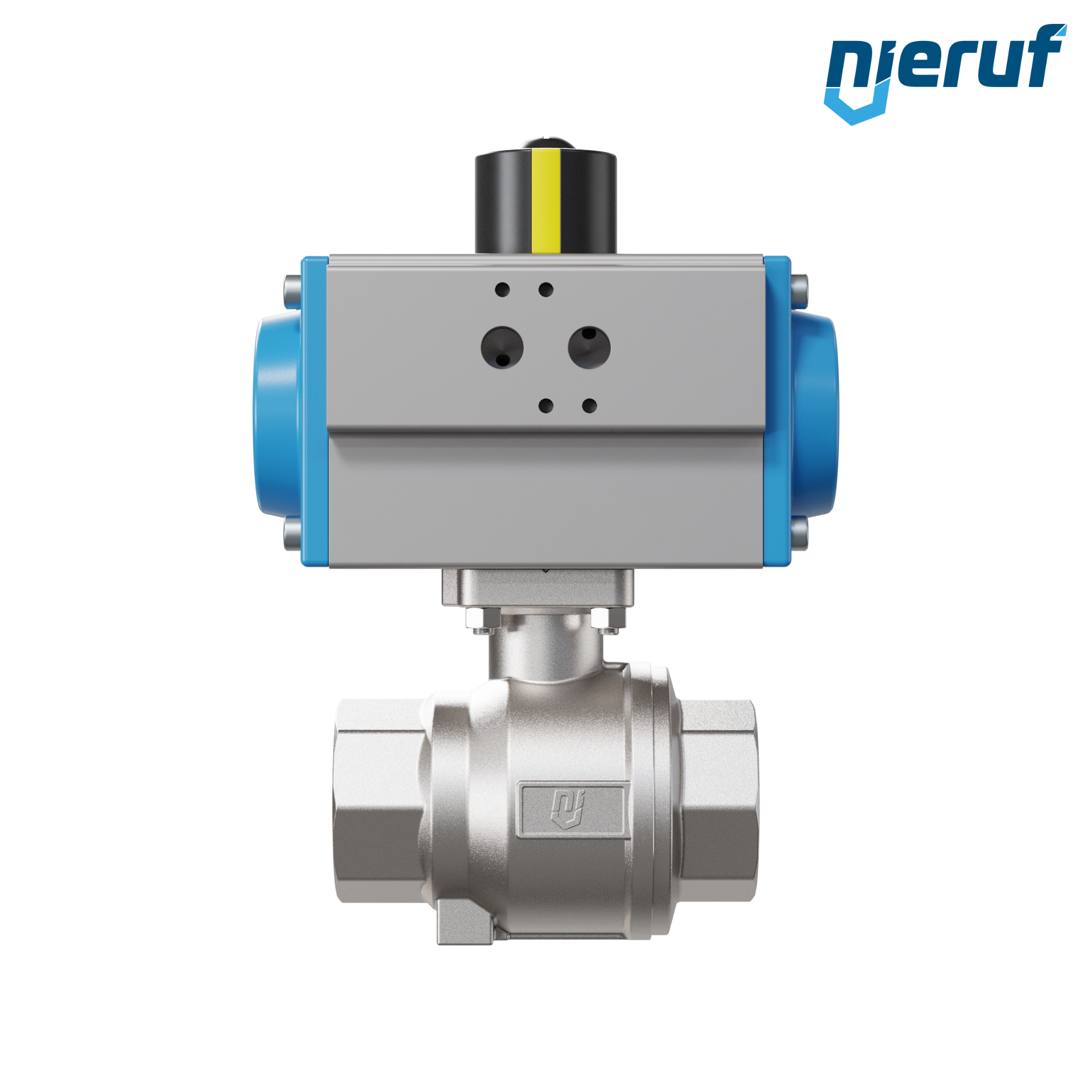

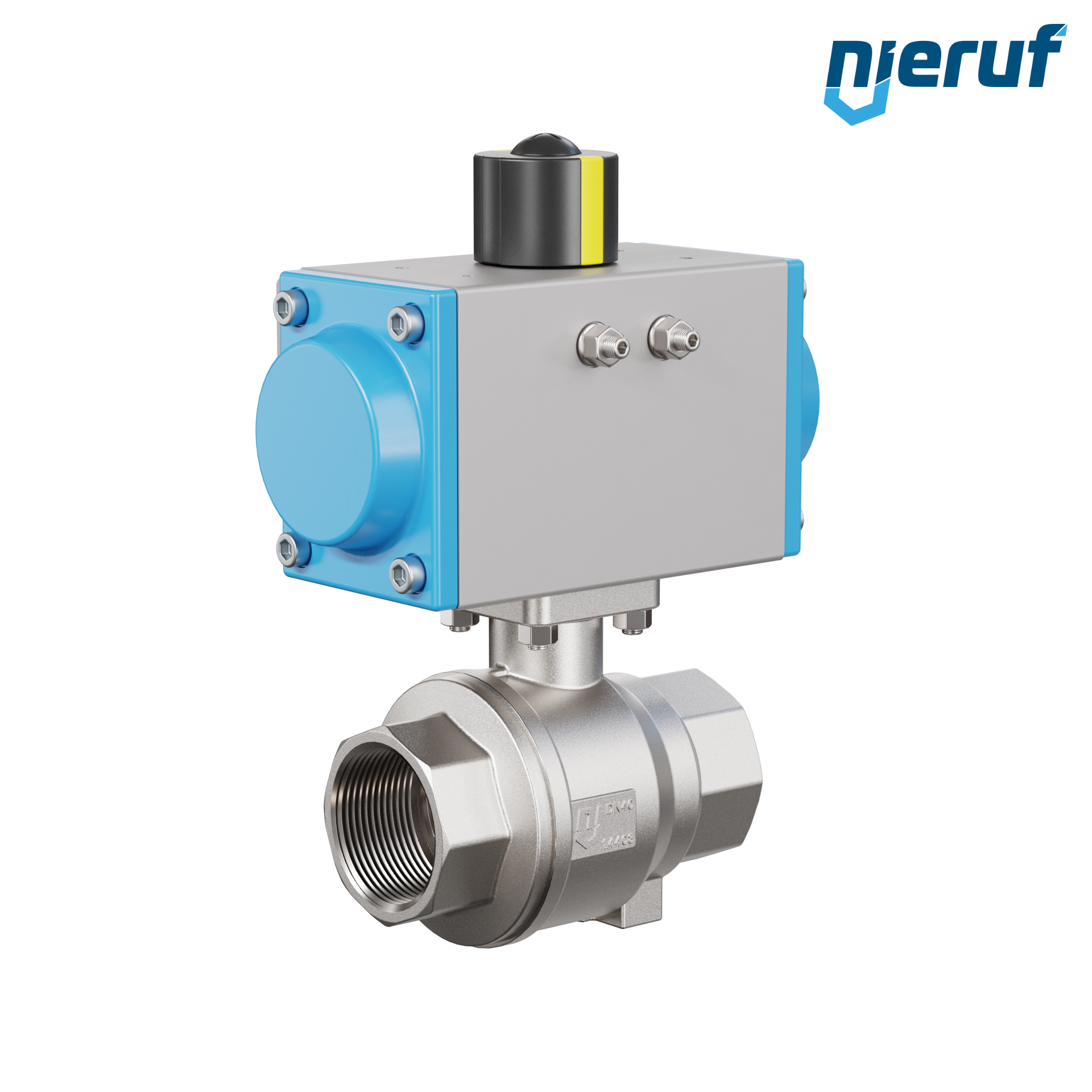

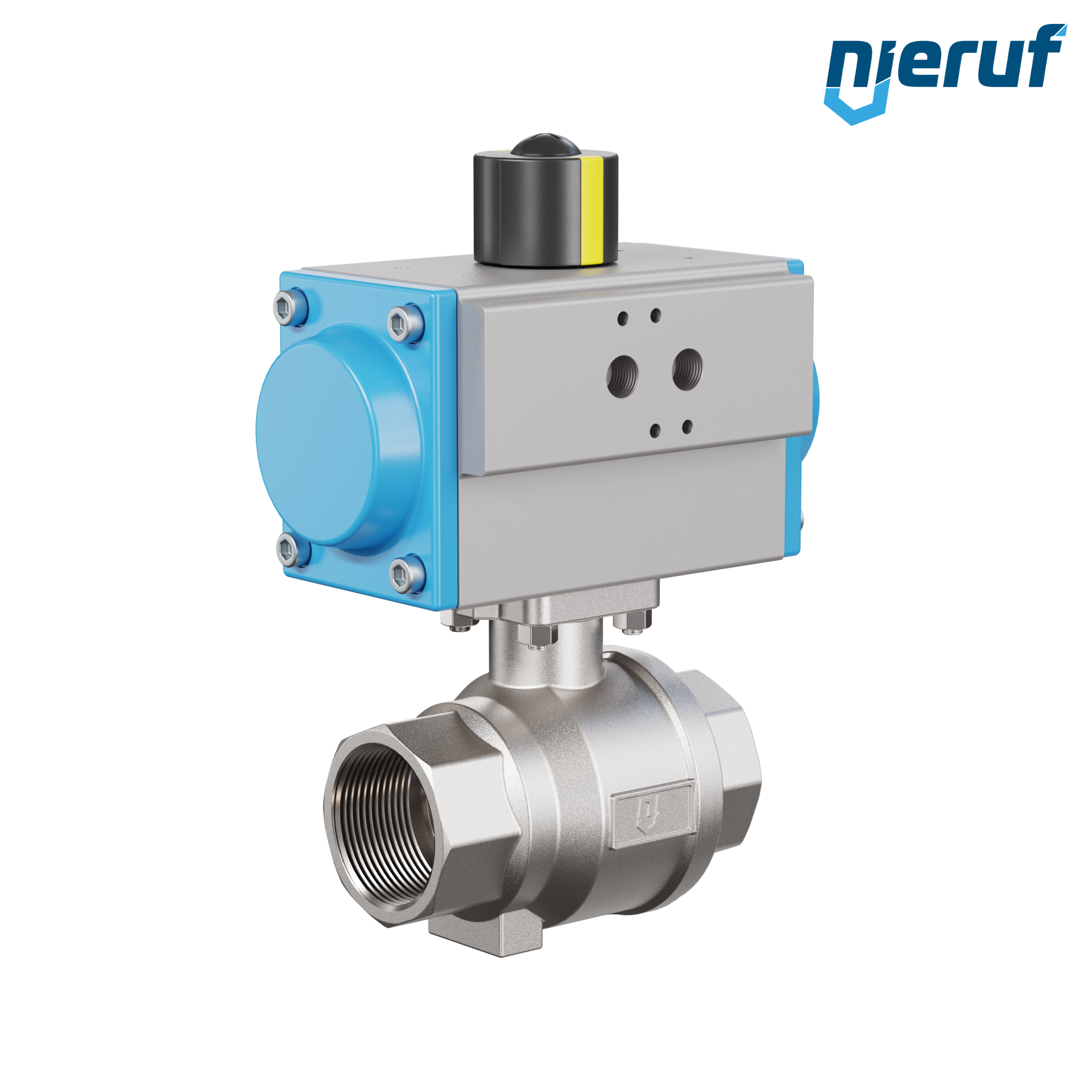

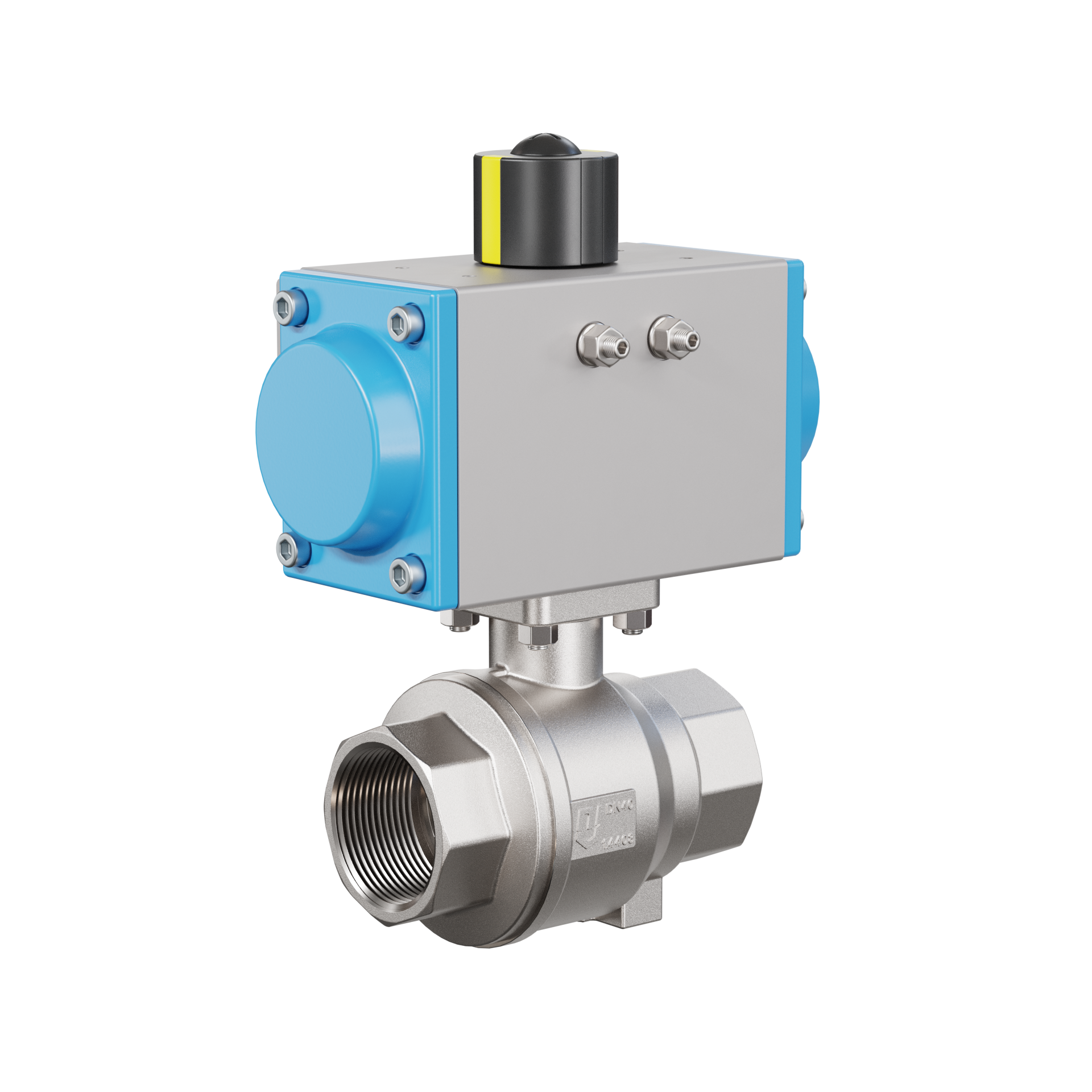

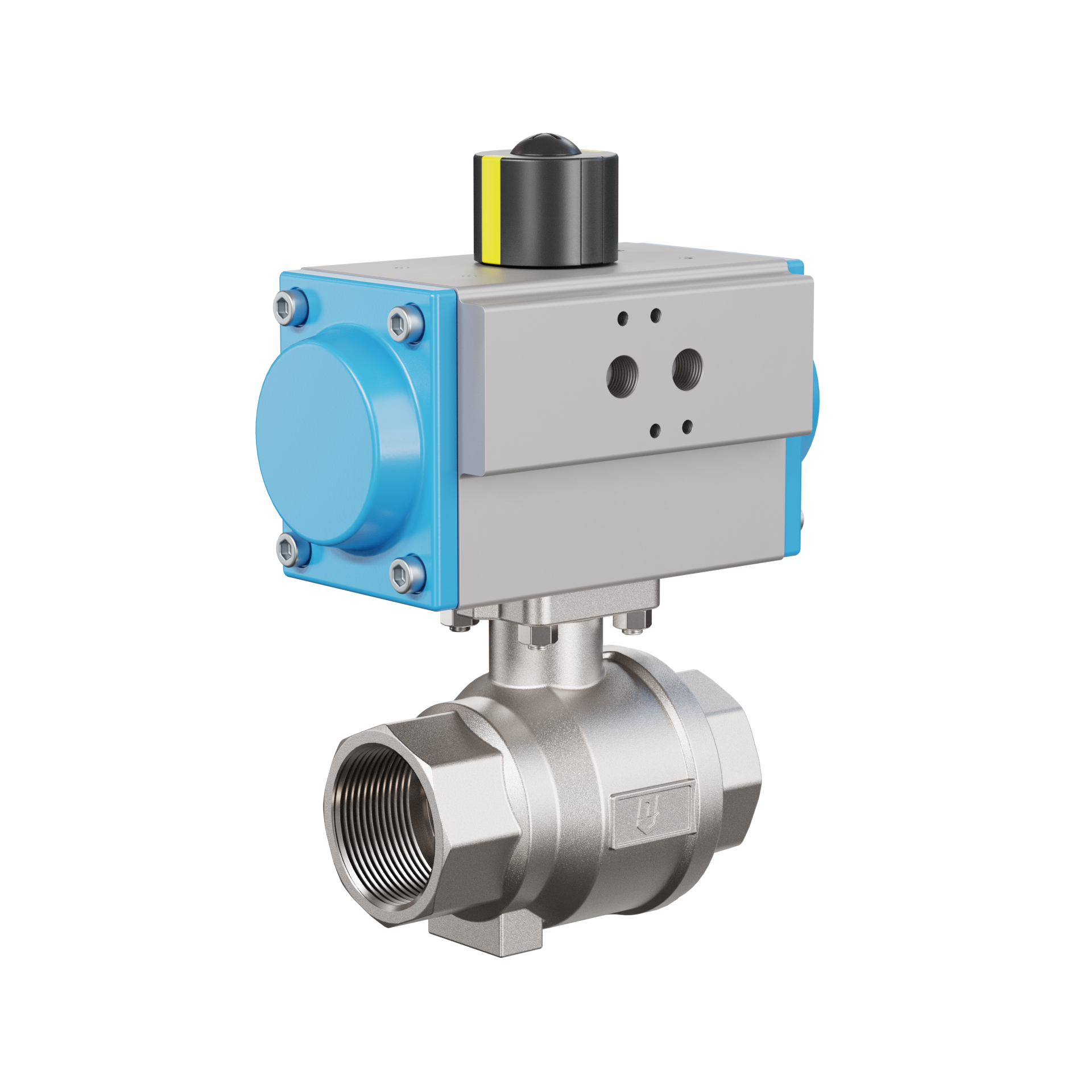

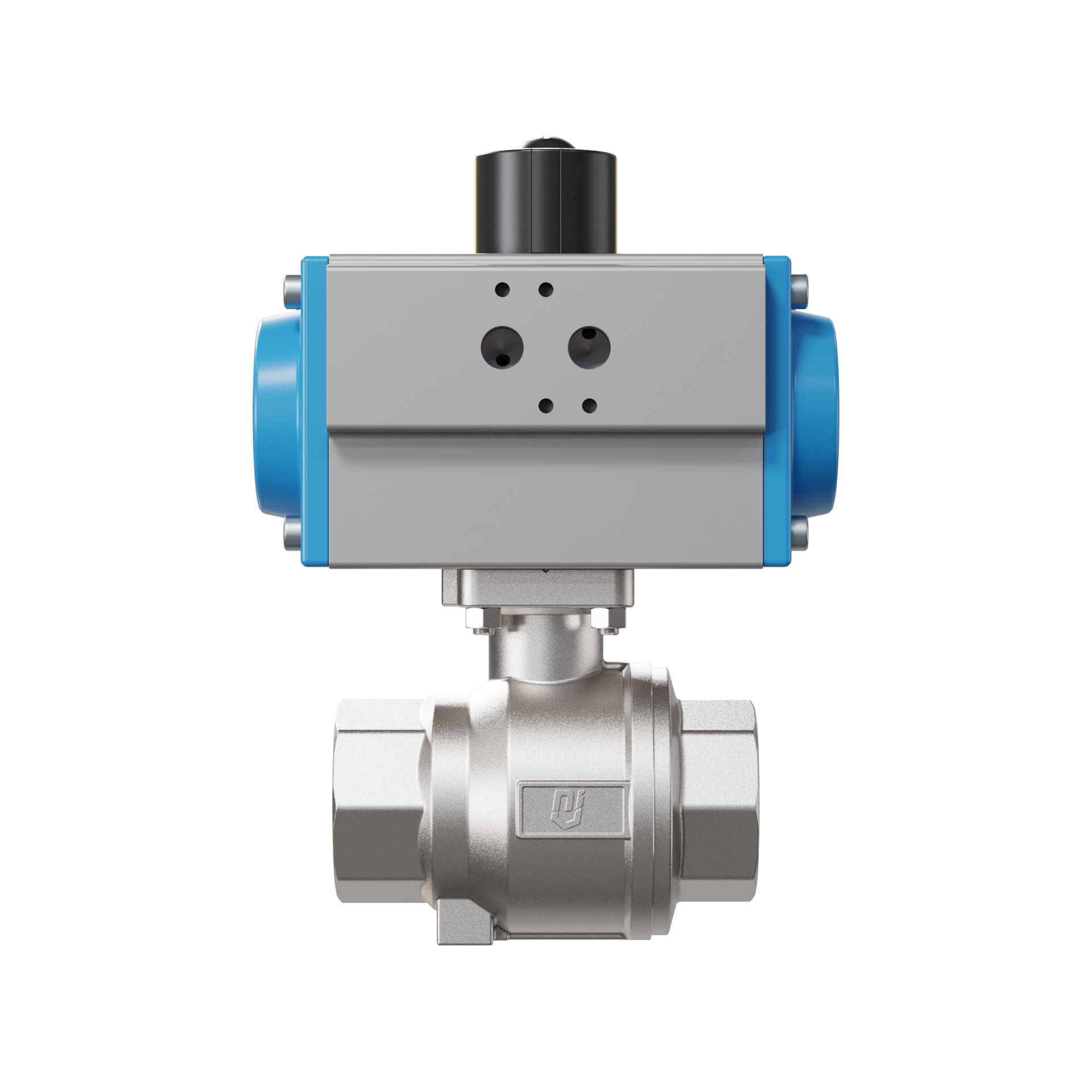

pneumatic-ball valve DVGW W drinking water approval DN40 - 1 1/2" inch PK02 pneumatic actuator GD063 (mode of function: GD = double acting)
| product | pneumatic-ball valve |
|---|---|
| type | PK02 |
| manufacturer | NieRuf |
| diameter | DN40 - 1 1/2" inch |
| connection | female thread |
| Seal steam | PTFE |
| media | liquid and gaseous media |
| temperature | ball valve generally from 0°C up to +65°C (depending on working pressure and media) – pneumatic actuator: - 20°C bis + 80°C |
| max. pressure | PN10 |
| design | ball valve with pneumatic actuator (double acting) |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4408 |
| ball seal | PTFE |
| length | 165 mm |
| actuator | pneumatic actuator GD063 made of aluminium (mode of function: GD = double acting) |
| actuator informations | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| installation position | any position |
| authorized for | DVGW W drinking water approval |
| product description | This high quality stainless steel ball valve with pneumatic actuator (GD = double acting) needs filtered air as operating media acc. to Pneurop, ISO class 4 |
| fields of application | suitable for hazardous areas |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
drinking water pneumatic-ball valve DN40 - 1 1/2" inch actuator double acting PK02
Article no.
: PK02000107
product:
pneumatic-ball valve
type:
PK02
manufacturer:
NieRuf
diameter:
DN40 - 1 1/2" inch
connection:
female thread
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve generally from 0°C up to +65°C (depending on working pressure and media) – pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN10
design:
ball valve with pneumatic actuator (double acting)
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
ball seal:
PTFE
length:
165 mm
actuator:
pneumatic actuator GD063 made of aluminium (mode of function: GD = double acting)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
installation position:
any position
authorized for:
DVGW W drinking water approval
product description:
This high quality stainless steel ball valve with pneumatic actuator (GD = double acting) needs filtered air as operating media acc. to Pneurop, ISO class 4
fields of application:
suitable for hazardous areas
Positioner PS01 for pneumatic actuators double acting with safety function air volume less than 5 l
