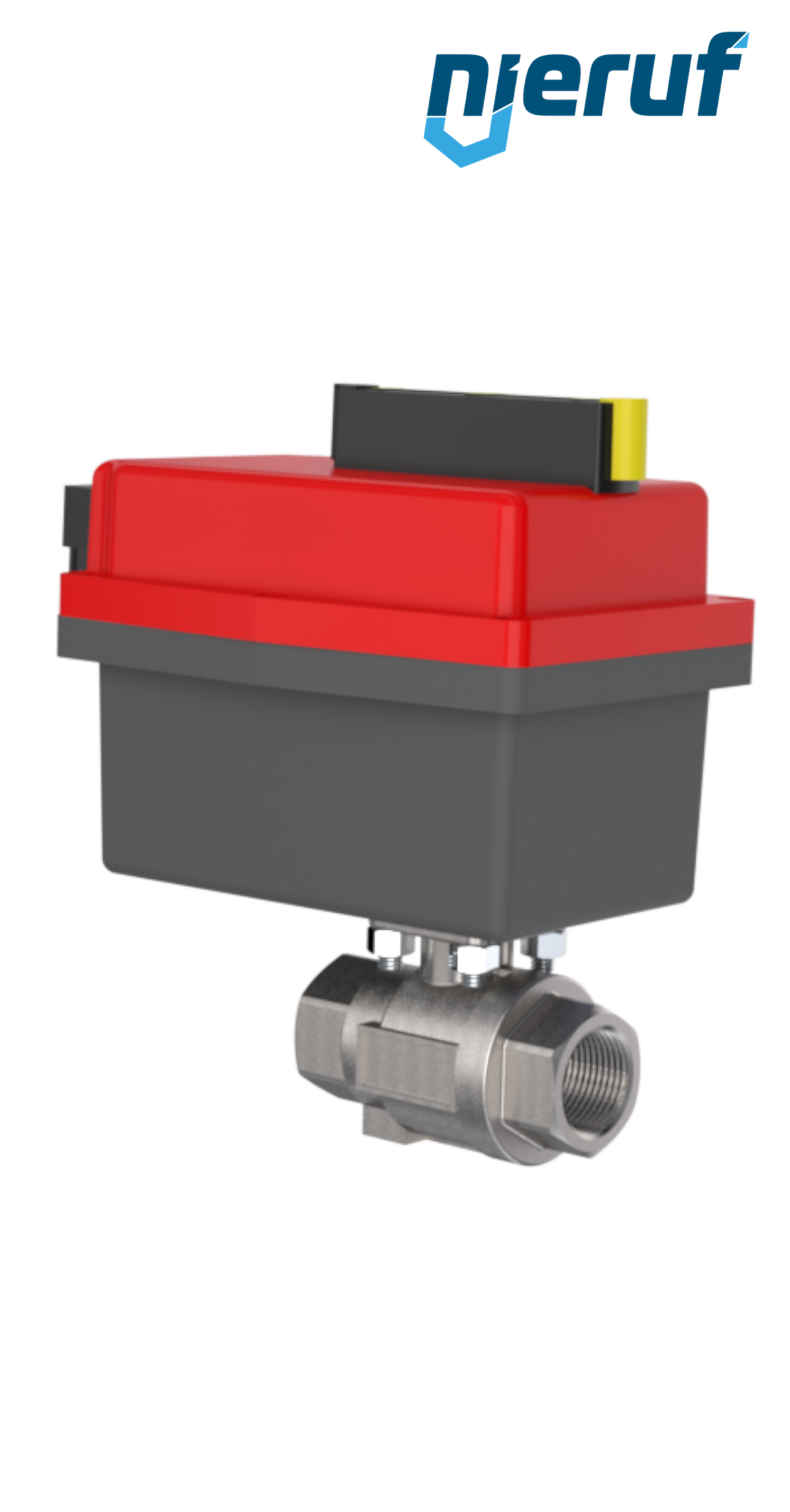

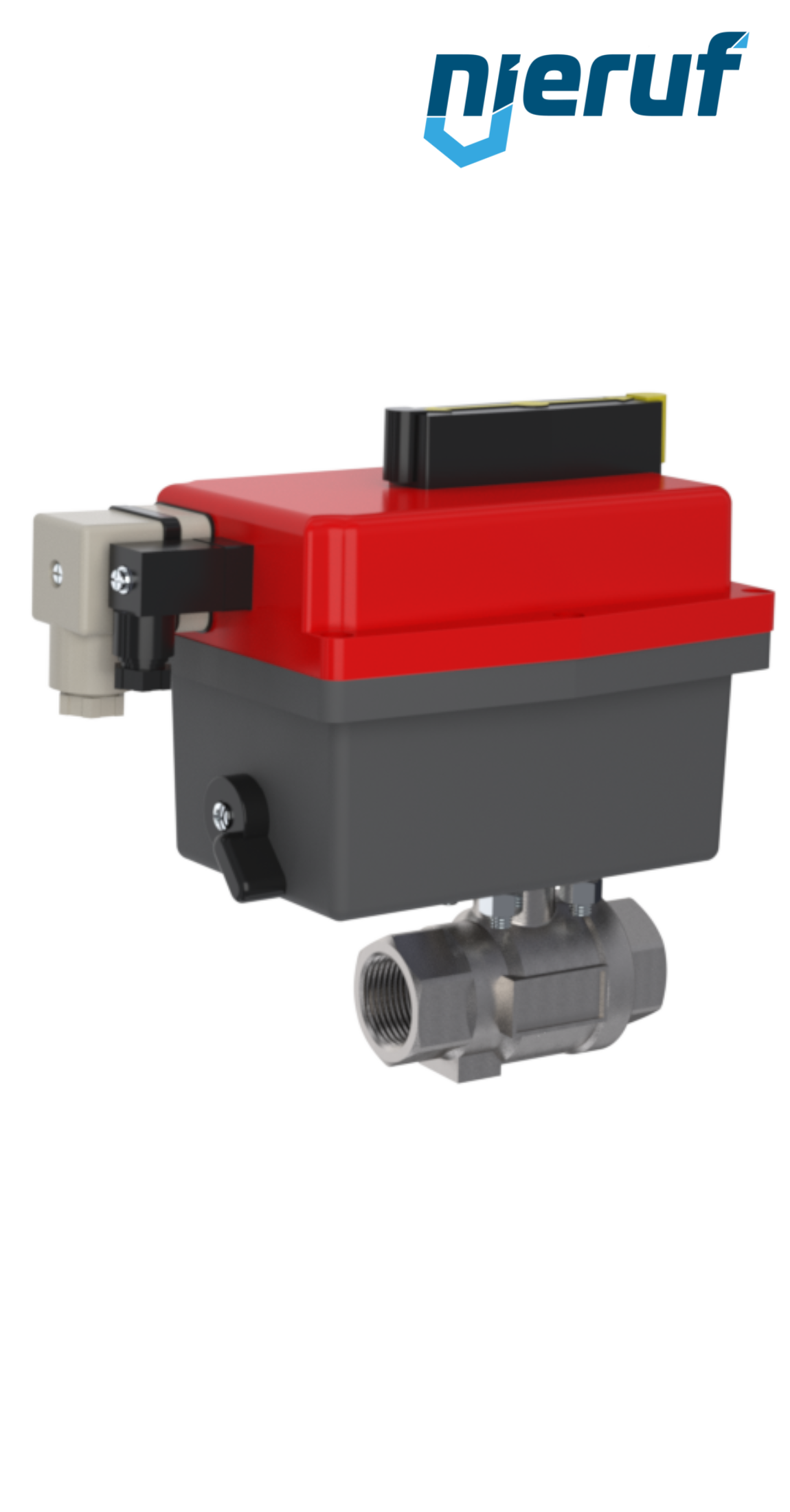

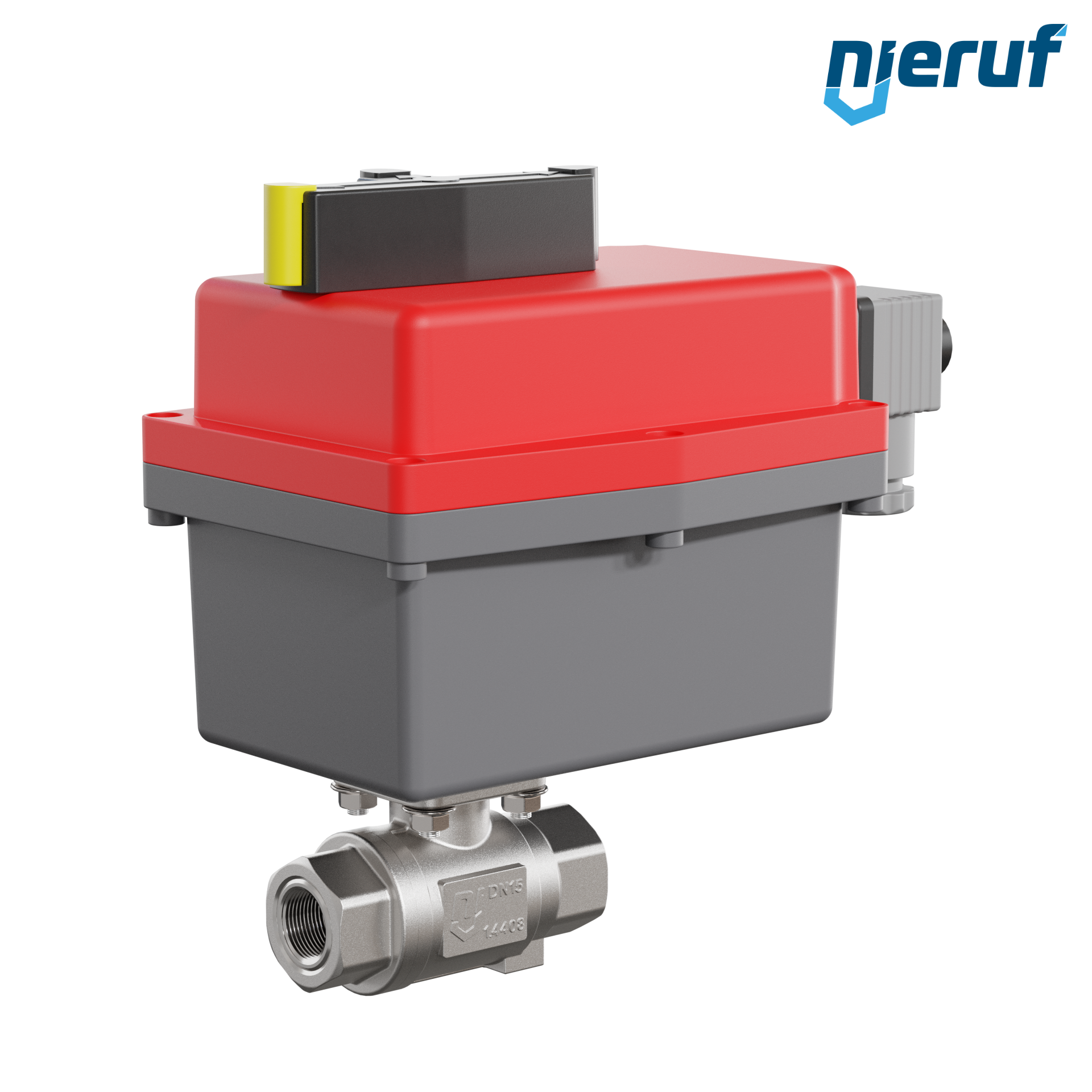

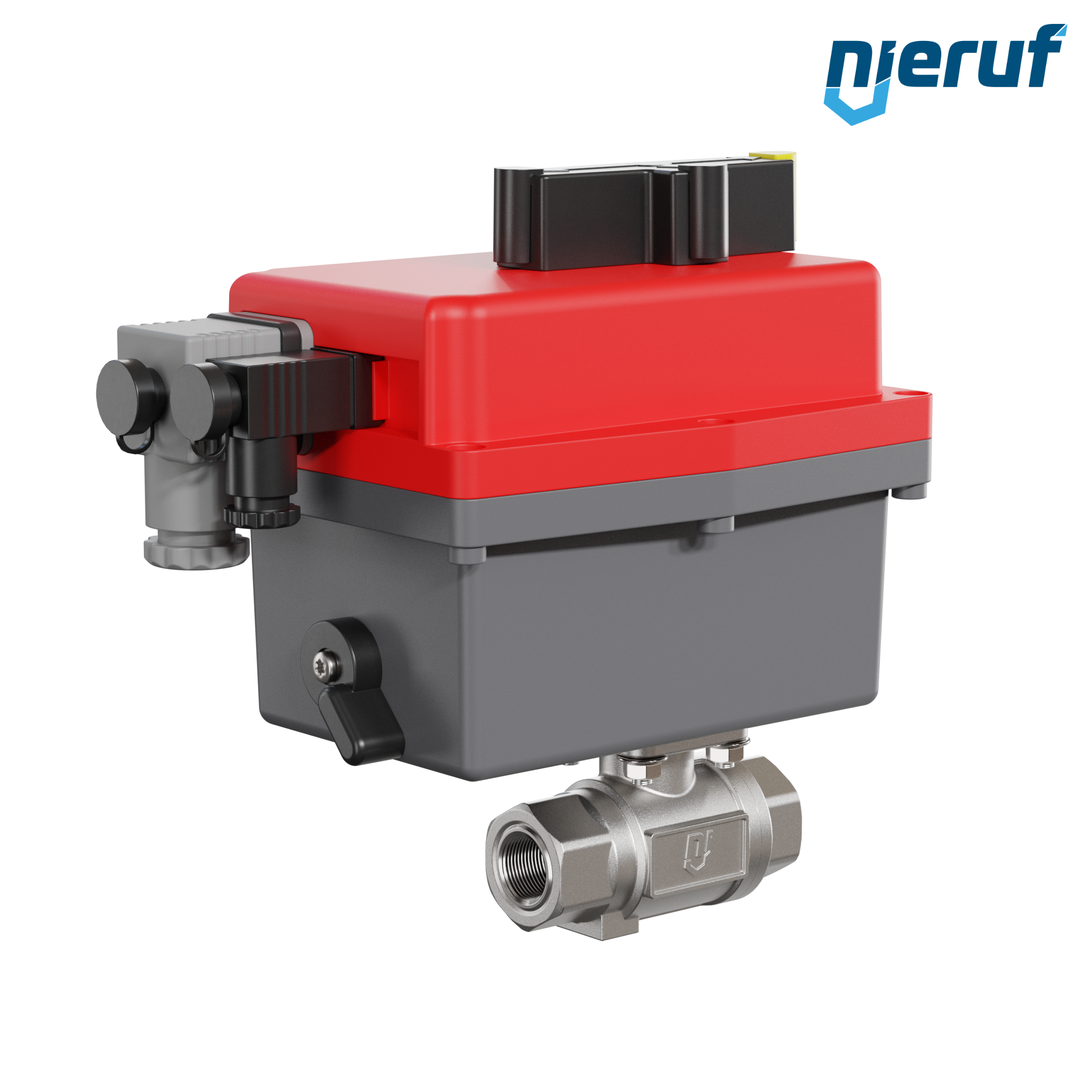

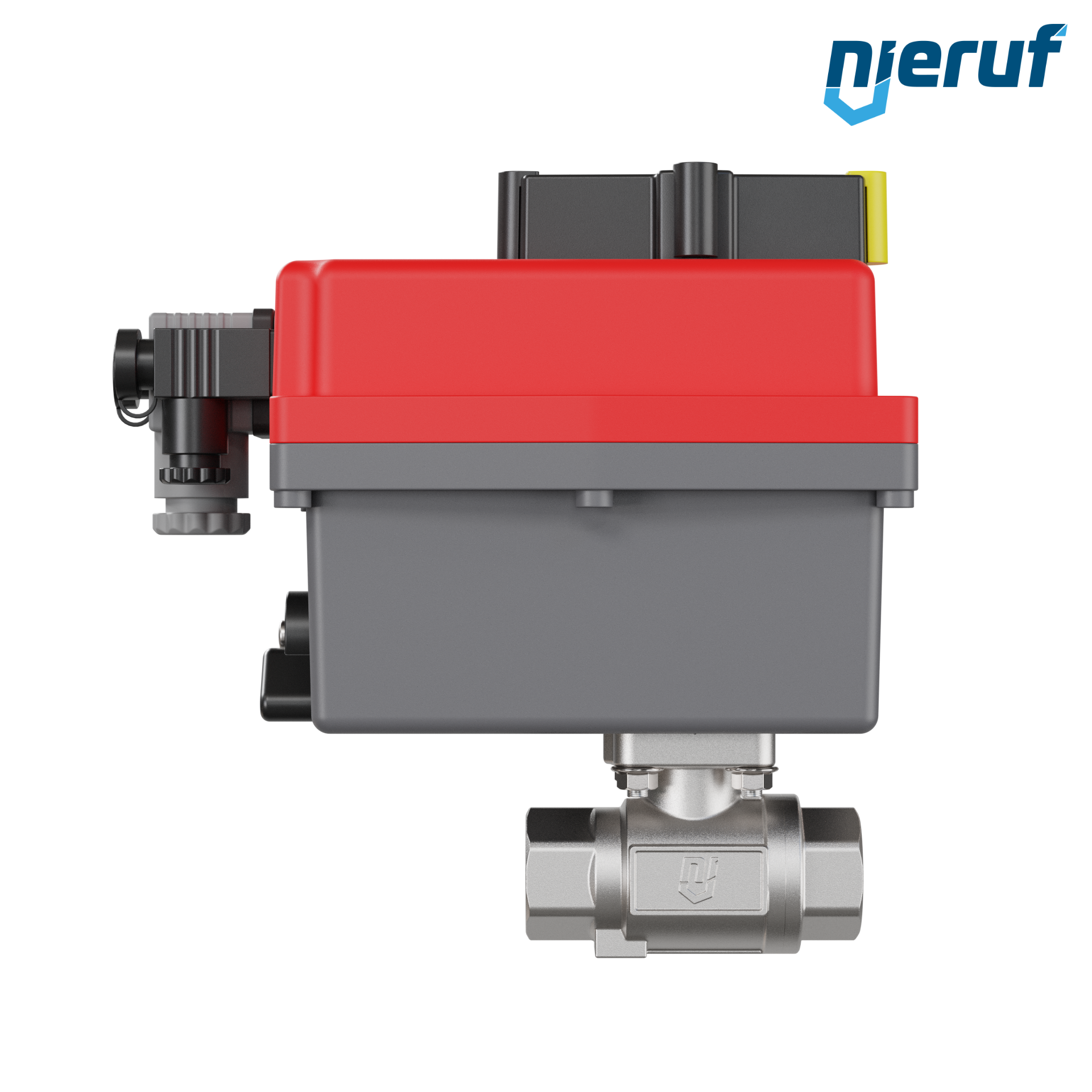

automatic-ball valve DN10 - 3/8" inch stainless steel 1.4408 EK02 electronic actuator J10H - series H (high voltage) for 100-240V AC/DC
| product | automatic-ball valve |
|---|---|
| type | EK02 |
| manufacturer | NieRuf |
| diameter | DN10 - 3/8" inch |
| connection | female thread |
| Seal steam | PTFE / Viton |
| media | liquid and gaseous media |
| temperature | ball valve generally from -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C |
| max. pressure | PN40 |
| max. differentiel pressure | max. 7 bar |
| design | Two - pieces stainless steel ball valve with actuator |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4408 |
| ball seal | PTFE |
| length | 75mm |
| actuator | electronic actuator J10H - series H (high voltage) for 100-240V AC/DC |
| actuator informations | corrosion resistant synthetic body |
| installation position | any position, not upside down |
| product description | This high quality automatic-stainless steel ball valves thread connections with electronic actuator (series H = high voltage) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
automatic-ball valve DN10 - 3/8" inch stainless steel electric 100-240V EK02
Article no.
: EK02010002
product:
automatic-ball valve
type:
EK02
manufacturer:
NieRuf
diameter:
DN10 - 3/8" inch
connection:
female thread
Seal steam:
PTFE / Viton
media:
liquid and gaseous media
temperature:
ball valve generally from -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure:
PN40
max. differentiel pressure:
max. 7 bar
design:
Two - pieces stainless steel ball valve with actuator
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
ball seal:
PTFE
length:
75mm
actuator:
electronic actuator J10H - series H (high voltage) for 100-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
product description:
This high quality automatic-stainless steel ball valves thread connections with electronic actuator (series H = high voltage) with visual position indicator and emergency operating.
