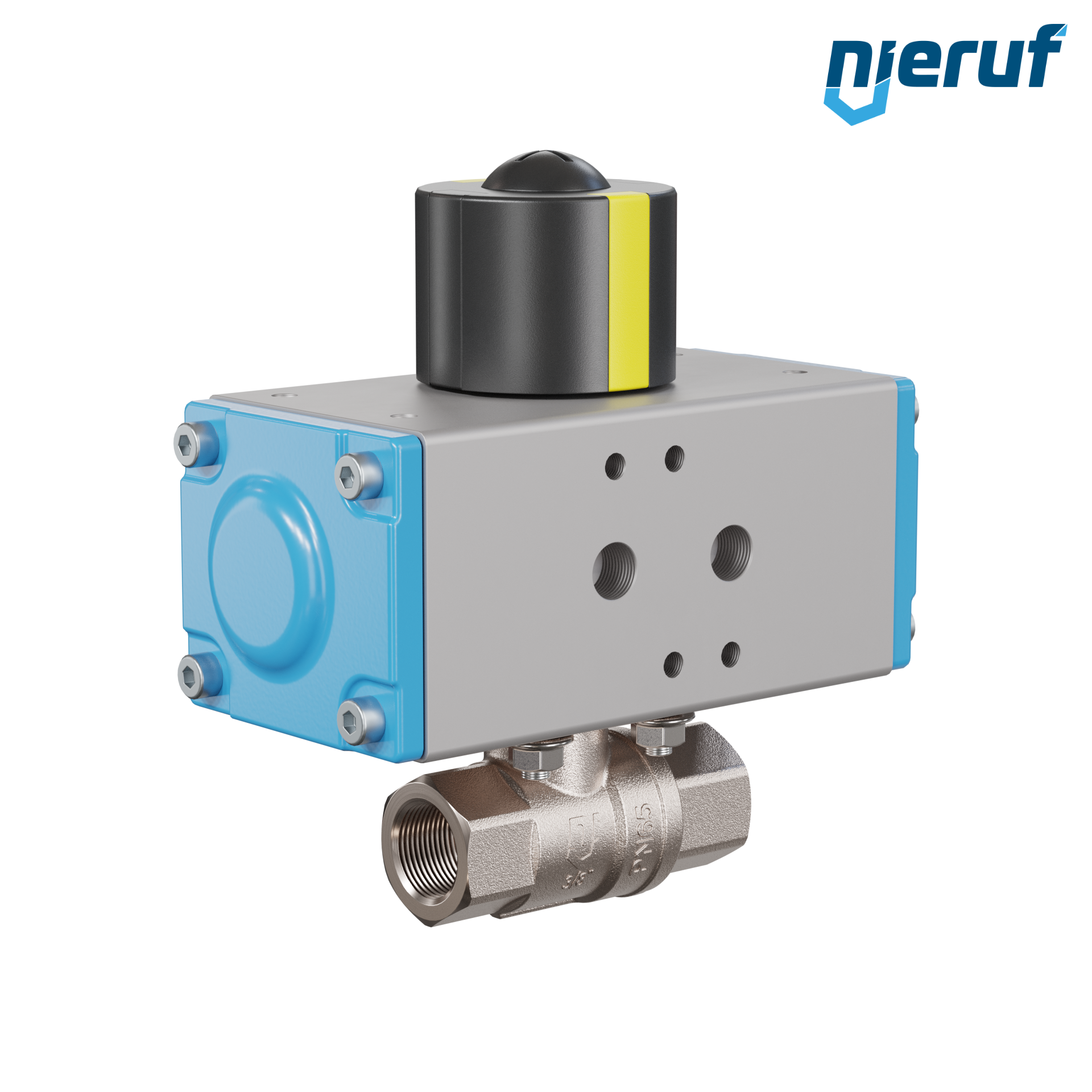

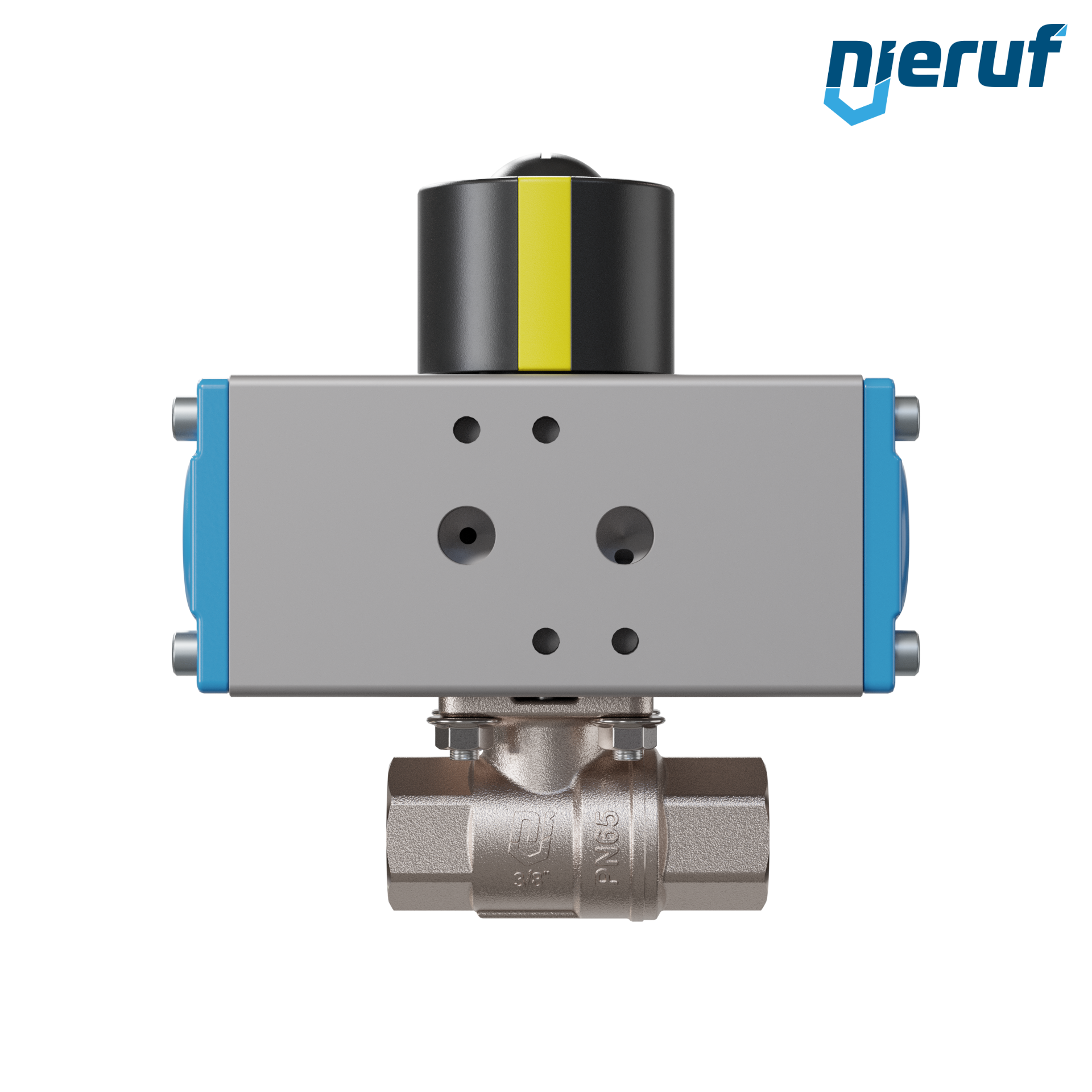

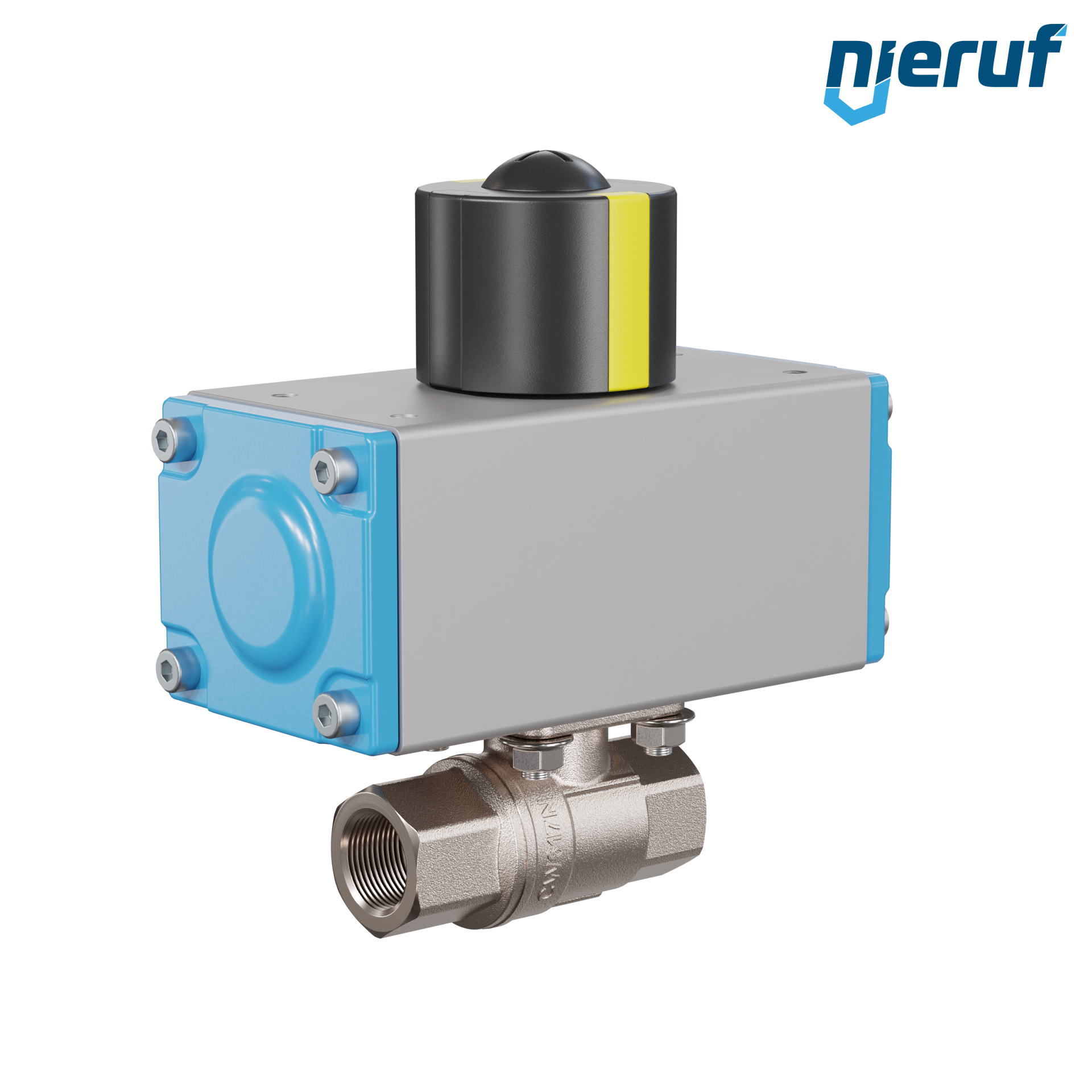

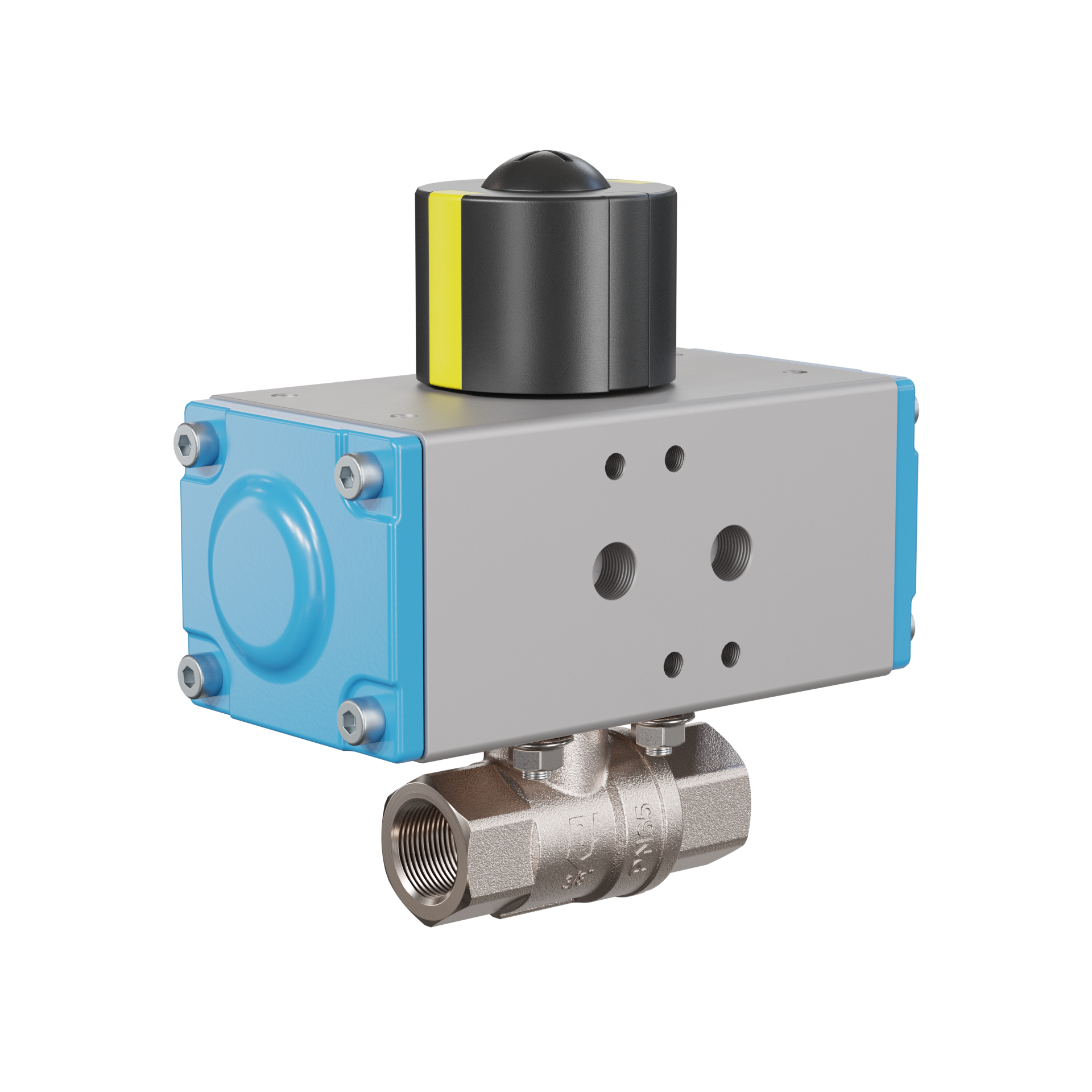

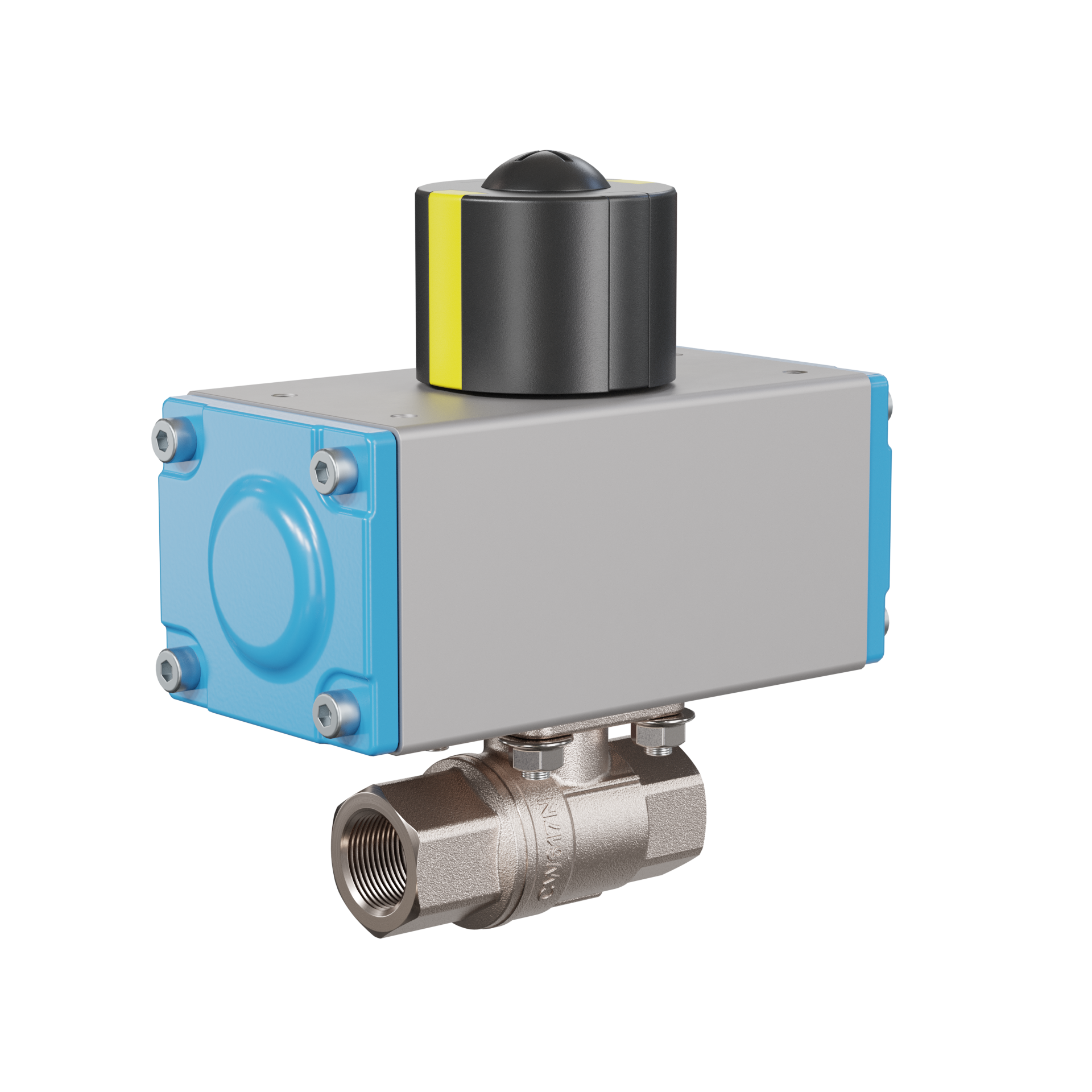

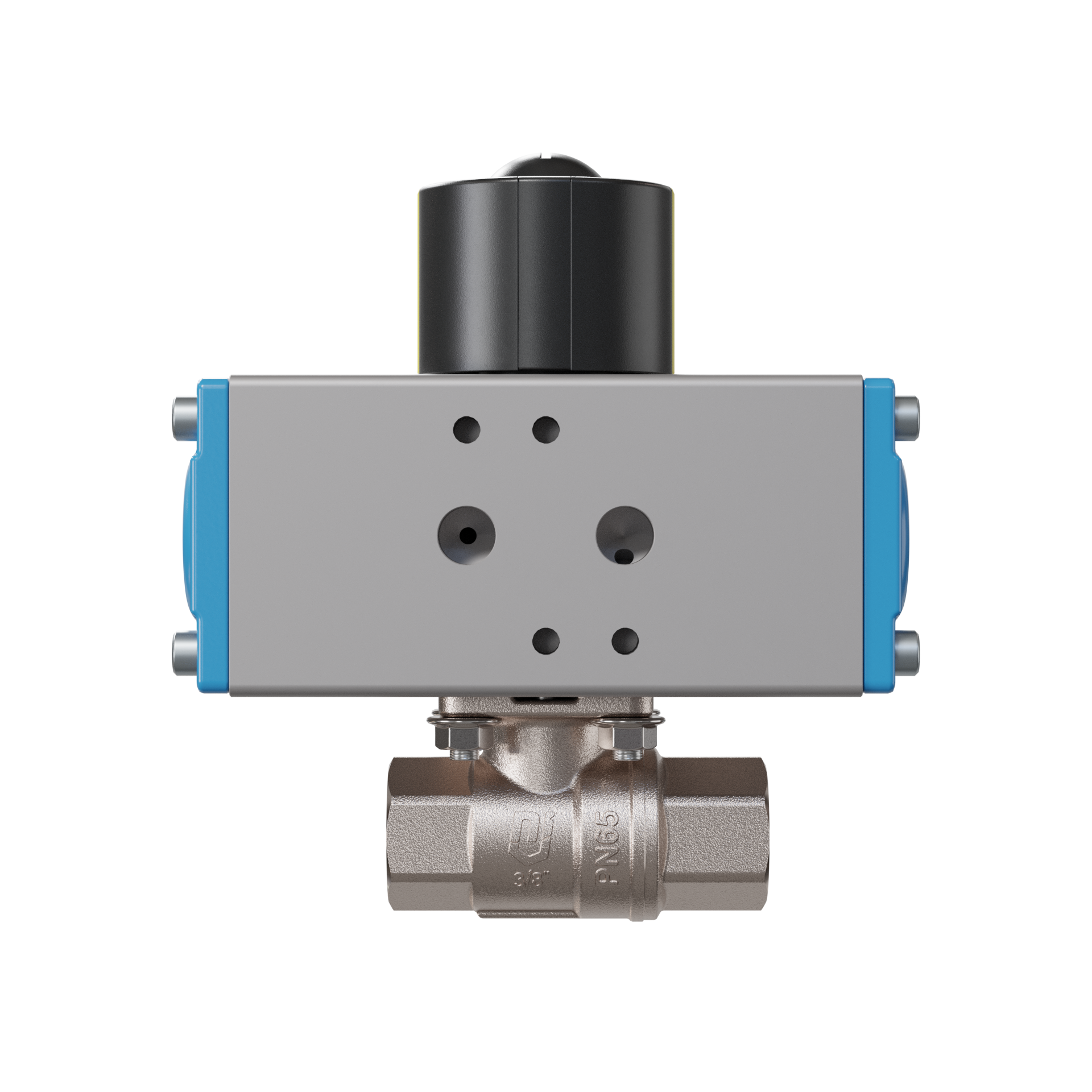

automatic ball valves DN10 - 3/8" inch pneumatic actuator double acting PK01

PK01000002
quantity (pcs.):
118.70€ * 137.69€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
automatic ball valves DN10 - 3/8" inch pneumatic actuator double acting PK01
automatic ball valves DN10 - 3/8" inch brass CW617N nickel plated PK01 pneumatic actuator DAD32 made of aluminium (mode of function: DAD = double acting)
diameter: DN10 - 3/8" inch
connection: female thread
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C up to + 90°C
max. pressure: PN65
design: Two - pieces brass ball valve
body material: brass CW617N nickel plated
ball material: stainless steel 1.4408
ball seal: PTFE
length: 75mm
actuator: pneumatic actuator DAD32 made of aluminium (mode of function: DAD = double acting)
actuator informations: Control pressure rate from 6 bar up to 10 bar / filtered air acc. to Pneurop / ISO class 4
product description: This high quality automatic-brass ball valves thread connections with pneumatic actuator (DAD = double acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air
automatic ball valves DN10 - 3/8" inch pneumatic actuator double acting PK01

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

automatic ball valves DN10 - 3/8" inch pneumatic actuator double acting PK01
