automatic-ball valve DN20 - 3/4" inch stainless steel electric 110-240V EK02

EK02010004
quantity (pcs.):
270.60€ * 313.90€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Friday, 27. November
Guaranteed delivery until Monday, 30. November, 12 Uhr:
order within 8 minutes via express shipping
datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

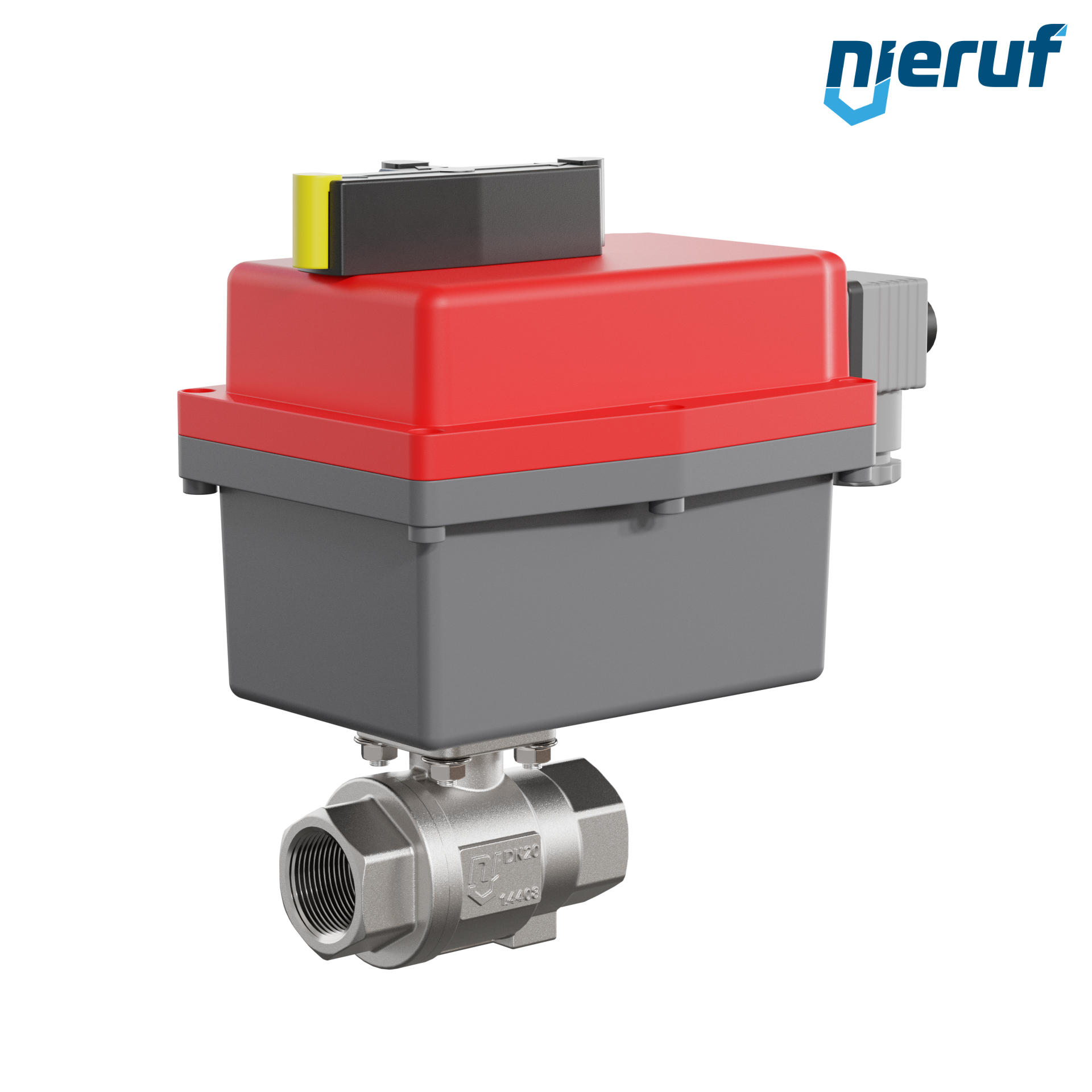

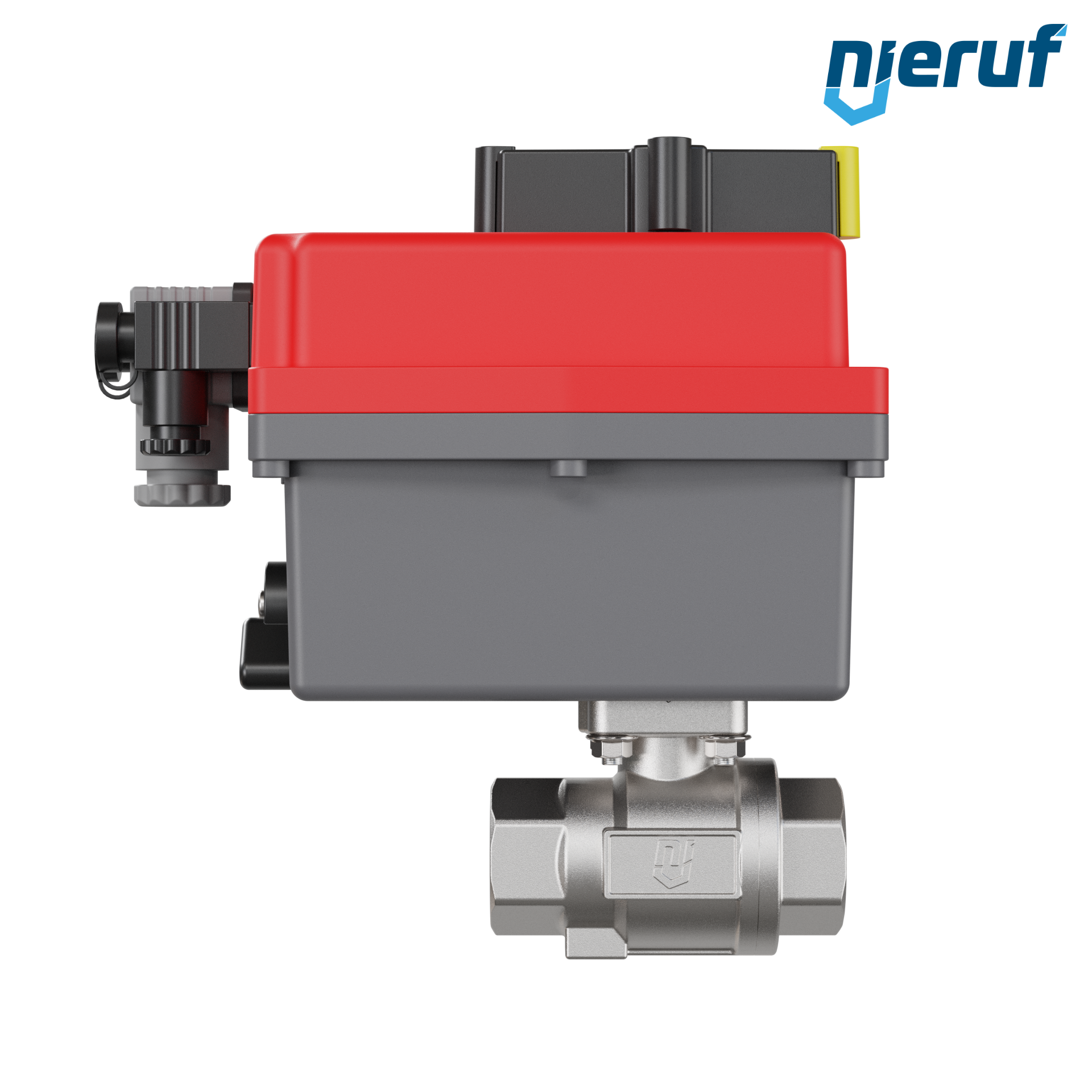

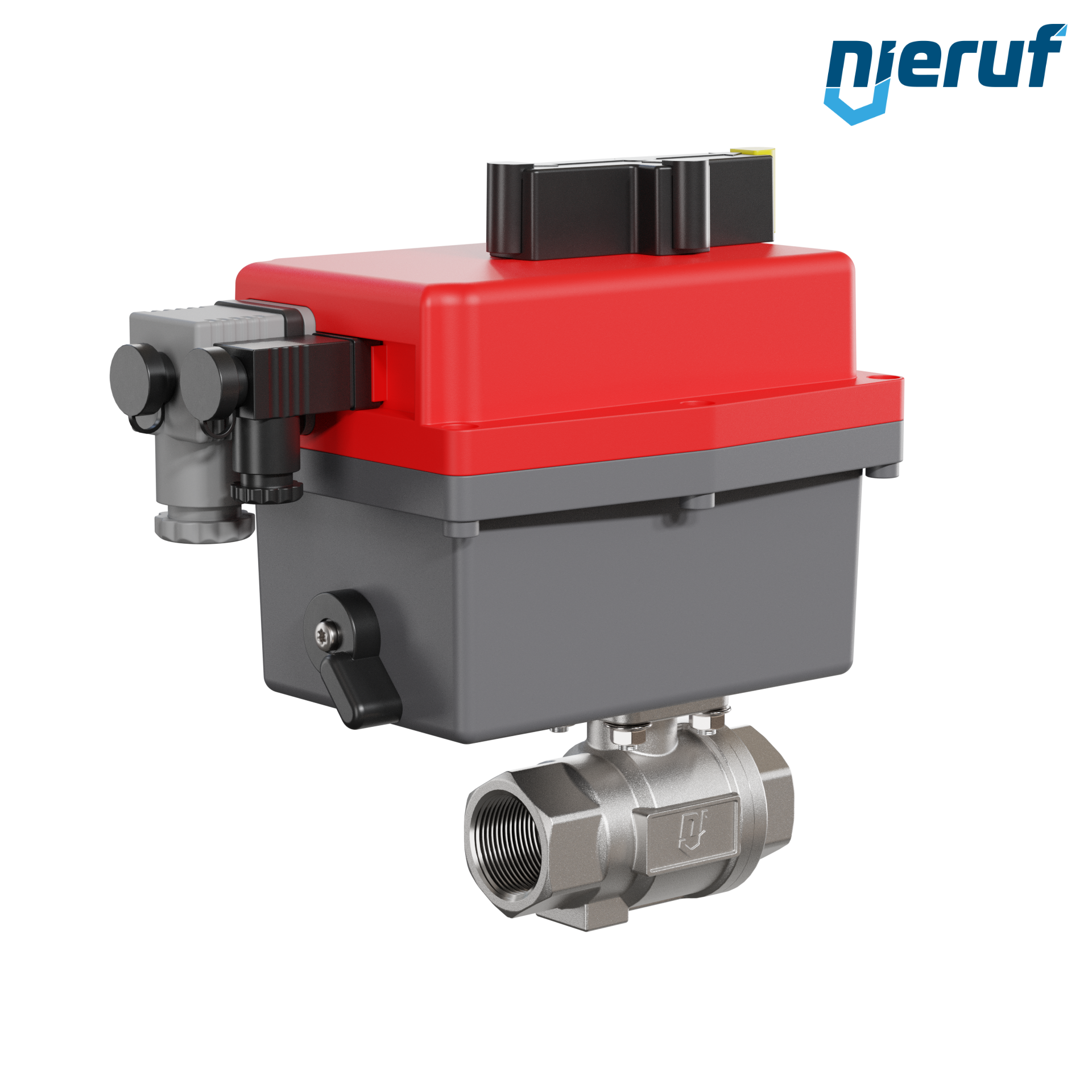

automatic-ball valve DN20 - 3/4" inch stainless steel electric 110-240V EK02
automatic-ball valve DN20 - 3/4" inch stainless steel 1.4408 EK02 electronic actuator H10 - series H (high voltage) for 110-240V AC/DC
diameter: DN20 - 3/4" inch
connection: female thread
Seal steam: PTFE / Viton
media: liquid and gaseous media
temperature: ball valve generally from -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure: PN40
design: Two - pieces stainless steel ball valve
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 80mm
actuator: electronic actuator H10 - series H (high voltage) for 110-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
product description: This high quality automatic-stainless steel ball valves thread connections with electronic actuator (series S = low voltage) with visual position indicator and emergency operating.
automatic-ball valve DN20 - 3/4" inch stainless steel electric 110-240V EK02

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

automatic-ball valve DN20 - 3/4" inch stainless steel electric 110-240V EK02
