Automatic-ball valves DN20 - 3/4" inch brass electric 100-240V EK01

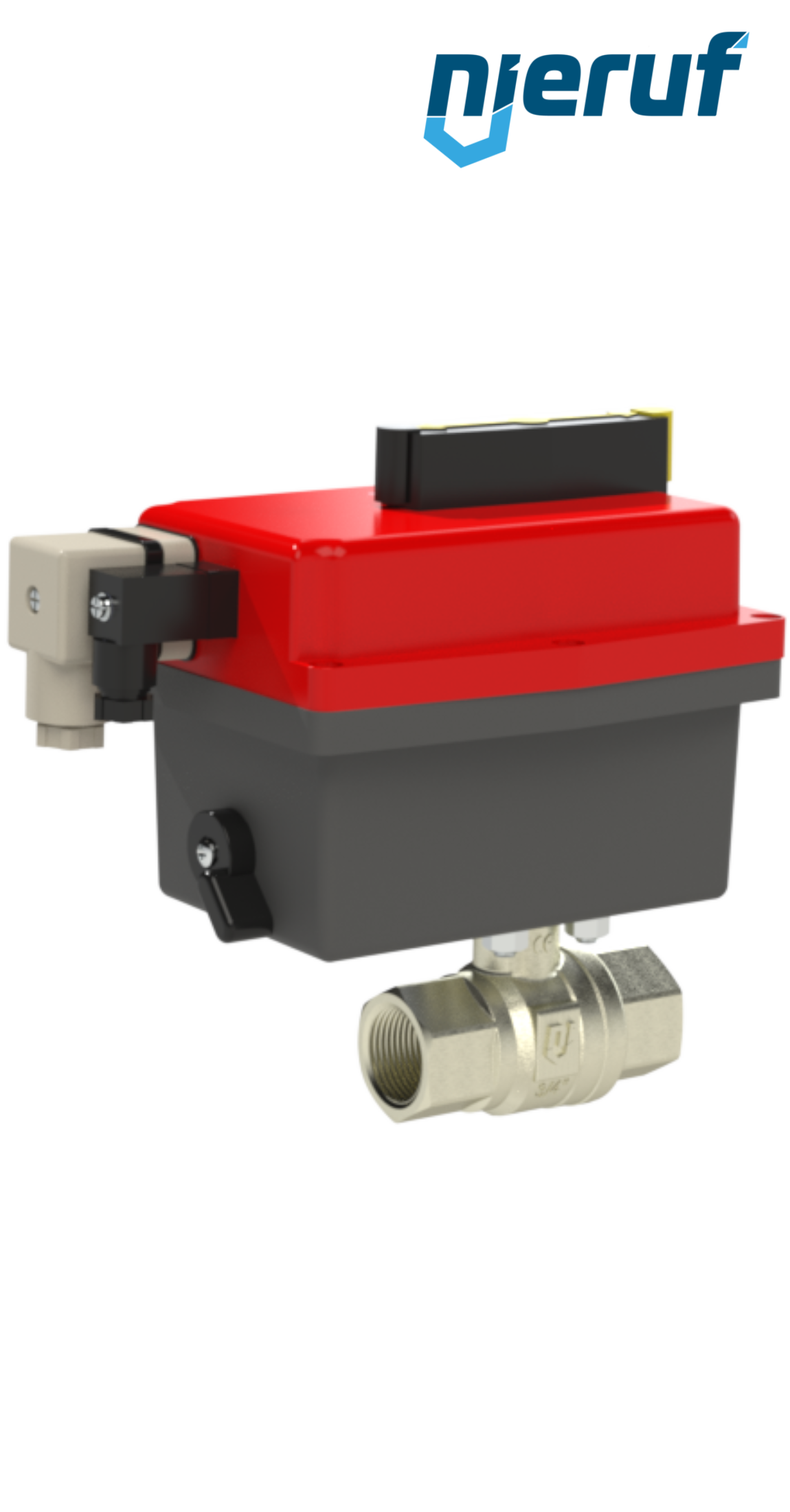

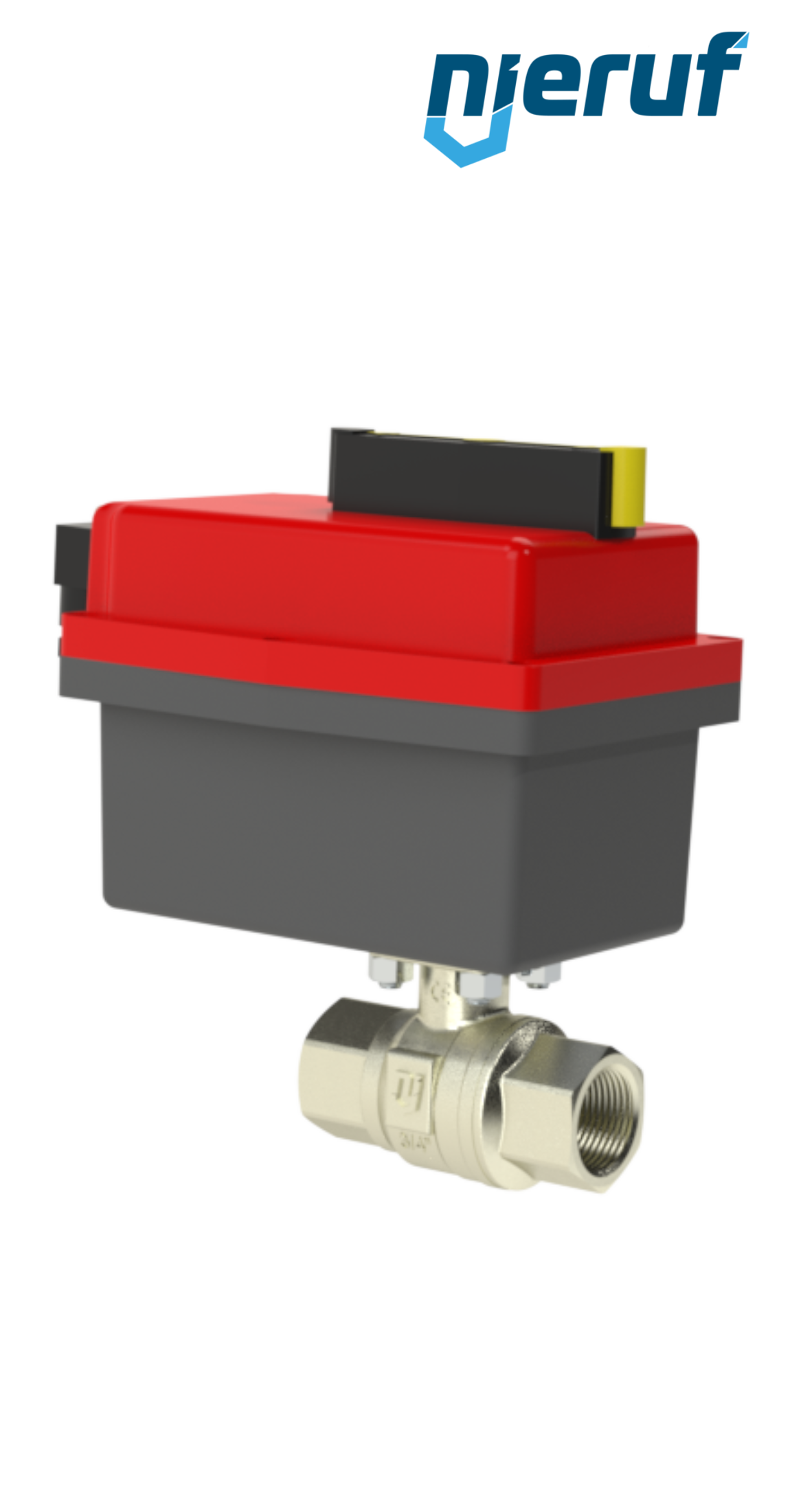

Automatic-ball valves DN20 - 3/4" inch brass CW617N nickel plated EK01 electronic actuator J10H- series H (high voltage) for 100-240V AC+DC
| product | Automatic-ball valves |
|---|---|
| type | EK01 |
| manufacturer | NieRuf |
| diameter | DN20 - 3/4" inch |
| connection | female thread |
| Seal steam | Viton |
| media | liquid and gaseous media |
| temperature | ball valve: -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C up to +70°C |
| max. pressure | PN40 |
| max. differentiel pressure | max. 16 bar |
| design | Two - pieces brass ball valve with actuator |
| body material | brass CW617N nickel plated |
| ball material | stainless steel 1.4408 |
| ball seal | PTFE |
| length | 80mm |
| actuator | electronic actuator J10H - series H (high voltage) for 100-240V AC/DC |
| actuator informations | corrosion resistant synthetic body |
| installation position | any position, not upside down |
| product description | This high quality automatic-brass ball valves thread connections with electronic actuator (series H = high voltage) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Automatic-ball valves DN20 - 3/4" inch brass electric 100-240V EK01
Article no.
: EK01010004
product:
Automatic-ball valves
type:
EK01
manufacturer:
NieRuf
diameter:
DN20 - 3/4" inch
connection:
female thread
Seal steam:
Viton
media:
liquid and gaseous media
temperature:
ball valve: -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C up to +70°C
max. pressure:
PN40
max. differentiel pressure:
max. 16 bar
design:
Two - pieces brass ball valve with actuator
body material:
brass CW617N nickel plated
ball material:
stainless steel 1.4408
ball seal:
PTFE
length:
80mm
actuator:
electronic actuator J10H - series H (high voltage) for 100-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
product description:
This high quality automatic-brass ball valves thread connections with electronic actuator (series H = high voltage) with visual position indicator and emergency operating.
