PK01010008

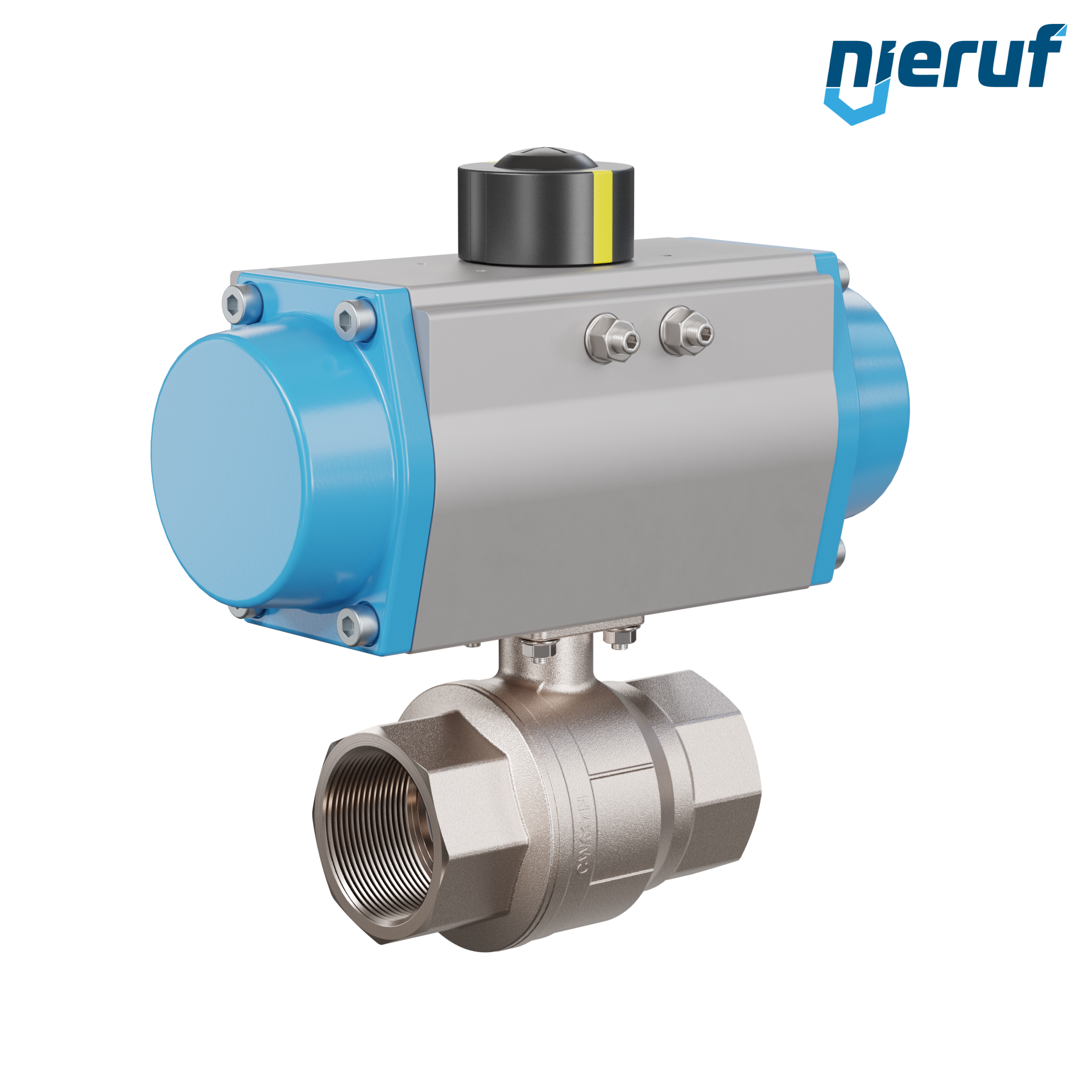

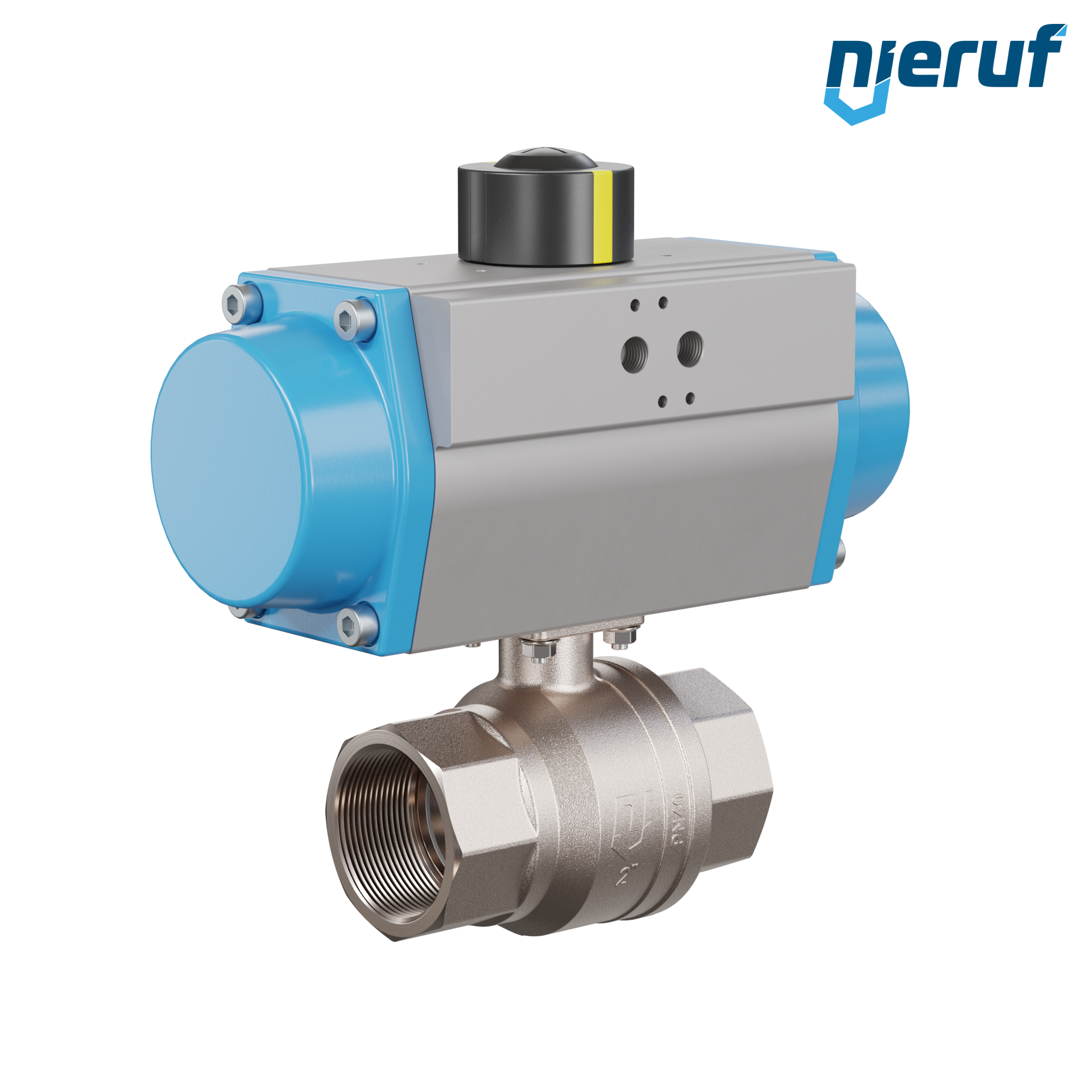

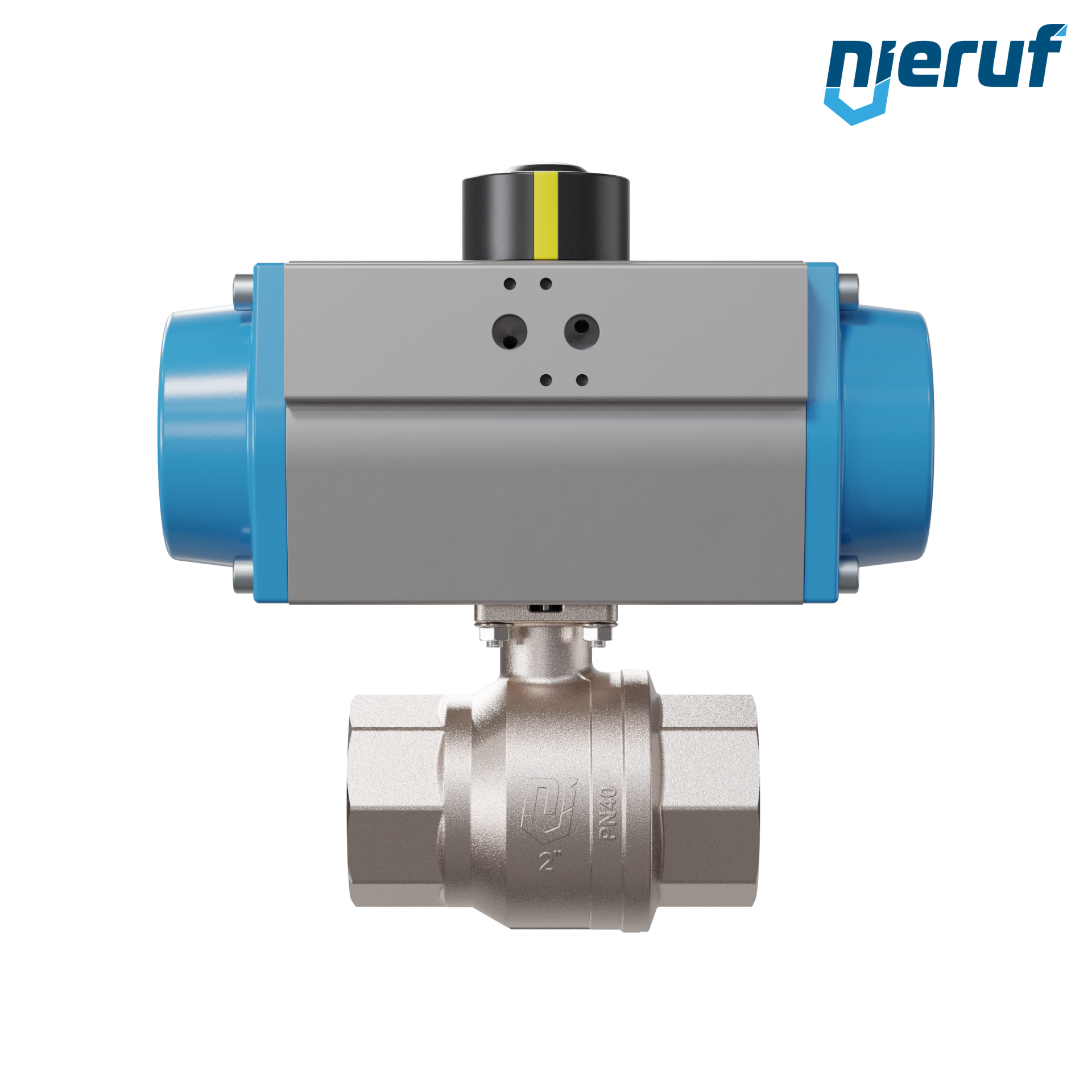

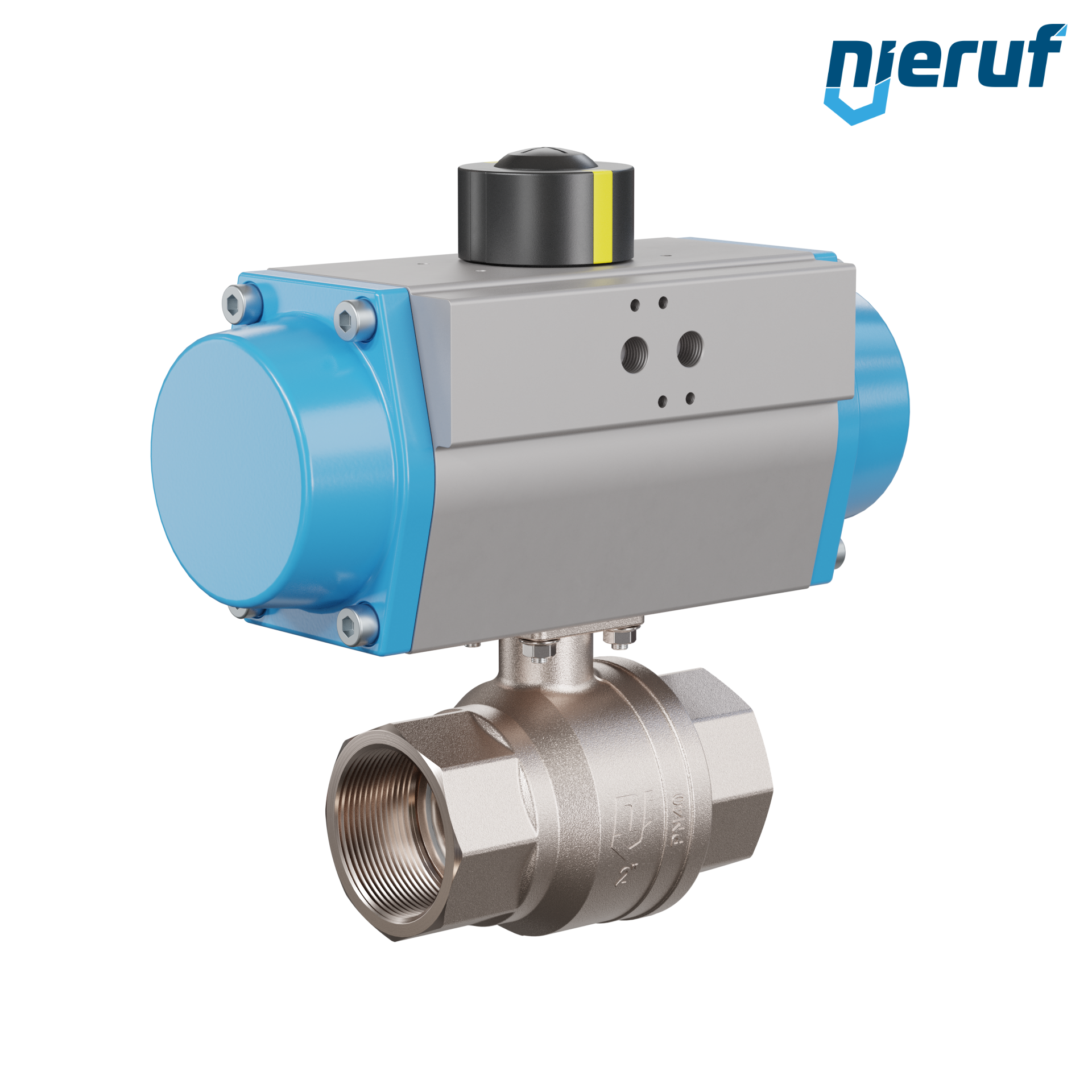

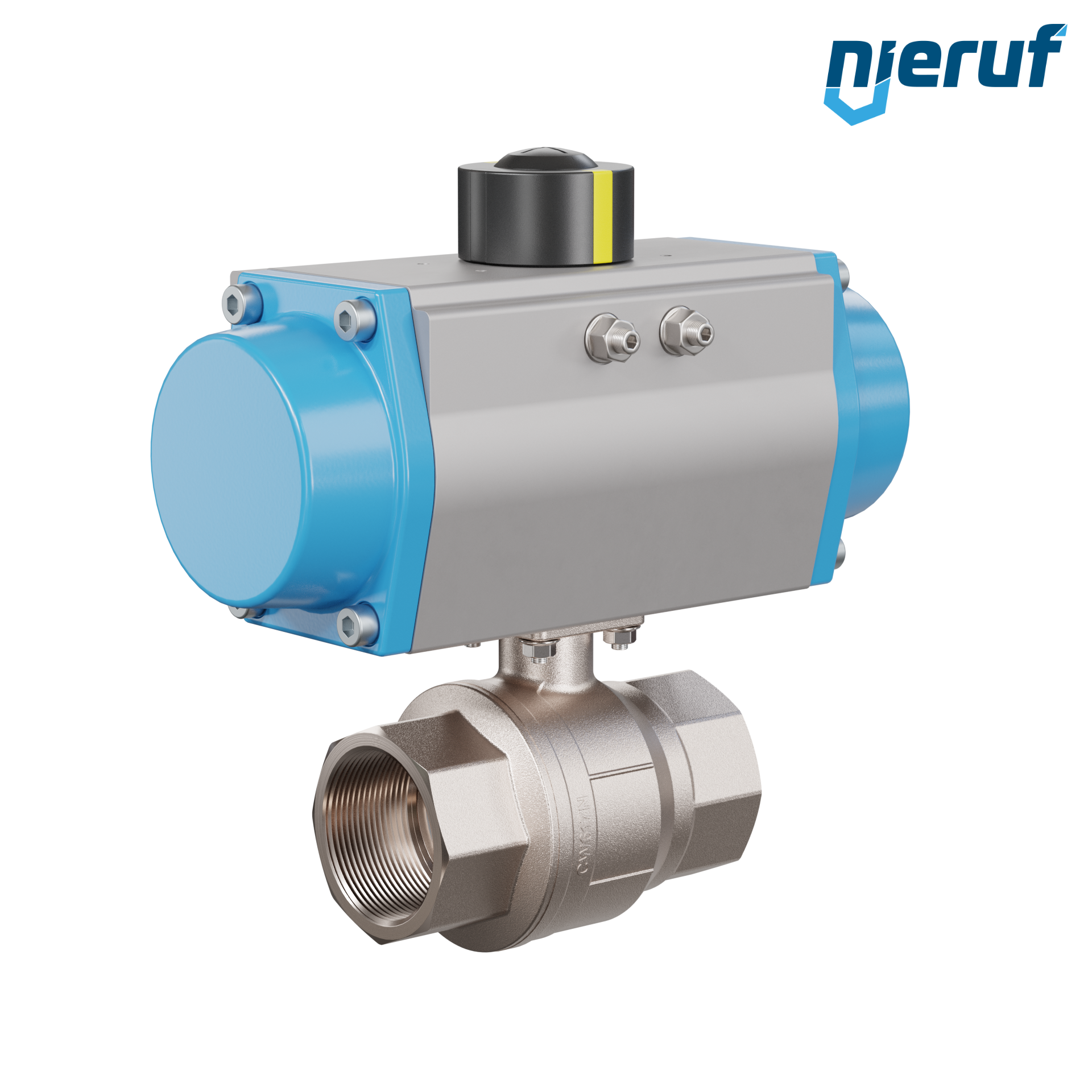

automatic ball valves DN50 - 2" inch pneumatic actuator single acting PK01

€377.30*

€448.99 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: 3 - 5 working days

Delivery information

Equipment

PR01000000

Position indicator Typ PR01 for pneumatic actuator

€58.20*

€69.26 VAT included.


NA01010001

3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC

€40.00*

€47.60 VAT included.


ST01000008

hose nozzle 2" 50.8 mm stainless steel 1.4408 ST01

€15.70*

€18.68 VAT included.


GF01300008

hexagon nipple 2" inch male stainless steel 316

€10.20*

€12.14 VAT included.


EF01000106

Straight male adaptor EF01 brass NBR G1/4" D6mm

€1.00*

€1.19 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: PK01010008
automatic ball valves DN50 - 2" inch pneumatic actuator single acting PK01

automatic ball valves DN50 - 2" inch brass CW617N nickel plated PK01 pneumatic actuator GS092 made of aluminium (mode of function: GS = single acting)

product: automatic ball valves
type: PK01
manufacturer: NieRuf
diameter: DN50 - 2" inch
connection: female thread
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C up to + 80°C
max. pressure: PN40
max. differentiel pressure: 16 bar
design: Two - pieces brass ball valve with pneumatic actuator (single acting)
body material: brass CW617N nickel plated
ball material: stainless steel 1.4408
ball seal: PTFE
length: 140mm
actuator: pneumatic actuator GS092 made of aluminium (mode of function: GS = single acting)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
product description: This high quality automatic-brass ball valves thread connections with pneumatic actuator (GS = single acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

automatic ball valves DN50 - 2" inch pneumatic actuator single acting PK01

Article no. : PK01010008
product: automatic ball valves
type: PK01
manufacturer: NieRuf
diameter: DN50 - 2" inch
connection: female thread
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C up to + 80°C
max. pressure: PN40
max. differentiel pressure: 16 bar
design: Two - pieces brass ball valve with pneumatic actuator (single acting)
body material: brass CW617N nickel plated
ball material: stainless steel 1.4408
ball seal: PTFE
length: 140mm
actuator: pneumatic actuator GS092 made of aluminium (mode of function: GS = single acting)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
product description: This high quality automatic-brass ball valves thread connections with pneumatic actuator (GS = single acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air
