Positioner PS01 for pneumatic actuators single acting air volume less than 5 l
€992.10 VAT included.
Questions about the article?

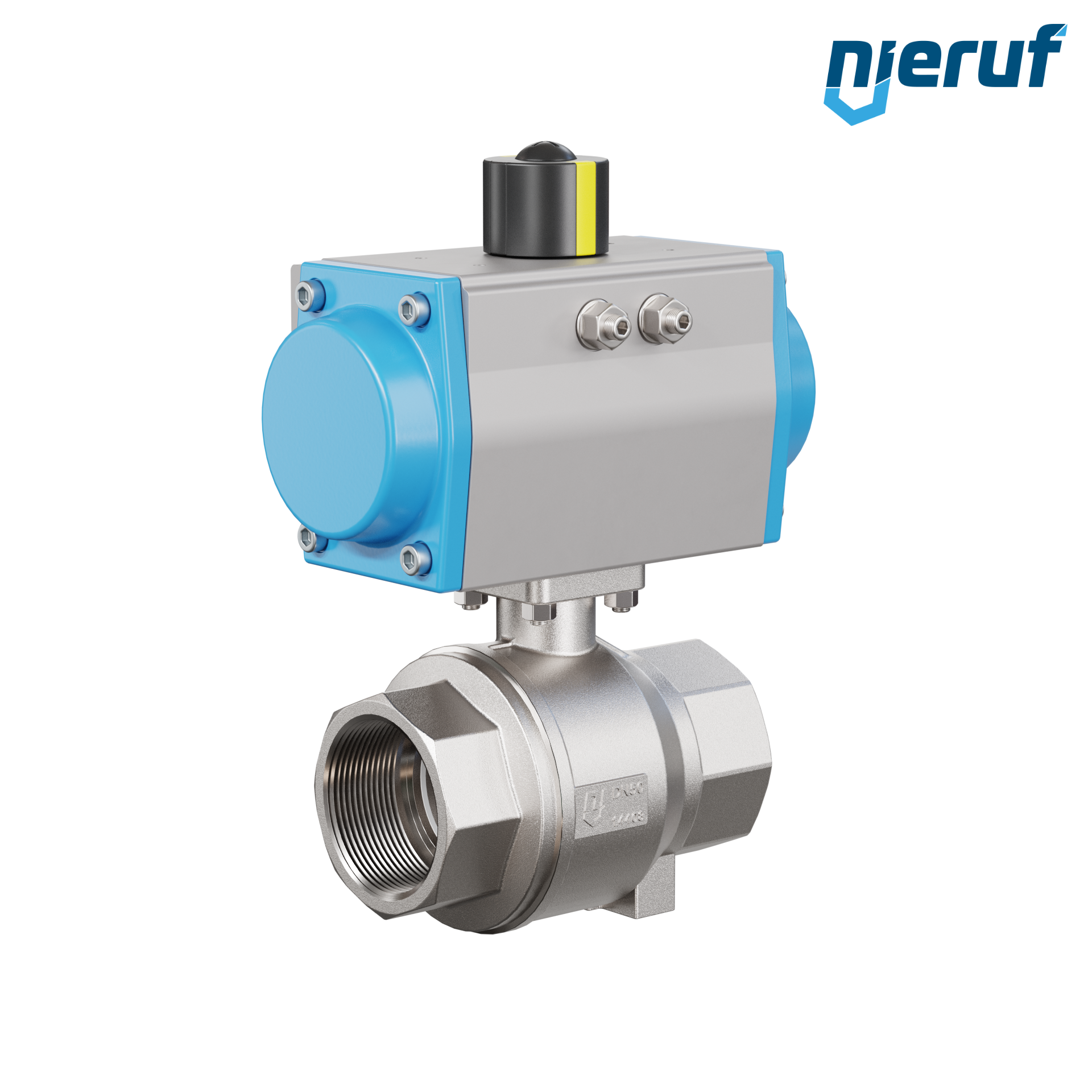

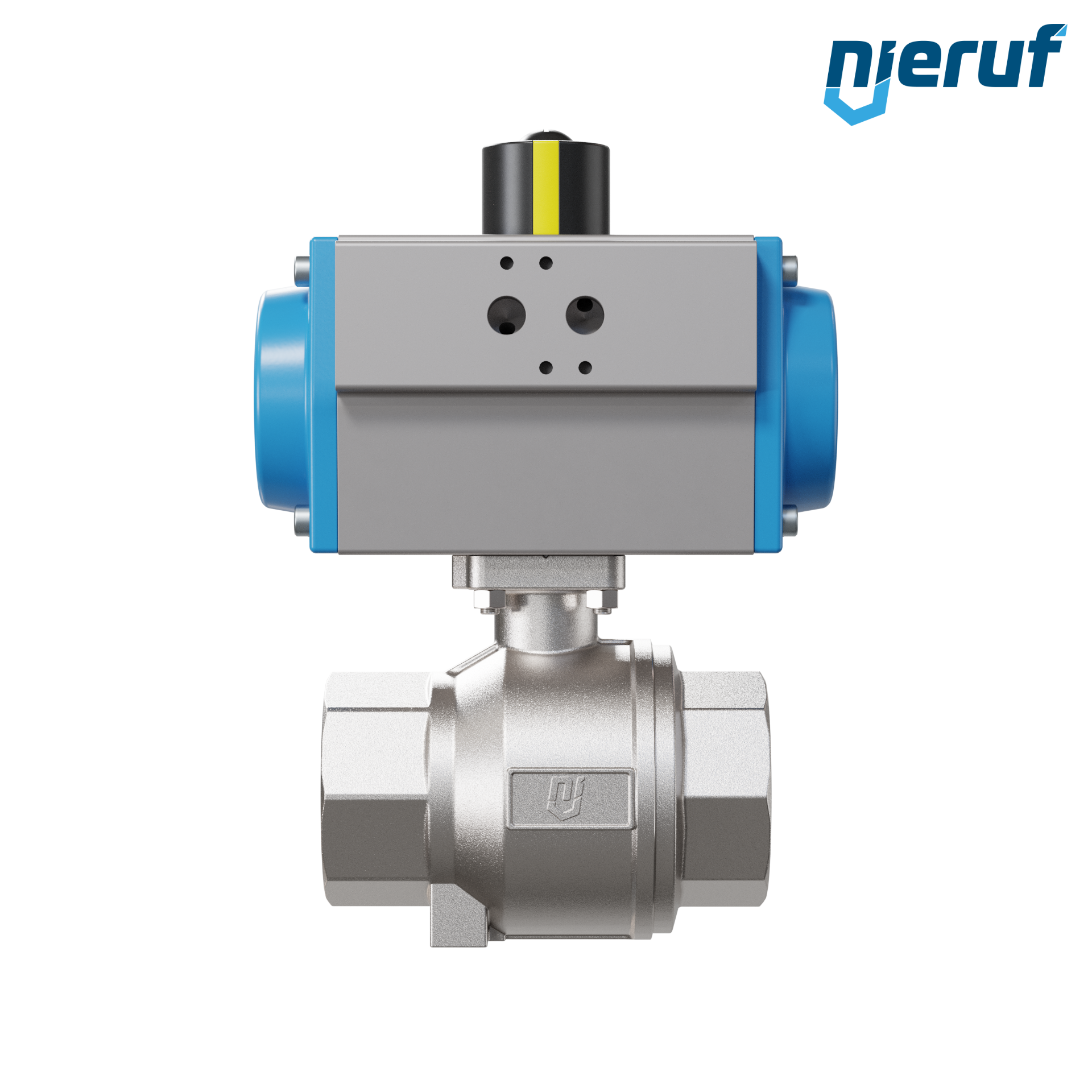

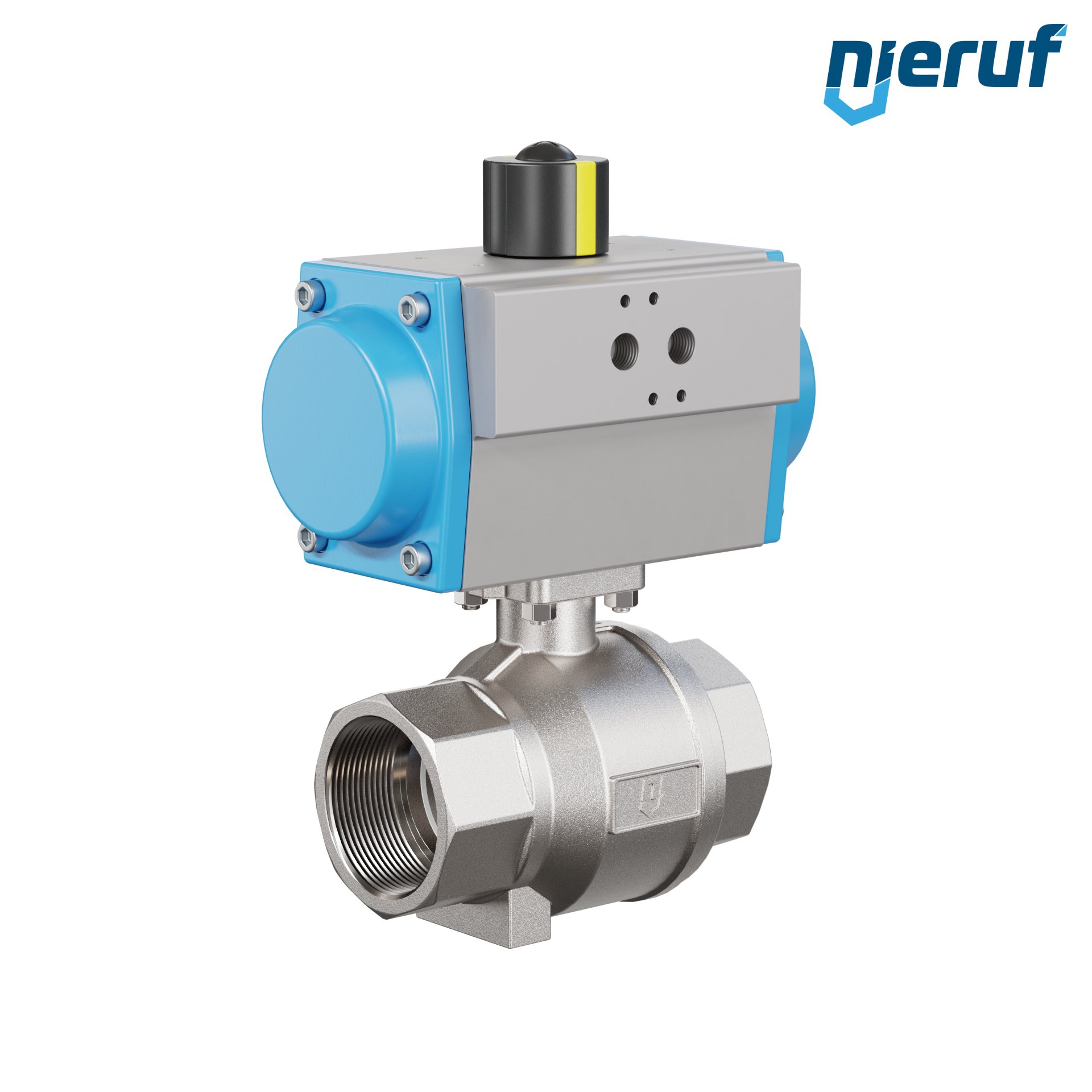

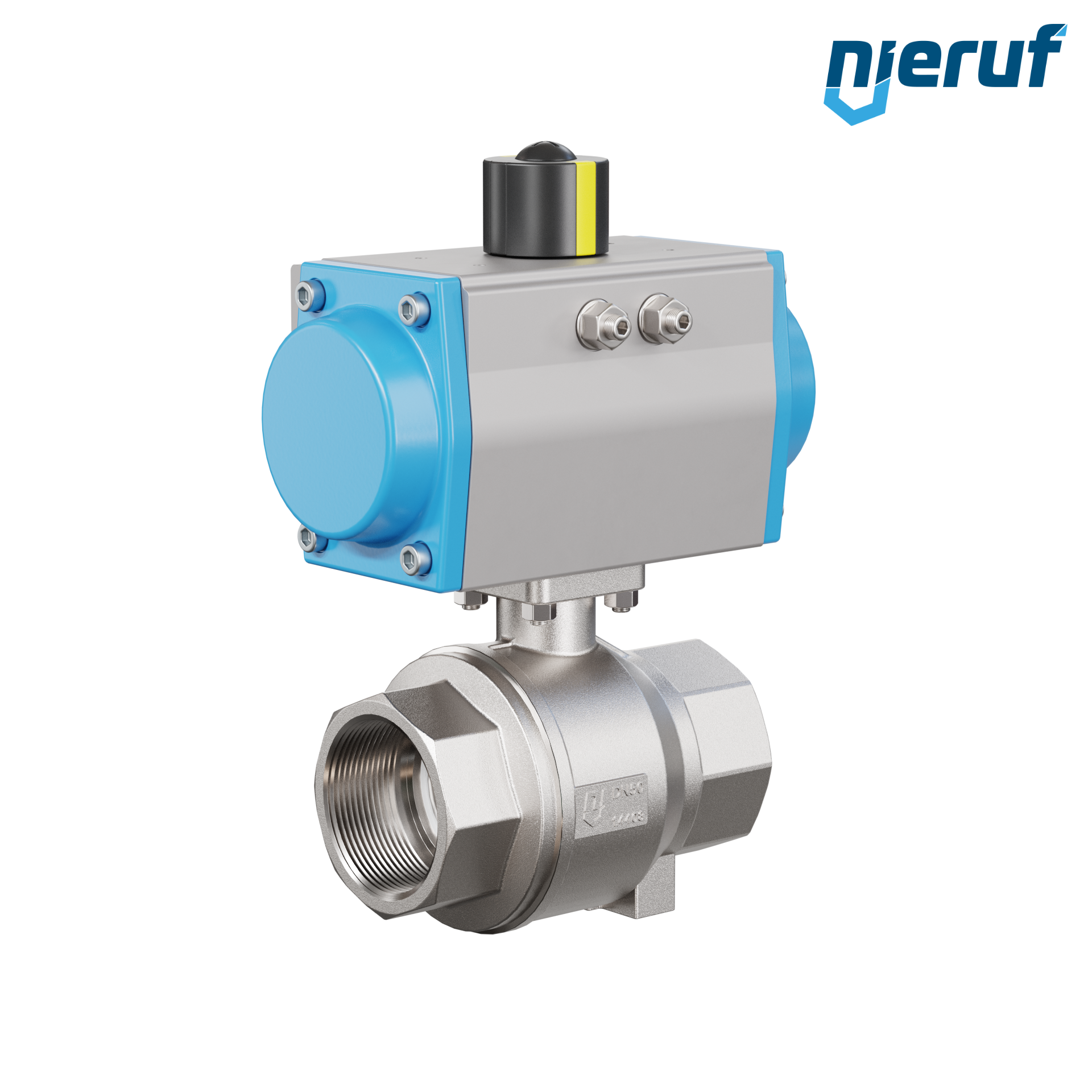

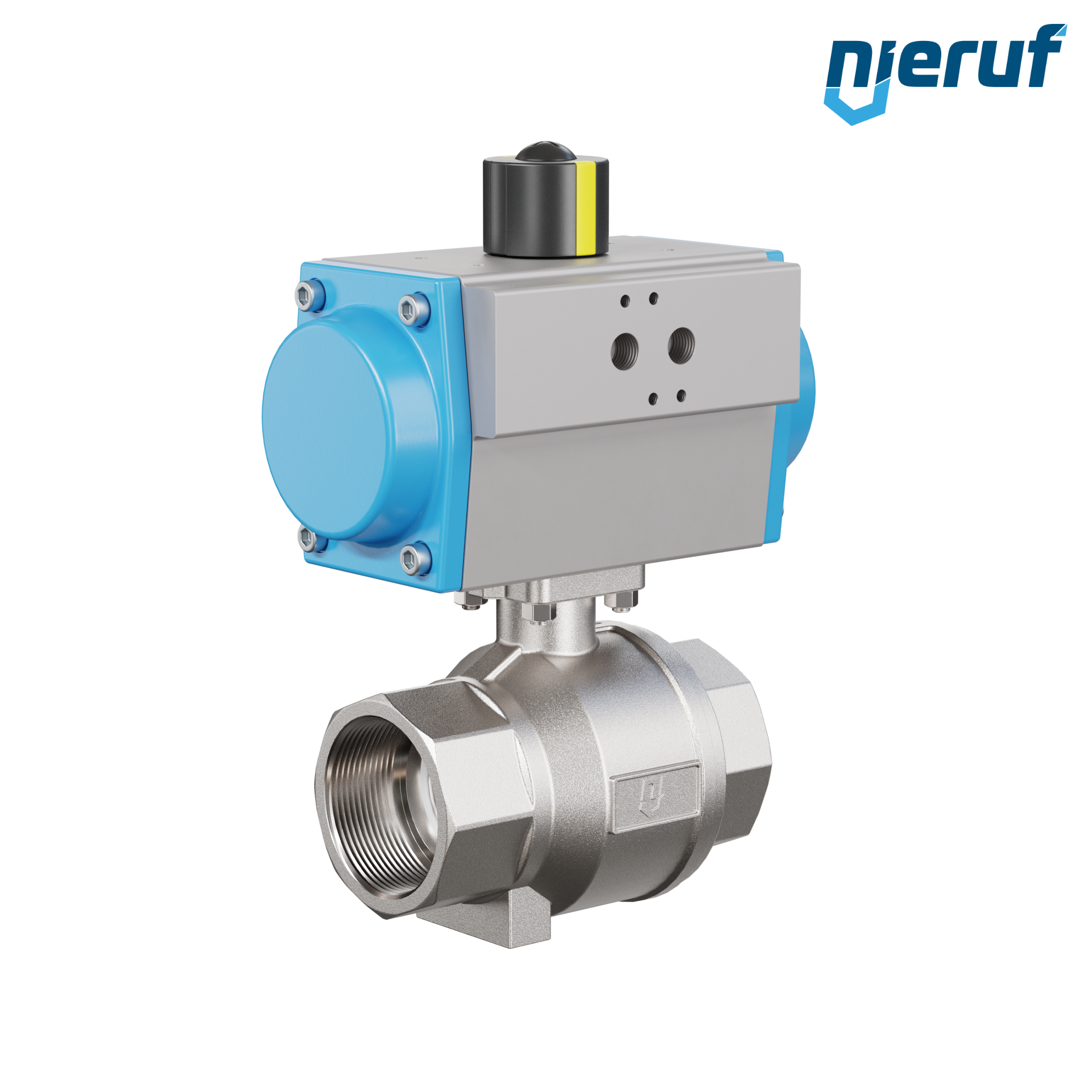

pneumatic-ball valve DN50 - 2" inch stainless steel 1.4408 PK02 pneumatic actuator GS075 made of aluminium (mode of function: GS = single acting)
| product | pneumatic-ball valve |
|---|---|
| type | PK02 |
| manufacturer | NieRuf |
| diameter | DN50 - 2" inch |
| connection | female thread |
| Seal steam | PTFE / Viton |
| media | liquid and gaseous media |
| temperature | ball valve generally from -20°C up to +180°C (depending on working pressure and media) – pneumatic actuator: - 20°C bis + 80°C |
| max. pressure | PN40 |
| max. differentiel pressure | 7 bar |
| design | Two - pieces brass ball valve with pneumatic actuator (single acting normally closed) |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4408 |
| ball seal | PTFE |
| length | 140mm |
| actuator | pneumatic actuator GS075 made of aluminium (mode of function: GS = single acting - normally closed) |
| actuator informations | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| authorized for | TA Luft |
| product description | This high quality automatic-stainless steel ball valve with pneumatic actuator (GS = single acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air acc. to Pneurop / ISO class 4 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pneumatic-ball valve DN50 - 2" inch actuator single acting PK02
Article no.
: PK02010008
product:
pneumatic-ball valve
type:
PK02
manufacturer:
NieRuf
diameter:
DN50 - 2" inch
connection:
female thread
Seal steam:
PTFE / Viton
media:
liquid and gaseous media
temperature:
ball valve generally from -20°C up to +180°C (depending on working pressure and media) – pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN40
max. differentiel pressure:
7 bar
design:
Two - pieces brass ball valve with pneumatic actuator (single acting normally closed)
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
ball seal:
PTFE
length:
140mm
actuator:
pneumatic actuator GS075 made of aluminium (mode of function: GS = single acting - normally closed)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for:
TA Luft
product description:
This high quality automatic-stainless steel ball valve with pneumatic actuator (GS = single acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air acc. to Pneurop / ISO class 4
hexagon nipple 2" inch male stainless steel 316
Delivery time: in stock
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
Delivery time: in stock
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
Delivery time: in stock
Straight male adaptor EF01 stainless steel FKM G1/4" D6mm
Delivery time: in stock
connector EF03 stainless steel FKM D6mm
Delivery time: 3 - 5 working days
Elbow connector EF04 stainless steel FKM D6mm
Delivery time: 3 - 5 working days
rotary elbow male adaptor parallel EF07 brass NBR G1/4" D6mm
Delivery time: in stock
hose nozzle 2" 50.8 mm stainless steel 1.4408 ST01
Delivery time: in stock
manual operated Block form flow regulator for 3/2 way valve
Delivery time: in stock
Positioner PS01 for pneumatic actuators single acting air volume less than 5 l
Delivery time: 2 - 3 weeks
