EK01000001
Automatic-ball valves DN8 - 1/4" inch brass electric 24V EK01
Delivery time: in stock
Express delivery*:
Shipping on: Tuesday, 03. December
Guaranteed delivery until Wednesday, 04. December, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

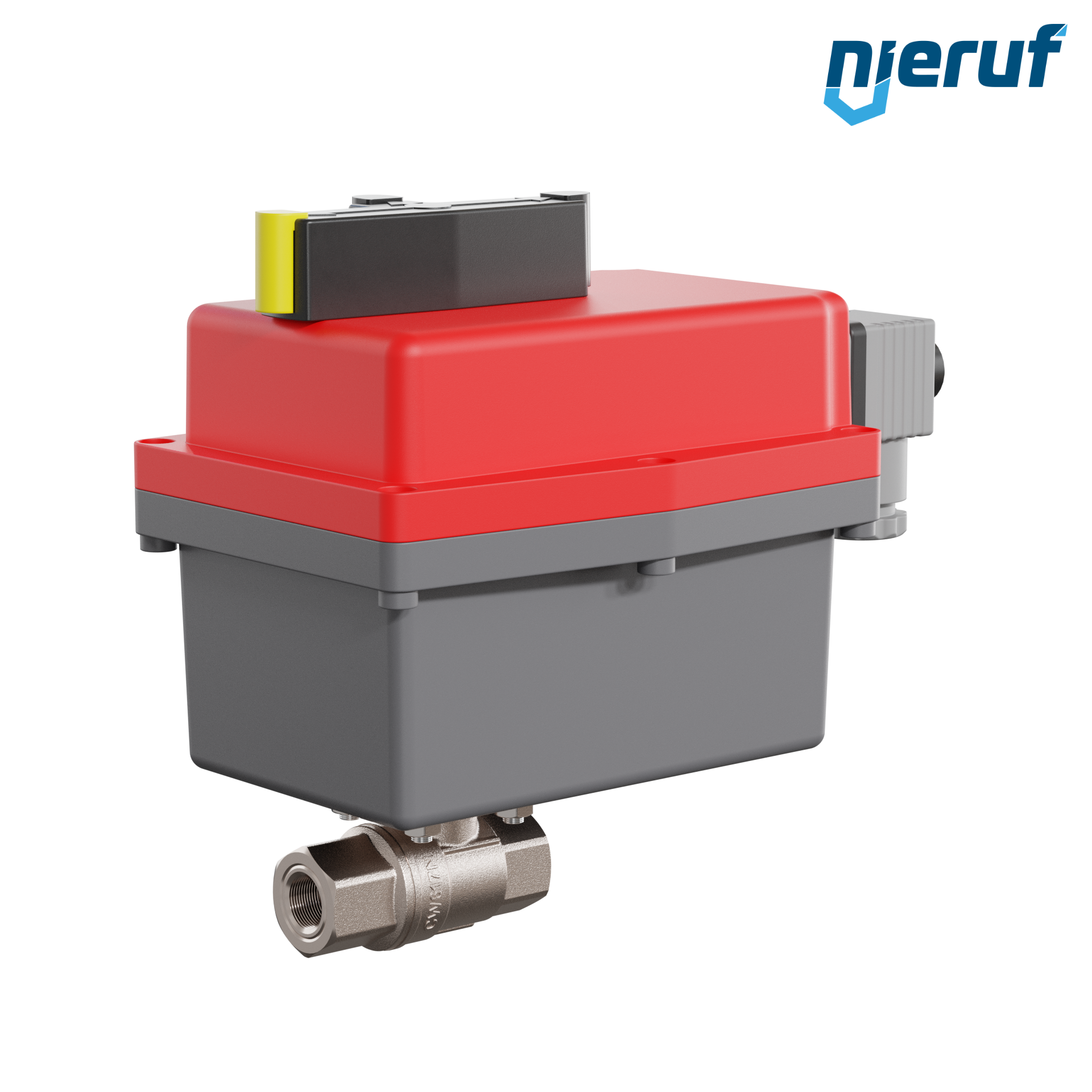

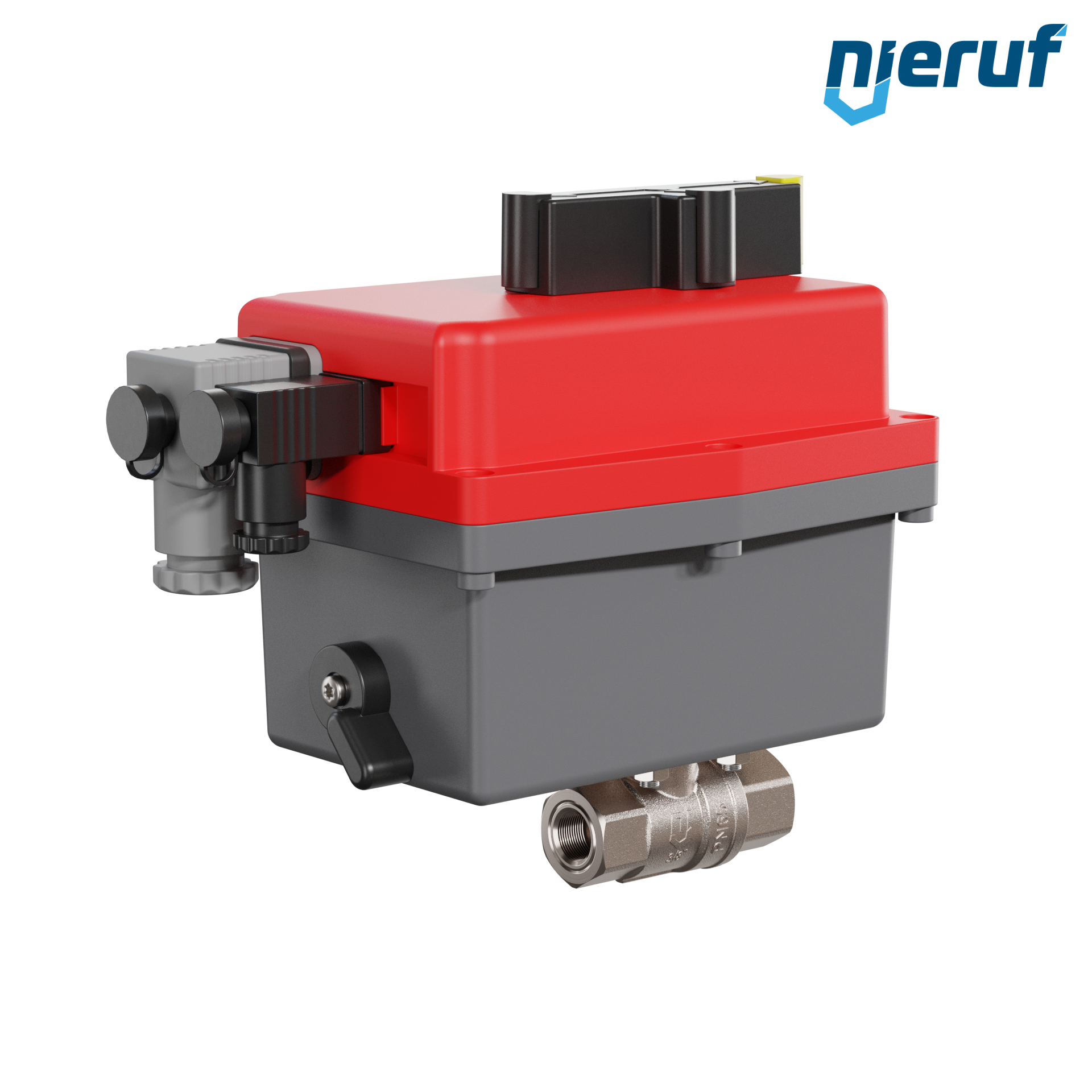

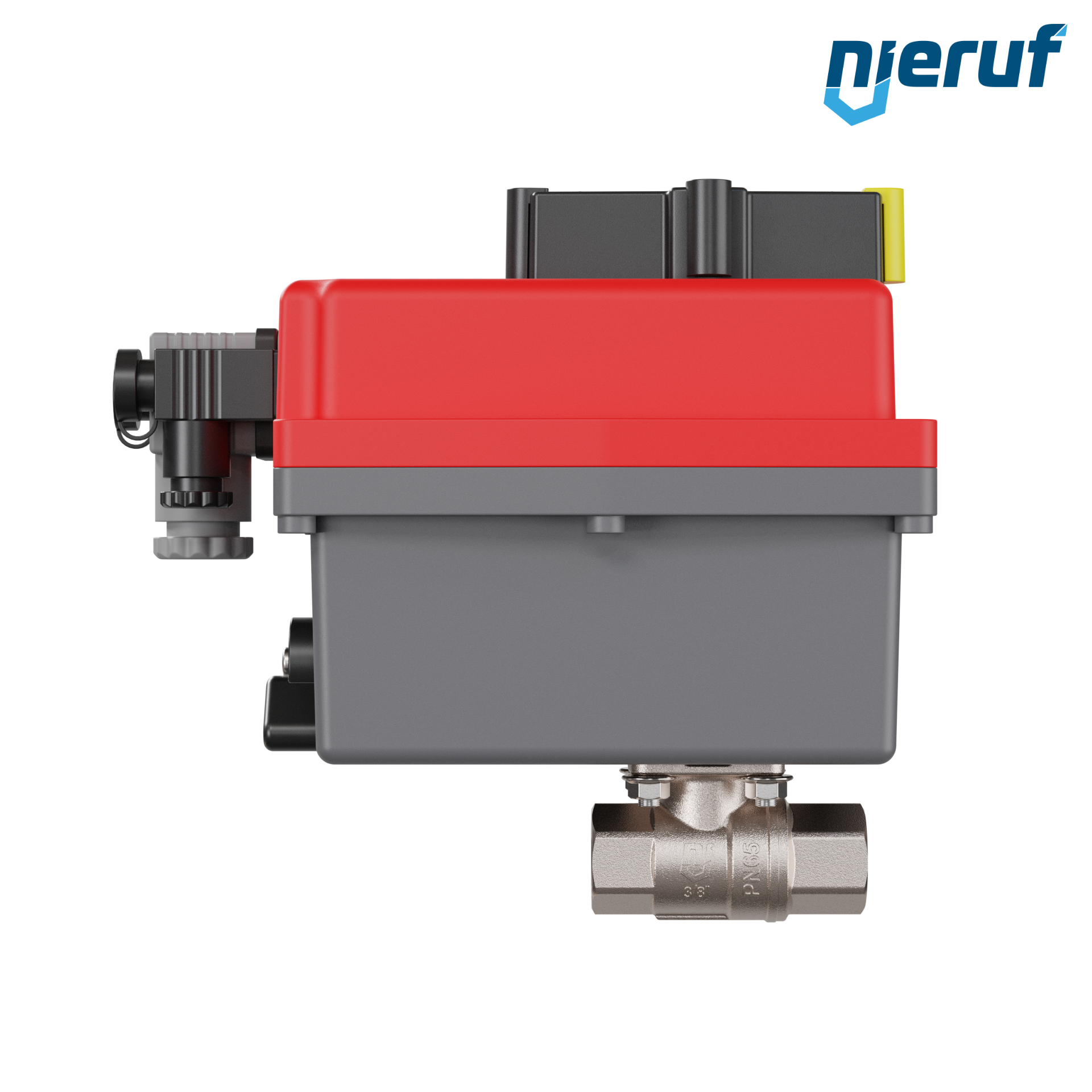

Automatic-ball valves DN8 - 1/4" inch brass CW617N nickel plated EK01 electronic actuator L10 - series L (low voltage) 24V AC/DC
product: | Automatic-ball valves |
---|---|
type: | EK01 |
manufacturer: | NieRuf |
diameter: | DN8 - 1/4" inch |
connection: | female thread |
Seal steam: | Viton |
media: | liquid and gaseous media |
temperature: | ball valve: -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C up to +70°C |
max. pressure: | PN65 |
max. differentiel pressure: | max. 16 bar |
design: | Two - pieces brass ball valve with actuator |
body material: | brass CW617N nickel plated |
ball material: | stainless steel 1.4408 |
ball seal: | PTFE |
length: | 60mm |
actuator: | electronic actuator L10 - series L (low voltage) 24V AC/DC |
actuator informations: | corrosion resistant synthetic body |
installation position: | any position, not upside down |
product description: | This high quality automatic-brass ball valves thread connections with electronic actuator (series L = low voltage) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Automatic-ball valves DN8 - 1/4" inch brass electric 24V EK01
Article no.
: EK01000001
product:
Automatic-ball valves
type:
EK01
manufacturer:
NieRuf
diameter:
DN8 - 1/4" inch
connection:
female thread
Seal steam:
Viton
media:
liquid and gaseous media
temperature:
ball valve: -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C up to +70°C
max. pressure:
PN65
max. differentiel pressure:
max. 16 bar
design:
Two - pieces brass ball valve with actuator
body material:
brass CW617N nickel plated
ball material:
stainless steel 1.4408
ball seal:
PTFE
length:
60mm
actuator:
electronic actuator L10 - series L (low voltage) 24V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
product description:
This high quality automatic-brass ball valves thread connections with electronic actuator (series L = low voltage) with visual position indicator and emergency operating.
