PK01000001

automatic ball valves DN8 - 1/4" inch pneumatic actuator double acting PK01

€123.90*

€147.44 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: in stock

Delivery information

Express delivery:

Shipping on: Friday, 29. March

Guaranteed delivery until Monday, 01. April, 12 o'clock

Order in within by express delivery


Equipment

PR01000000

Position indicator Typ PR01 for pneumatic actuator

€58.20*

€69.26 VAT included.


NA02010001

5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC

€40.00*

€47.60 VAT included.


EF01000106

Straight male adaptor EF01 brass NBR G1/4" D6mm

€1.00*

€1.19 VAT included.


ST01000001

hose nozzle 1/4" 9.0 mm stainless steel 1.4408 ST01

€1.80*

€2.14 VAT included.


GF01300001

hexagon nipple 1/4" inch male stainless steel 316

€1.60*

€1.90 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: PK01000001

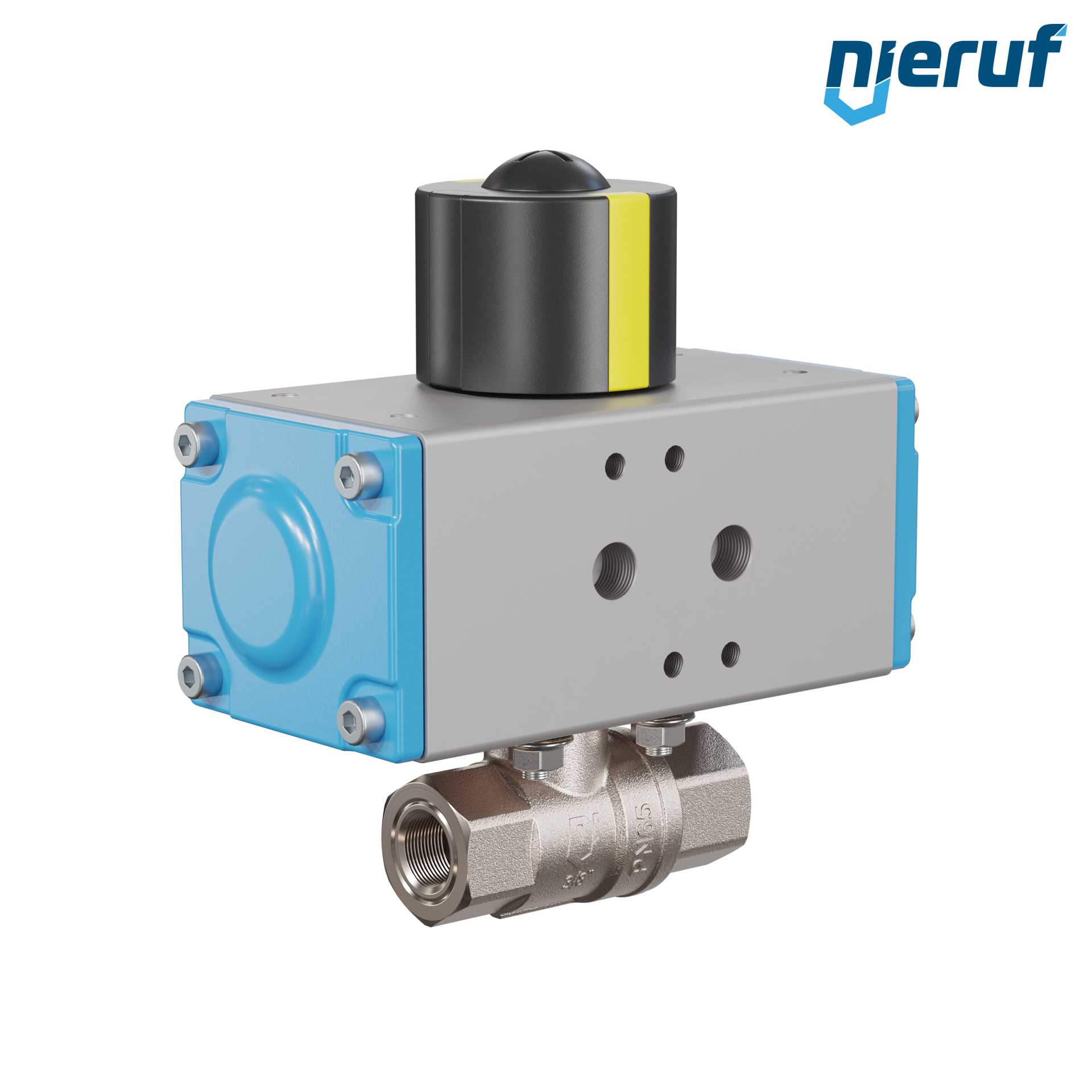

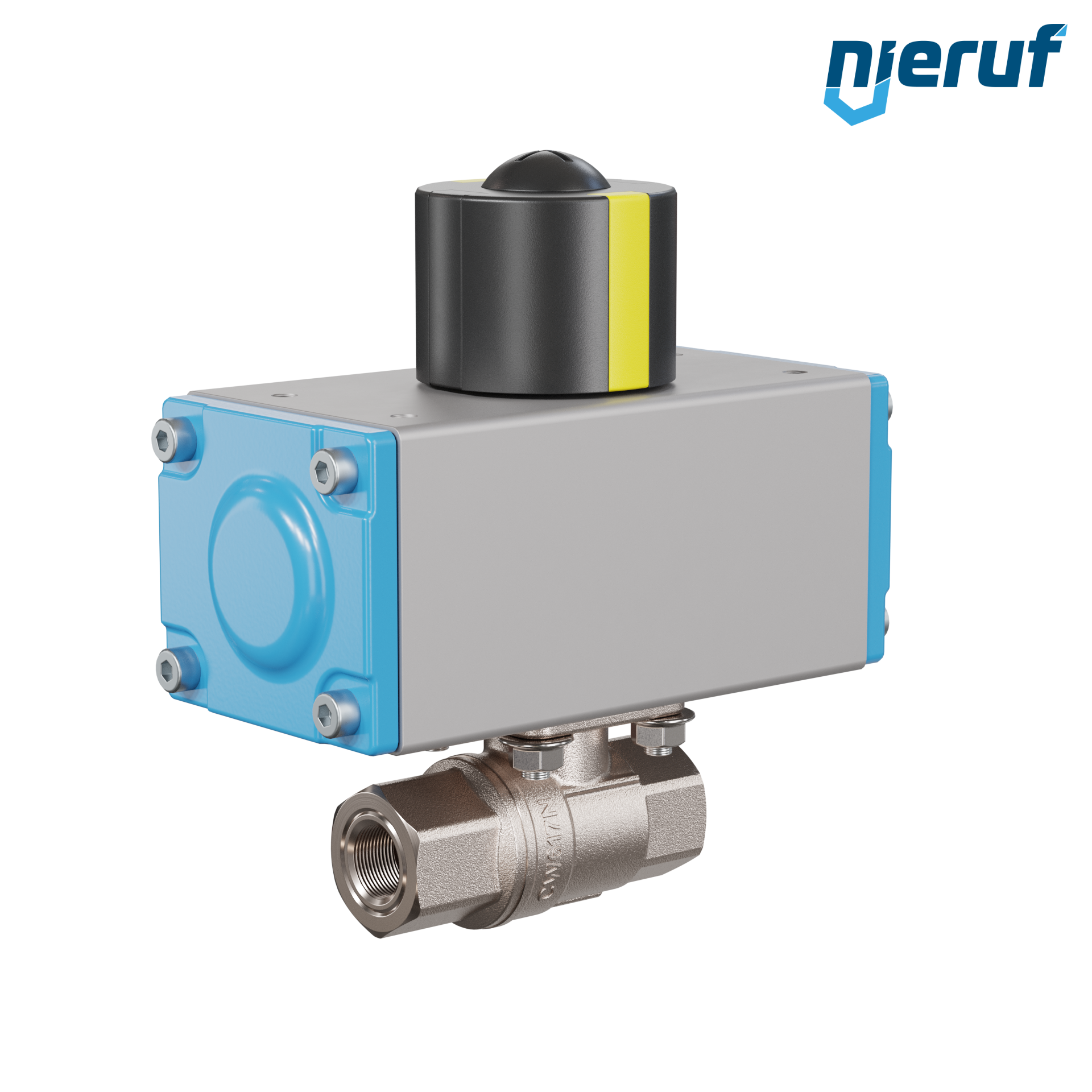

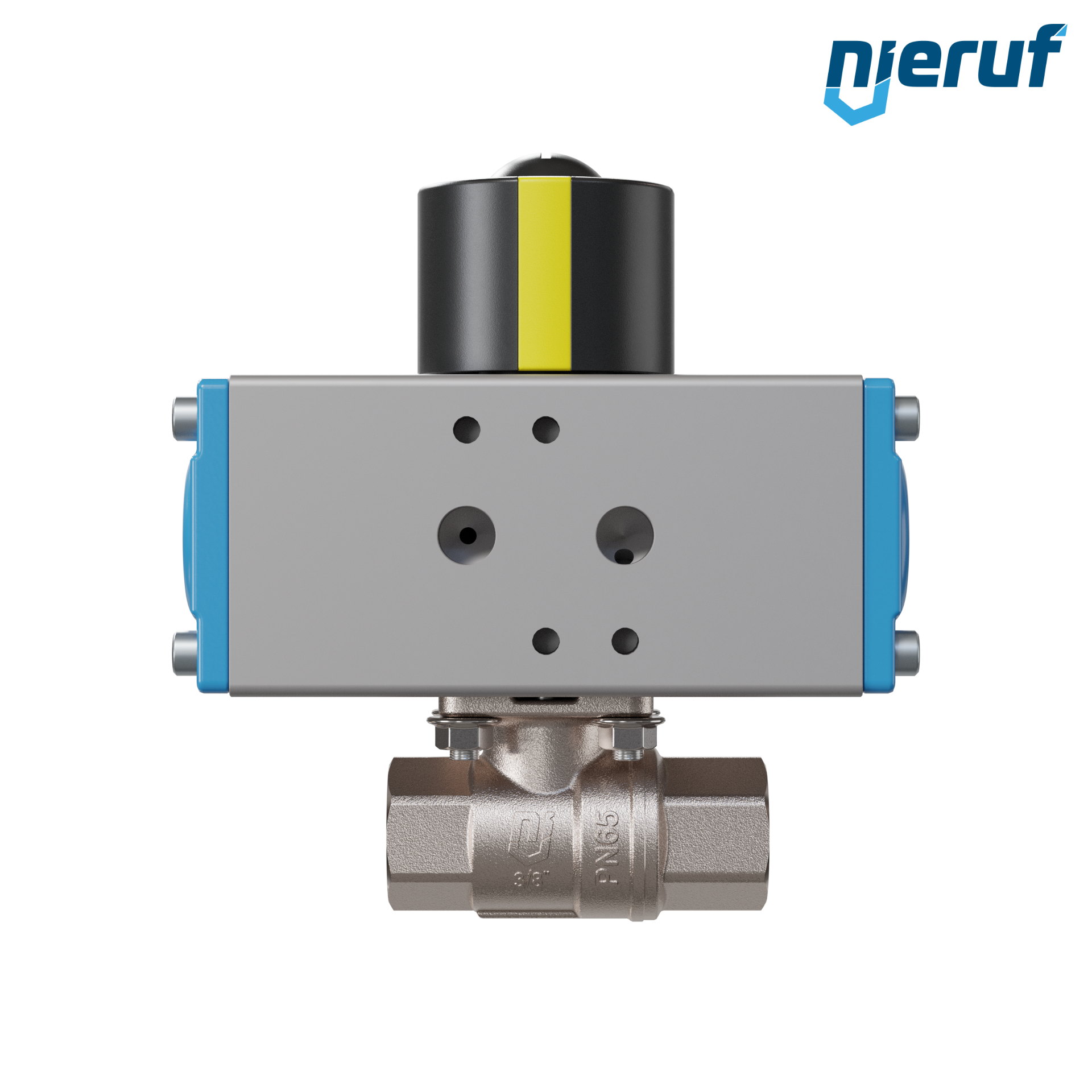

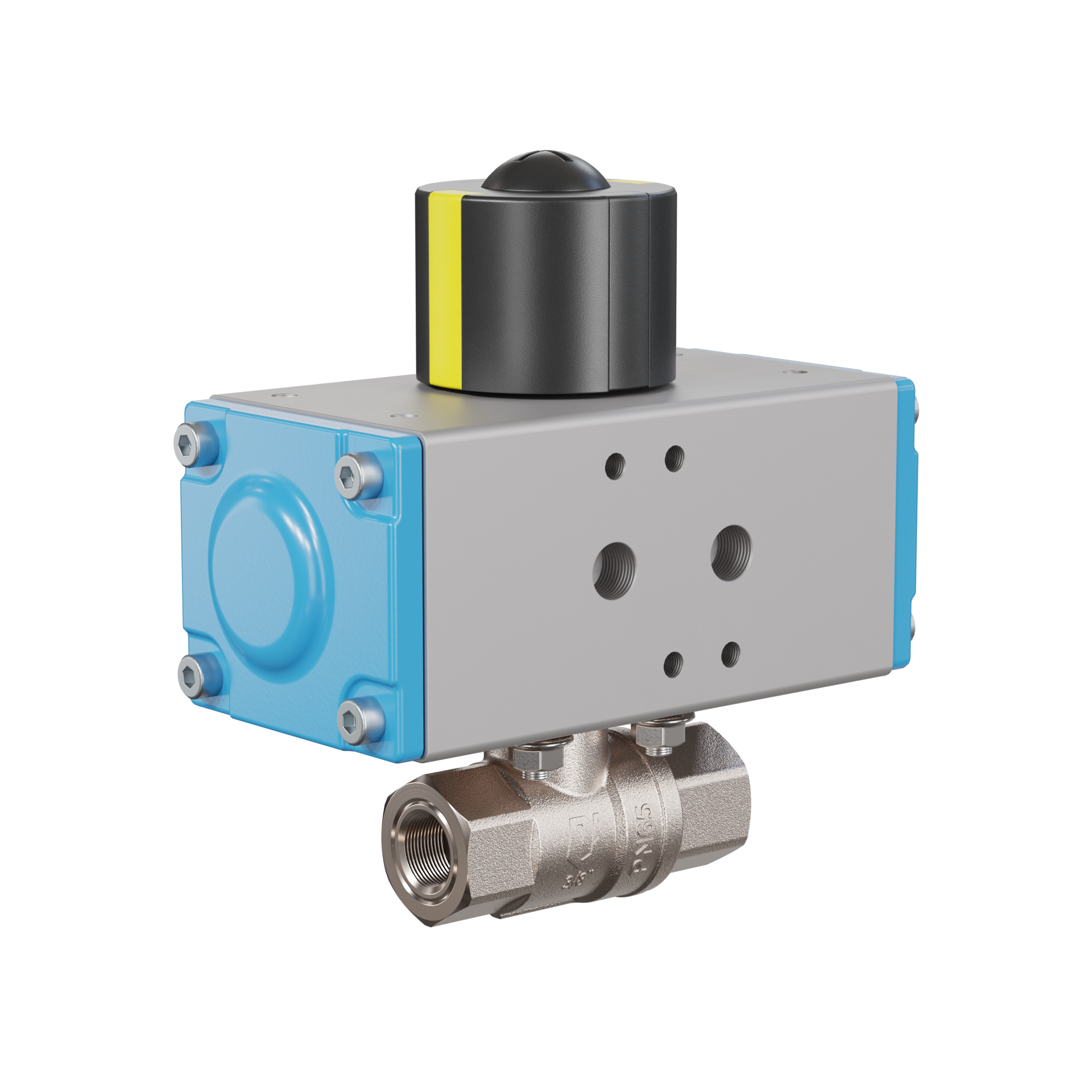

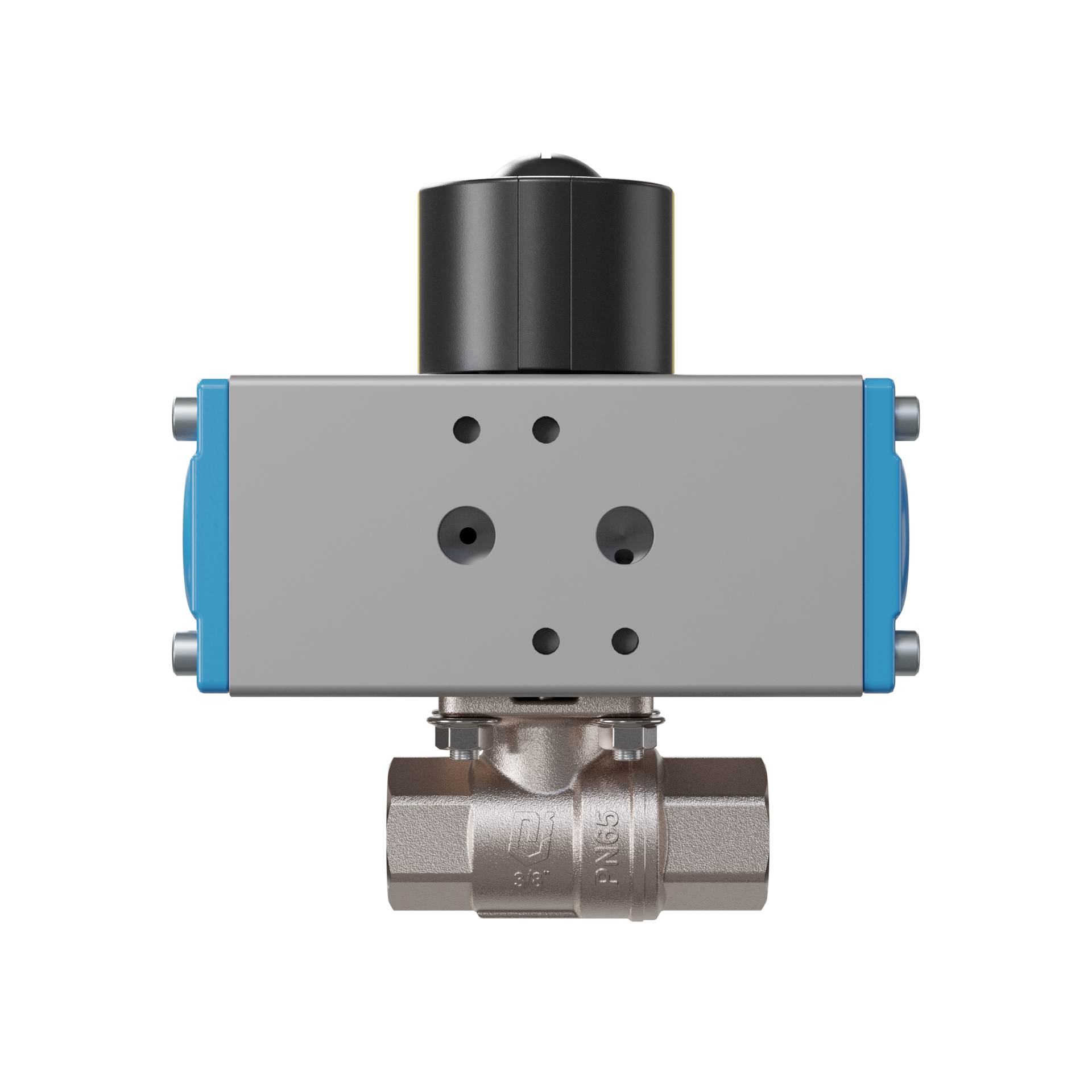

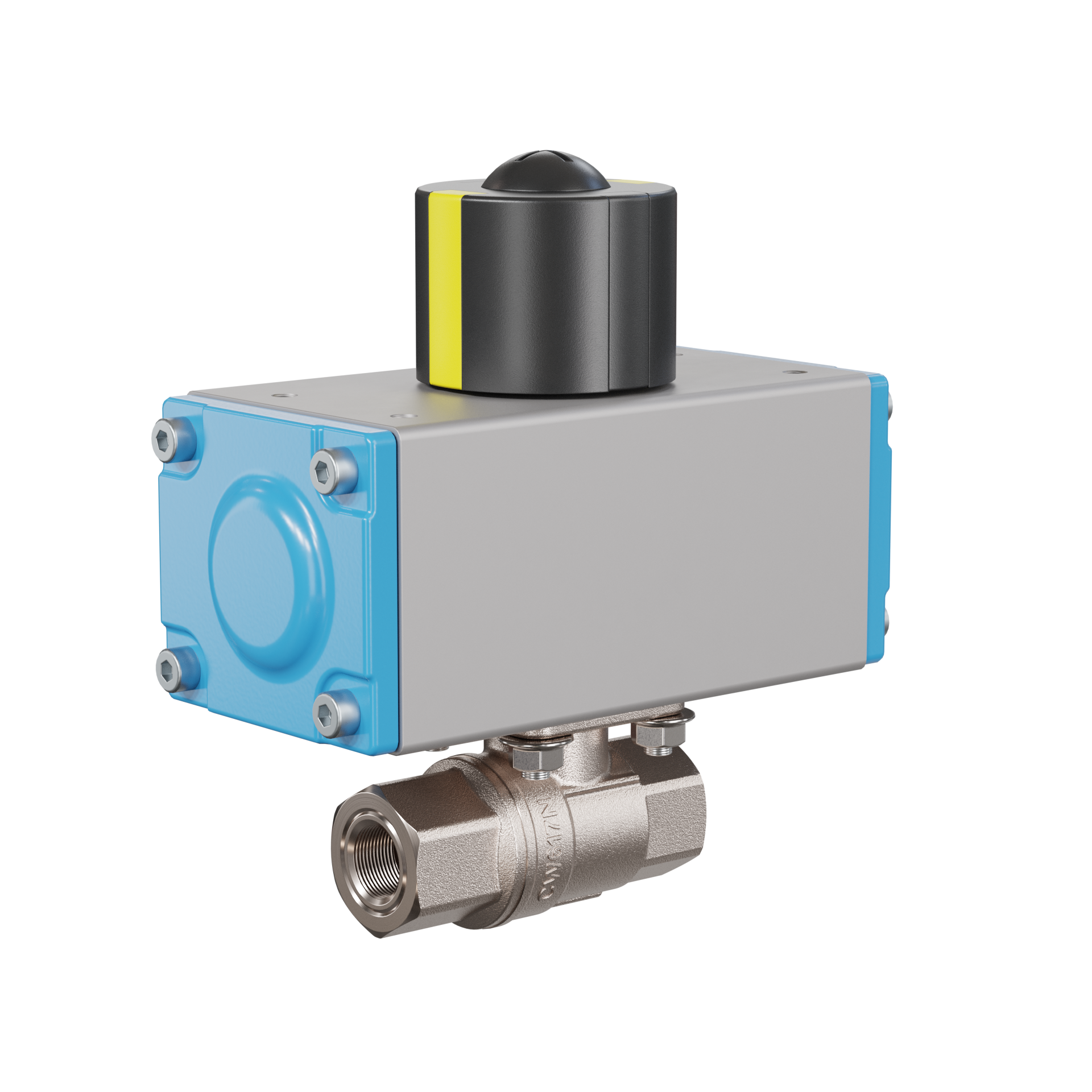

automatic ball valves DN8 - 1/4" inch pneumatic actuator double acting PK01

automatic ball valves DN8 - 1/4" inch brass CW617N nickel plated PK01 pneumatic actuator GD032 made of aluminium (mode of function: GD = double acting)

product: automatic ball valves
type: PK01
manufacturer: NieRuf
diameter: DN8 - 1/4" inch
connection: female thread
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C up to + 80°C
max. pressure: PN65
max. differentiel pressure: 16 bar
design: Two - pieces brass ball valve with pneumatic actuator (double acting)
body material: brass CW617N nickel plated
ball material: stainless steel 1.4408
ball seal: PTFE
length: 60mm
actuator: pneumatic actuator GD032 made of aluminium (mode of function: GD = double acting)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
product description: This high quality automatic-brass ball valves thread connections with pneumatic actuator (GD = double acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

automatic ball valves DN8 - 1/4" inch pneumatic actuator double acting PK01

Article no. : PK01000001
product: automatic ball valves
type: PK01
manufacturer: NieRuf
diameter: DN8 - 1/4" inch
connection: female thread
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C up to + 80°C
max. pressure: PN65
max. differentiel pressure: 16 bar
design: Two - pieces brass ball valve with pneumatic actuator (double acting)
body material: brass CW617N nickel plated
ball material: stainless steel 1.4408
ball seal: PTFE
length: 60mm
actuator: pneumatic actuator GD032 made of aluminium (mode of function: GD = double acting)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
product description: This high quality automatic-brass ball valves thread connections with pneumatic actuator (GD = double acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air
