PK02000007

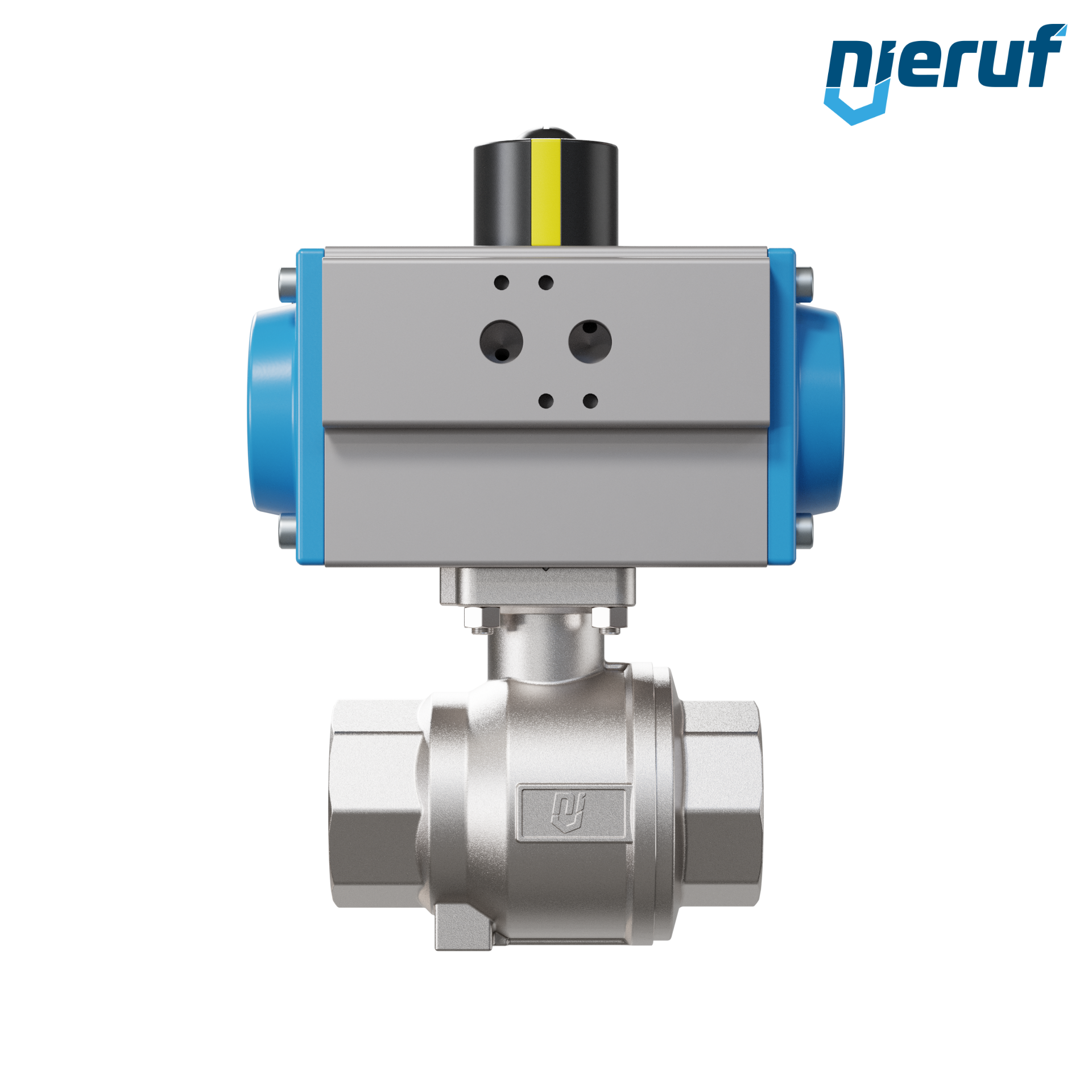

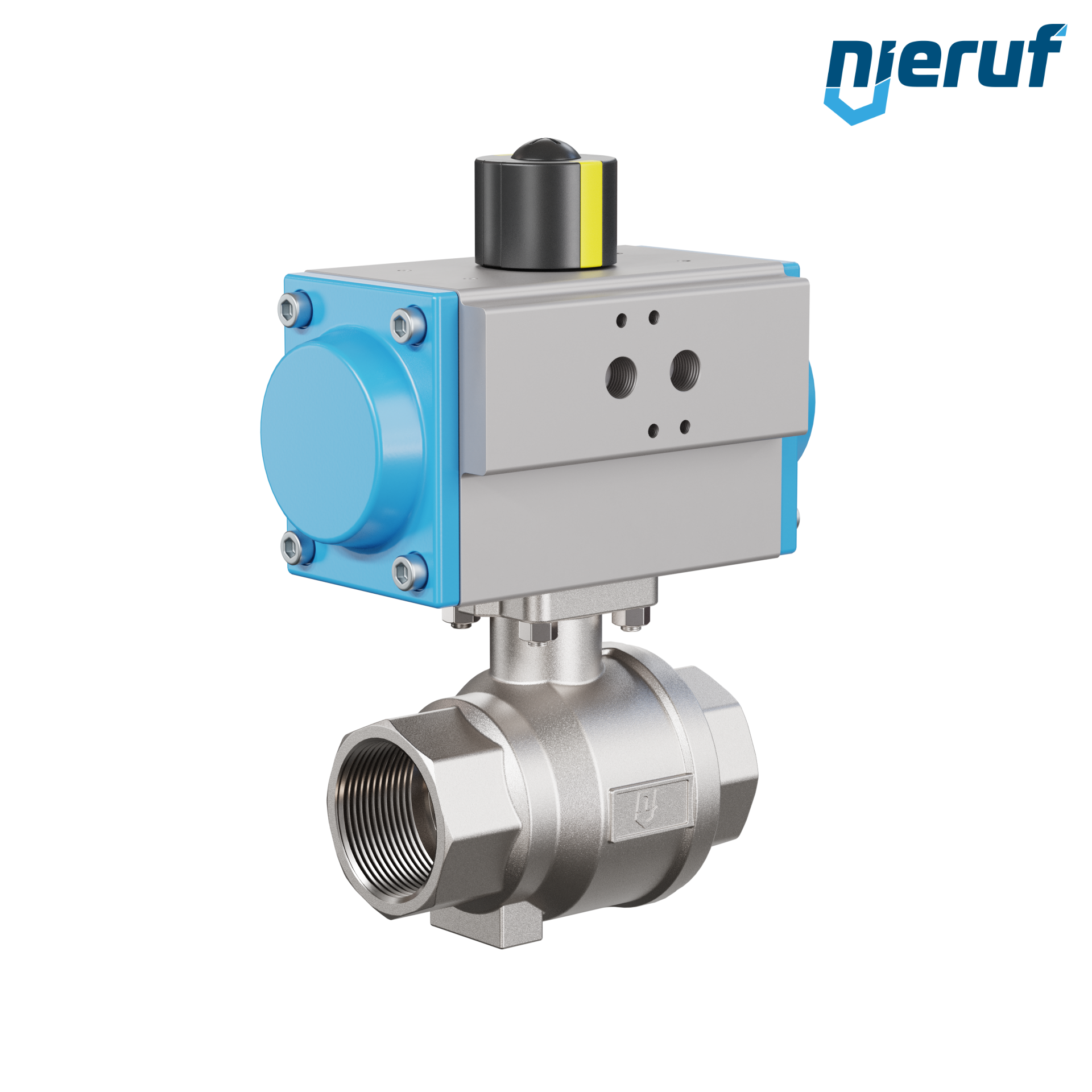

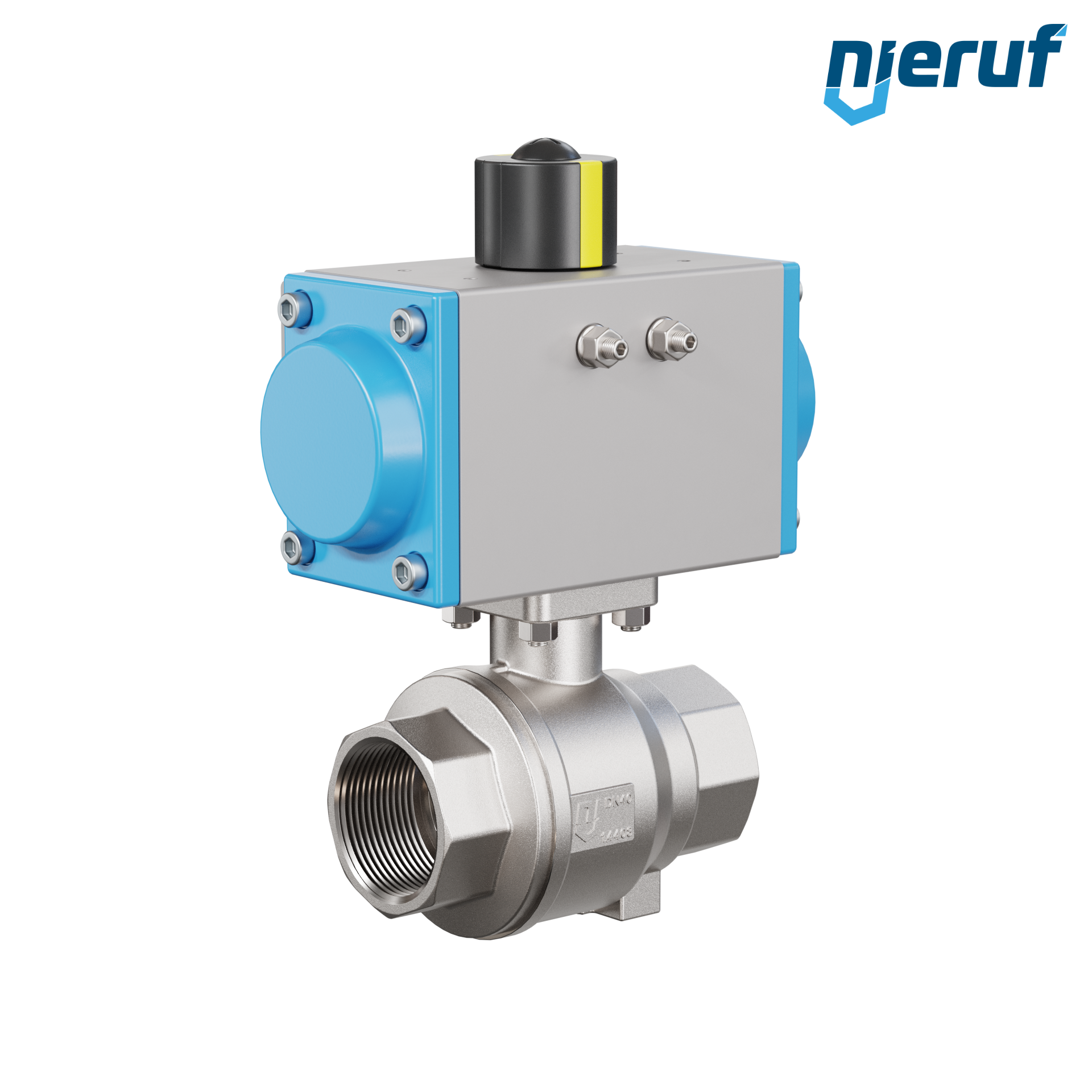

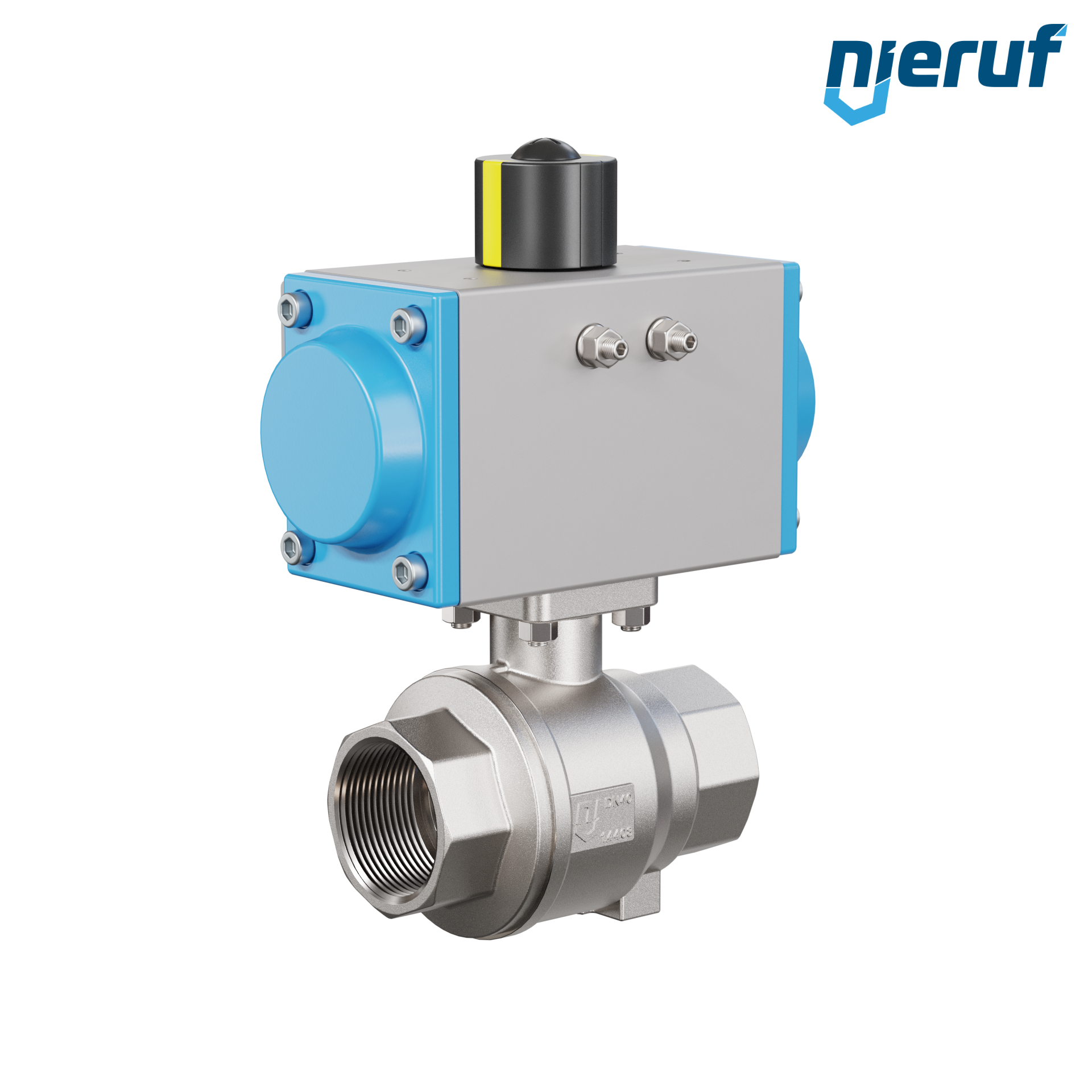

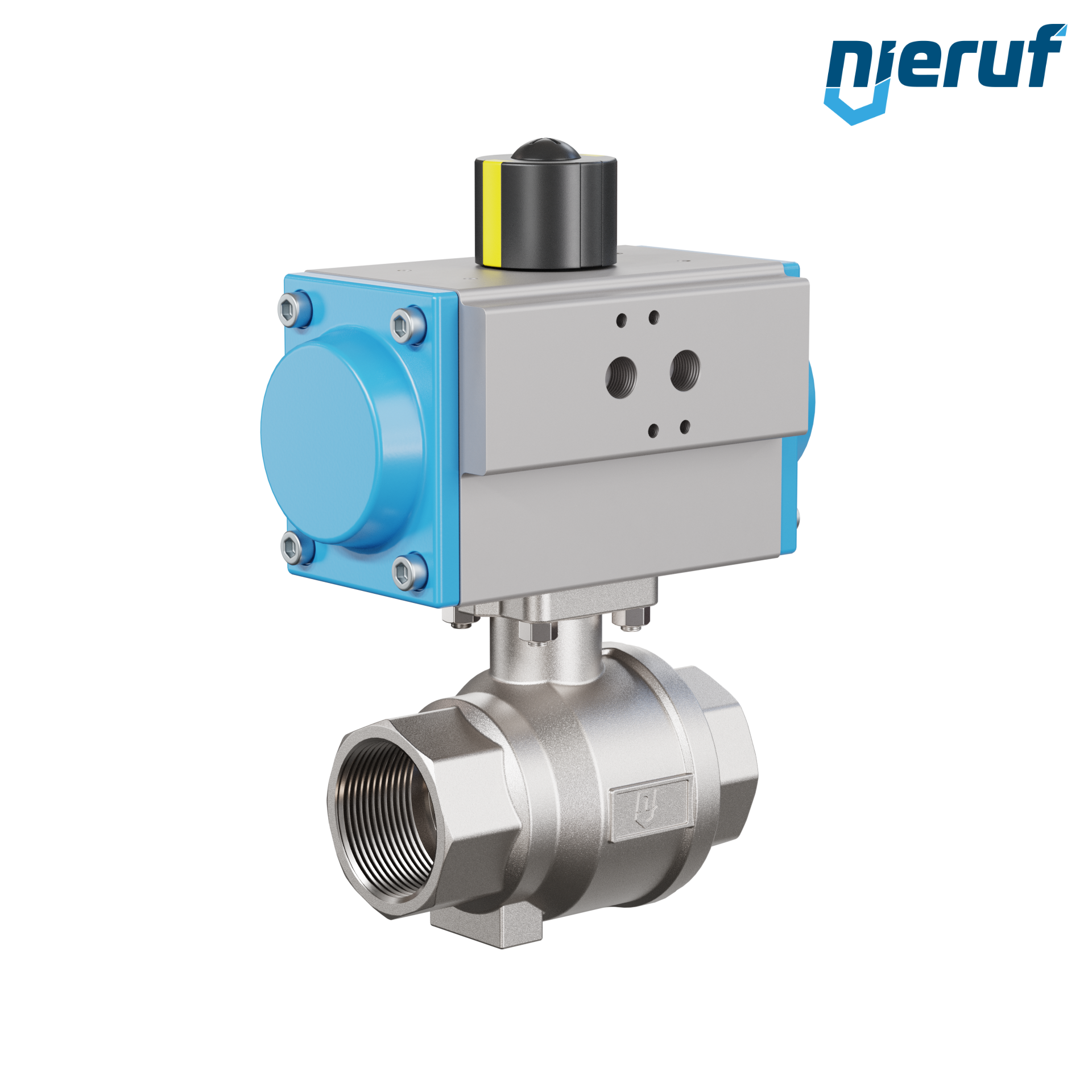

pneumatic-ball valve DN40 - 1 1/2" inch actuator double acting PK02

€265.80*

€316.30 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: in stock

Delivery information

Express delivery*:

Shipping on: Monday, 14. October

Guaranteed delivery until Tuesday, 15. October, 12 o'clock

Order in within by express delivery

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

NA02010001

5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC

€40.00*

€47.60 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: PK02000007
pneumatic-ball valve DN40 - 1 1/2" inch actuator double acting PK02

pneumatic-ball valve DN40 - 1 1/2" inch stainless steel 1.4408 PK02 pneumatic actuator GD063 made of aluminium (mode of function: GD = double acting)

product: pneumatic-ball valve
type: PK02
manufacturer: NieRuf
diameter: DN40 - 1 1/2" inch
connection: female thread
Seal steam: PTFE / Viton
media: liquid and gaseous media
temperature: ball valve generally from -20°C up to +180°C (depending on working pressure and media) – pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN40
max. differentiel pressure: 7 bar
design: Two - pieces brass ball valve with pneumatic actuator (double acting)
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 120mm
actuator: pneumatic actuator GD063 made of aluminium (mode of function: GD = double acting)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for: TA Luft
product description: This high quality automatic-stainless steel ball valve with pneumatic actuator (GD = double acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air acc. to Pneurop, ISO class 4

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

pneumatic-ball valve DN40 - 1 1/2" inch actuator double acting PK02

Article no. : PK02000007
product: pneumatic-ball valve
type: PK02
manufacturer: NieRuf
diameter: DN40 - 1 1/2" inch
connection: female thread
Seal steam: PTFE / Viton
media: liquid and gaseous media
temperature: ball valve generally from -20°C up to +180°C (depending on working pressure and media) – pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN40
max. differentiel pressure: 7 bar
design: Two - pieces brass ball valve with pneumatic actuator (double acting)
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 120mm
actuator: pneumatic actuator GD063 made of aluminium (mode of function: GD = double acting)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for: TA Luft
product description: This high quality automatic-stainless steel ball valve with pneumatic actuator (GD = double acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. Operating media of the actuator is filtered air acc. to Pneurop, ISO class 4
