PK07020005

automatic-flange stainless steel ball valve DN25 PK07 pneumatic actuator single acting normally open

€297.20*

€353.67 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: in stock

Express delivery*

Order in within by express delivery

Shipping on: Monday, 05. October

Guaranteed delivery until Tuesday, 06. October, 12 o'clock

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

VS01000105

joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel

€3.60*

€4.28 VAT included.

FD01000105

flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400

€4.10*

€4.88 VAT included.

PS01010000

Positioner PS01 for pneumatic actuators single acting air volume less than 5 l

€914.70*

€1,088.49 VAT included.

NA01010001

3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC

€46.20*

€54.98 VAT included.

PR02000000

Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black

€73.10*

€86.99 VAT included.

Resistance check

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

NieRuf-Exchange

24 months warranty

Certified

Downloads

3D model

Datasheet

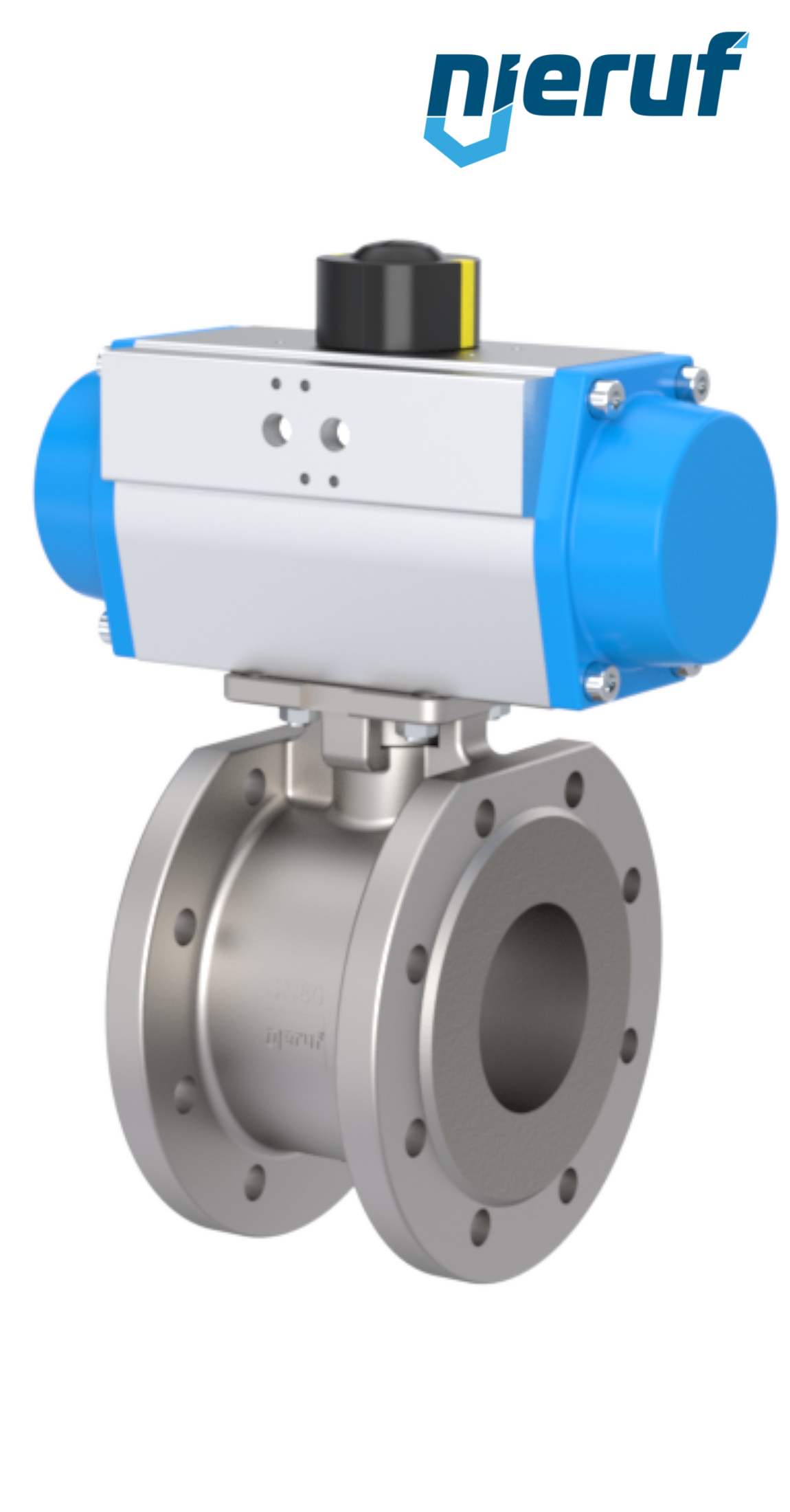

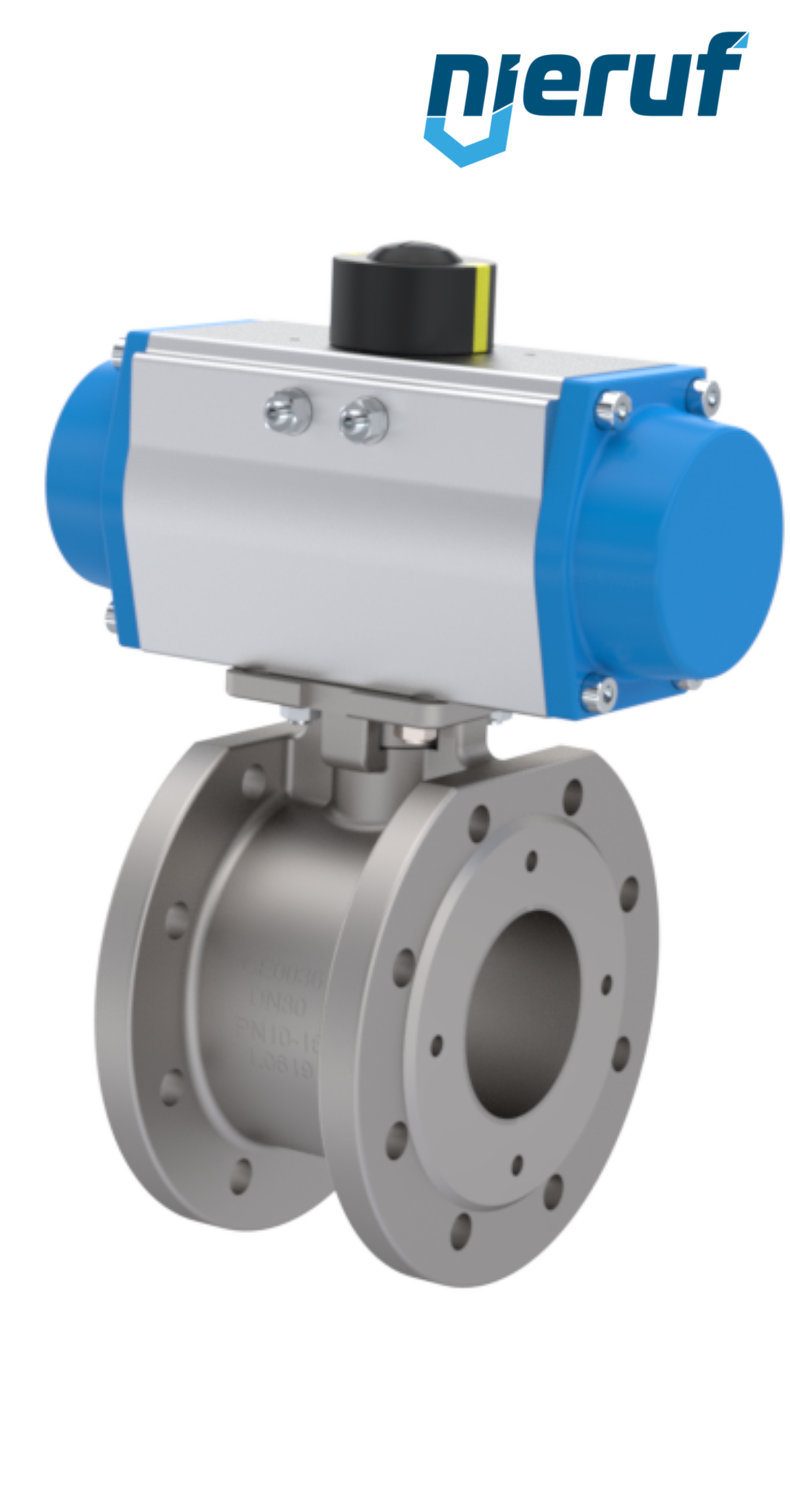

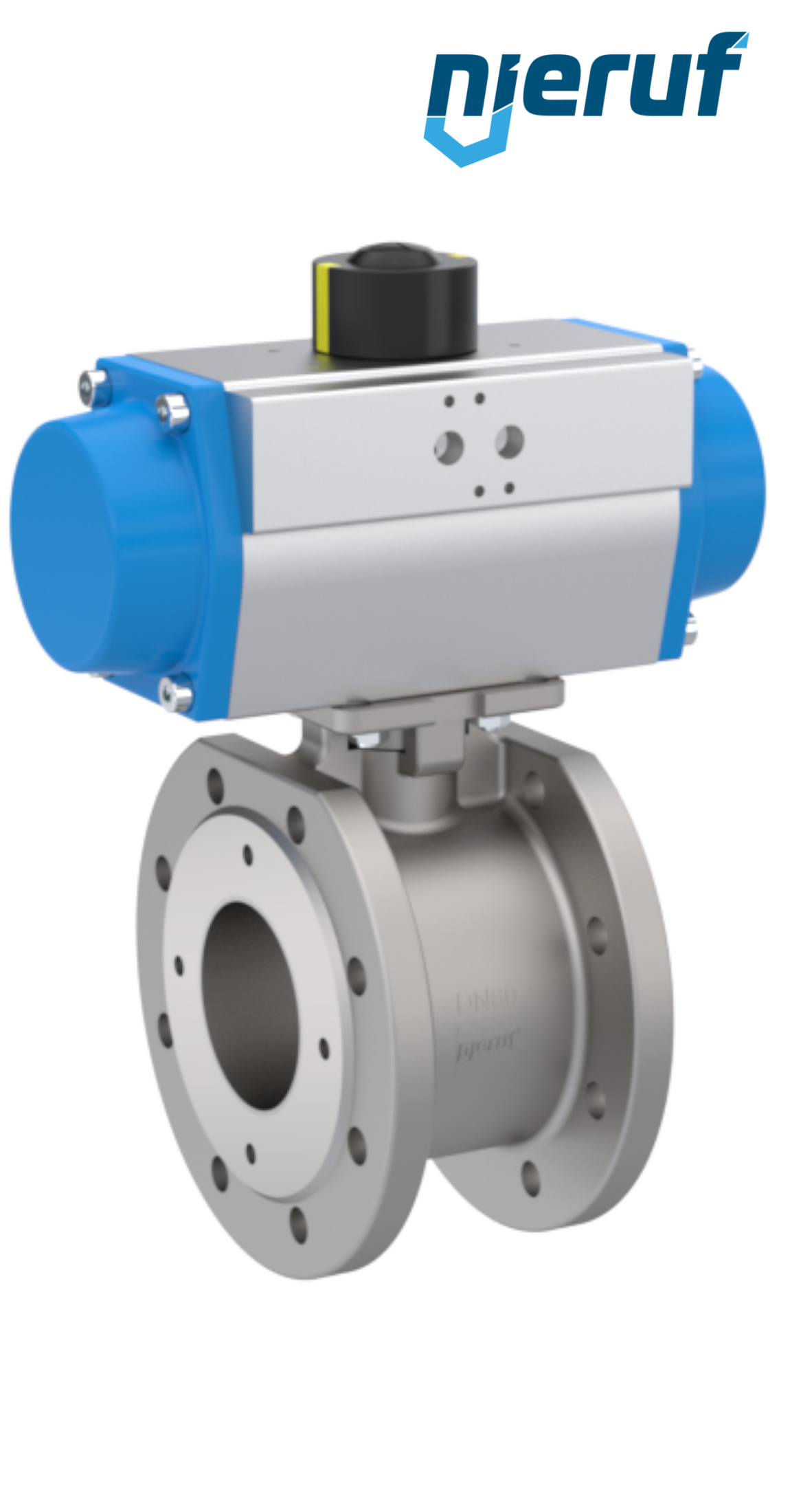

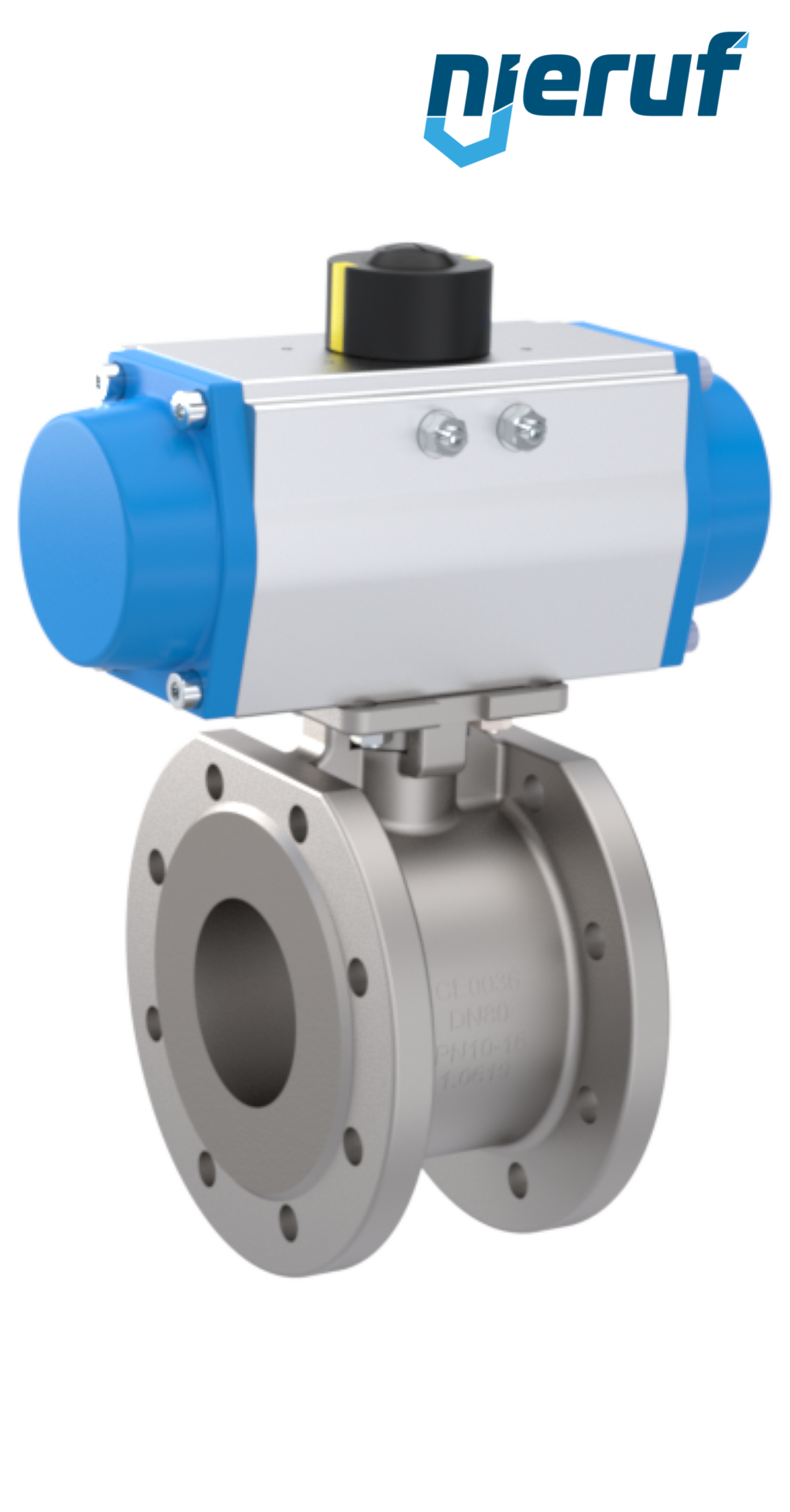

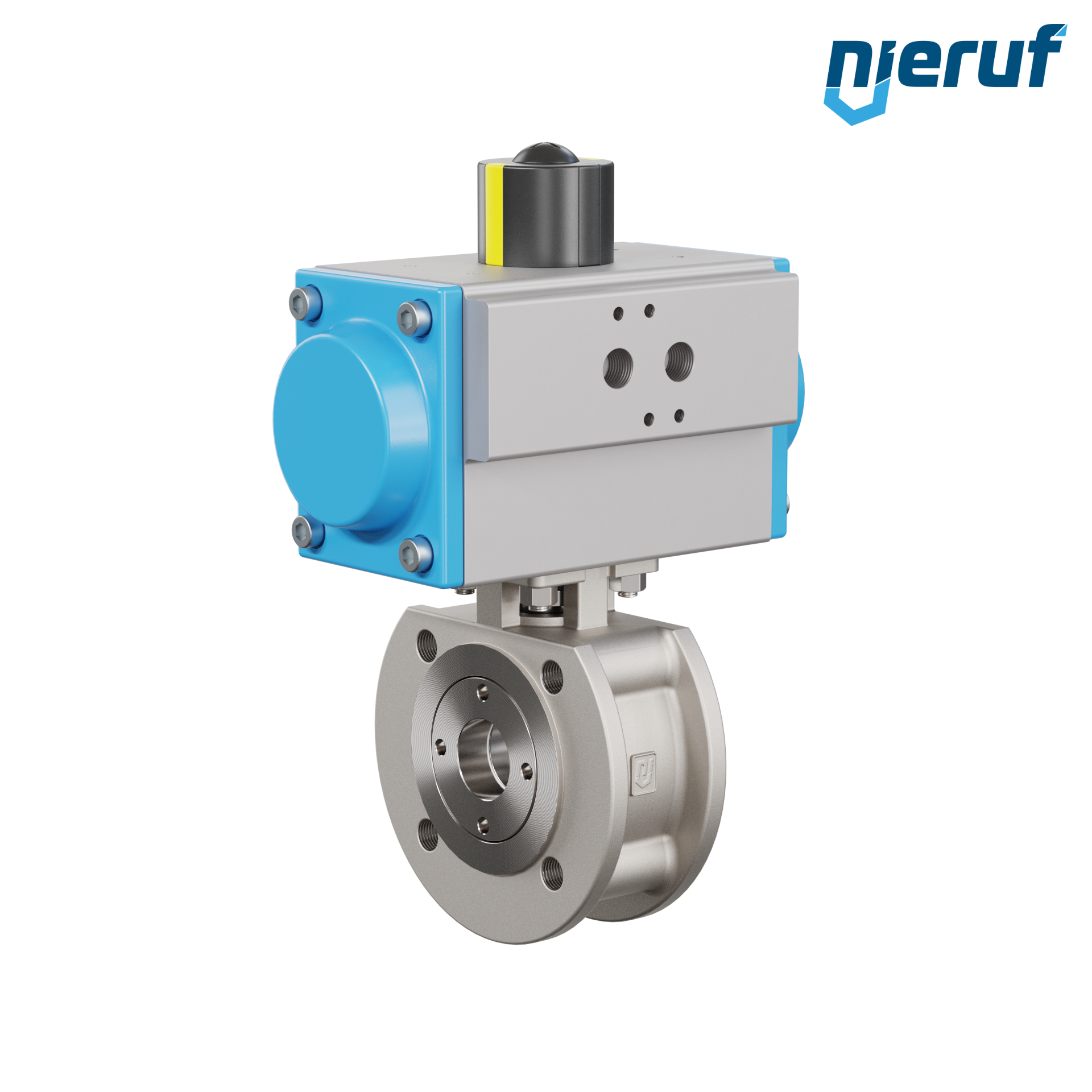

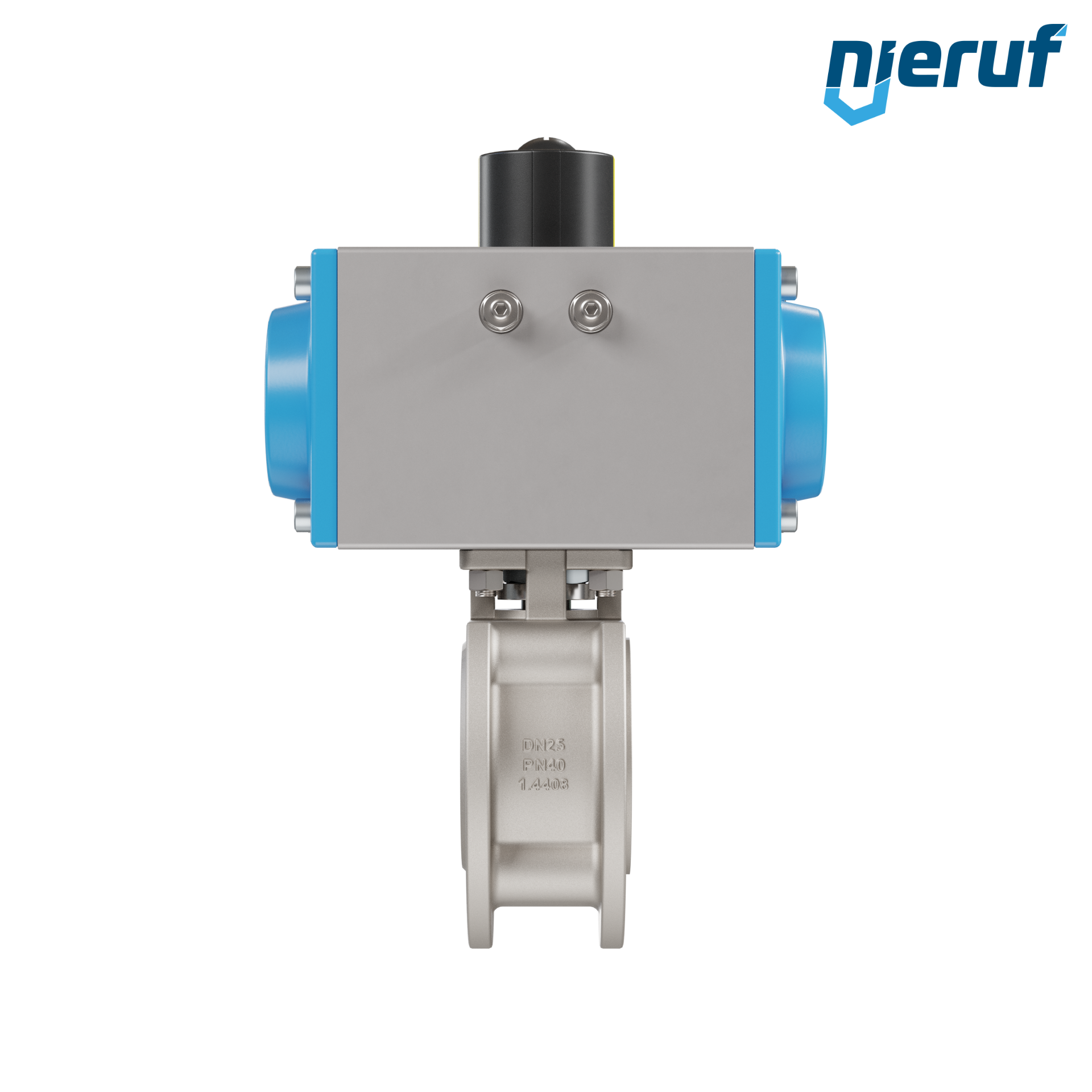

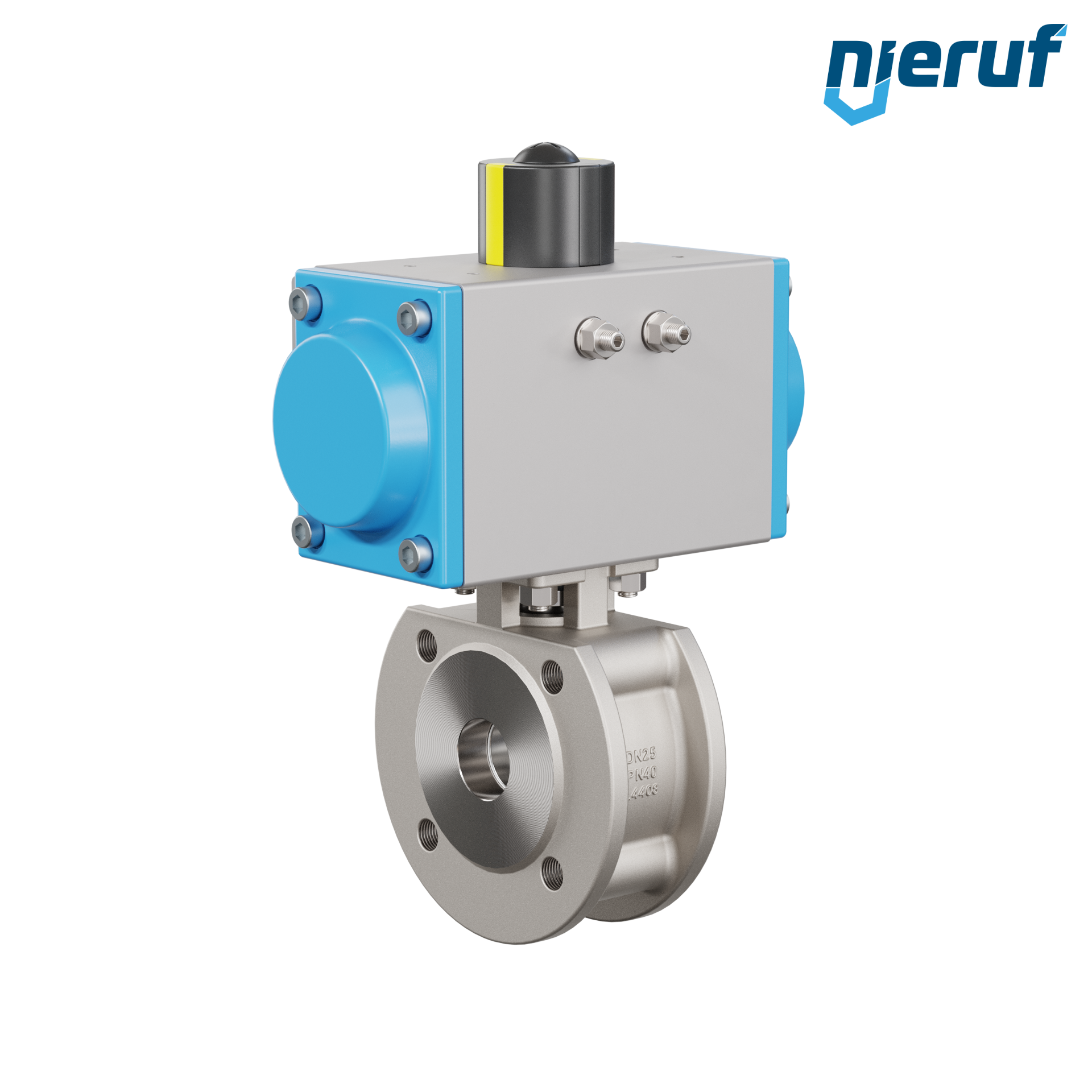

automatic-flange stainless steel ball valve DN25 PK07 pneumatic actuator single acting normally open

automatic-flange stainless steel ball valve DN25 stainless steel 1.4408 PK07 pneumatic actuator GS78 made of aluminium (mode of function: GS = single acting - normally open)

product	automatic-flange stainless steel ball valve
type	PK07
manufacturer	NieRuf
diameter	DN25 - 1" inch
connection	flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam	PTFE
media	liquid and gaseous media
temperature	ball valve: -29°C up to +200°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure	PN16
design	automatic-flange ball valve with pneumatic actuator (single acting normally open)
body material	stainless steel 1.4408
ball material	stainless steel 1.4408
ball seal	PTFE + TFM
length	50mm
actuator	pneumatic actuator GS063 made of aluminium (mode of function: GS = single acting - normally open)
actuator informations	Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for	TA Luft
product description	This high quality automatic-stainless steel ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

automatic-flange stainless steel ball valve DN25 PK07 pneumatic actuator single acting normally open

Article no. : PK07020005
product: automatic-flange stainless steel ball valve
type: PK07
manufacturer: NieRuf
diameter: DN25 - 1" inch
connection: flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam: PTFE
media: liquid and gaseous media
temperature: ball valve: -29°C up to +200°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN16
design: automatic-flange ball valve with pneumatic actuator (single acting normally open)
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE + TFM
length: 50mm
actuator: pneumatic actuator GS063 made of aluminium (mode of function: GS = single acting - normally open)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for: TA Luft
product description: This high quality automatic-stainless steel ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible.
