PK07010005

automatic-flange stainless steel ball valve DN25 PK07 pneumatic actuator single acting

€309.00*

€367.71 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: 3 - 5 working days

Delivery information

Equipment

VS01000105

joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel

€4.00*

€4.76 VAT included.


NA01010001

3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC

€40.00*

€47.60 VAT included.


PR02000000

Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black

€67.30*

€80.09 VAT included.


FD01000105

flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400

€1.90*

€2.26 VAT included.


EF01000106

Straight male adaptor EF01 brass NBR G1/4" D6mm

€1.00*

€1.19 VAT included.


FL01000105

Welding neck flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4541

€27.30*

€32.49 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: PK07010005

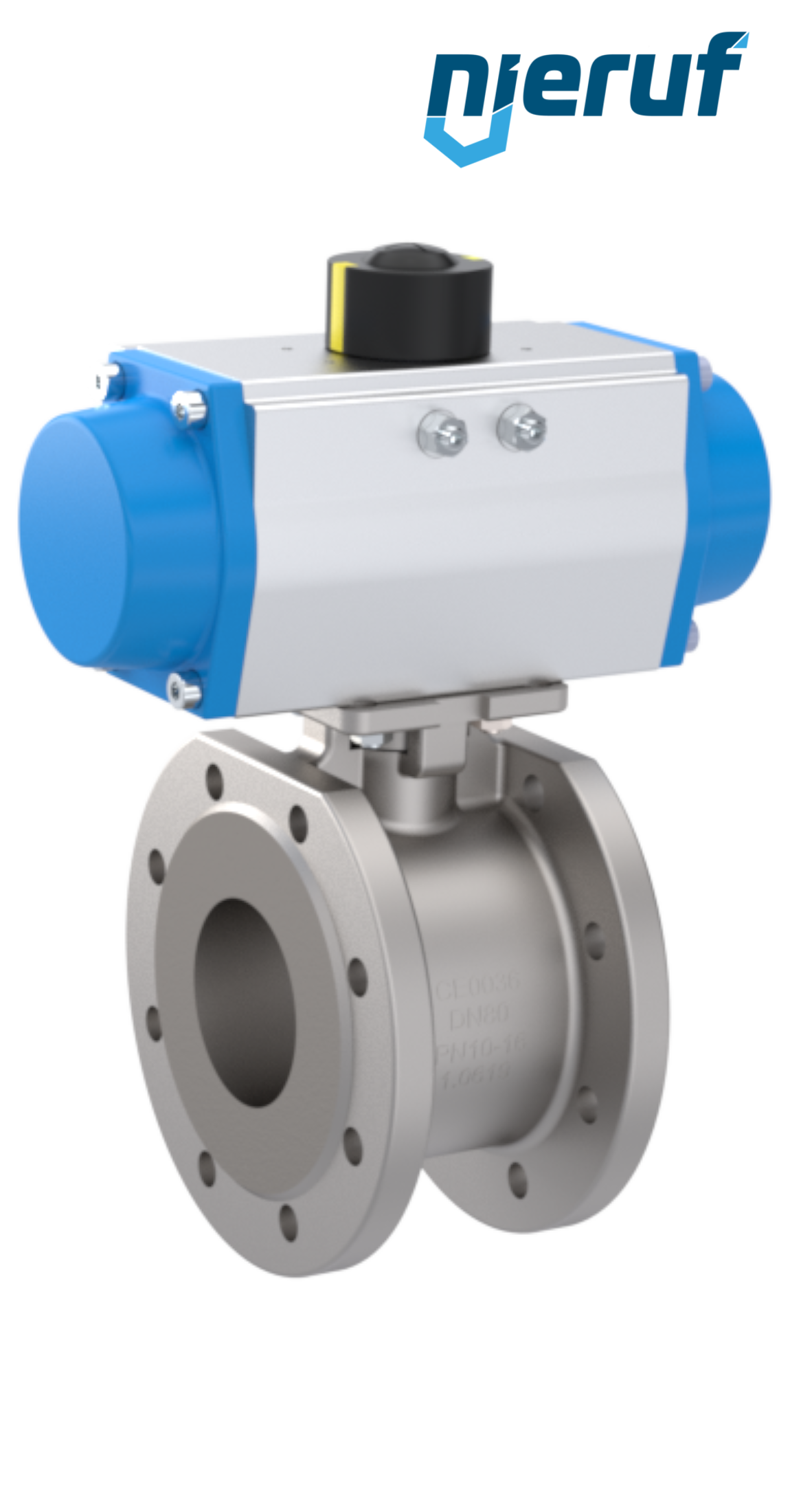

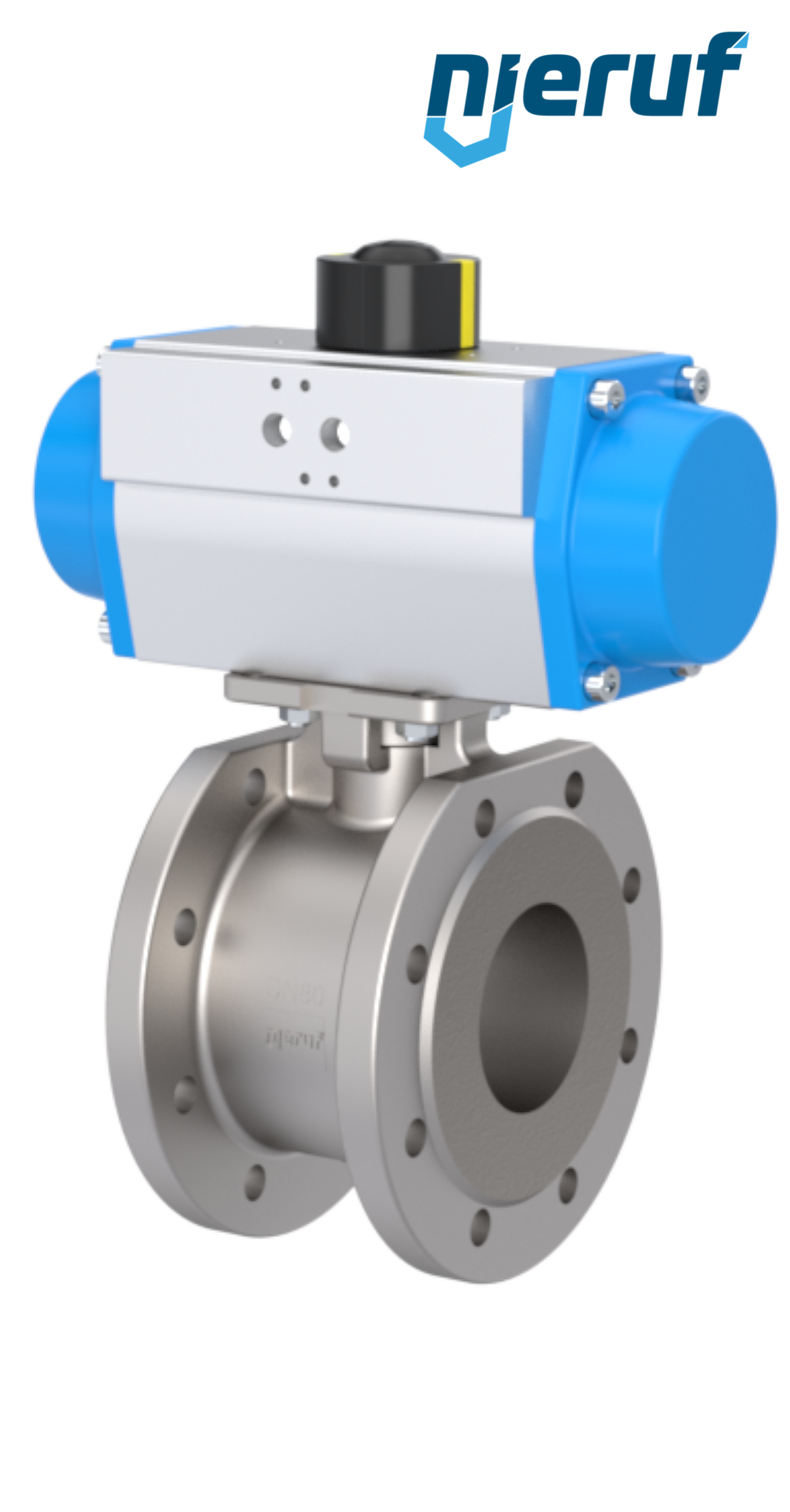

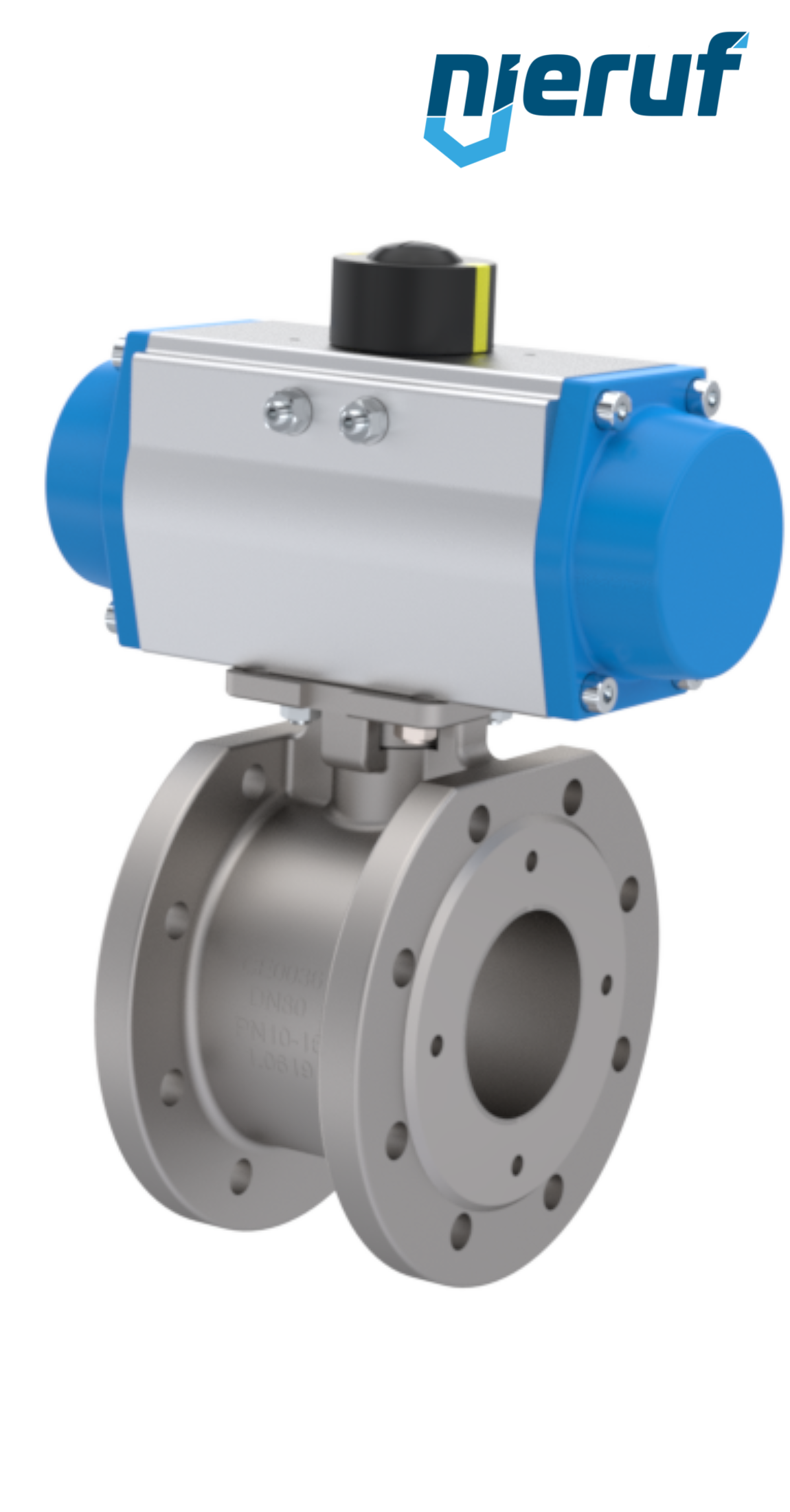

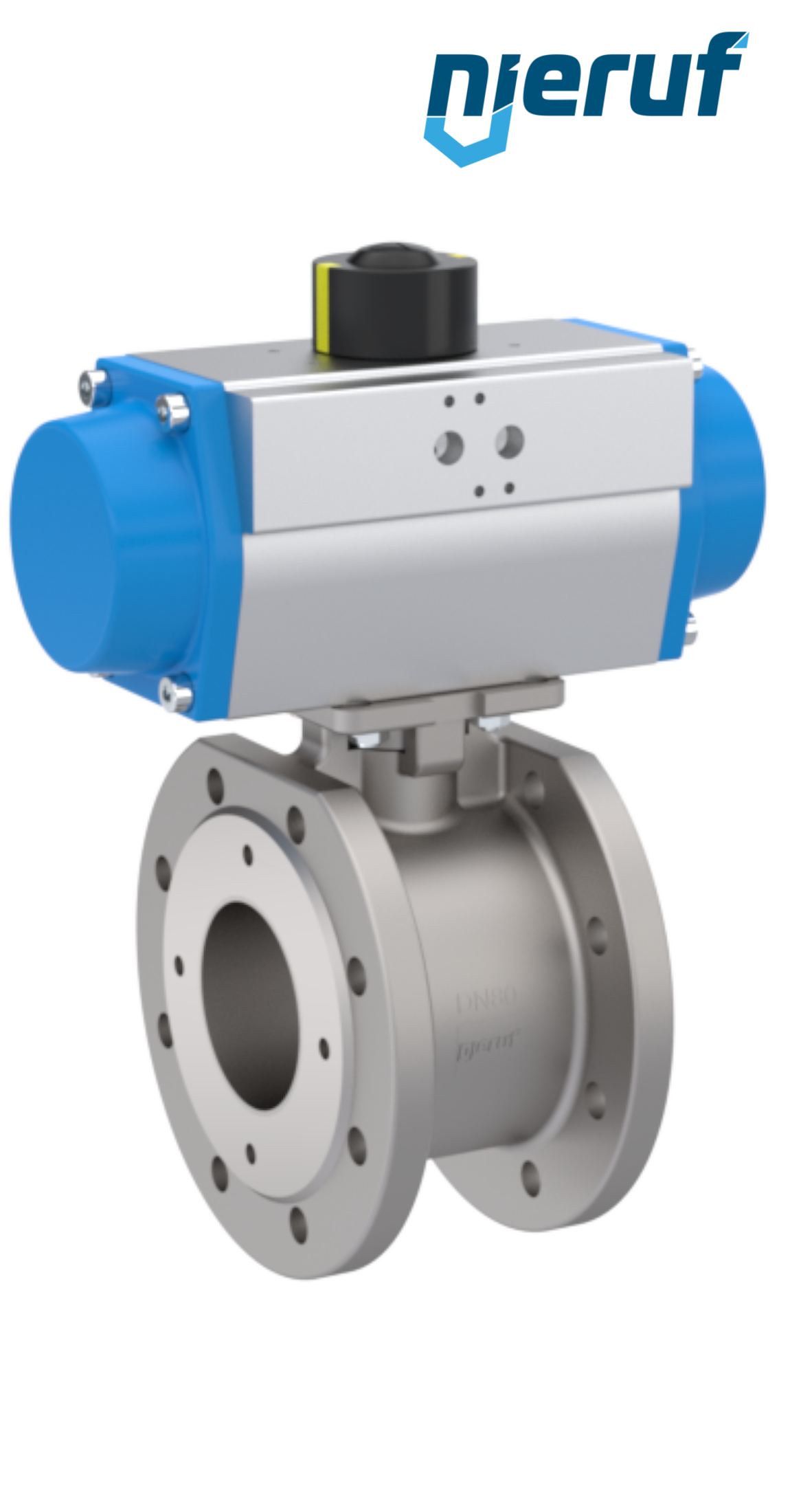

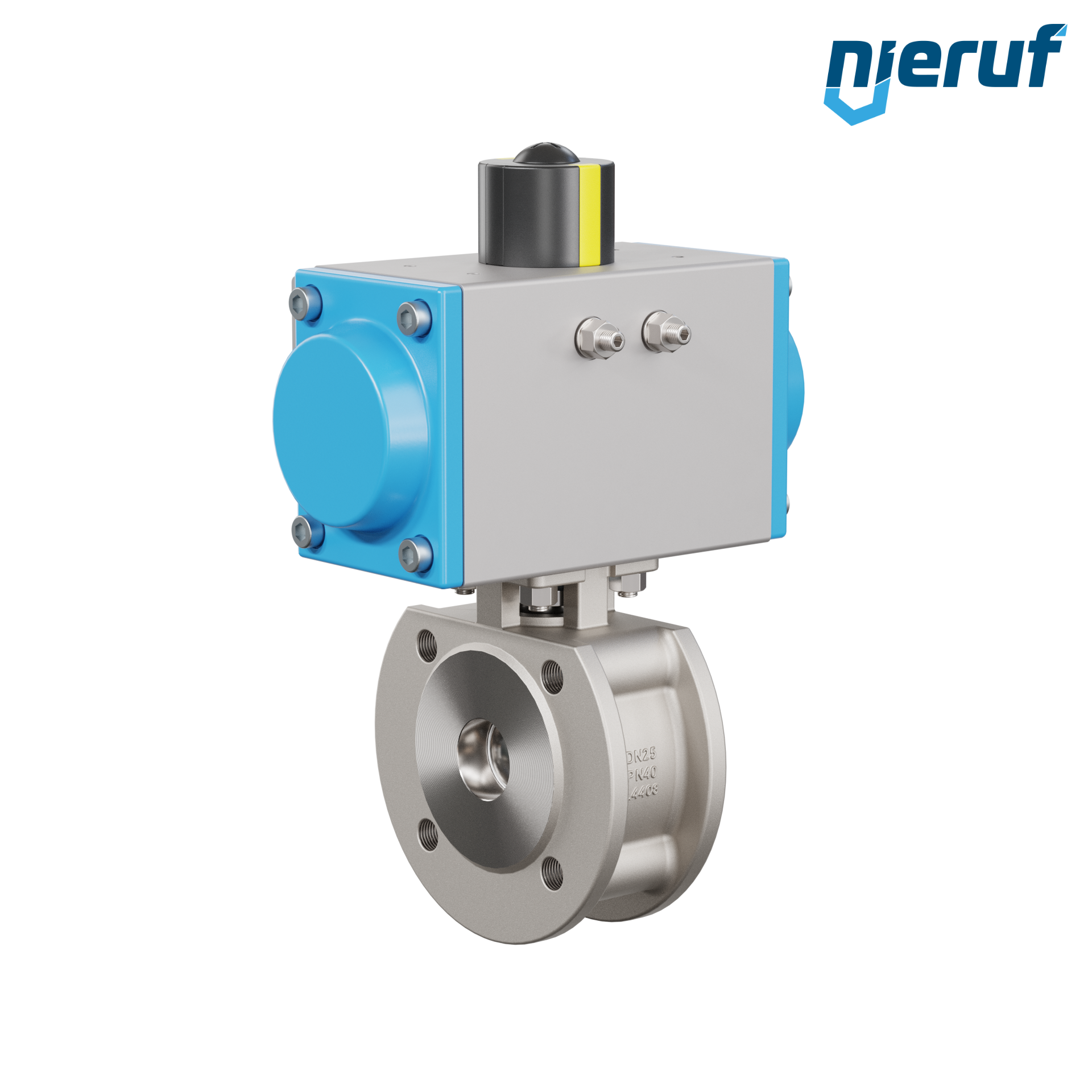

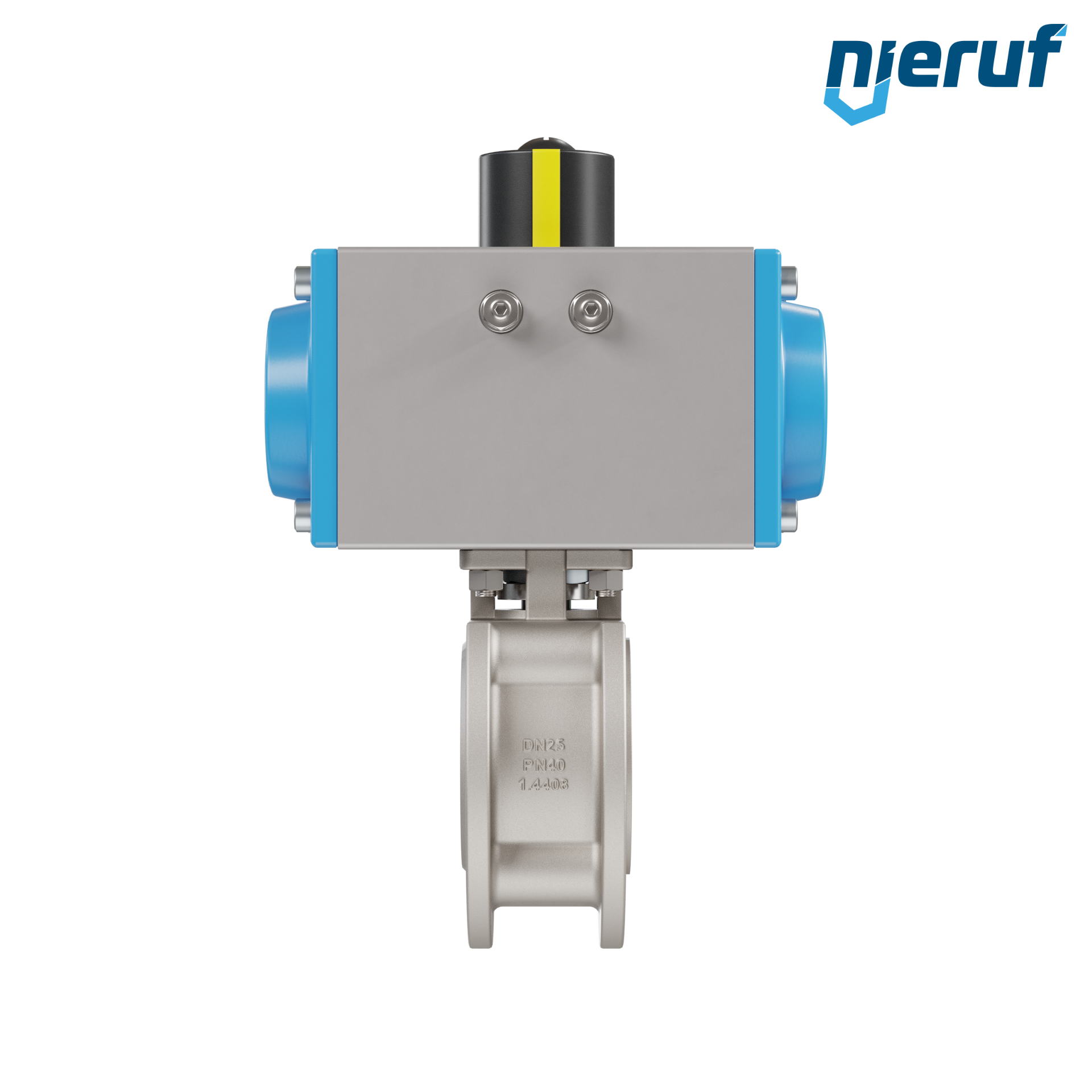

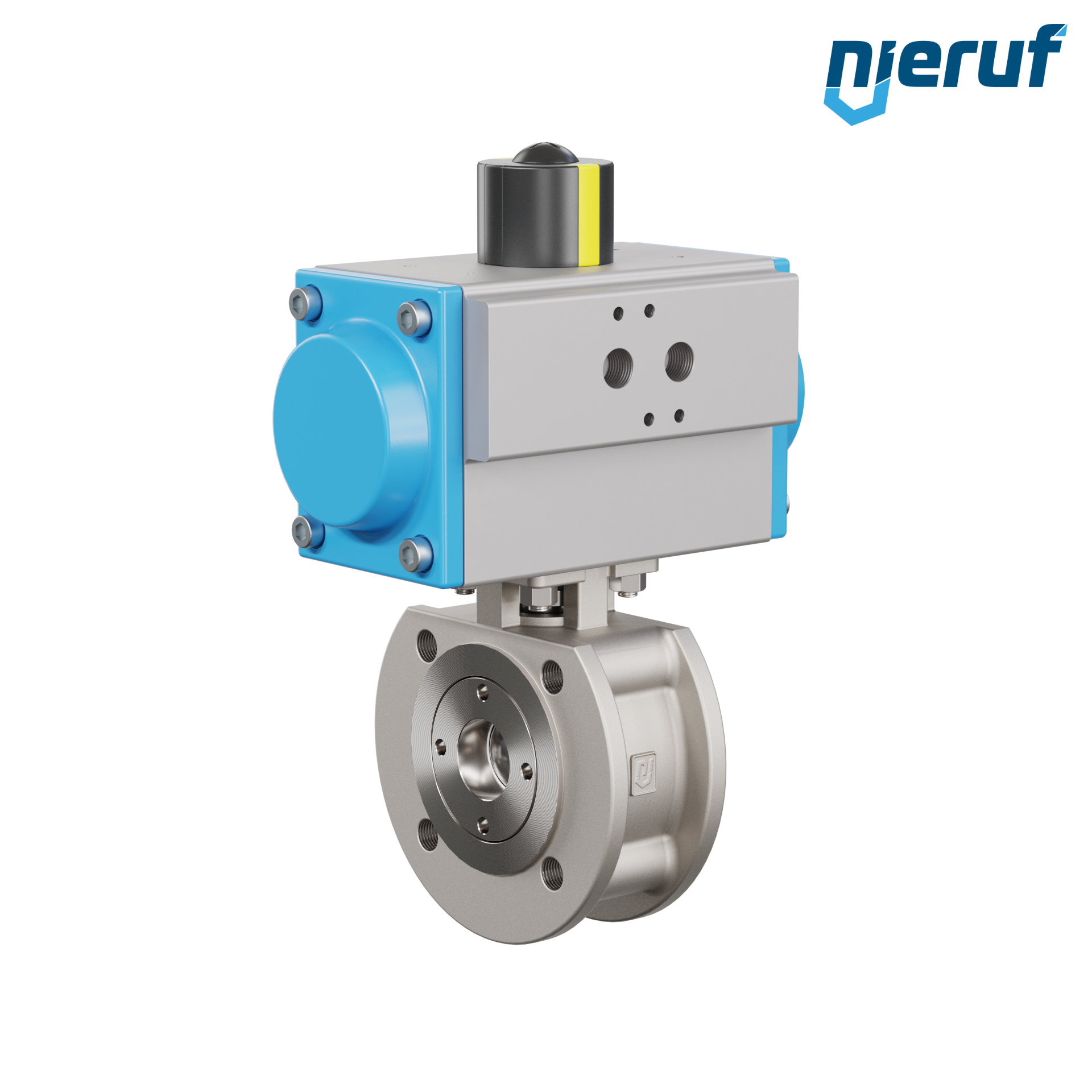

automatic-flange stainless steel ball valve DN25 PK07 pneumatic actuator single acting

automatic-flange stainless steel ball valve DN25 stainless steel 1.4408 PK07 pneumatic actuator GS78 made of aluminium (mode of function: GS = single acting)

product: automatic-flange stainless steel ball valve
type: PK07
manufacturer: NieRuf
diameter: DN25 - 1" inch
connection: flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam: PTFE
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN16
design: automatic-flange ball valve
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE + TFM
length: 50mm
actuator: pneumatic actuator GS063 made of aluminium (mode of function: GS = single acting)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for: TA Luft
product description: This high quality automatic-stainless steel ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

automatic-flange stainless steel ball valve DN25 PK07 pneumatic actuator single acting

Article no. : PK07010005
product: automatic-flange stainless steel ball valve
type: PK07
manufacturer: NieRuf
diameter: DN25 - 1" inch
connection: flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam: PTFE
media: liquid and gaseous media
temperature: ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure: PN16
design: automatic-flange ball valve
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE + TFM
length: 50mm
actuator: pneumatic actuator GS063 made of aluminium (mode of function: GS = single acting)
actuator informations: Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for: TA Luft
product description: This high quality automatic-stainless steel ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible.
