SV04000205
angle-type safety valve 1" x 1 1/2" fm SV04 liquid media, gunmetal FKM
- Lead time
- 3 - 5 working days
Equipment
hexagon nipple 1" inch male stainless steel 316
€5.36 VAT included.
hexagon nipple 1 1/2" inch male stainless steel 316
€9.04 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

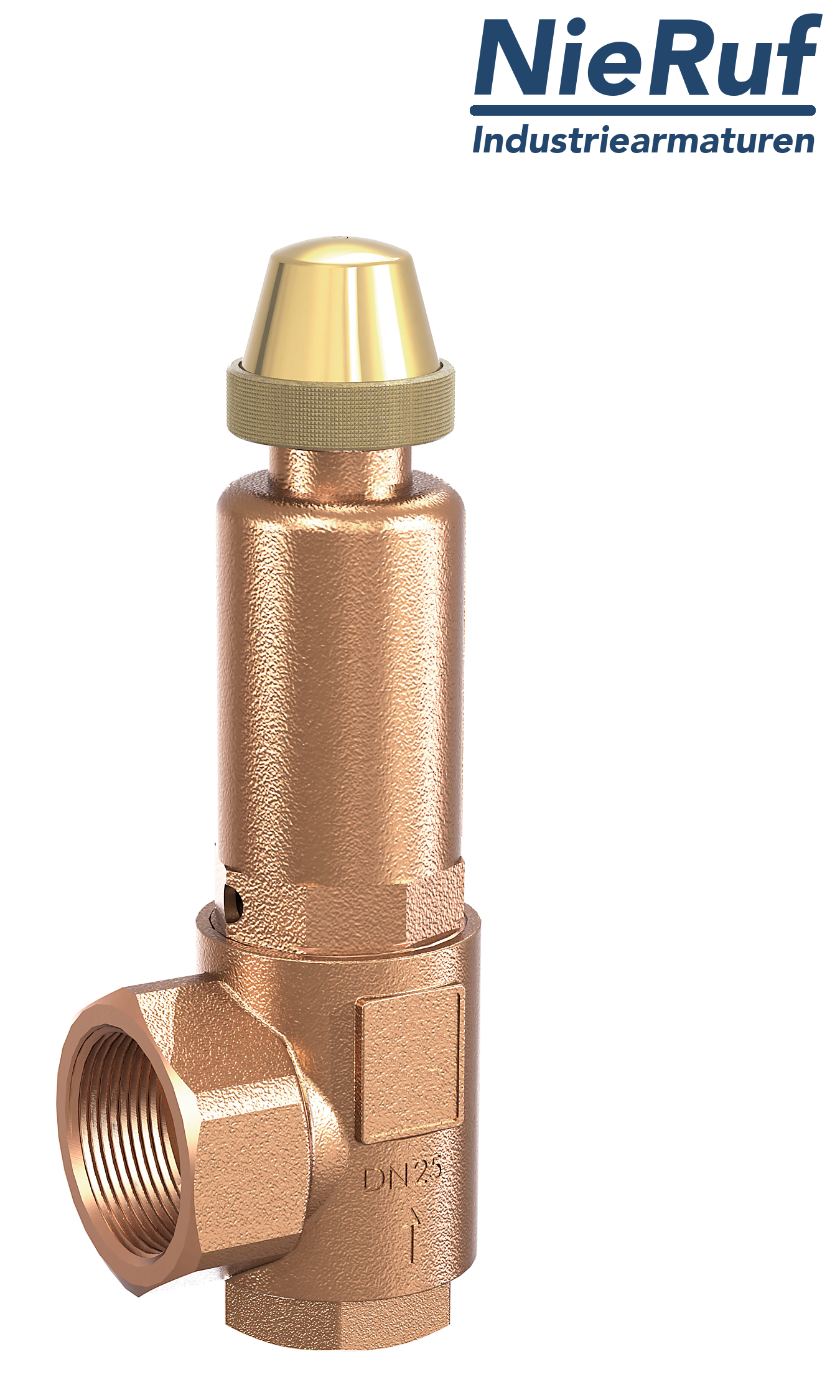

angle-type safety valve 1" x 1 1/2" fm SV04 liquid media, gunmetal FKM
angle-type-safety-valve gunmetal 1" x 1 1/2" fm Typ SV04 with Female screw threaded BSP-P FKM-seal for liquid media with twist-type lifting mechanism and with bellows
| product | angle-type safety valve |
|---|---|
| type | SV04 |
| manufacturer | NieRuf |
| diameter | 1" x 1 1/2" fm |
| d0 | 23,0 mm |
| connection | Female screw threaded BSP-P |
| seal | FKM |
| media | liquid media |
| temperature | -20°C up to +200°C |
| set pressure | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design | angle-type |
| material | gunmetal CC499K |

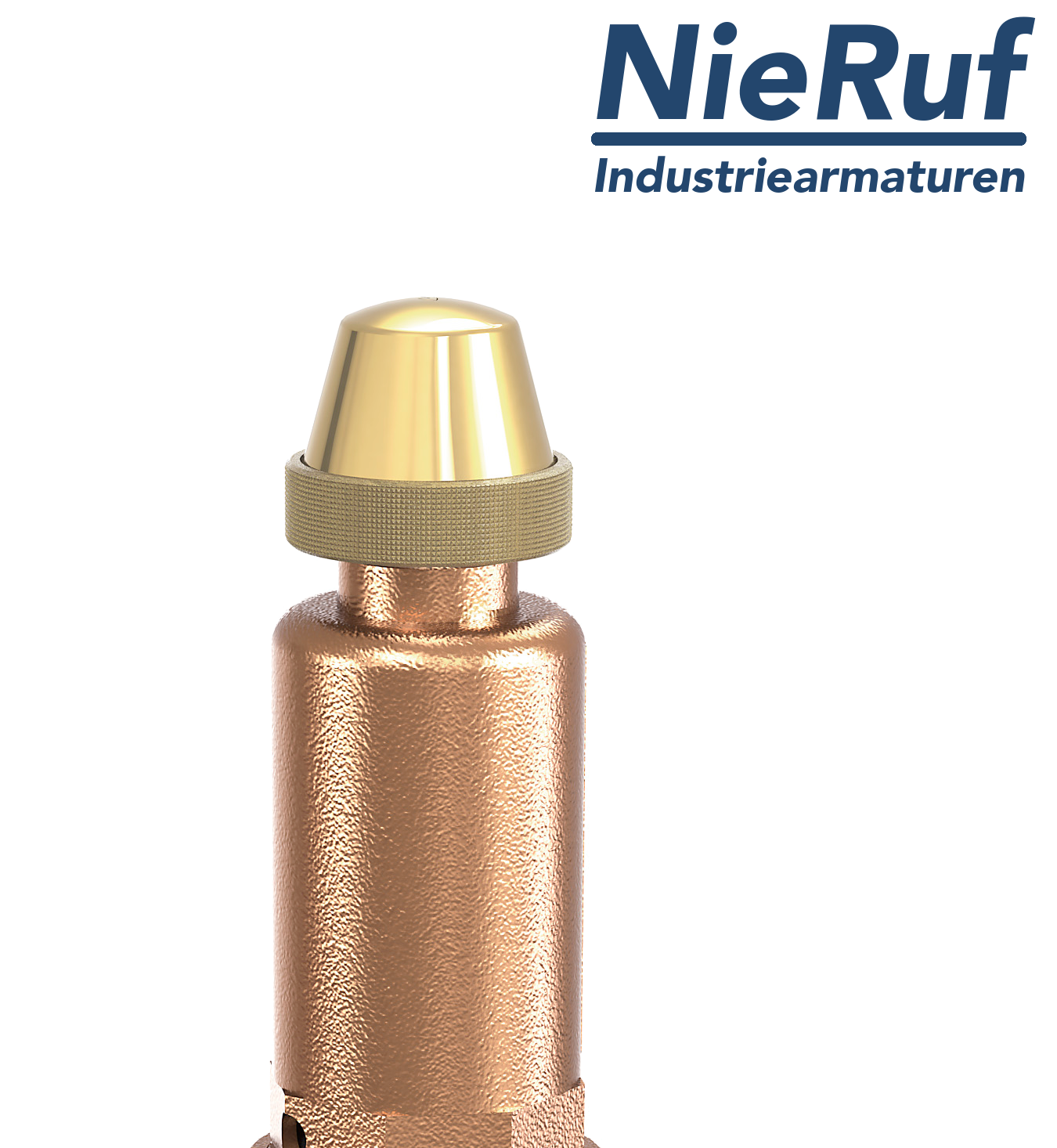

| lifting | twist-type lifting mechanism |
| type test approval | TÜV = F 666 / EG = L |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | with bellows |
| product feature 2 | for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
angle-type safety valve 1" x 1 1/2" fm SV04 liquid media, gunmetal FKM
Article no.
: SV04000205
product:
angle-type safety valve
type:
SV04
manufacturer:
NieRuf
diameter:
1" x 1 1/2" fm
d0:
23,0 mm
connection:
Female screw threaded BSP-P
seal:
FKM
media:
liquid media
temperature:
-20°C up to +200°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
gunmetal CC499K
lifting:
twist-type lifting mechanism
type test approval:
TÜV = F 666 / EG = L
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
with bellows
product feature 2:
for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
