SV11100301
angle-type safety valve 1/4" m x 3/8" fm SV11, stainless steel PTFE, with lever
- Lead time
- 3 - 5 working days
Equipment
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

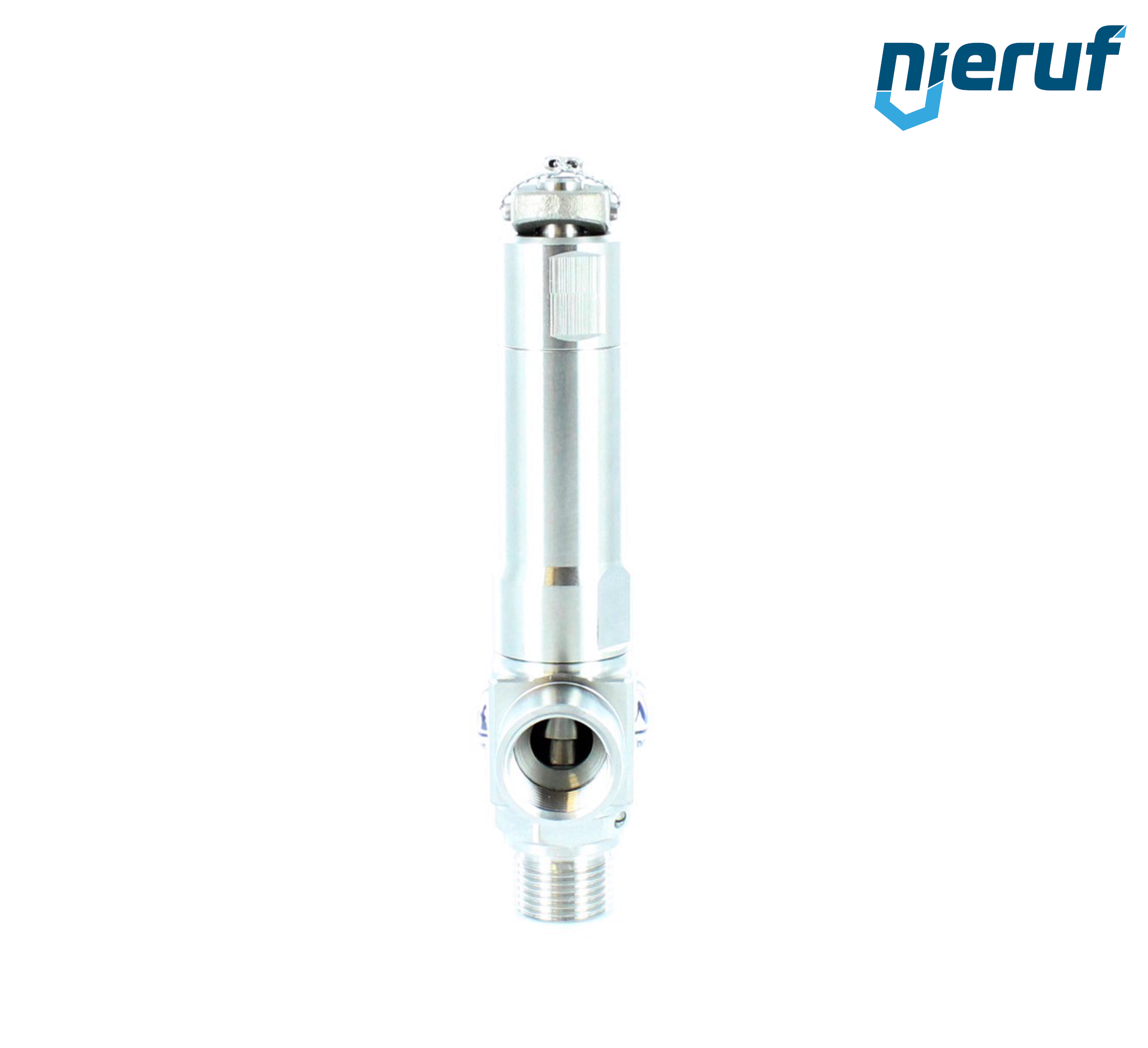

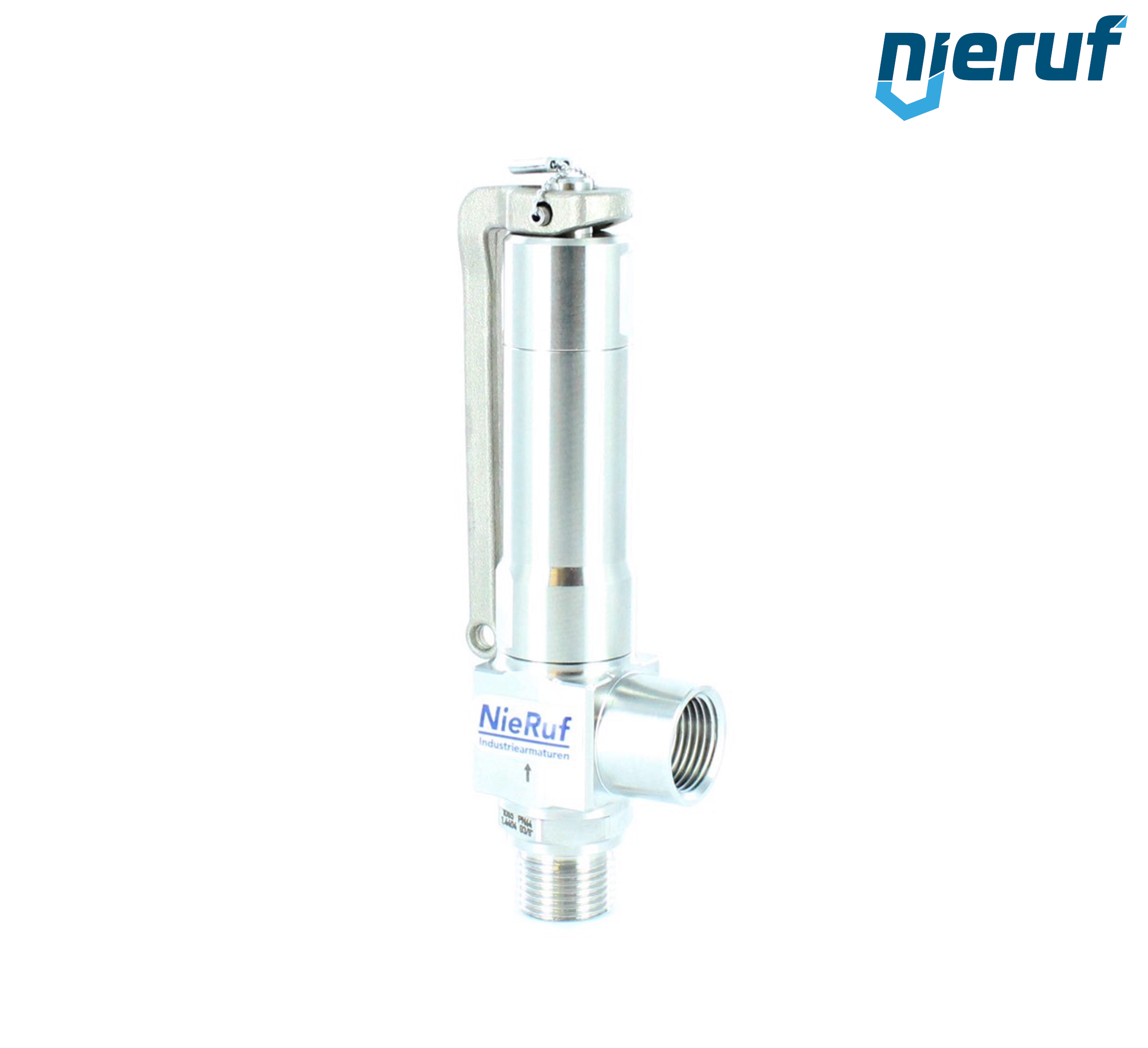

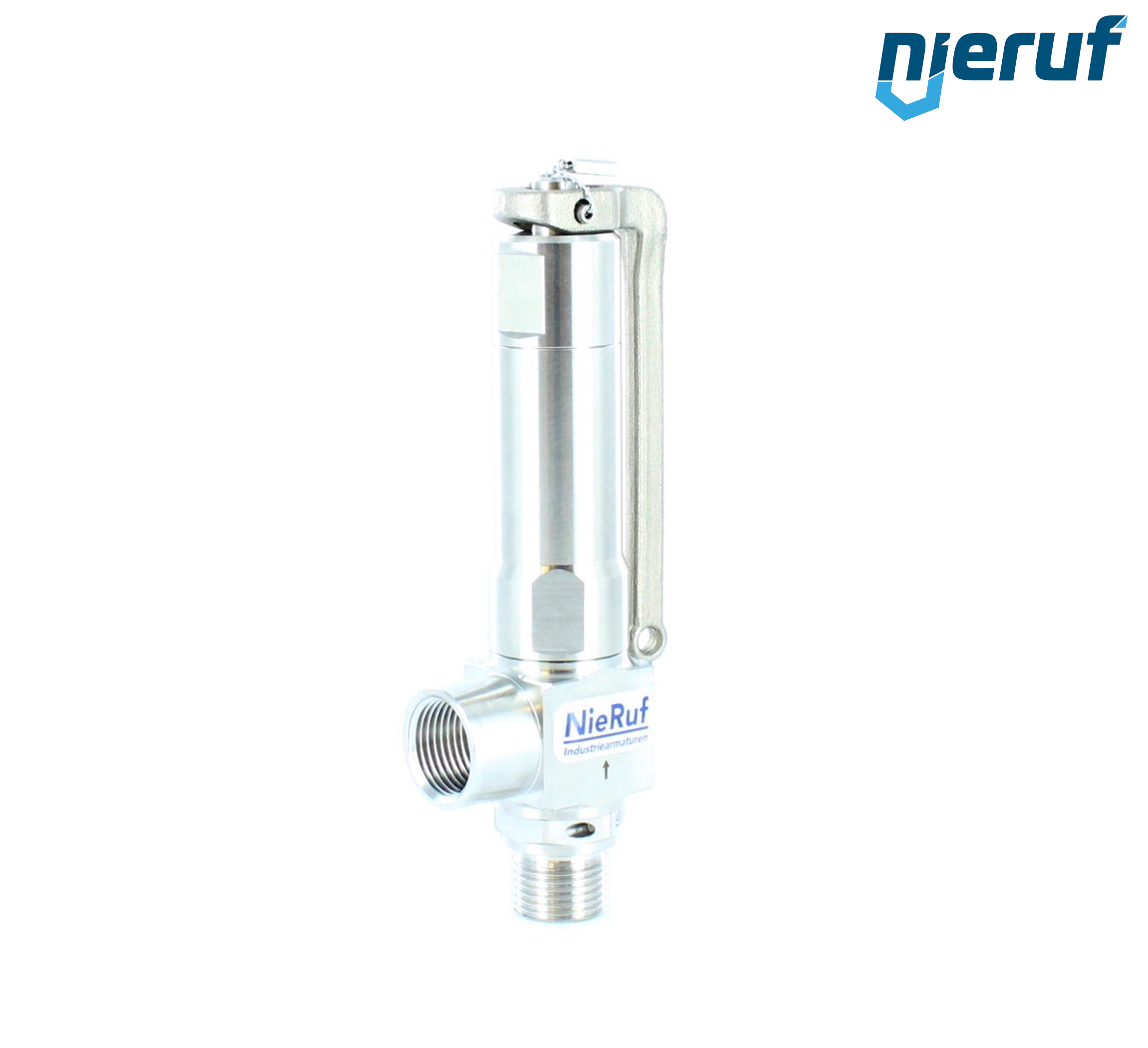

angle-type safety valve 1/4" m x 3/8" fm SV11, stainless steel PTFE, with lever
angle-type safety valve 1/4" m x 3/8" fm SV11 for liquid and gaseous media aus stainless steel seal PTFE pressure 0,5 - 1,5 bar with lever
| product | angle-type safety valve |
|---|---|
| type | SV11 |
| manufacturer | NieRuf |
| diameter | 1/4" m x 3/8" fm |
| d0 | 6,0 mm |
| connection | male screw threaded BSP-P |
| seal | PTFE |
| media | liquid and gaseous media |
| temperature | - 40°C up to + 225°C |
| set pressure | 0,5 - 1,5 bar |
| design | angle-type |
| material | stainless steel 1.4404 / 316L |
| lifting | with lever |
| type test approval | TÜV-SV-2069 D/G/F |
| requirements | acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | without bellows |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
angle-type safety valve 1/4" m x 3/8" fm SV11, stainless steel PTFE, with lever
Article no.
: SV11100301
product:
angle-type safety valve
type:
SV11
manufacturer:
NieRuf
diameter:
1/4" m x 3/8" fm
d0:
6,0 mm
connection:
male screw threaded BSP-P
seal:
PTFE
media:
liquid and gaseous media
temperature:
- 40°C up to + 225°C
set pressure:
0,5 - 1,5 bar
design:
angle-type
material:
stainless steel 1.4404 / 316L
lifting:
with lever
type test approval:
TÜV-SV-2069 D/G/F
requirements:
acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
without bellows
