SV04000306

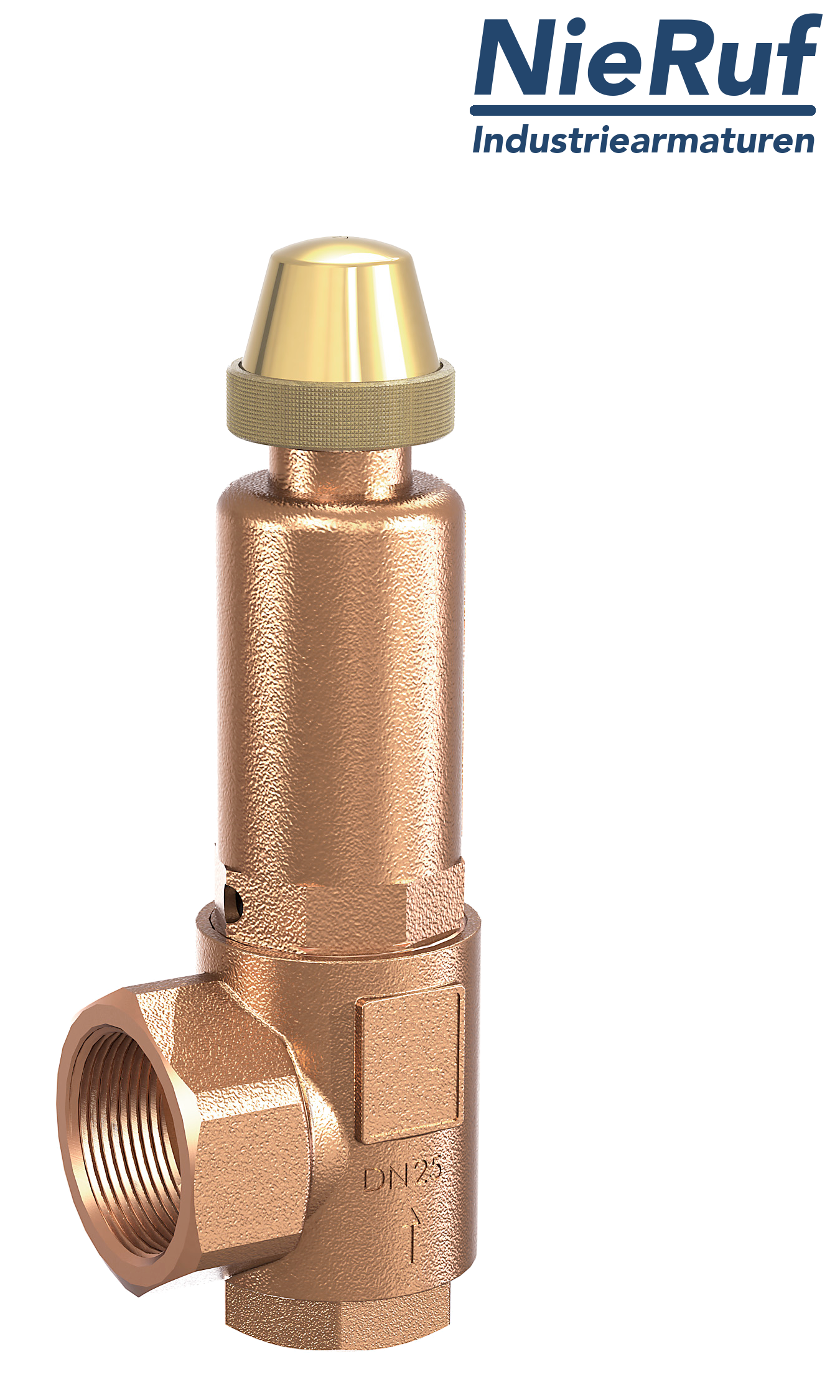

angle-type safety valve 1 1/4" x 2" fm SV04 liquid media, gunmetal PTFE
- Lead time
- 3 - 5 working days
Equipment
hexagon nipple 1 1/4" inch male stainless steel 316
€7.97 VAT included.
hexagon nipple 2" inch male stainless steel 316
€14.64 VAT included.
tee 1 1/4" inch stainless steel 316 90° angle FM
€14.40 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you
angle-type safety valve 1 1/4" x 2" fm SV04 liquid media, gunmetal PTFE
safety-valve gunmetal 1 1/4" x 2" fm with with bellows Typ SV04 with Female screw threaded BSP-P PTFE-seal for liquid media and twist-type lifting mechanism
| product | angle-type safety valve |
|---|---|
| type | SV04 |
| manufacturer | NieRuf |
| diameter | 1 1/4" x 2" fm |
| d0 | 30,3 mm |
| connection | Female screw threaded BSP-P |
| seal | PTFE |
| media | liquid media |
| temperature | -60°C up to +225°C |
| set pressure | 0,5 - 50,0 bar |
| design | angle-type |
| material | gunmetal CC499K |
| lifting | twist-type lifting mechanism |
| type test approval | TÜV = F 666 / EG = L |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | with bellows |
| product feature 2 | for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
angle-type safety valve 1 1/4" x 2" fm SV04 liquid media, gunmetal PTFE
Article no.
: SV04000306
product:
angle-type safety valve
type:
SV04
manufacturer:
NieRuf
diameter:
1 1/4" x 2" fm
d0:
30,3 mm
connection:
Female screw threaded BSP-P
seal:
PTFE
media:
liquid media
temperature:
-60°C up to +225°C
set pressure:
0,5 - 50,0 bar
design:
angle-type
material:
gunmetal CC499K
lifting:
twist-type lifting mechanism
type test approval:
TÜV = F 666 / EG = L
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
with bellows
product feature 2:
for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
