angle reduced 1 1/2" x 1" inch stainless steel 316 90° angle

GF01002108
Solenoid valve G 1 1/2" Inch stainless steel EV05 NBR 24V DC 1
quantity (pcs.):
9.40€ * 11.19€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Monday, 21. June
Guaranteed delivery until Tuesday, 22. June, 12 Uhr:
order within 2 Tage & 21 hours & 23 minutes via express shipping
datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

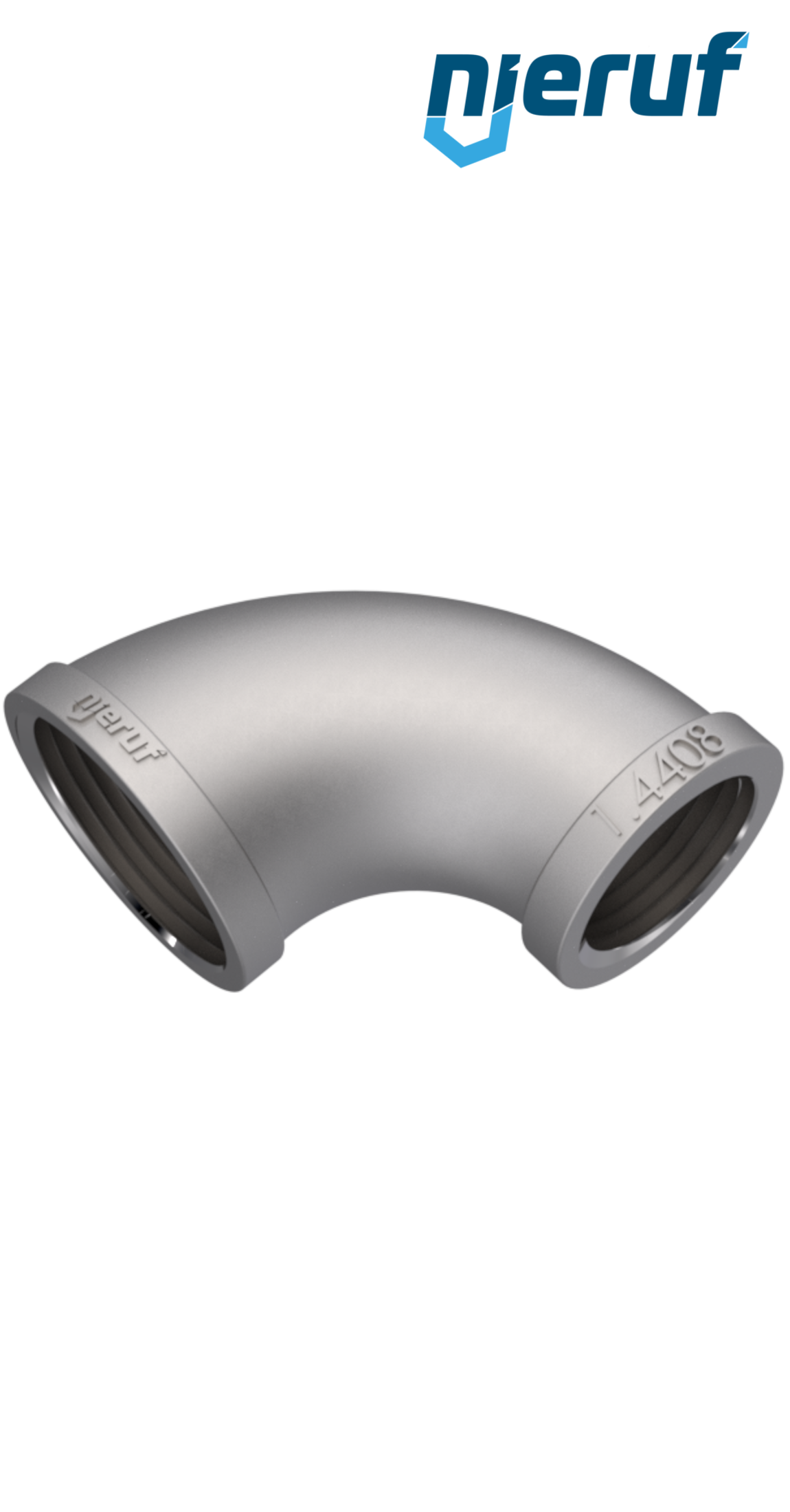

angle reduced 1 1/2" x 1" inch stainless steel 316 90° angle
angle reduced female thread 1 1/2" x 1" inch made of stainless steel 316 90° angle for liquid and gaseous media
design: 90° angle
diameter: 1 1/2" x 1" inch
connection: female thread
thread: acc. to DIN EN 10226-1
max. working pressure: 20 bar at +20°C
material: stainless steel 316
product feature: These fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems.
angle reduced 1 1/2" x 1" inch stainless steel 316 90° angle

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

angle reduced 1 1/2" x 1" inch stainless steel 316 90° angle
