SK011000708

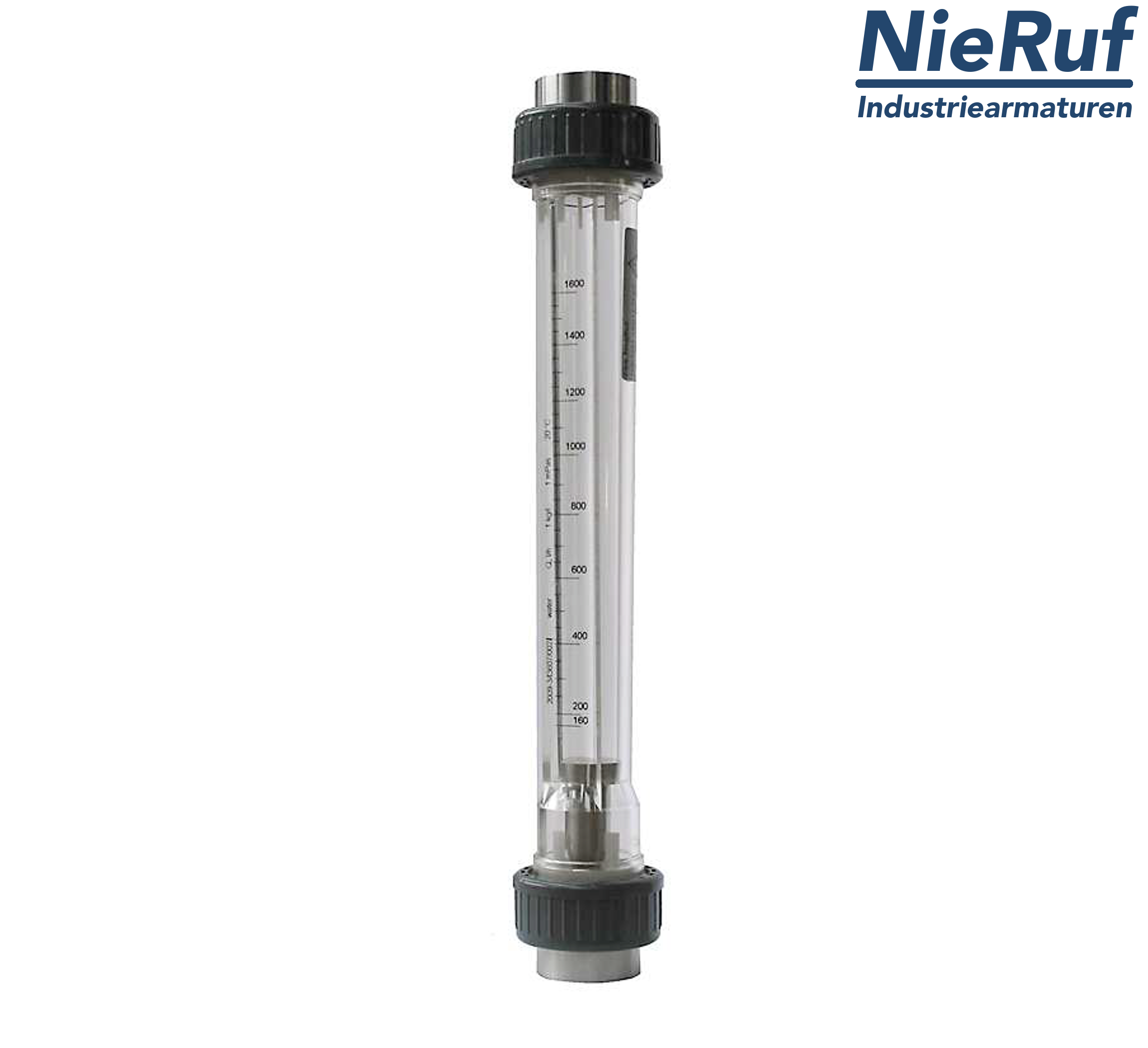

Variable area flowmeter 2" inch 400.0 - 4000 l/h water EPDM
- Lead time
- 1 - 2 weeks
Equipment
hexagon nipple 2" inch male stainless steel 316
€14.64 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads
Variable area flowmeter 2" inch 400.0 - 4000 l/h water EPDM
Variable area flowmeter Measuring range 400.0 - 4000 l/h, connection 2" inch EPDM female thread DIN ISO 228 for water
| product | Variable area flowmeter |
|---|---|
| type | SK01 |
| manufacturer | NieRuf |
| diameter | 2" inch |
| connection | female thread DIN ISO 228 |
| connection material | PVC |
| body material | Trogamid plastic |
| seal | EPDM |
| float material | stainless steel 1.4571 |
| float version design | guided |
| media | water |
| mark | Different media are available upon request |
| mark 2 | standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s |
| pressure loss float | 25 mbar |
| temperature | max. +60 °C / water max. +50°C |
| Measuring range | 400.0 - 4000 l/h |
| unit of scale | m³/h |
| working pressure | 10 bar |
| accuracy | G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2) |
| installation position | vertically upwards |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Variable area flowmeter 2" inch 400.0 - 4000 l/h water EPDM
Article no.
: SK011000708
product:
Variable area flowmeter
type:
SK01
manufacturer:
NieRuf
diameter:
2" inch
connection:
female thread DIN ISO 228
connection material:
PVC
body material:
Trogamid plastic
seal:
EPDM
float material:
stainless steel 1.4571
float version design:
guided
media:
water
mark:
Different media are available upon request
mark 2:
standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float:
25 mbar
temperature:
max. +60 °C / water max. +50°C
Measuring range:
400.0 - 4000 l/h
unit of scale:
m³/h
working pressure:
10 bar
accuracy:
G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position:
vertically upwards
