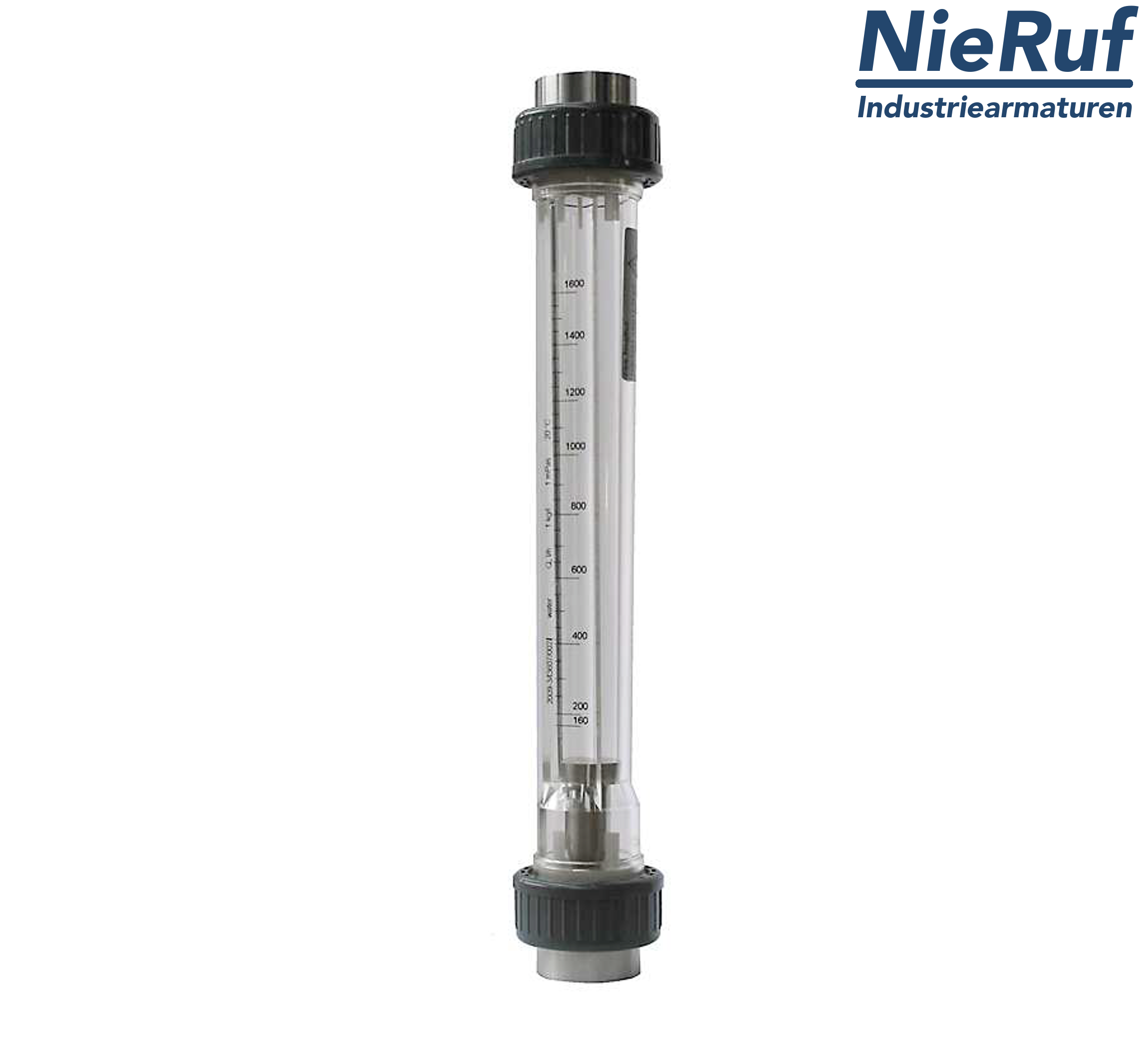

Variable area flowmeter 1" inch 100.0 - 1000 l/h water EPDM

SK011000405
check valve DN 80 cast steel EPDM PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300) 3
quantity (pcs.):
146.00€ * 173.74€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Variable area flowmeter 1" inch 100.0 - 1000 l/h water EPDM
Variable area flowmeter Measuring range 100.0 - 1000 l/h, connection 1" inch EPDM female thread DIN ISO 228 for water
diameter: 1" inch
connection: female thread DIN ISO 228
connection material: PVC
body material: Trogamid plastic
seal: EPDM
float material: stainless steel 1.4571
float version design: standard
media: water
mark: Different media are available upon request
mark 2: standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float: 17 mbar
temperature: max. +60 °C / water max. +50°C
Measuring range: 100.0 - 1000 l/h
unit of scale: l/h
working pressure: 10 bar
accuracy: G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards
