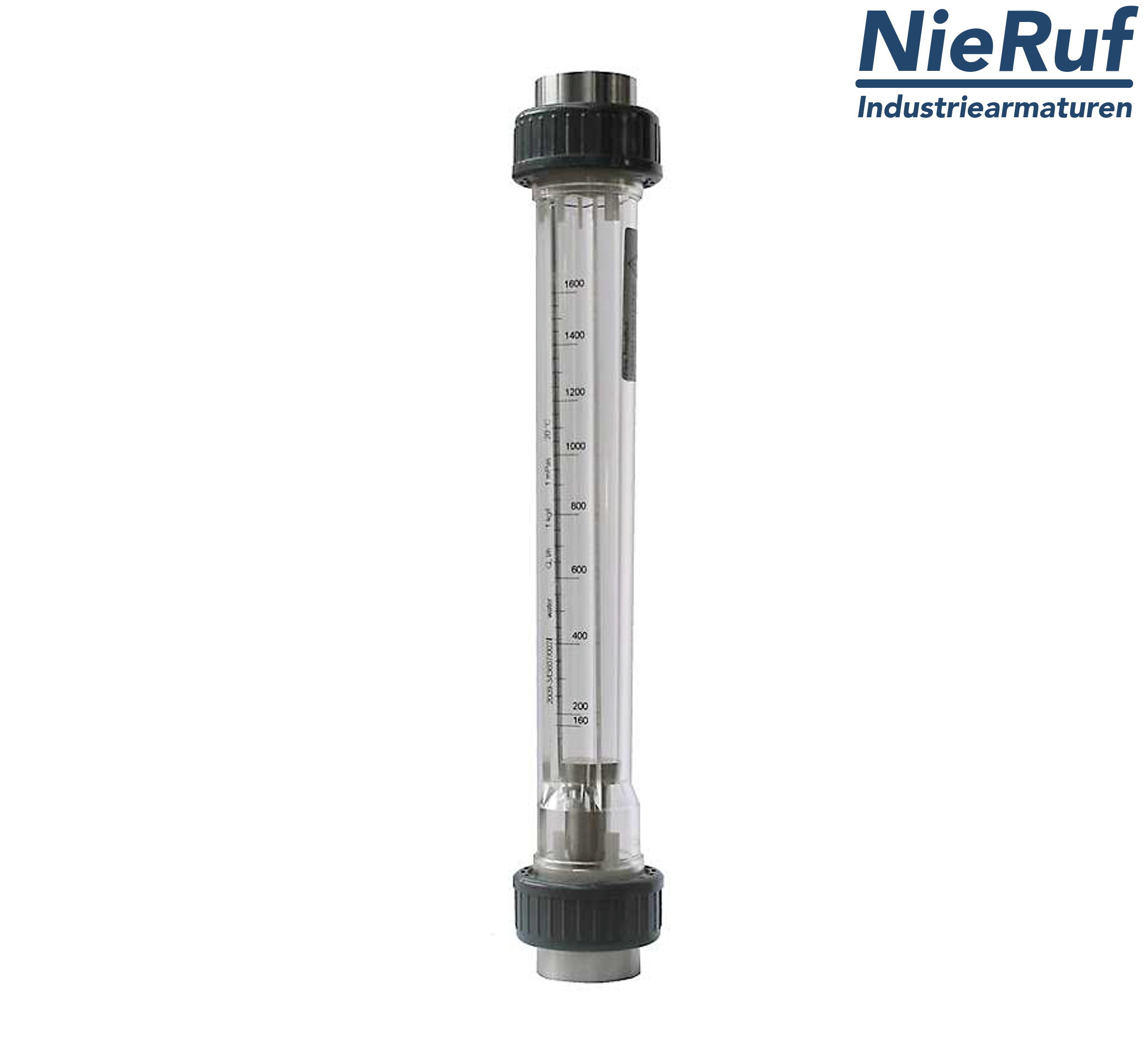

Variable area flowmeter 1 1/2" inch NPT 1000.0 - 10000 l/h water NBR

SK020000907
check valve DN 50 cast steel PTFE PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300) 3
quantity (pcs.):
277.30€ * 329.99€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Variable area flowmeter 1 1/2" inch NPT 1000.0 - 10000 l/h water NBR
Variable area flowmeter Measuring range 1000.0 - 10000 l/h, connection 1 1/2" inch NPT NBR female thread ANSI B1.20.1 for water
diameter: 1 1/2" inch NPT
connection: female thread ANSI B1.20.1
connection material: PVC
body material: Trogamid plastic
seal: NBR
float material: stainless steel 1.4571
float version design: guided
media: water
mark: Different media are available upon request
mark 2: standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float: 32 mbar
temperature: max. +60 °C / water max. +50°C
Measuring range: 1000.0 - 10000 l/h
unit of scale: m³/h
working pressure: 10 bar
accuracy: G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards
