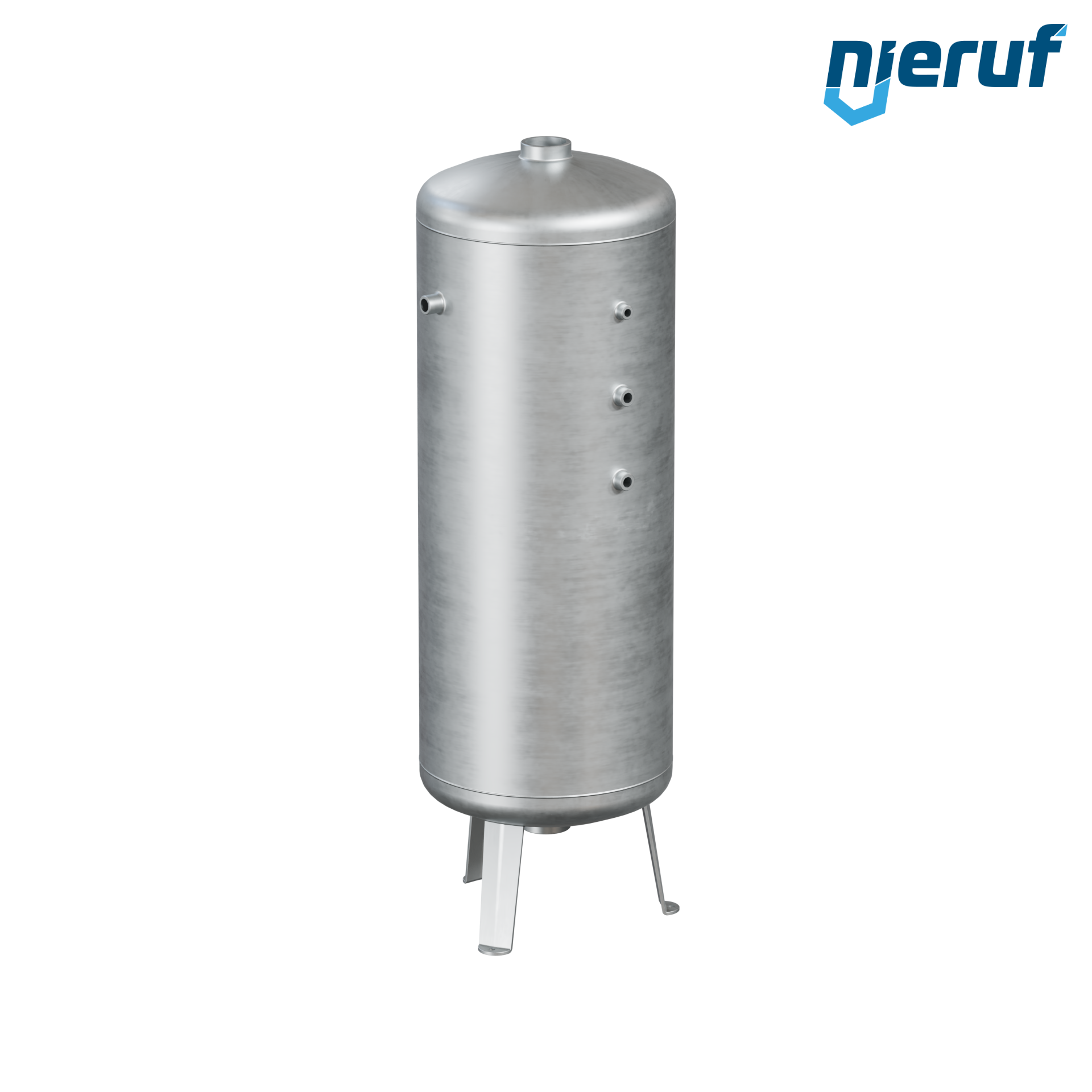

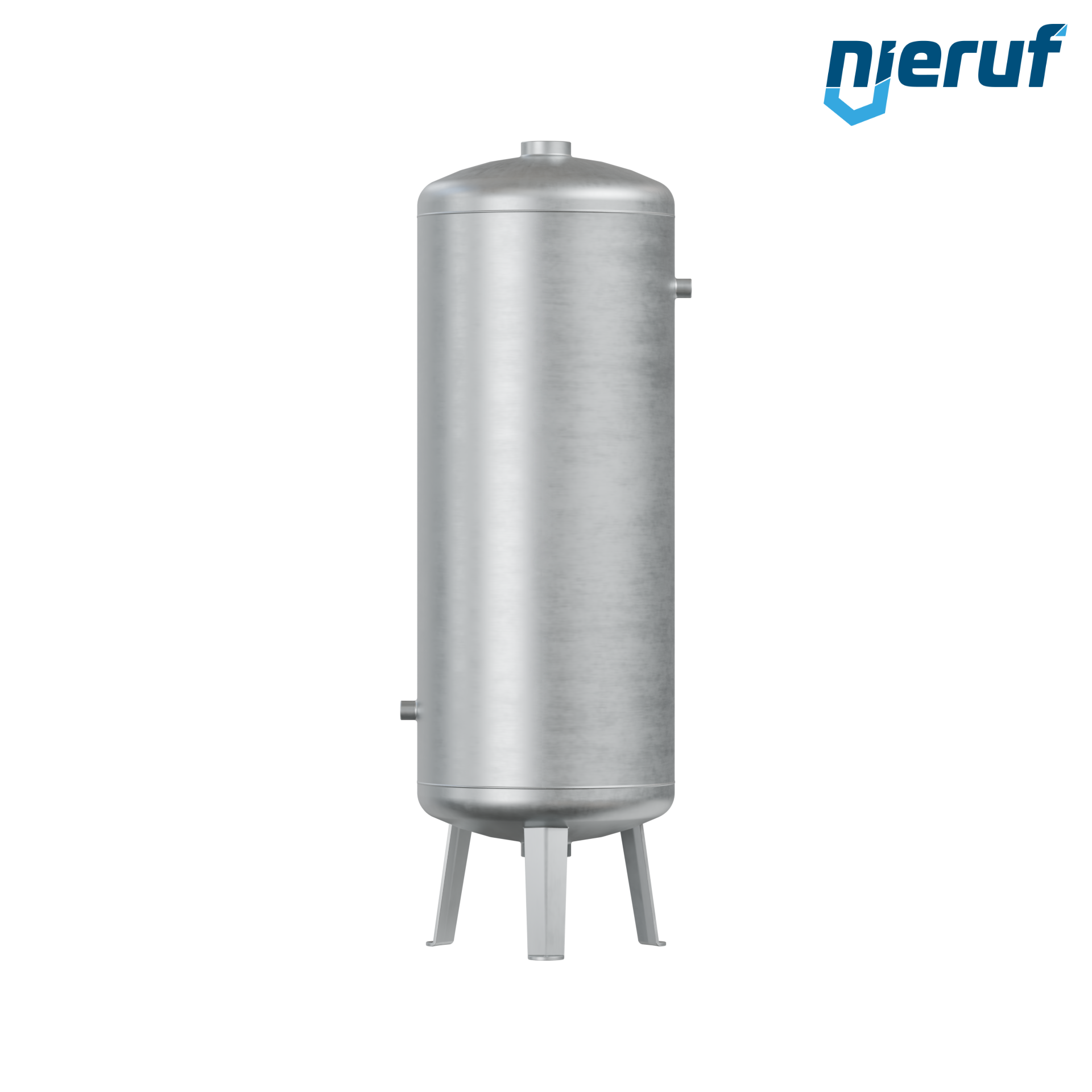

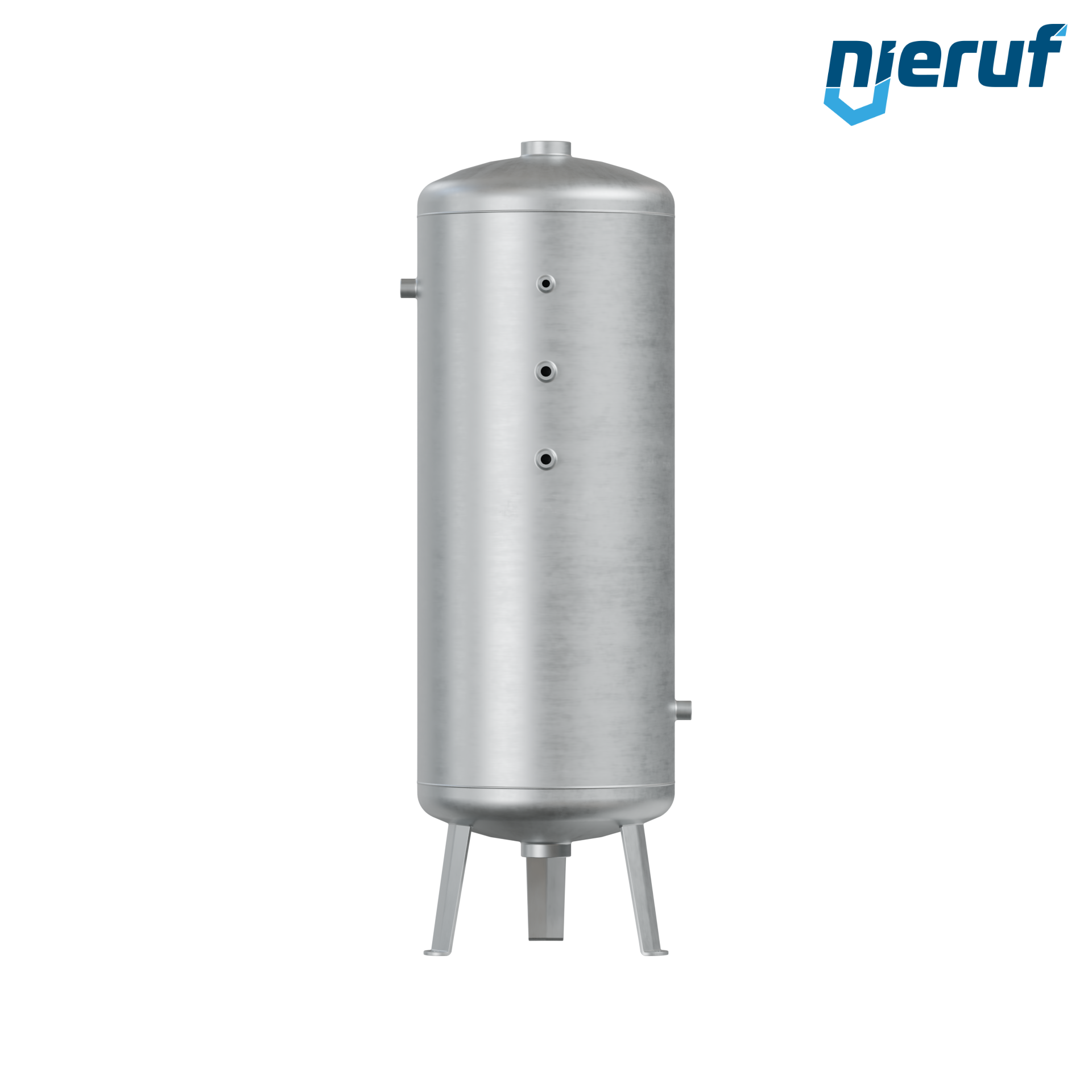

Vacuum vessel vertical BE03 90 liter, -1-3 bar, steel primed

Vacuum vessel BE03 with 90 liter volume vertical with operating pressure -1-3 bar made of steel primed (inside raw) and nominal size 360 mm

product Vacuum vessel
type BE03
manufacturer NieRuf
volume 90 liter
nominal size 360 mm
height 1110 mm
operating pressure -1-3 bar
version vertical
temperature -10°C up to +50°C
material steel primed (inside raw)
media compressed air & nitrogen
product feature Longitudinal seams welded on both sides for safety with high pressure fluctuations and pressure test certificate available

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Vacuum vessel vertical BE03 90 liter, -1-3 bar, steel primed

Article no. : BE03010002
product: Vacuum vessel
type: BE03
manufacturer: NieRuf
volume: 90 liter
nominal size: 360 mm
height: 1110 mm
operating pressure: -1-3 bar
version: vertical
temperature: -10°C up to +50°C
material: steel primed (inside raw)
media: compressed air & nitrogen
product feature: Longitudinal seams welded on both sides for safety with high pressure fluctuations and pressure test certificate available
