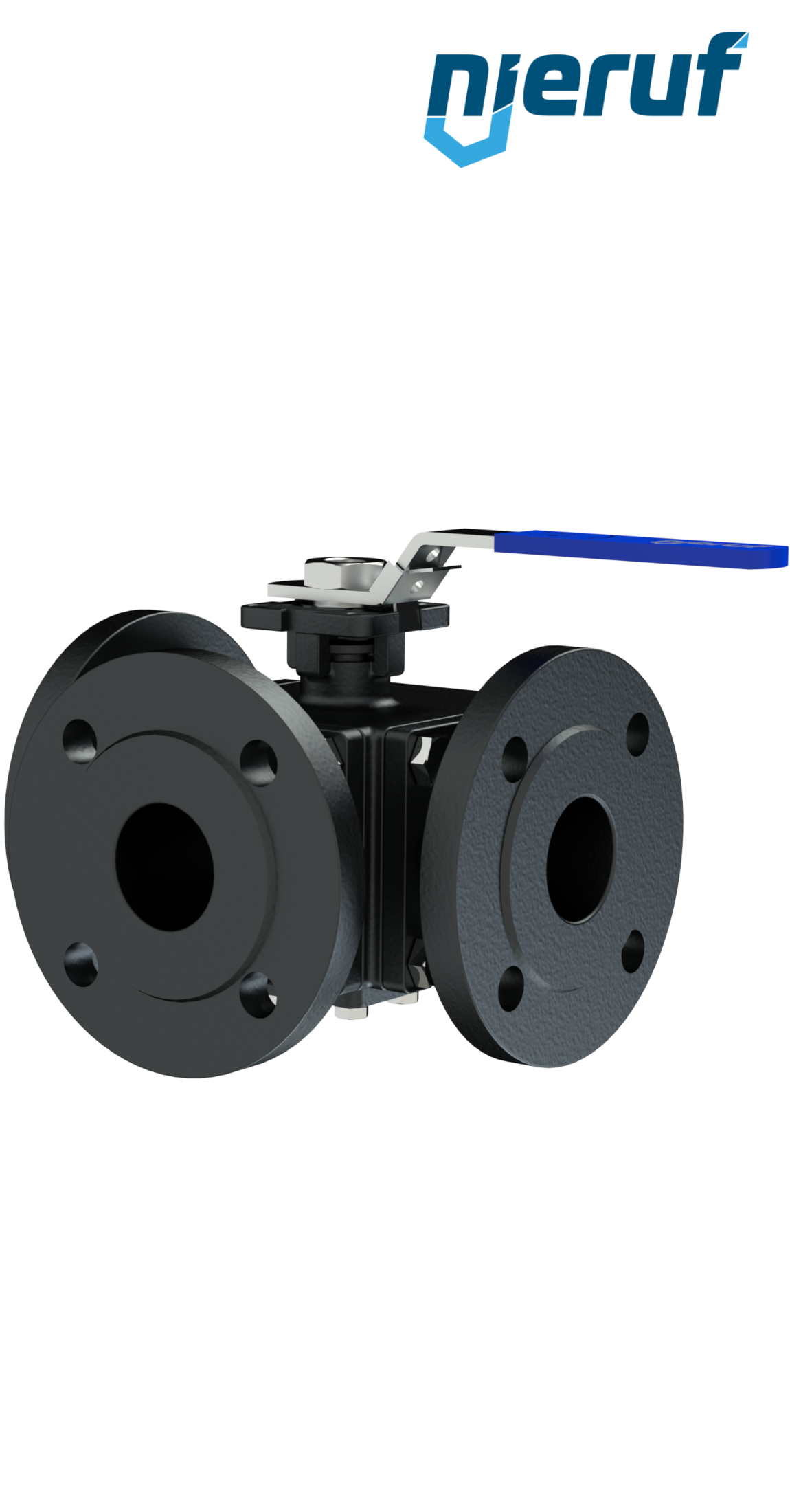

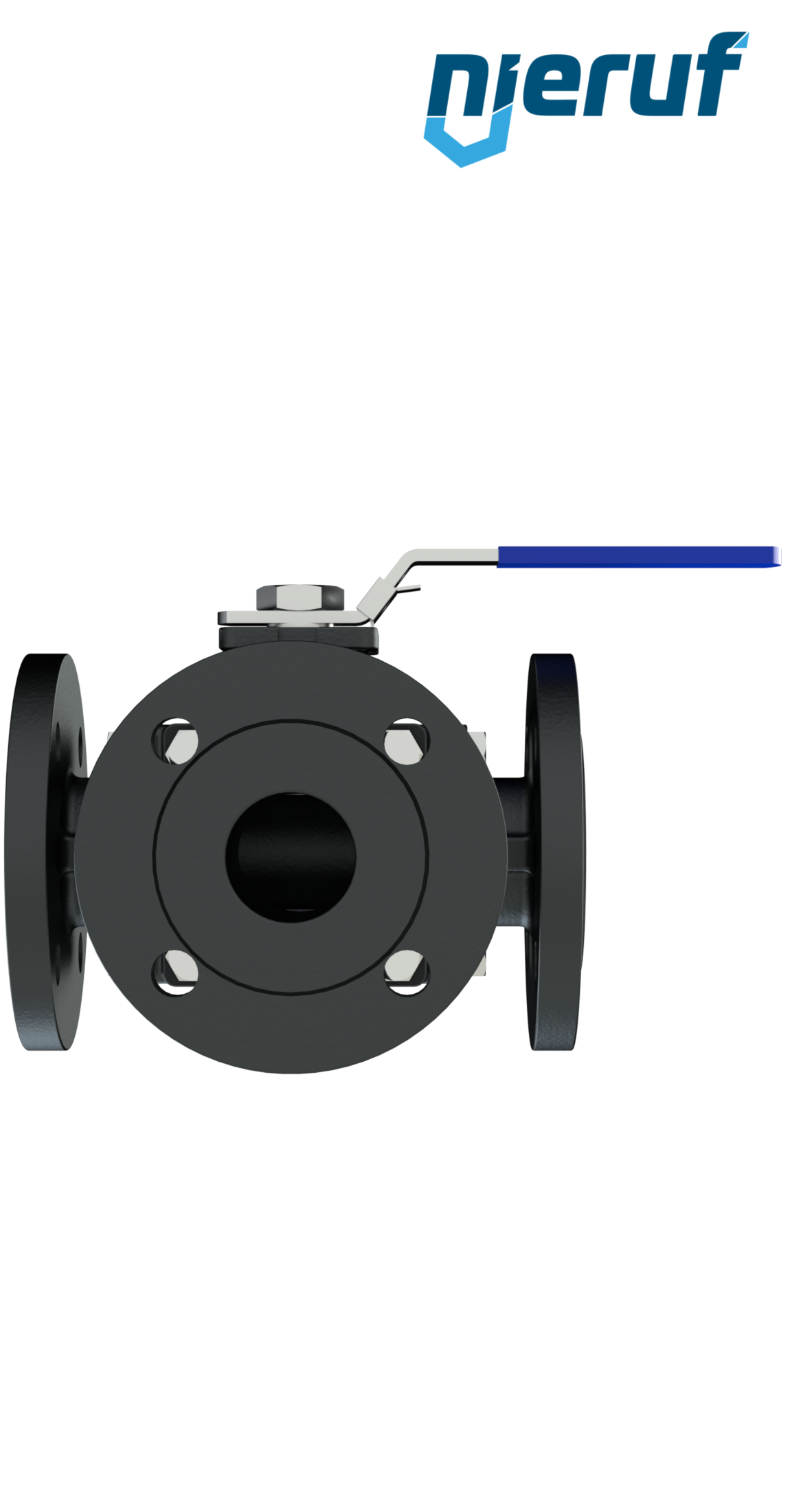

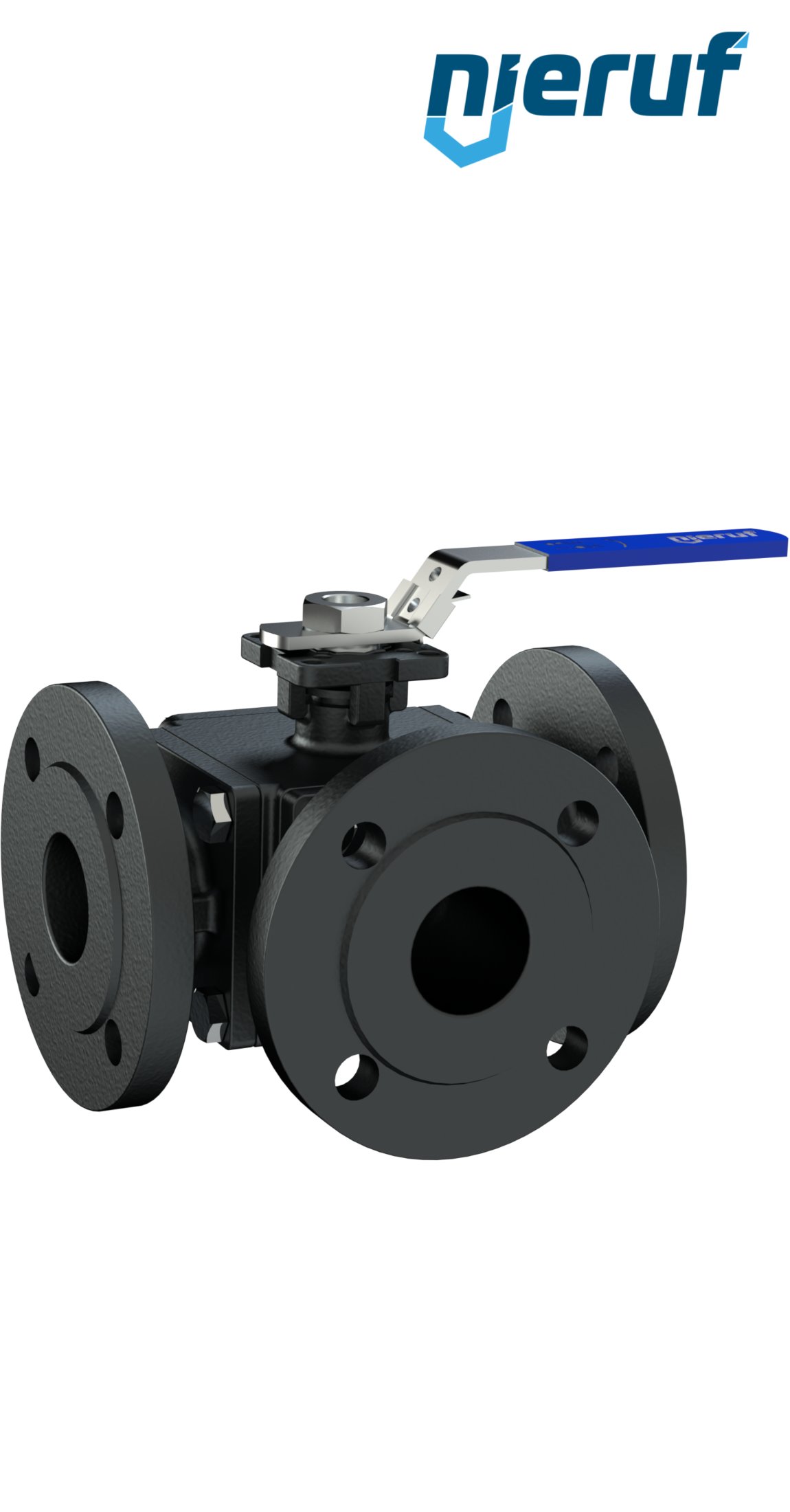

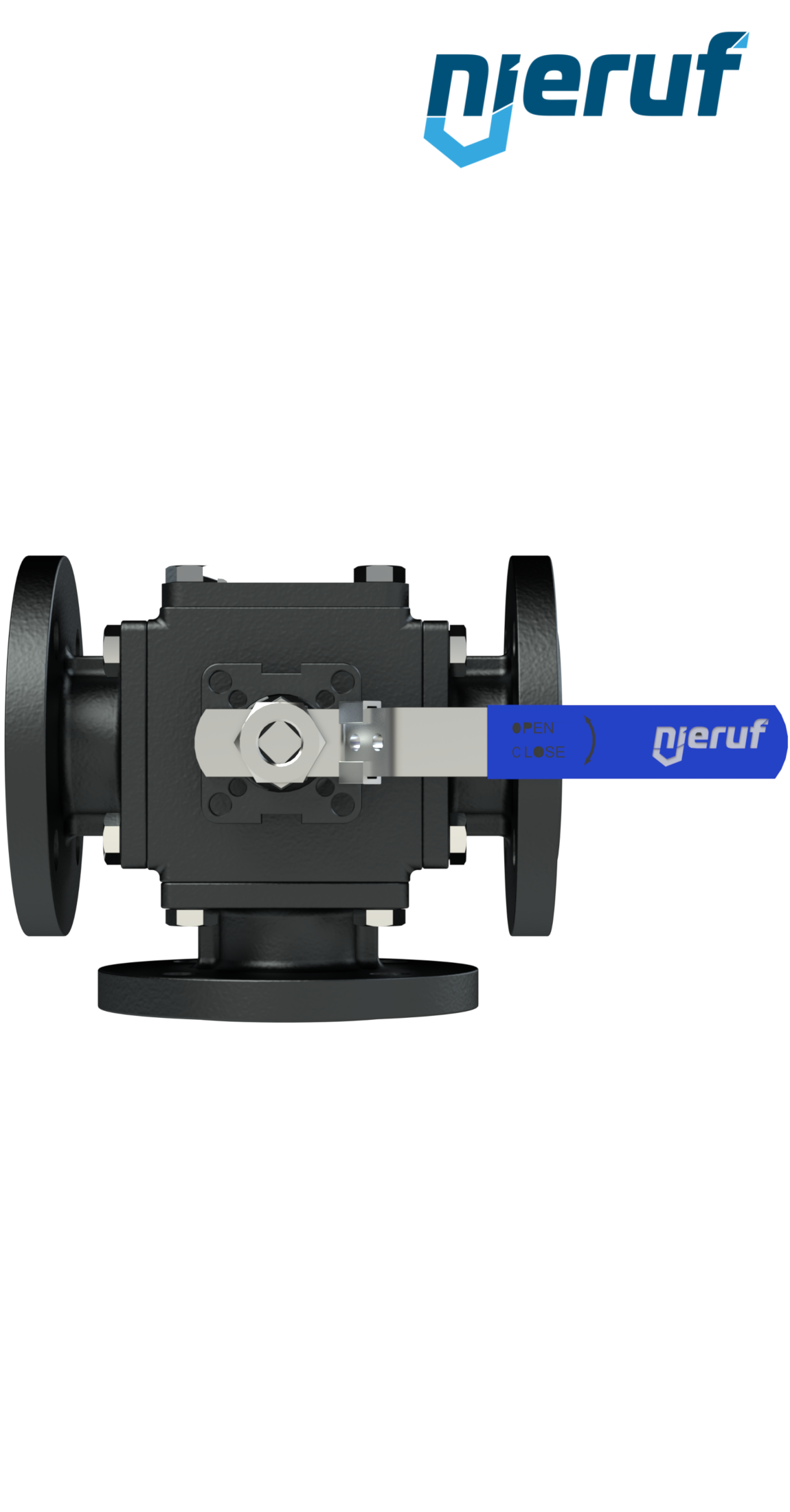

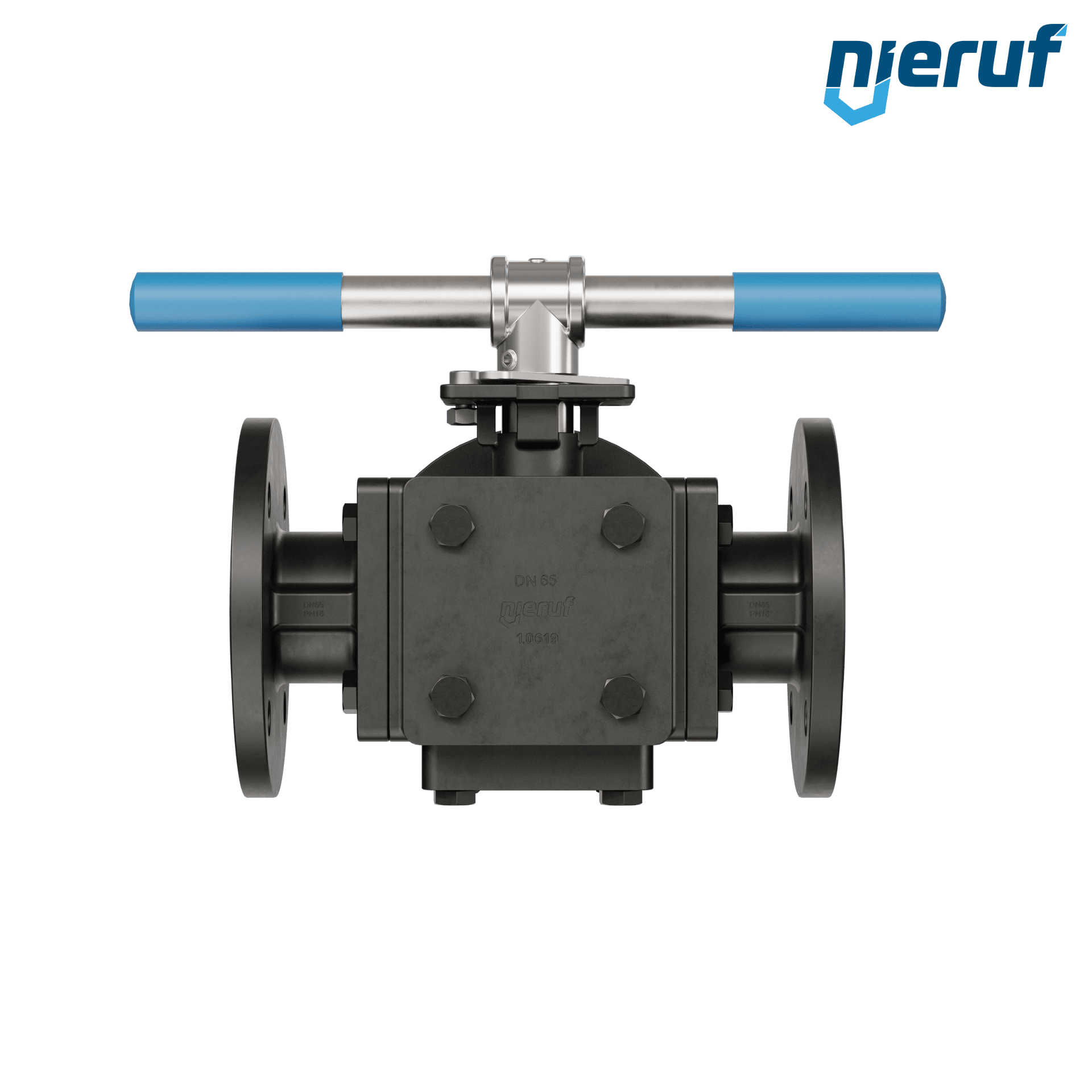

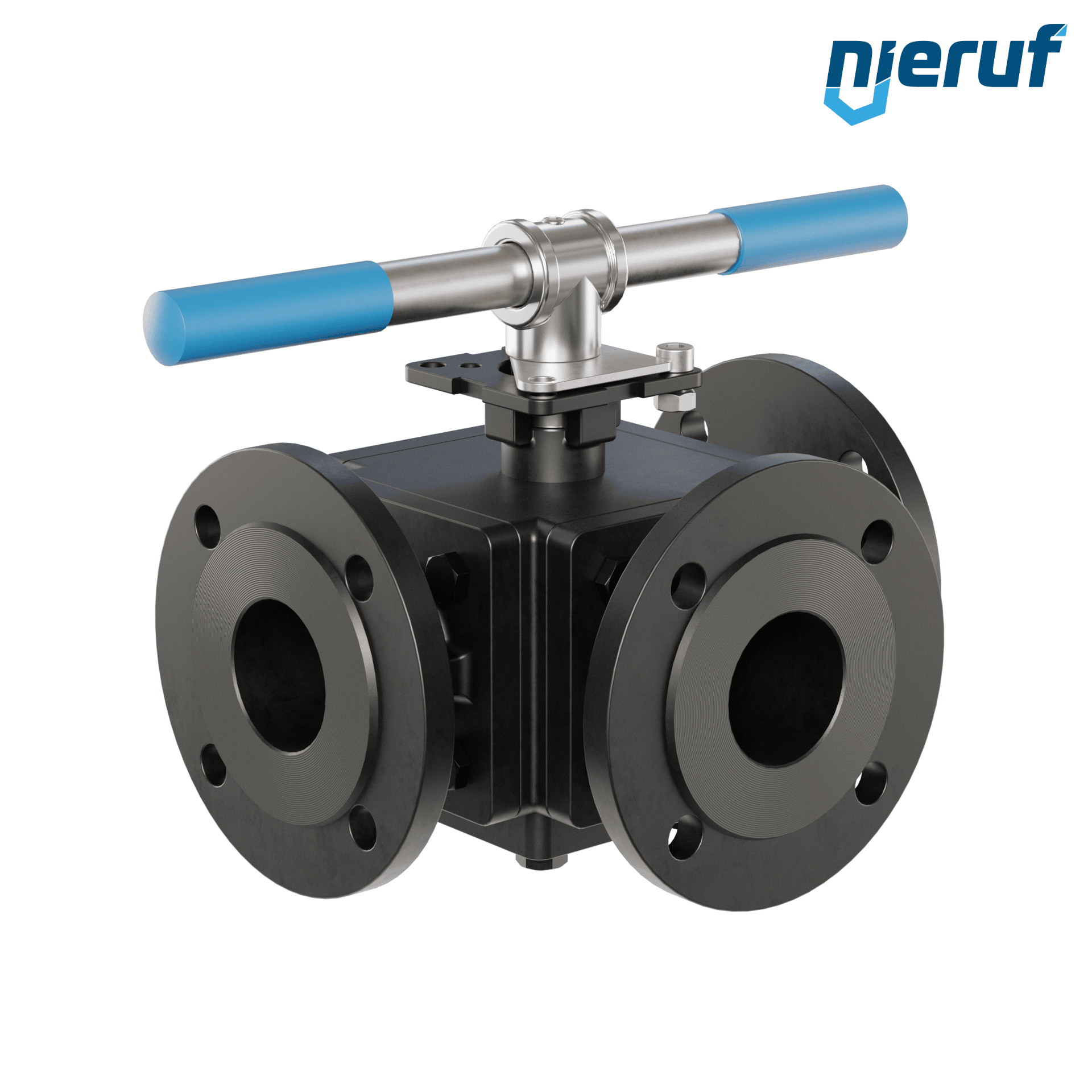

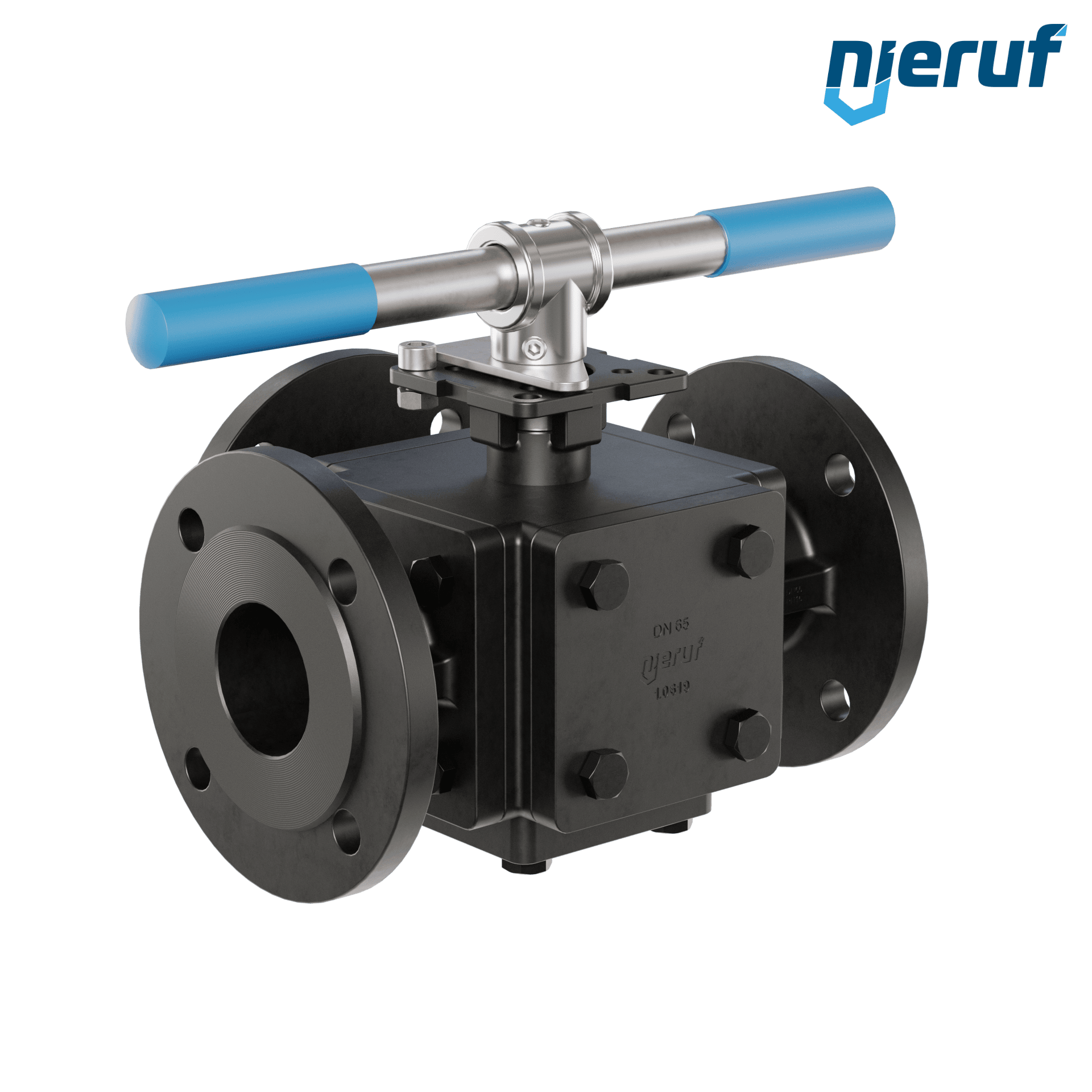

Three-way flange ball valve DN65 FK08 L Drilling carbon steel 1.0619

FK08010009
quantity (pcs.):
1,056.90€ * 1,226.00€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Three-way flange ball valve DN65 FK08 L Drilling carbon steel 1.0619
Three-way flange ball valve DN65 PN16 FK08 body carbon steel 1.0619 ball carbon steel 1.4308 seal TFM 1600 / PTFE L Drilling
diameter: DN65
connection: flange dimensions acc. to DIN EN 1092-1
Seal steam: O-ring Viton
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16
design: L Drilling
body material: carbon steel 1.0619
ball material: carbon steel 1.4308
ball seal: TFM 1600 / PTFE
length: 290mm
actuator: hand lever with blue plastic cover
installation position: any position
product description: This high quality three-way flange ball valve made of carbon steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This valve has a L-drilling - basic postion L=1
Three-way flange ball valve DN65 FK08 L Drilling carbon steel 1.0619

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Three-way flange ball valve DN65 FK08 L Drilling carbon steel 1.0619
