Equipment
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
€7.62 VAT included.
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€22.02 VAT included.
Questions about the article?

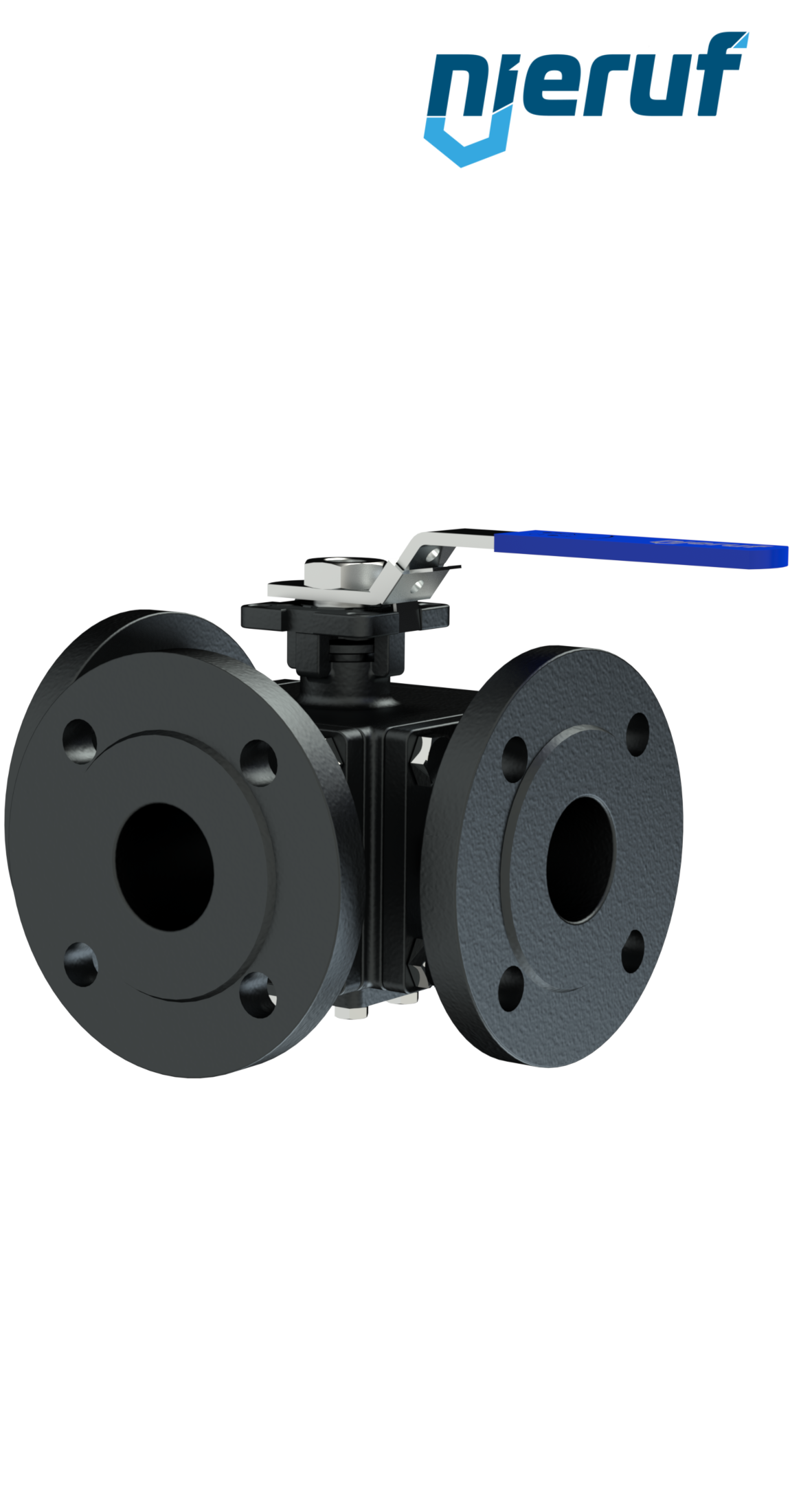

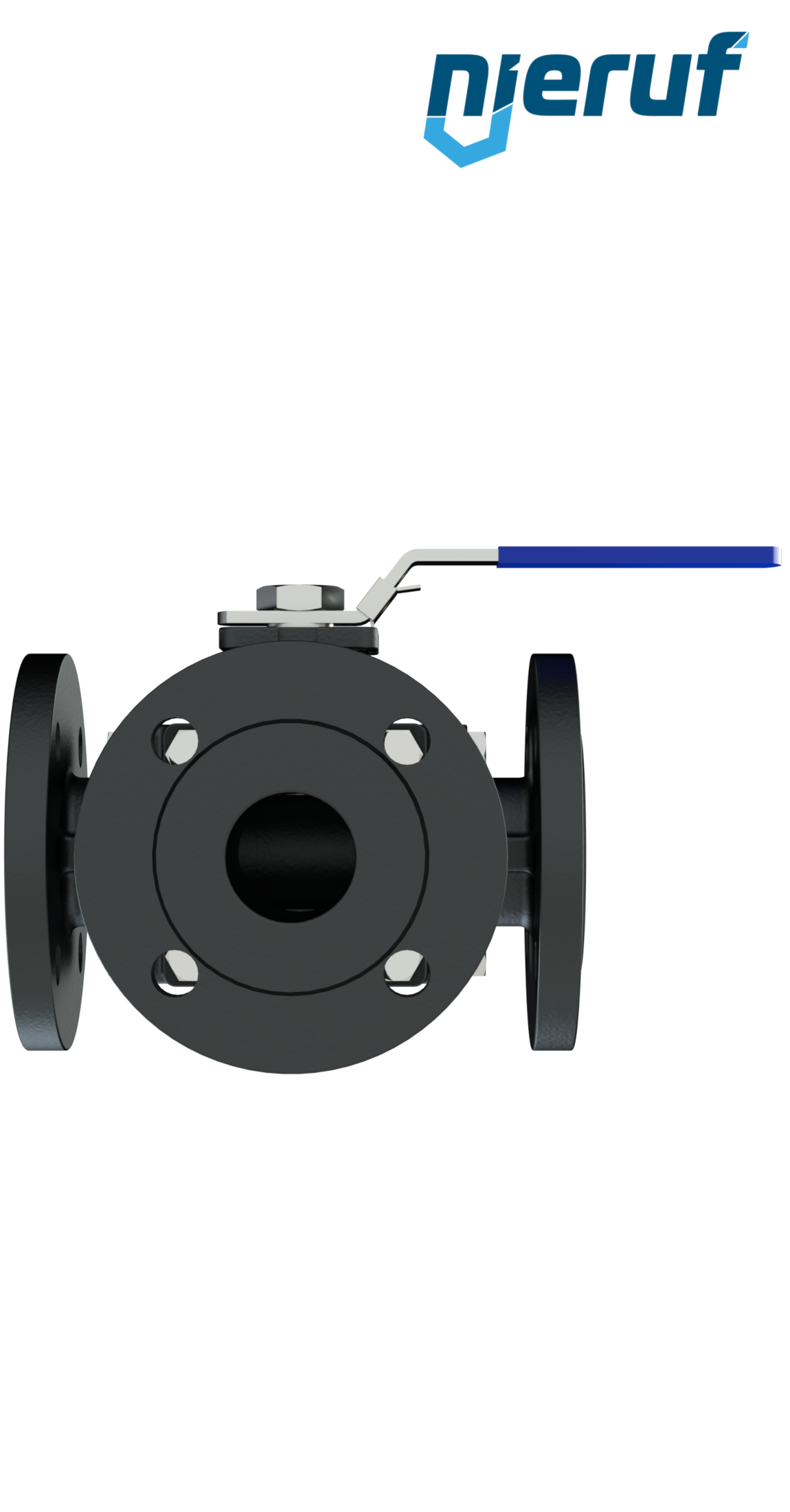

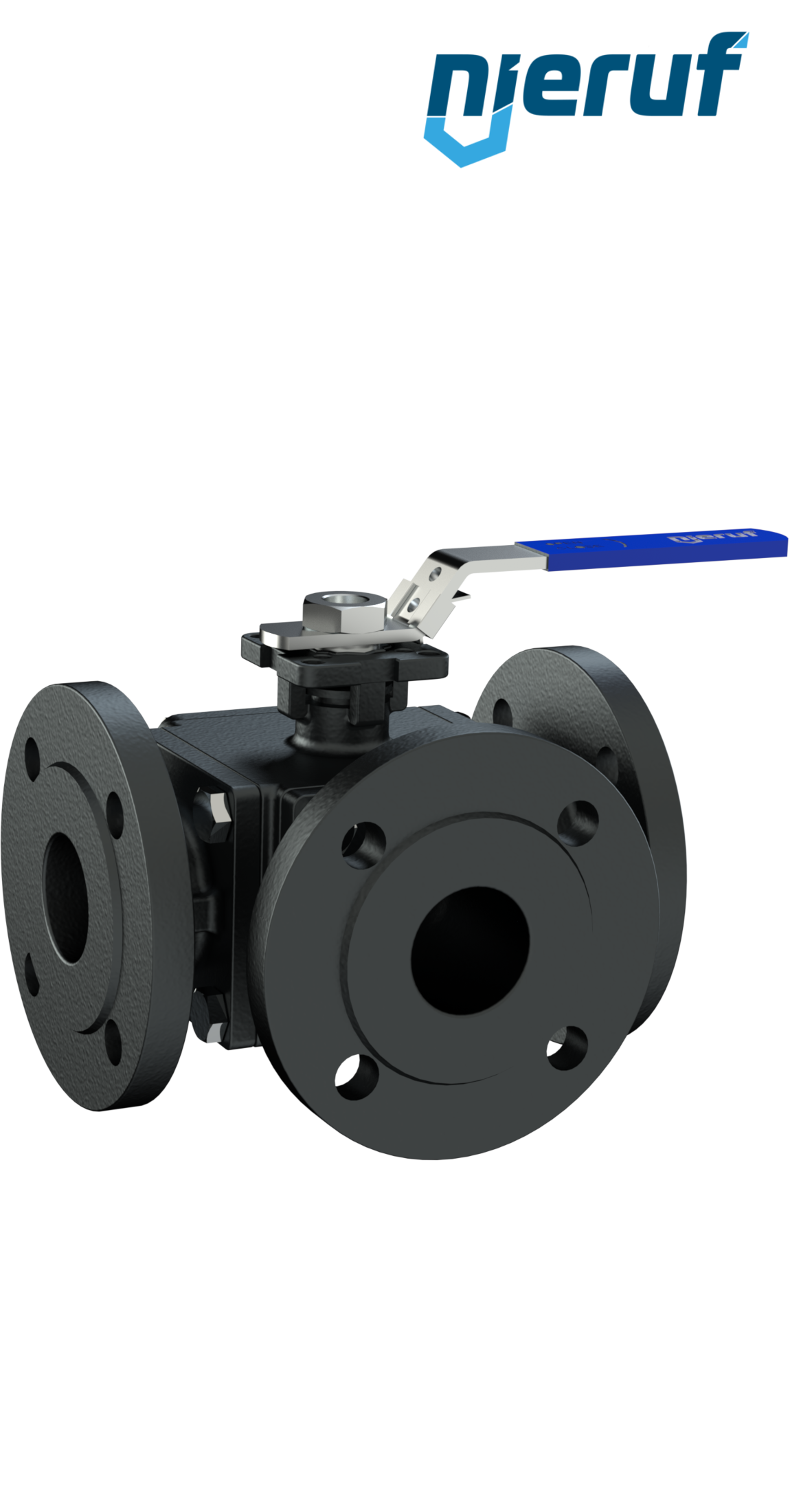

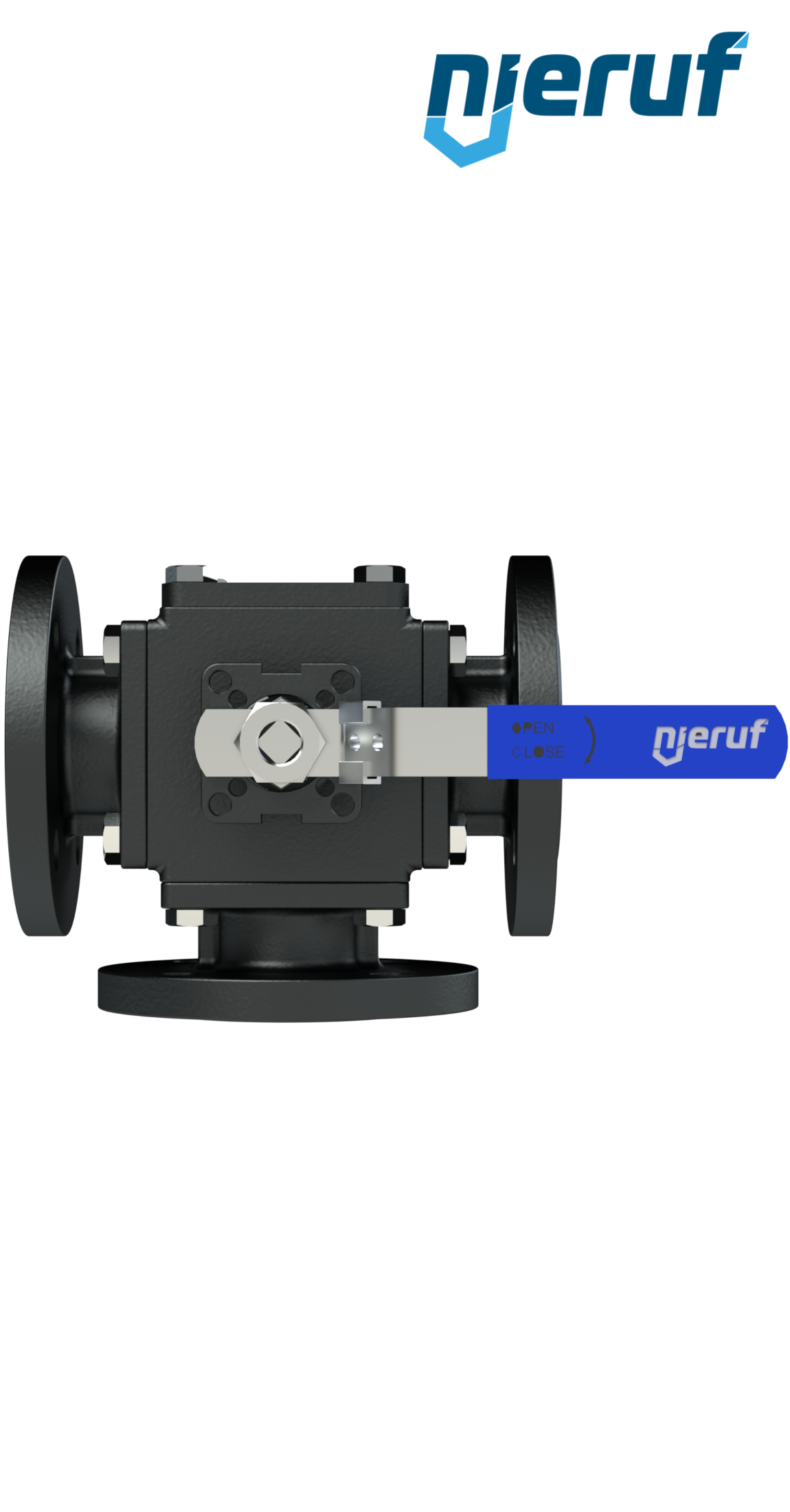

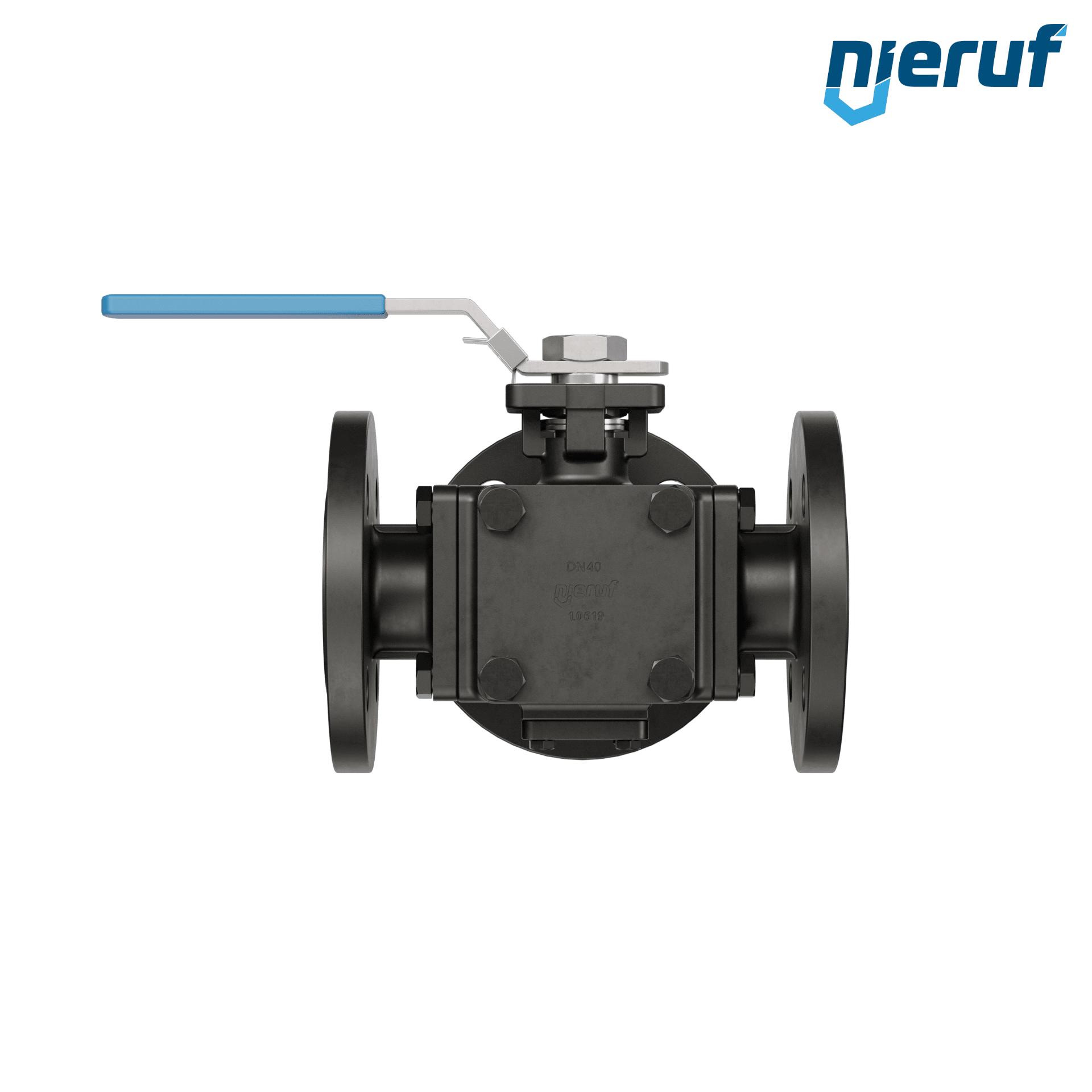

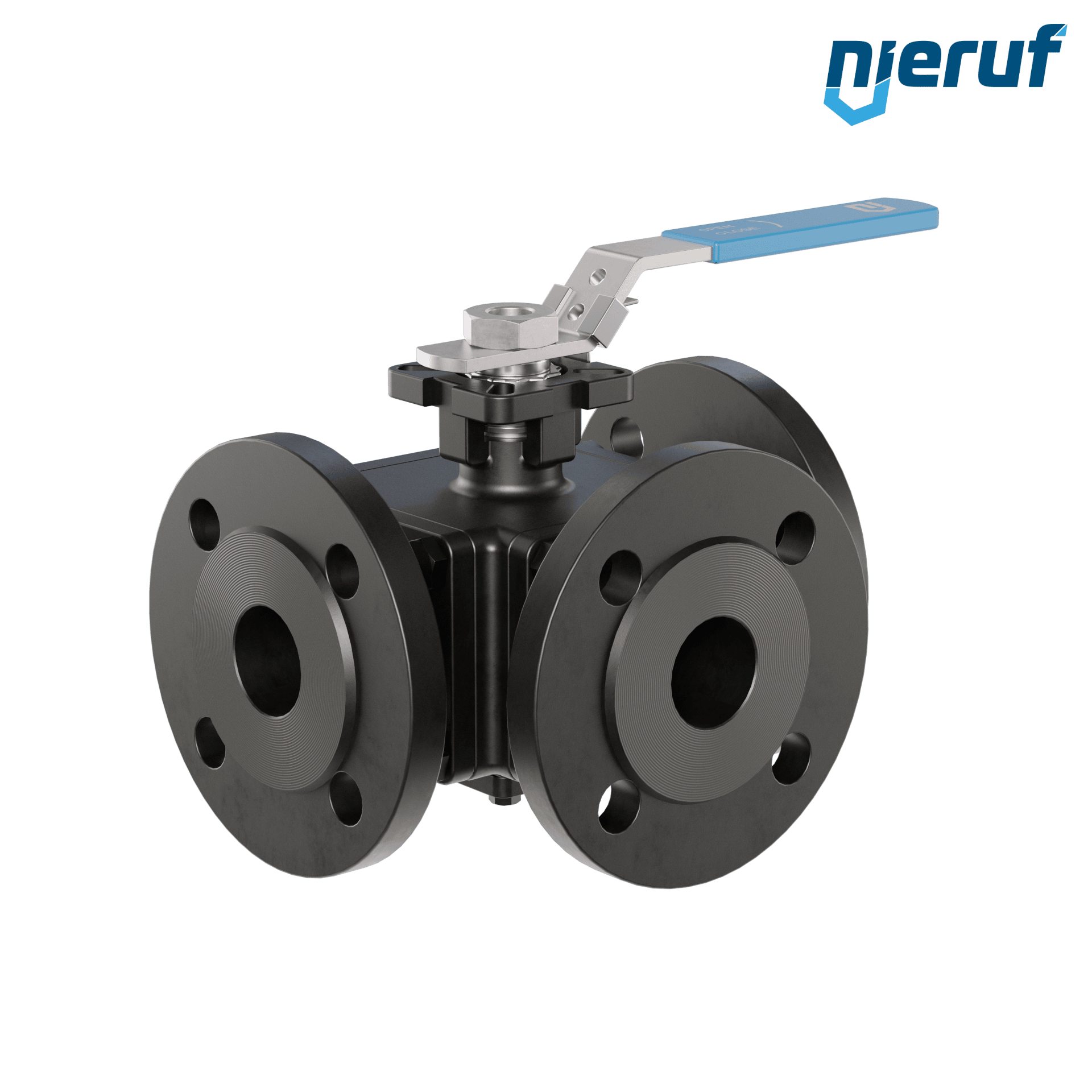

Three-way flange ball valve DN40 PN16/40 FK08 body carbon steel 1.0619 ball carbon steel 1.4308 seal TFM 1600 / PTFE T drilling
| product | Three-way flange ball valve |
|---|---|
| type | FK08 |
| manufacturer | NieRuf |
| diameter | DN40 |
| connection | flange dimensions acc. to DIN EN 1092-1 |
| Seal steam | O-ring Viton |
| ball seal | TFM 1600 / PTFE |
| media | liquid and gaseous media |
| temperature | -20°C up to +180°C - depending on working pressure and media |
| max. pressure | PN16/40 |
| design | T drilling |
| body material | carbon steel 1.0619 |
| ball material | carbon steel 1.4308 |
| length | 212mm |
| actuator | hand lever with blue plastic cover |
| installation position | any position |
| authorized for | TA Luft |
| product description | This high quality three-way flange ball valve made of carbon steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This valve has a T-drilling - basic postion T=3 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Three-way flange ball valve DN40 FK08 T drilling carbon steel 1.0619
Article no.
: FK08000007
product:
Three-way flange ball valve
type:
FK08
manufacturer:
NieRuf
diameter:
DN40
connection:
flange dimensions acc. to DIN EN 1092-1
Seal steam:
O-ring Viton
ball seal:
TFM 1600 / PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN16/40
design:
T drilling
body material:
carbon steel 1.0619
ball material:
carbon steel 1.4308
length:
212mm
actuator:
hand lever with blue plastic cover
installation position:
any position
authorized for:
TA Luft
product description:
This high quality three-way flange ball valve made of carbon steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This valve has a T-drilling - basic postion T=3
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
Delivery time: 3 - 5 working days
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
Delivery time: in stock
