FK08010007
Three-way flange ball valve DN40 FK08 L drilling carbon steel 1.0619
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
€7.62 VAT included.
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
€3.21 VAT included.
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€22.02 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

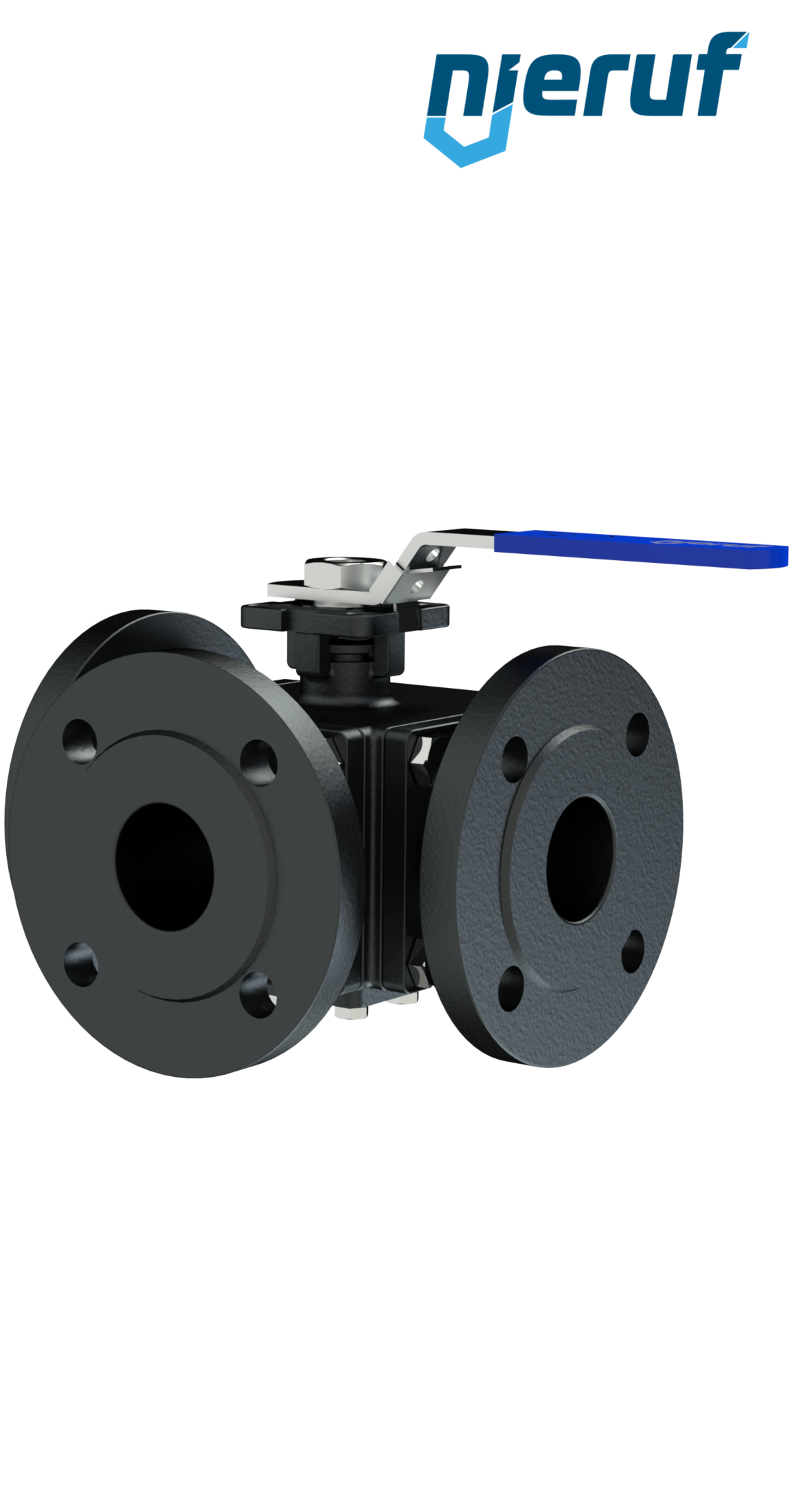

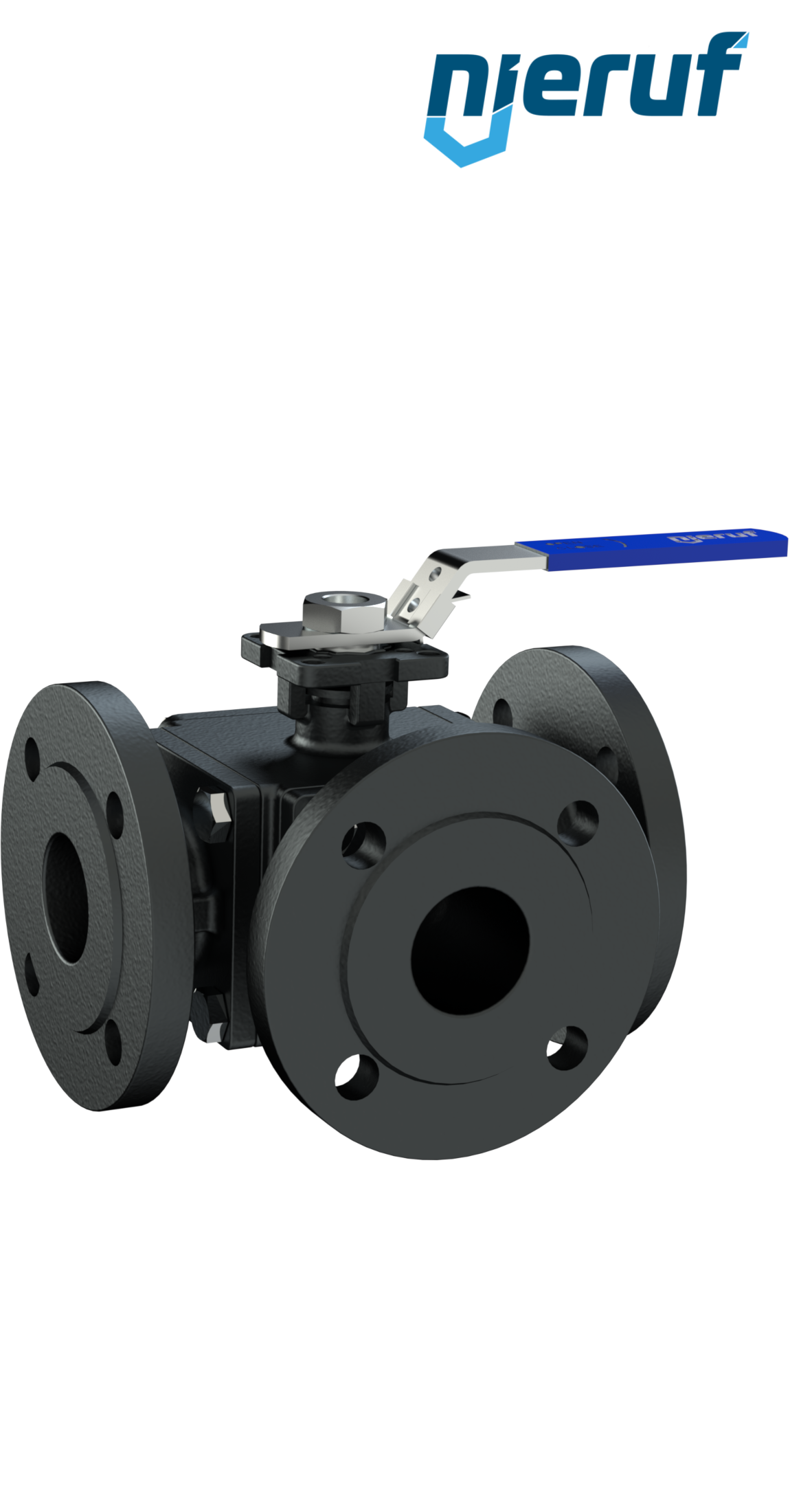

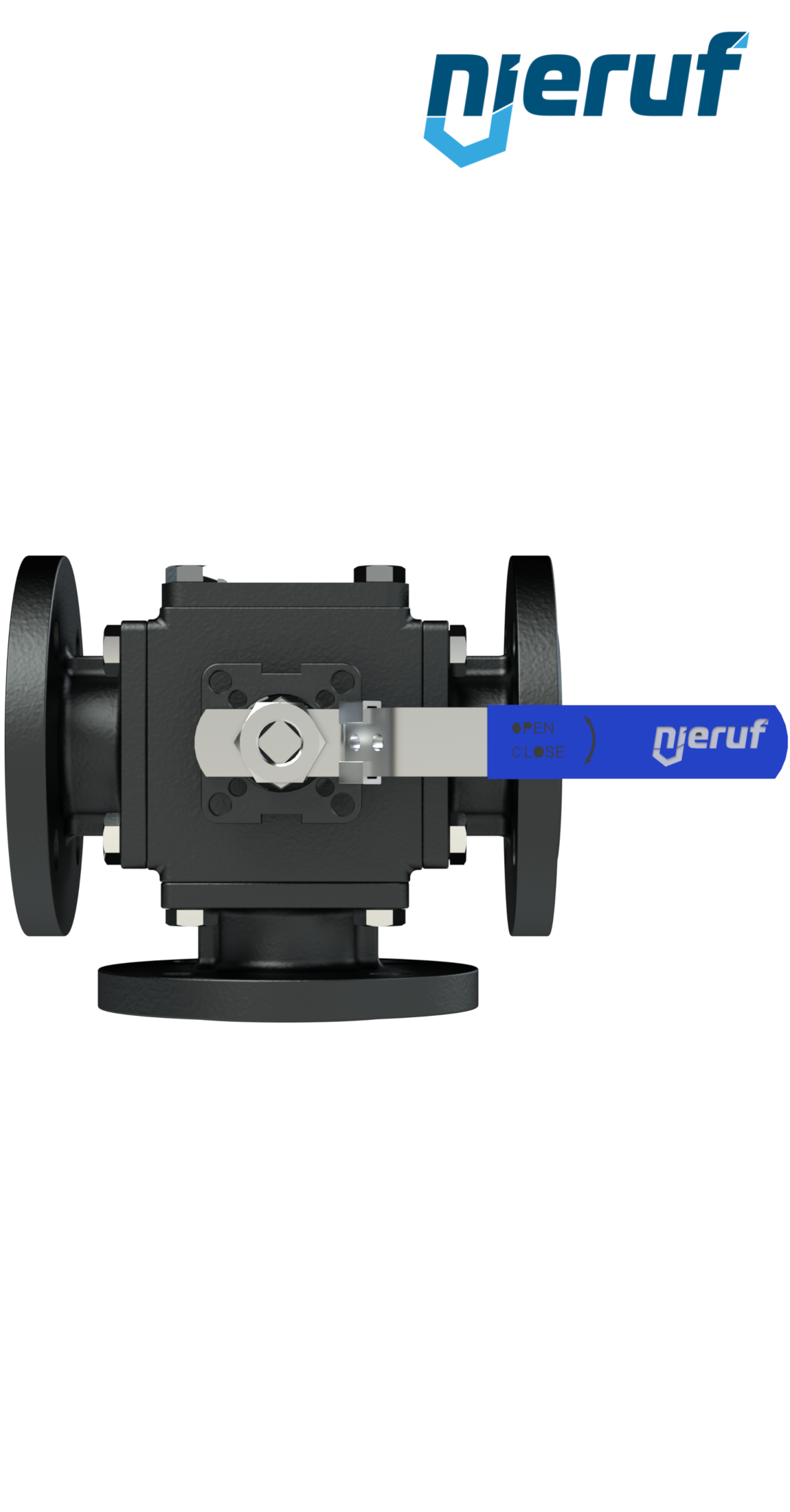

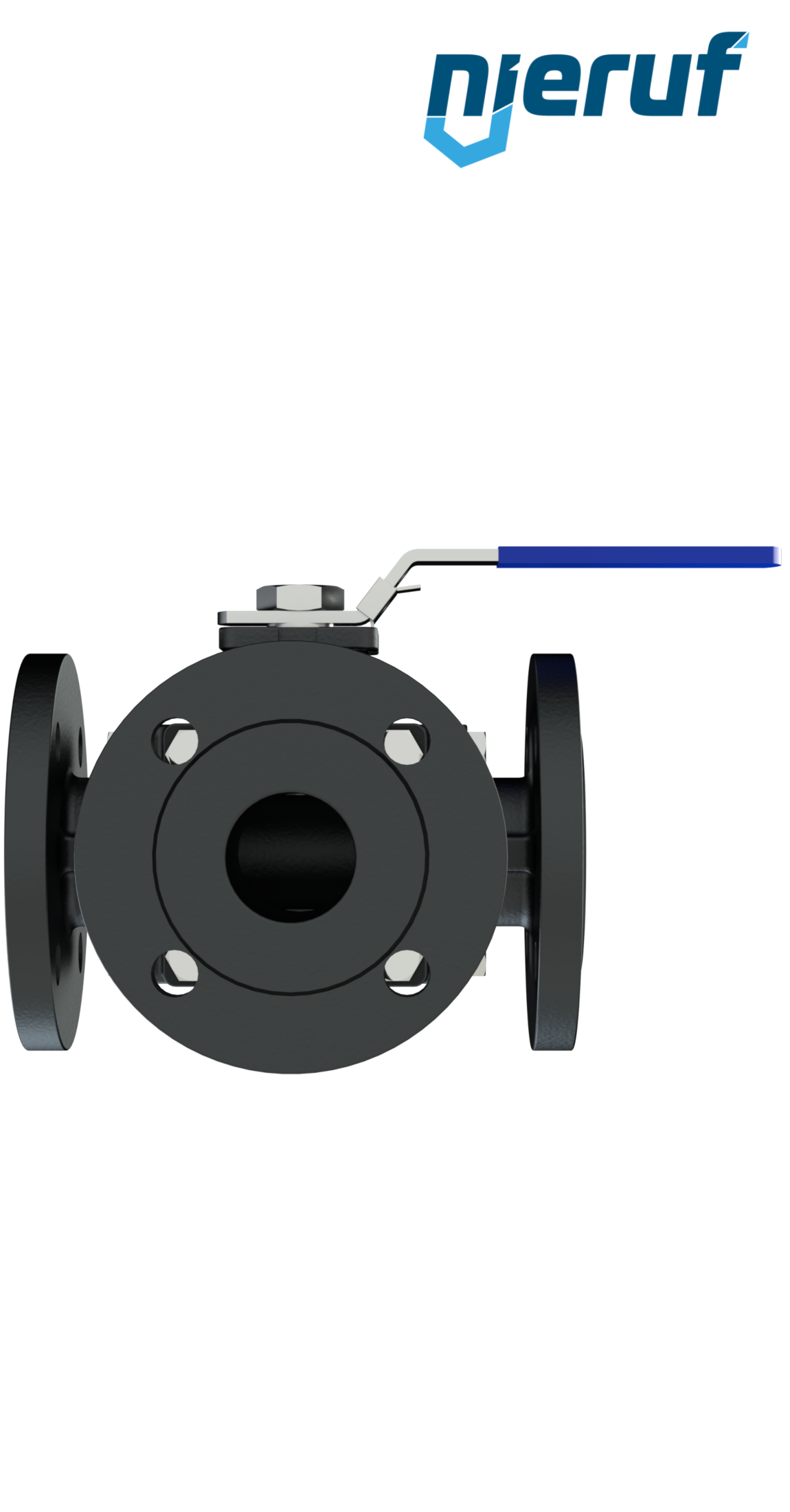

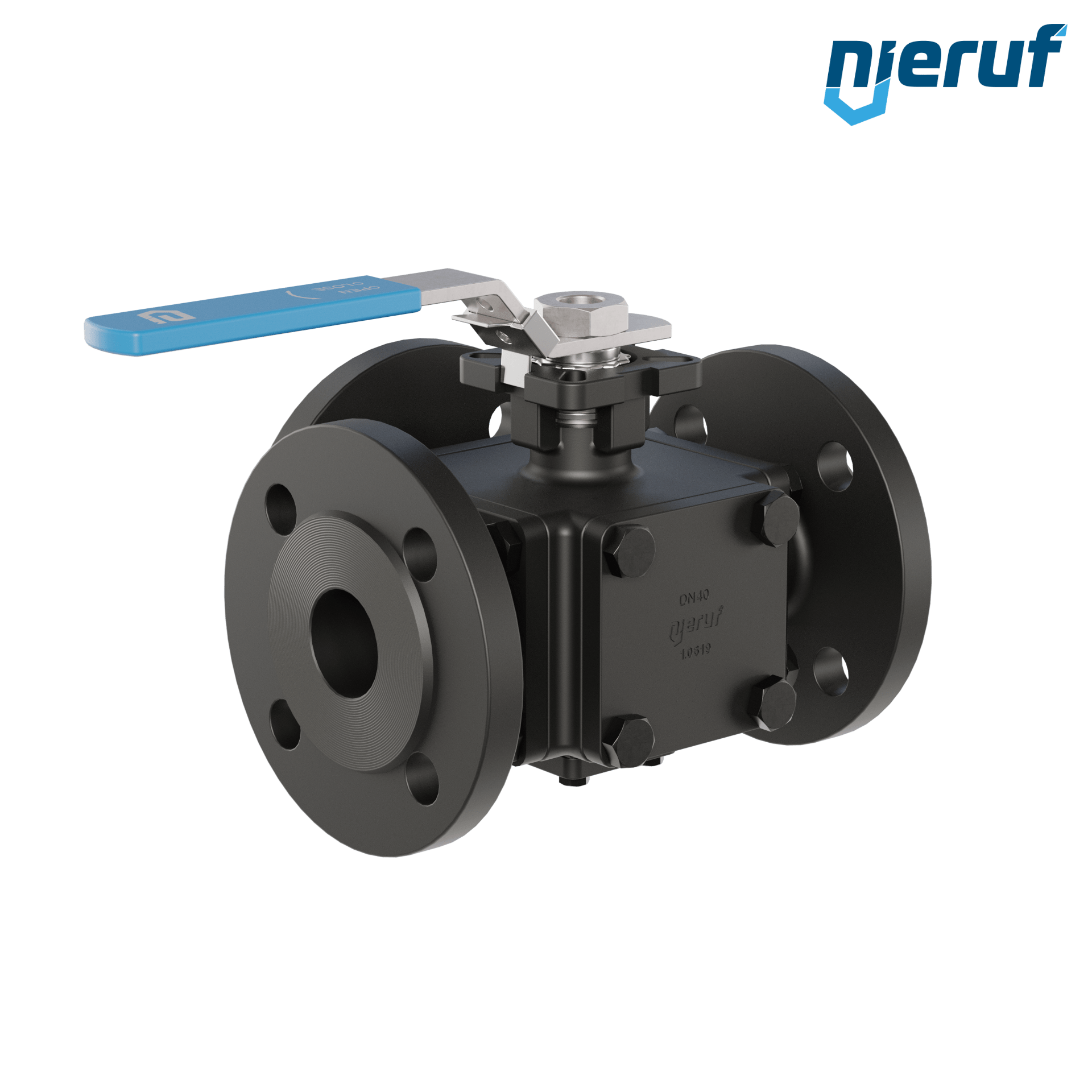

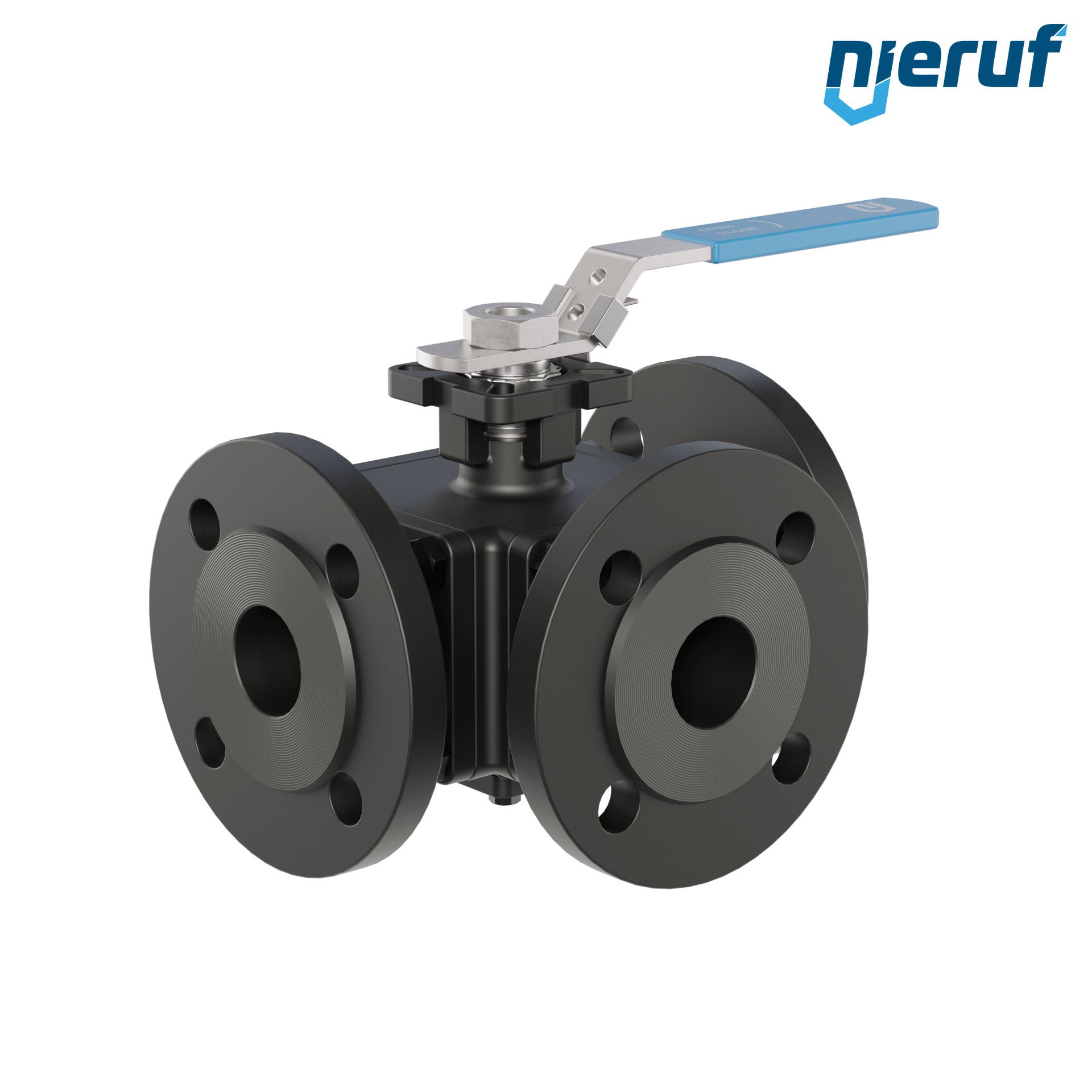

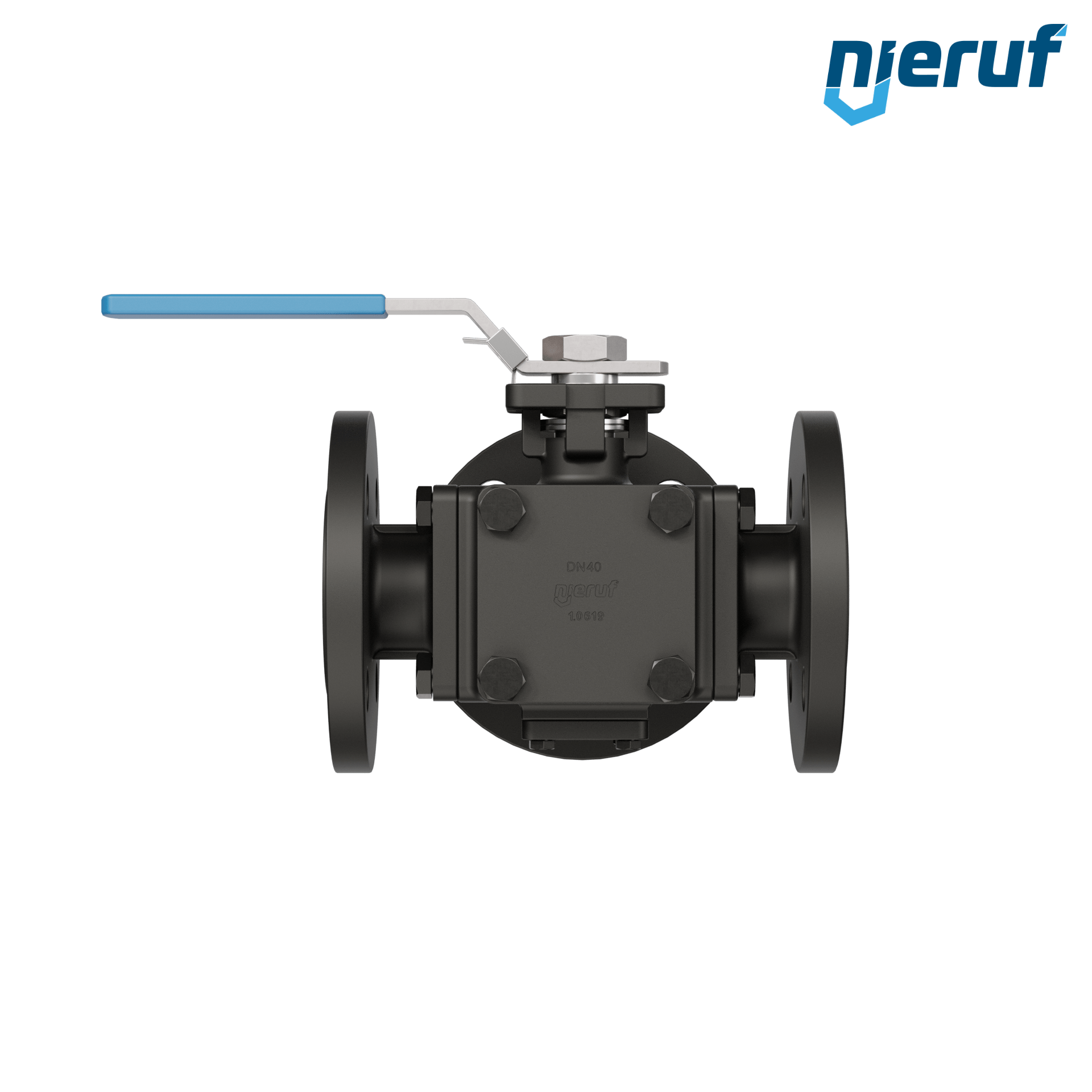

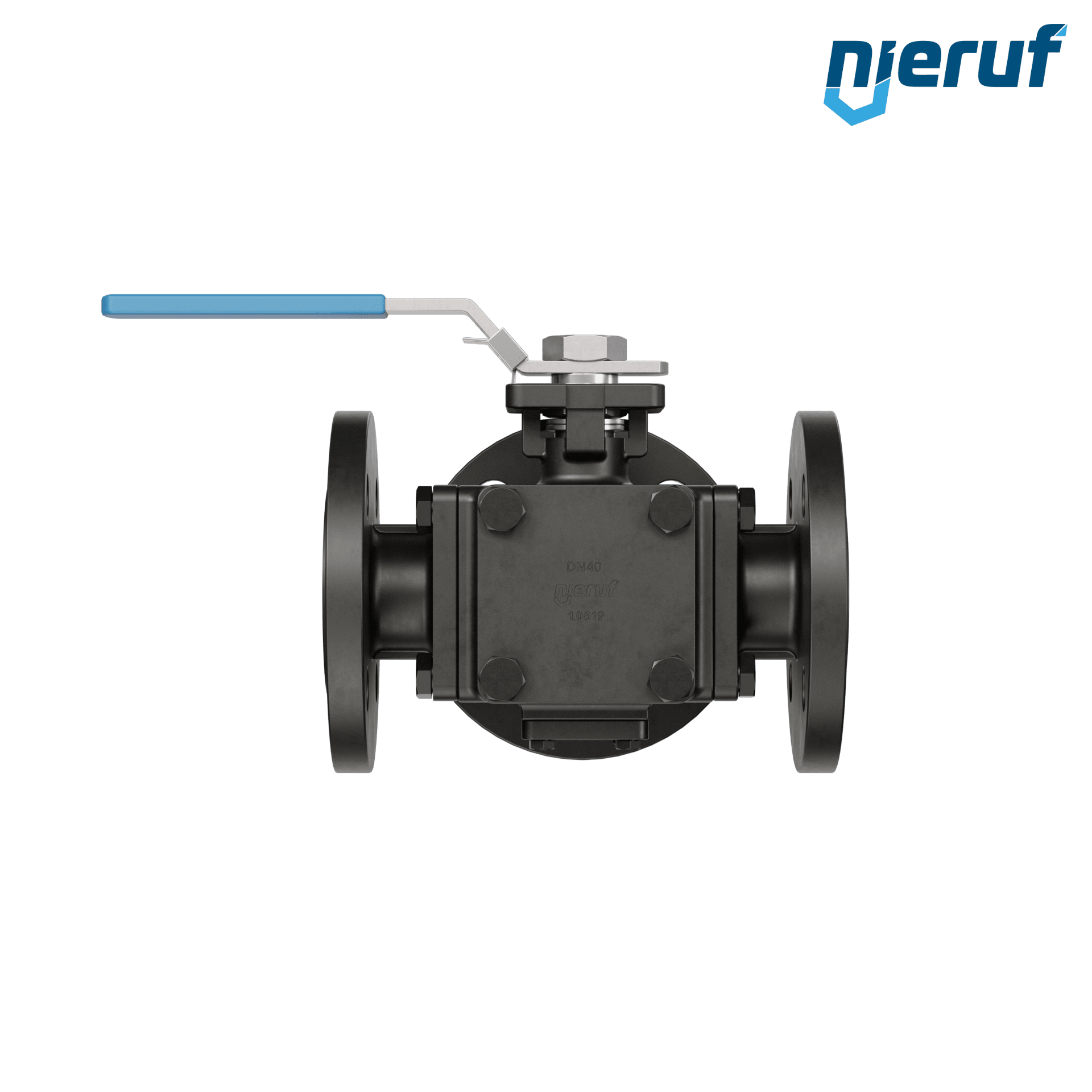

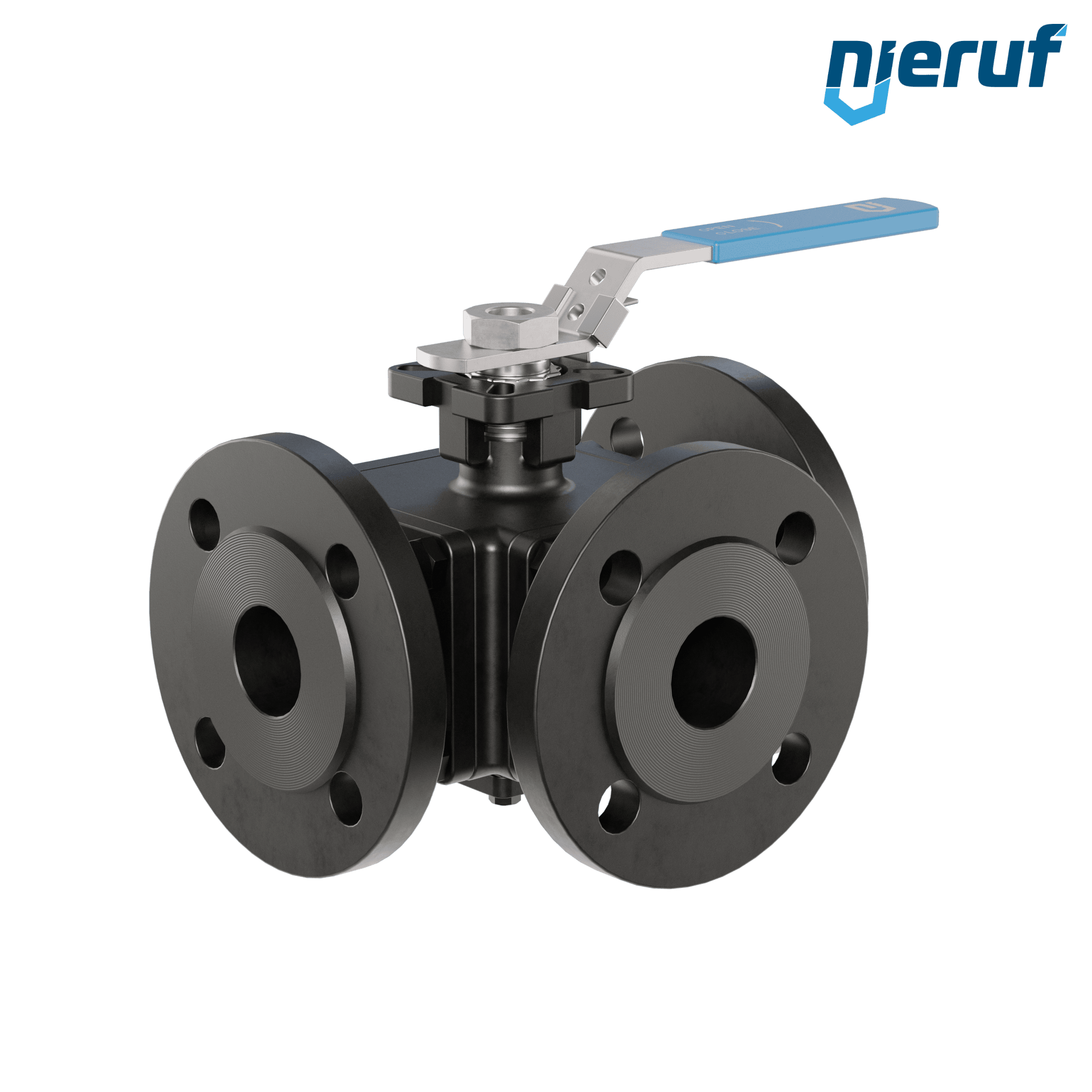

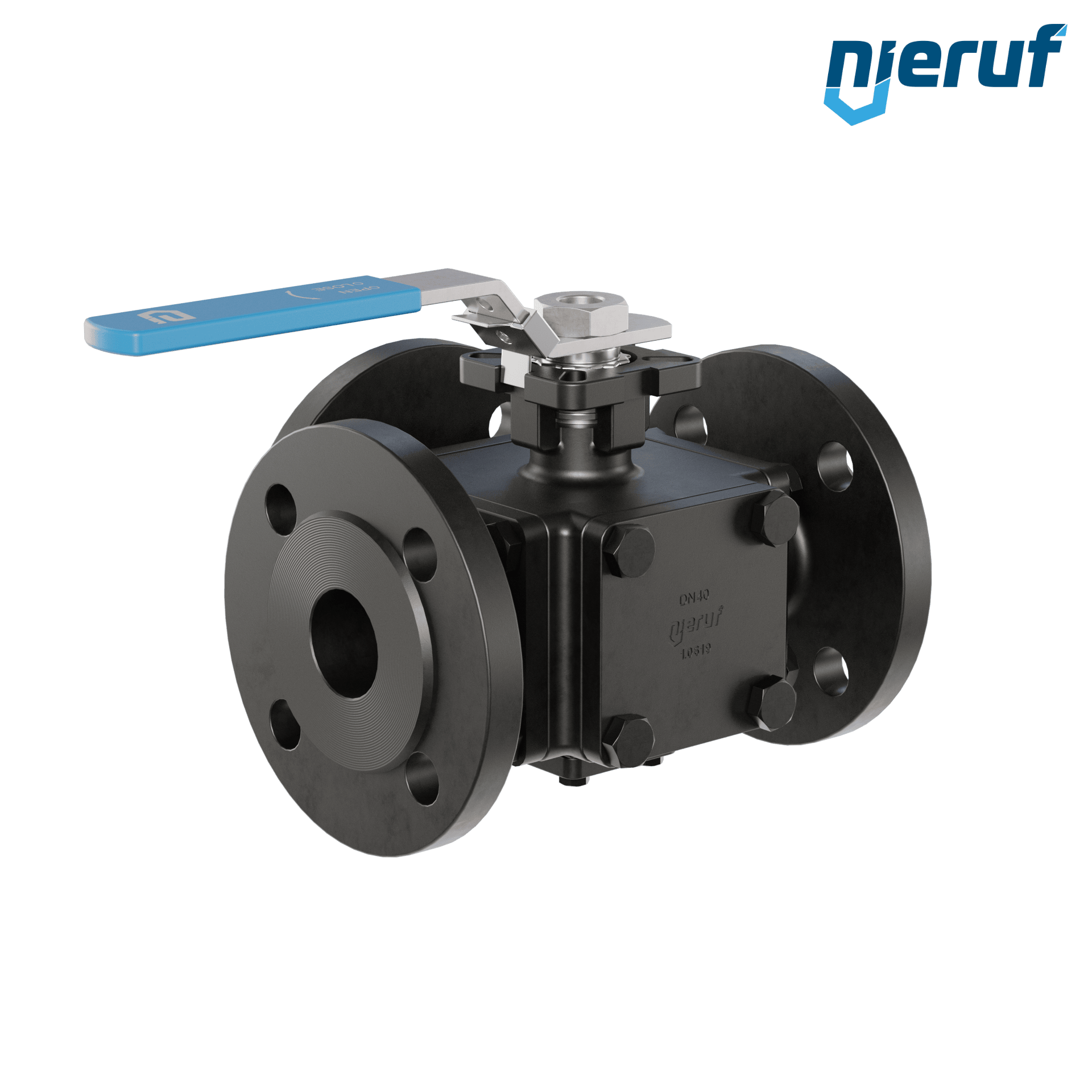

Three-way flange ball valve DN40 FK08 L drilling carbon steel 1.0619
Three-way flange ball valve DN40 PN16/40 FK08 body carbon steel 1.0619 ball stainless steel 1.4308 seal TFM 1600 / PTFE L drilling
| Product | three-way flange ball valve |
|---|---|
| Type | FK08 |
| Manufacturer | NieRuf |
| Diameter | DN40 |
| Connection | flange dimensions acc. to DIN EN 1092-1 |
| Seal steam | O-ring Viton |
| Ball seal | TFM 1600 / PTFE |
| Media | liquid and gaseous media |
| Temperature | -20°C up to +180°C - depending on working pressure and media |
| Max. pressure | PN16/40 |
| Design | L drilling |
| Body material | carbon steel 1.0619 |
| Ball material | stainless steel 1.4308 |
| Length | 212mm |
| Actuator | hand lever with blue plastic cover |
| Installation position | any position |
| Authorized for | TA Luft |
| Product description | this high quality three-way flange ball valve made of carbon steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. this valve has a L-drilling - basic position L=1 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Three-way flange ball valve DN40 FK08 L drilling carbon steel 1.0619
Article no.
: FK08010007
Product:
three-way flange ball valve
Type:
FK08
Manufacturer:
NieRuf
Diameter:
DN40
Connection:
flange dimensions acc. to DIN EN 1092-1
Seal steam:
O-ring Viton
Ball seal:
TFM 1600 / PTFE
Media:
liquid and gaseous media
Temperature:
-20°C up to +180°C - depending on working pressure and media
Max. pressure:
PN16/40
Design:
L drilling
Body material:
carbon steel 1.0619
Ball material:
stainless steel 1.4308
Length:
212mm
Actuator:
hand lever with blue plastic cover
Installation position:
any position
Authorized for:
TA Luft
Product description:
this high quality three-way flange ball valve made of carbon steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. this valve has a L-drilling - basic position L=1
Equipment
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
Lead time: in stock
