FK08010003
Three-way flange ball valve DN15 FK08 L drilling carbon steel 1.0619
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Flange DN15 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€11.19 VAT included.
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
€2.38 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

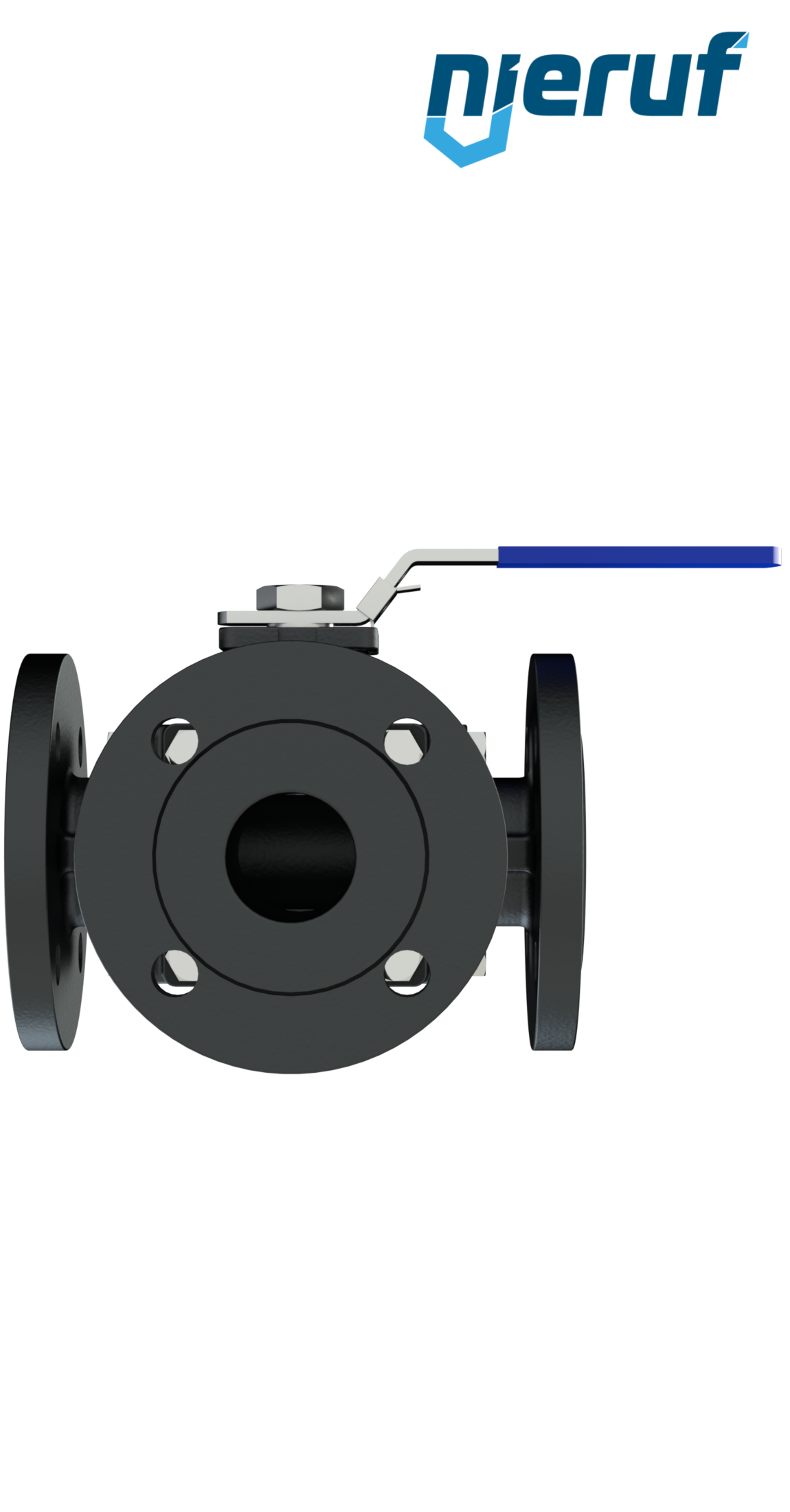

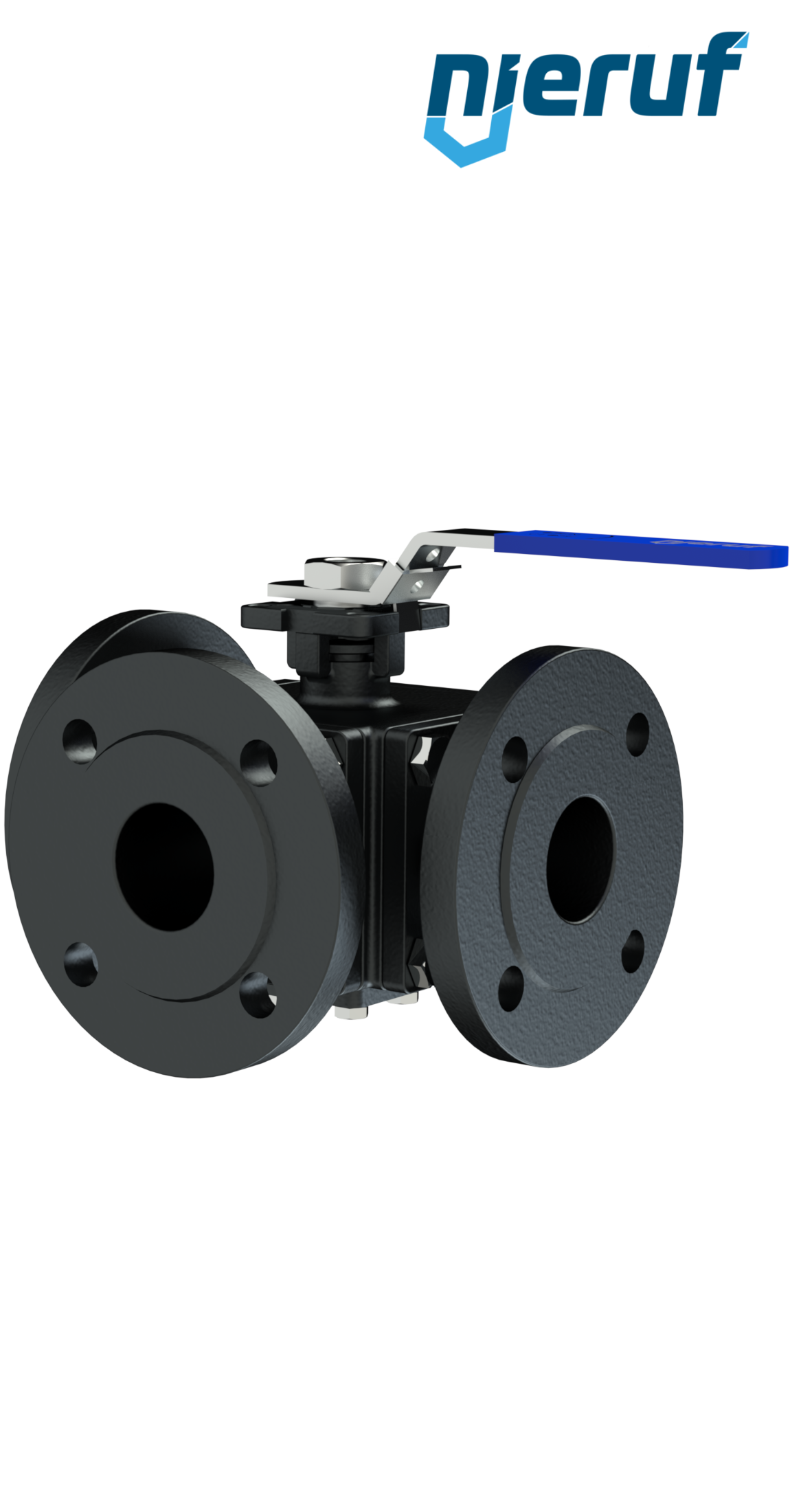

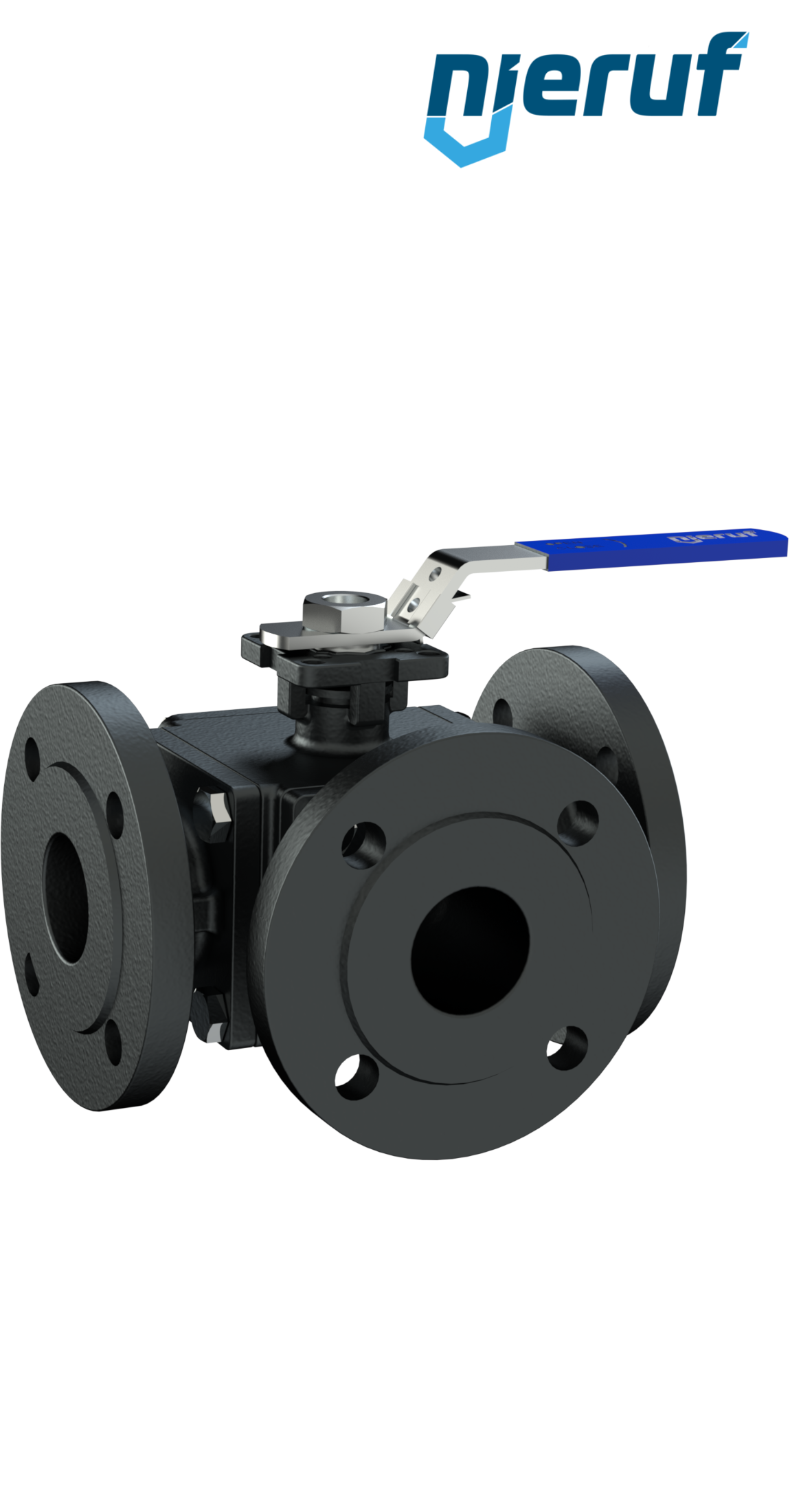

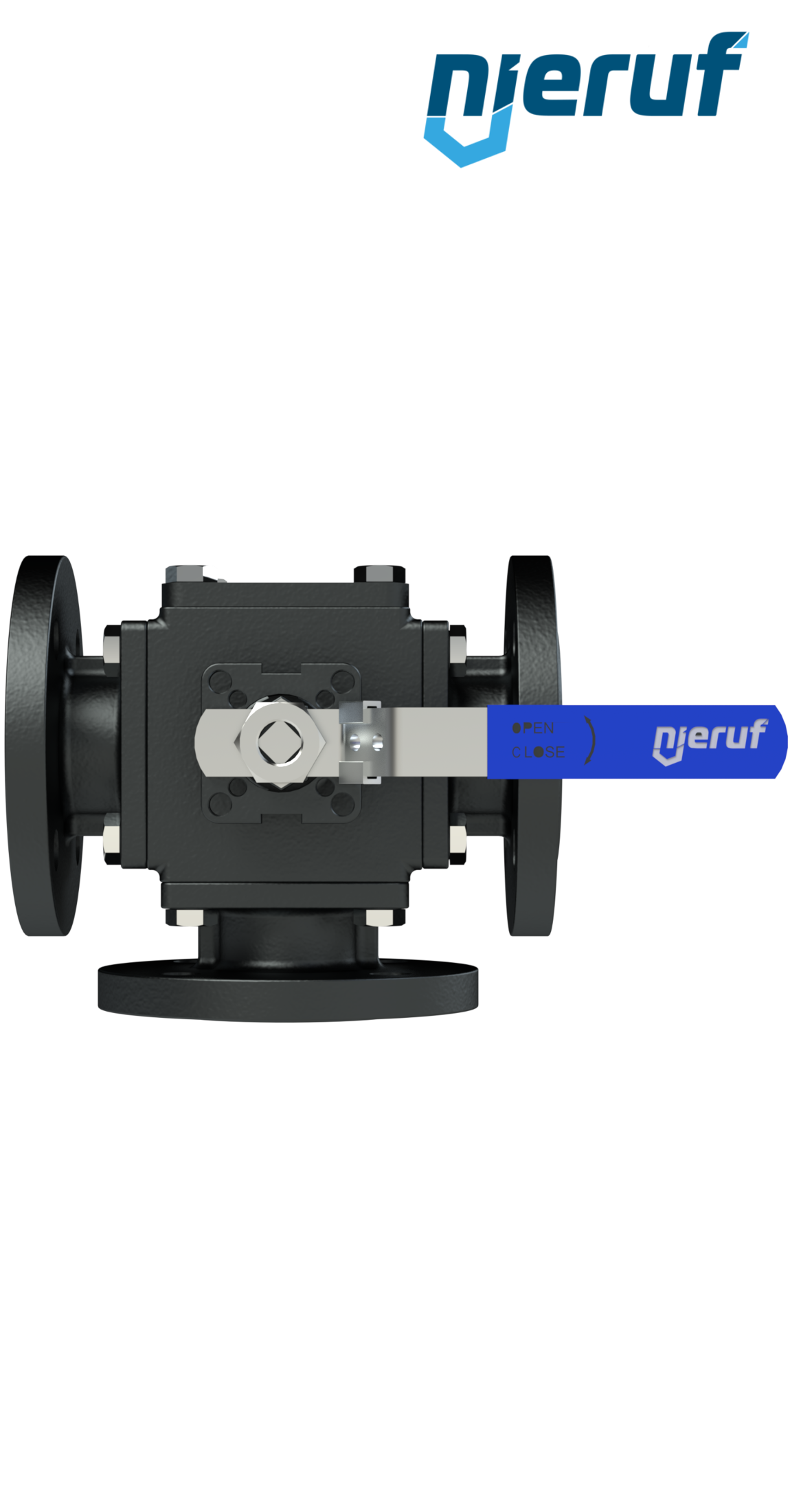

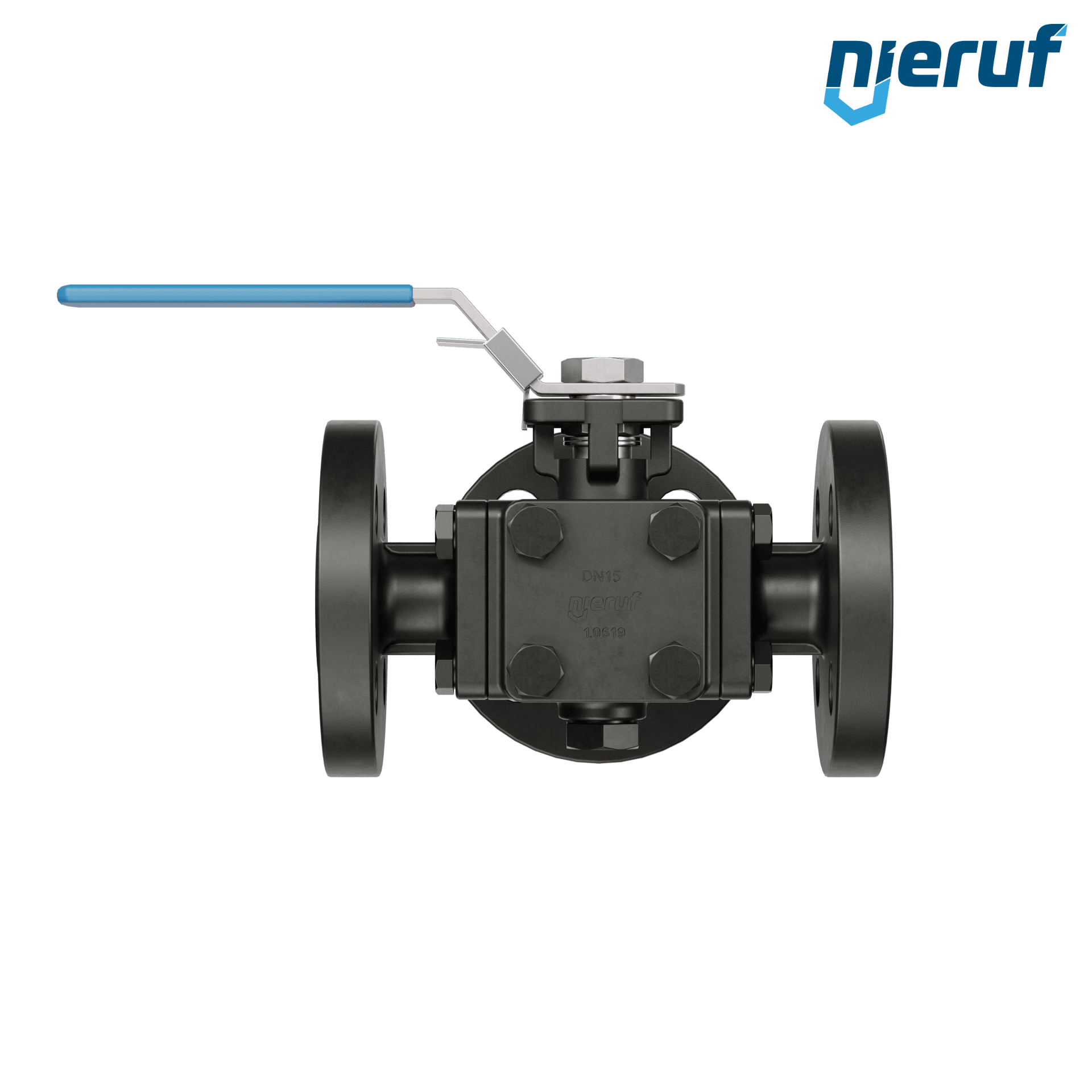

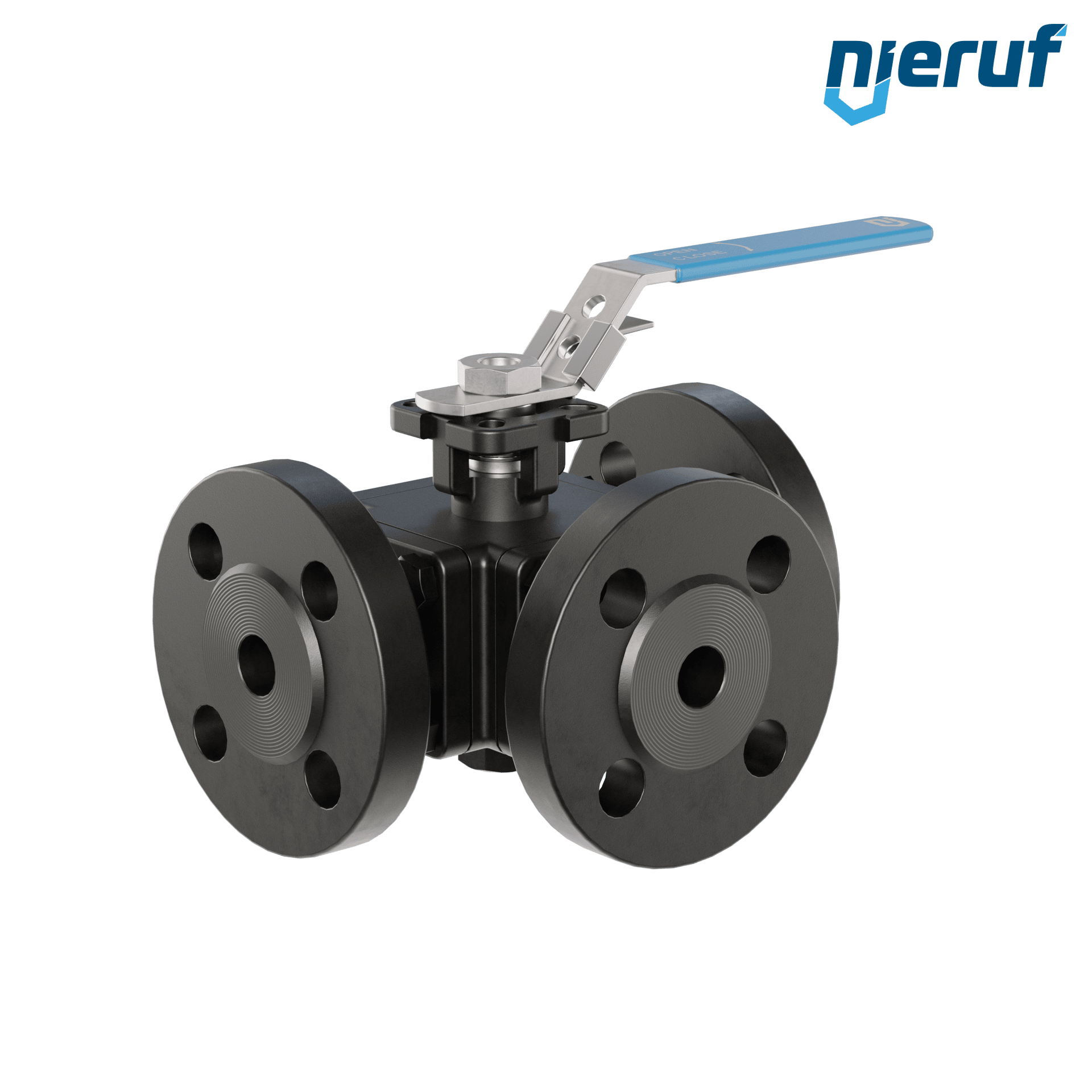

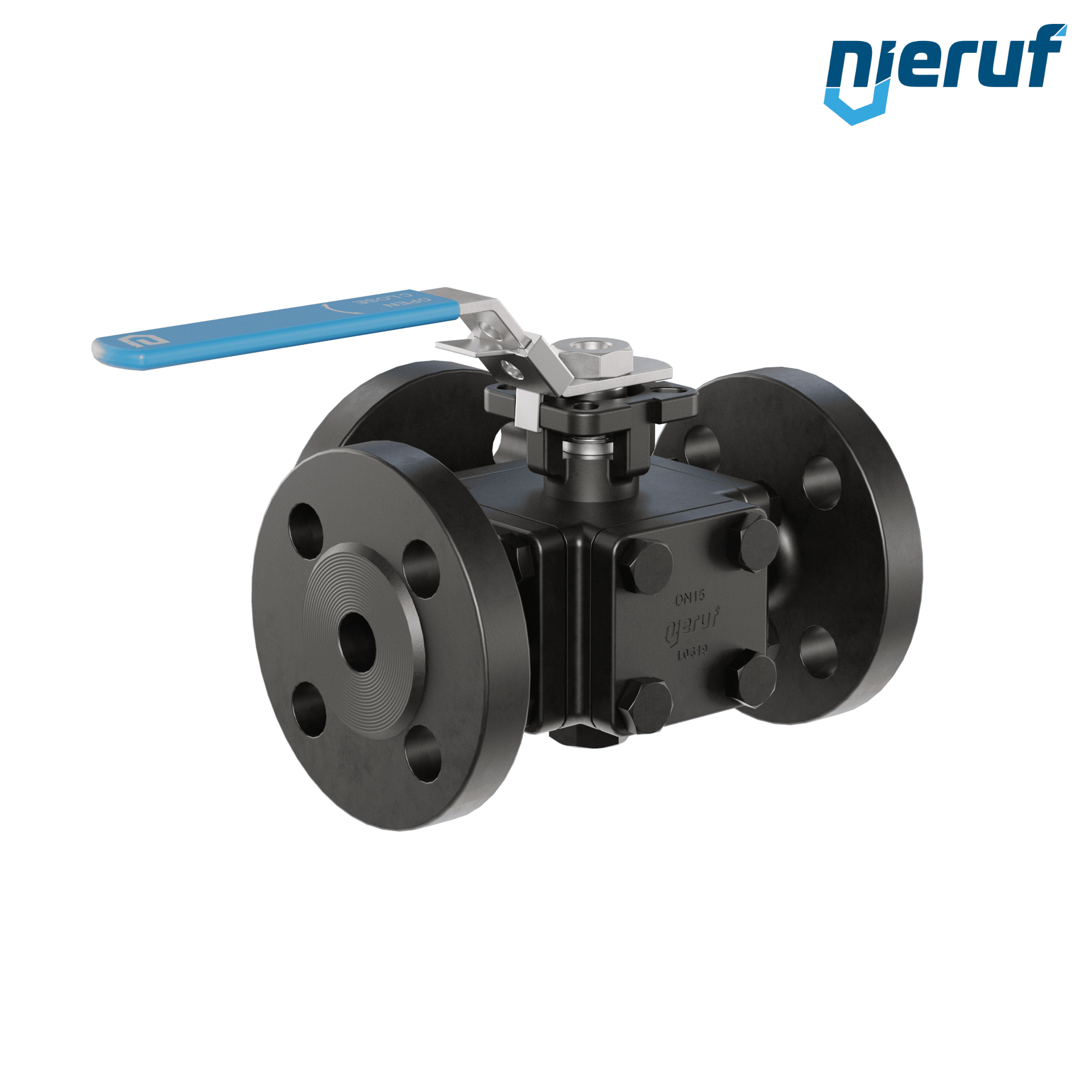

Three-way flange ball valve DN15 FK08 L drilling carbon steel 1.0619
Three-way flange ball valve DN15 PN16/40 FK08 body carbon steel 1.0619 ball stainless steel 1.4308 seal TFM 1600 / PTFE L drilling
| Product | three-way flange ball valve |
|---|---|
| Type | FK08 |
| Manufacturer | NieRuf |
| Diameter | DN15 |
| Connection | flange dimensions acc. to DIN EN 1092-1 |
| Seal steam | O-ring Viton |
| Ball seal | TFM 1600 / PTFE |
| Media | liquid and gaseous media |
| Temperature | -20°C up to +180°C - depending on working pressure and media |
| Max. pressure | PN16/40 |
| Design | L drilling |
| Body material | carbon steel 1.0619 |
| Ball material | stainless steel 1.4308 |
| Length | 150mm |
| Actuator | hand lever with blue plastic cover |
| Installation position | any position |
| Authorized for | TA Luft |
| Product description | This high quality three-way flange ball valve made of carbon steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. Certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This ball valve has a L-drilling (L=1) |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Three-way flange ball valve DN15 FK08 L drilling carbon steel 1.0619
Article no.
: FK08010003
Product:
three-way flange ball valve
Type:
FK08
Manufacturer:
NieRuf
Diameter:
DN15
Connection:
flange dimensions acc. to DIN EN 1092-1
Seal steam:
O-ring Viton
Ball seal:
TFM 1600 / PTFE
Media:
liquid and gaseous media
Temperature:
-20°C up to +180°C - depending on working pressure and media
Max. pressure:
PN16/40
Design:
L drilling
Body material:
carbon steel 1.0619
Ball material:
stainless steel 1.4308
Length:
150mm
Actuator:
hand lever with blue plastic cover
Installation position:
any position
Authorized for:
TA Luft
Product description:
This high quality three-way flange ball valve made of carbon steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. Certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This ball valve has a L-drilling (L=1)
Equipment
Flange DN15 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 steel
Lead time: in stock
