T-connector EF05 brass NBR D8mm

needle valve 1/2" fm NV02 brass 3
quantity (pcs.):
2.00€ * 2.38€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Monday, 21. June
Guaranteed delivery until Tuesday, 22. June, 12 Uhr:
order within 2 Tage & 22 hours & 51 minutes via express shipping
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
technical details

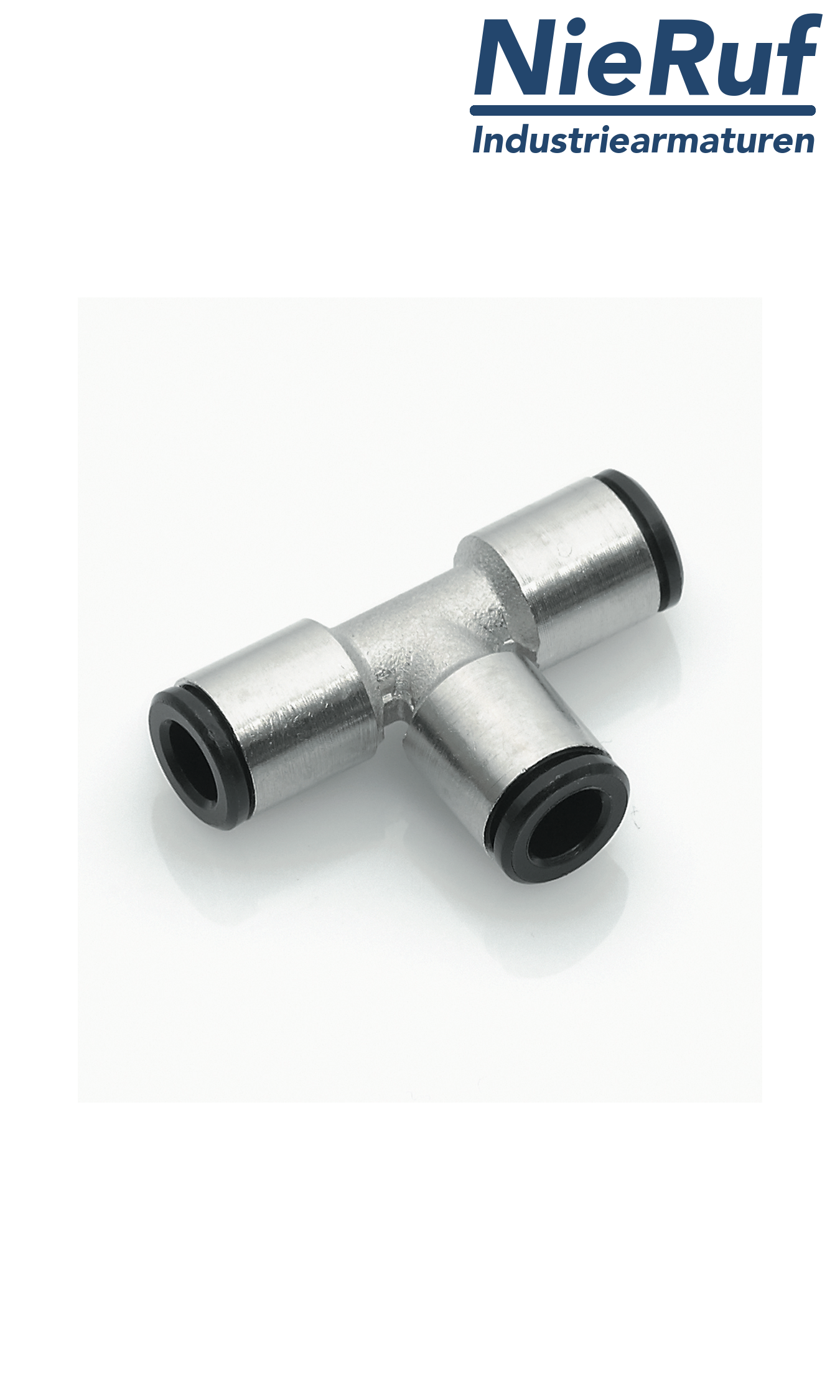

T-connector EF05 brass NBR D8mm
port connection T-connector made of brass with NBR-seal D8mm for lubricated & non-lubricated compressed air up to 16 bar
design: T-connector
tube connection 1: D8mm
tube connection 2: D8mm
body material: brass Ms58 nickel-plated
seal: NBR
collet: stainless steel 1.4401
pressure ring: black plastic
thread: cylindrical
media: lubricated & non-lubricated compressed air
max. working pressure: up to 16 bar
product feature: T-connector to connect or to plug pipes in pneumatic- or pressure air applications.
T-connector EF05 brass NBR D8mm

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

T-connector EF05 brass NBR D8mm
