ZR04000216
swing check valve with spring DN300 ZR04 stainless steel A351 CF8M FKM (Viton)
- Lead time
- 3 - 5 working days
Equipment
joint set swing check valve/flange DN300 - 12" Inch for flange PN10 stainless steel
€49.98 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

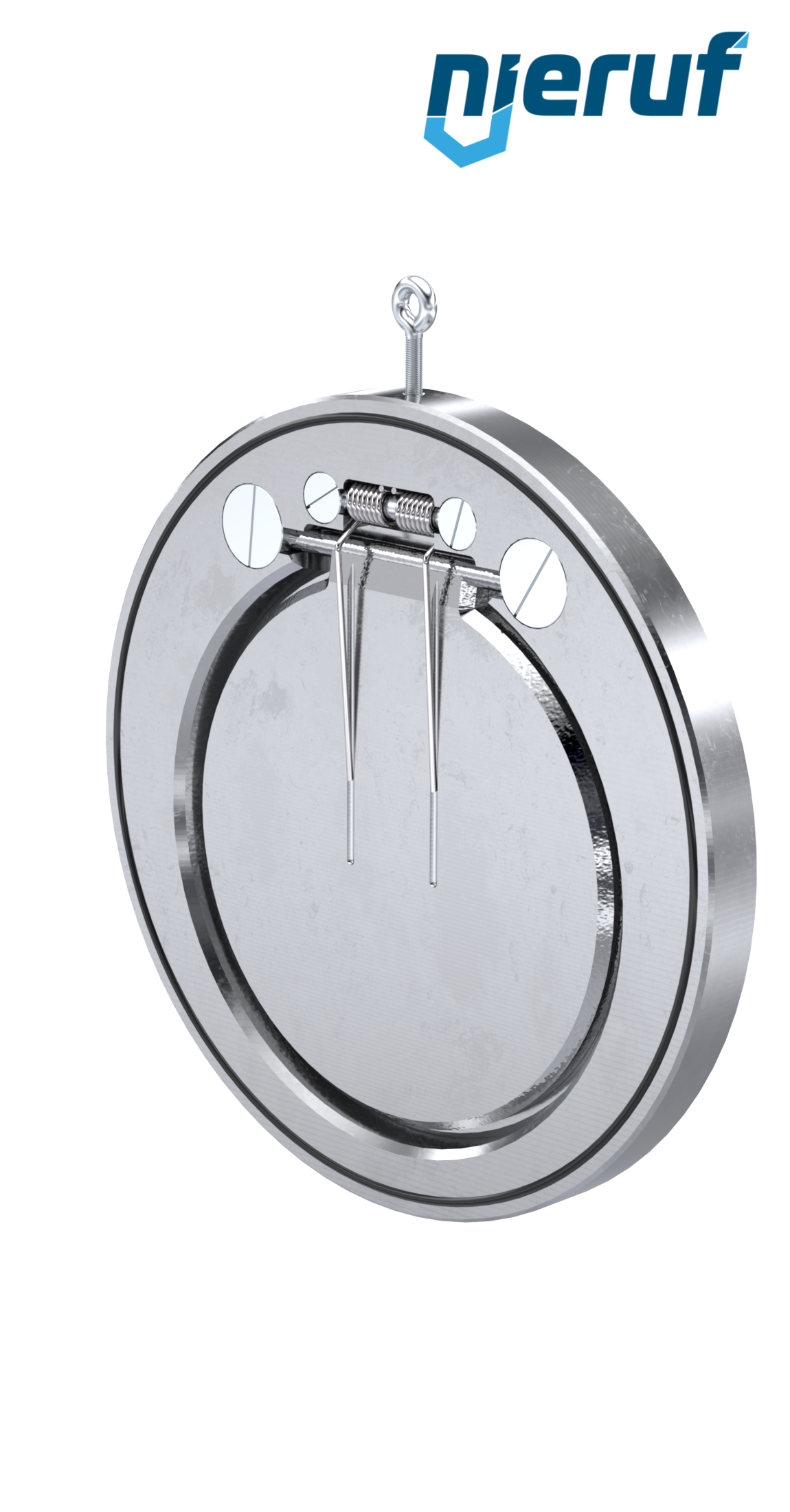

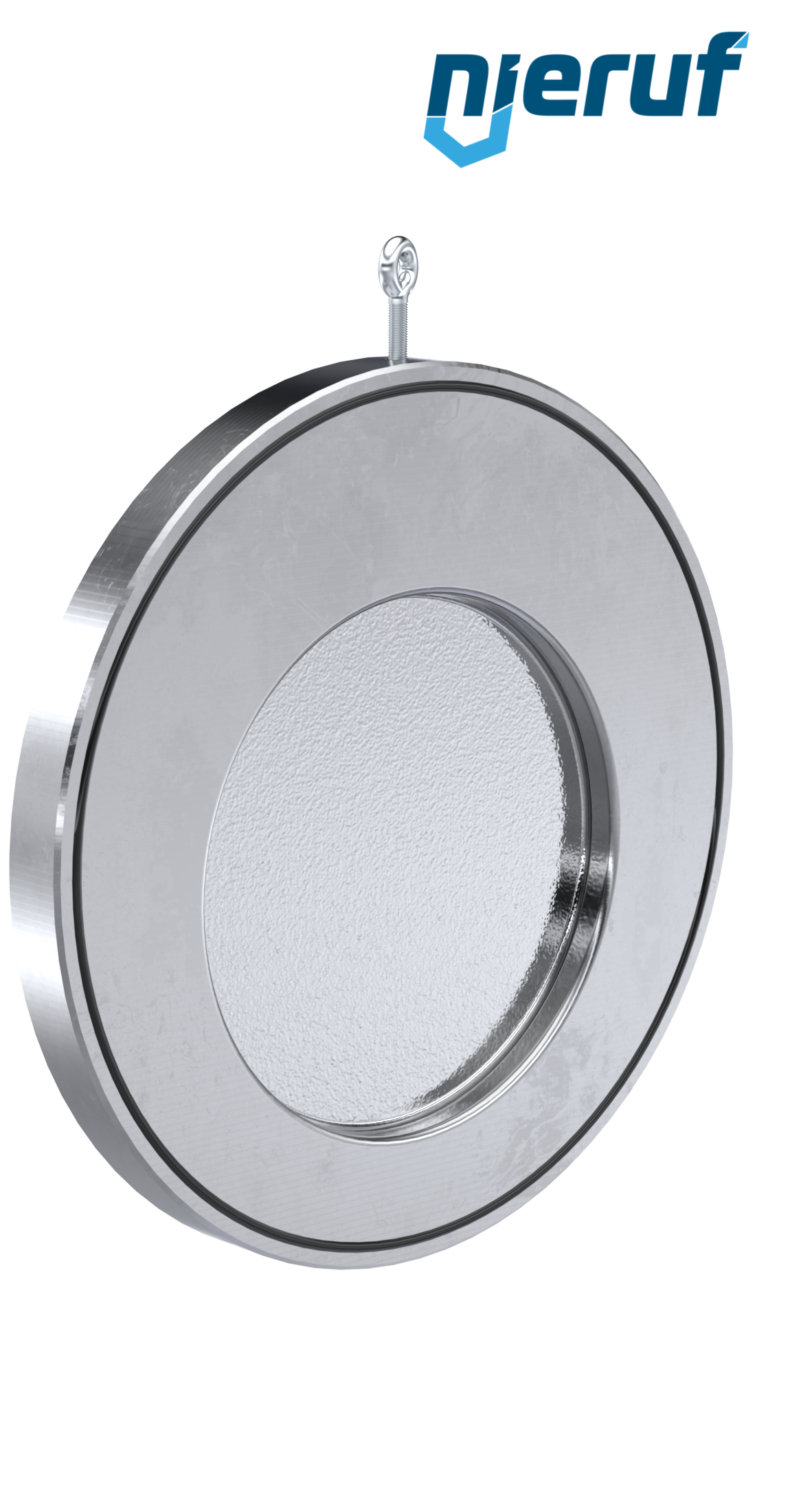

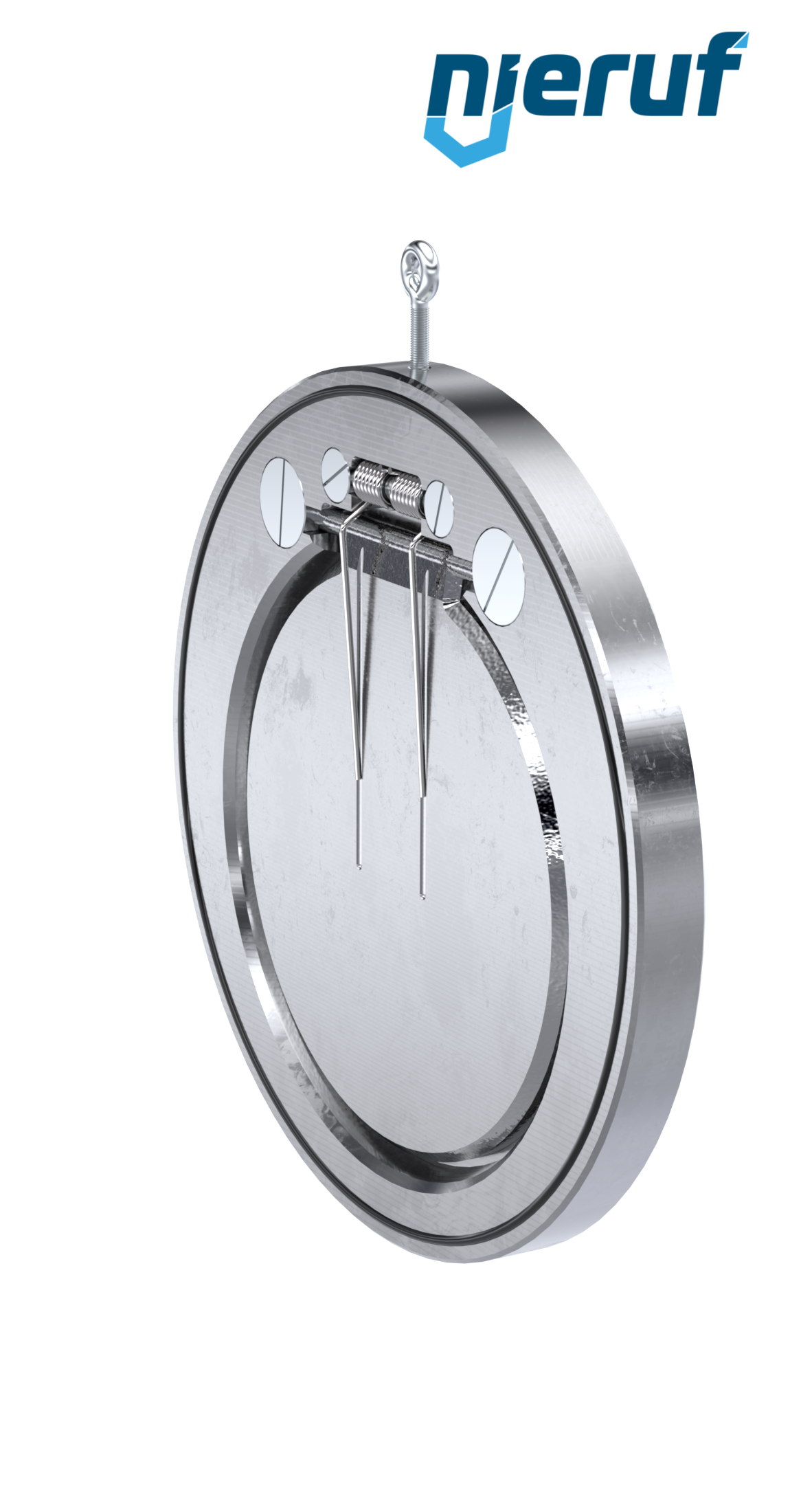

swing check valve with spring DN300 ZR04 stainless steel A351 CF8M FKM (Viton)
swing check valve with spring DN300 PN 10 DIN EN 1092-1 Form B made of stainless steel A351 CF8M seal FKM (Viton)
| product | swing check valve with spring |
|---|---|
| type | ZR04 |
| manufacturer | NieRuf |
| design | swing check valve |
| diameter | DN300 |
| body material | stainless steel A351 CF8M |
| disc material | stainless steel A351 CF8M |
| seal | FKM (Viton) |
| temperature | -30°C up to +230°C |
| connection | flange |
| flange | PN 10 DIN EN 1092-1 Form B |
| pressure range | 0 - 16 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | with spring made of stainless steel |
| installation position | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve with spring DN300 ZR04 stainless steel A351 CF8M FKM (Viton)
Article no.
: ZR04000216
product:
swing check valve with spring
type:
ZR04
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN300
body material:
stainless steel A351 CF8M
disc material:
stainless steel A351 CF8M
seal:
FKM (Viton)
temperature:
-30°C up to +230°C
connection:
flange
flange:
PN 10 DIN EN 1092-1 Form B
pressure range:
0 - 16 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
with spring made of stainless steel
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
Equipment
joint set swing check valve/flange DN300 - 12" Inch for flange PN10 stainless steel
Lead time: 3 - 5 working days
