ZR03000216
swing check valve with spring DN300 ZR03 steel 1.0460 / A 105, zinc plated FKM (Viton)
- Lead time
- 3 - 5 working days
Equipment
joint set swing check valve/flange DN300 - 12" Inch for flange PN10 steel
€81.40 VAT included.
Flange DN300 PN10 EN1092-1 11 B1 C22.8 / P250GH bare
€162.32 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

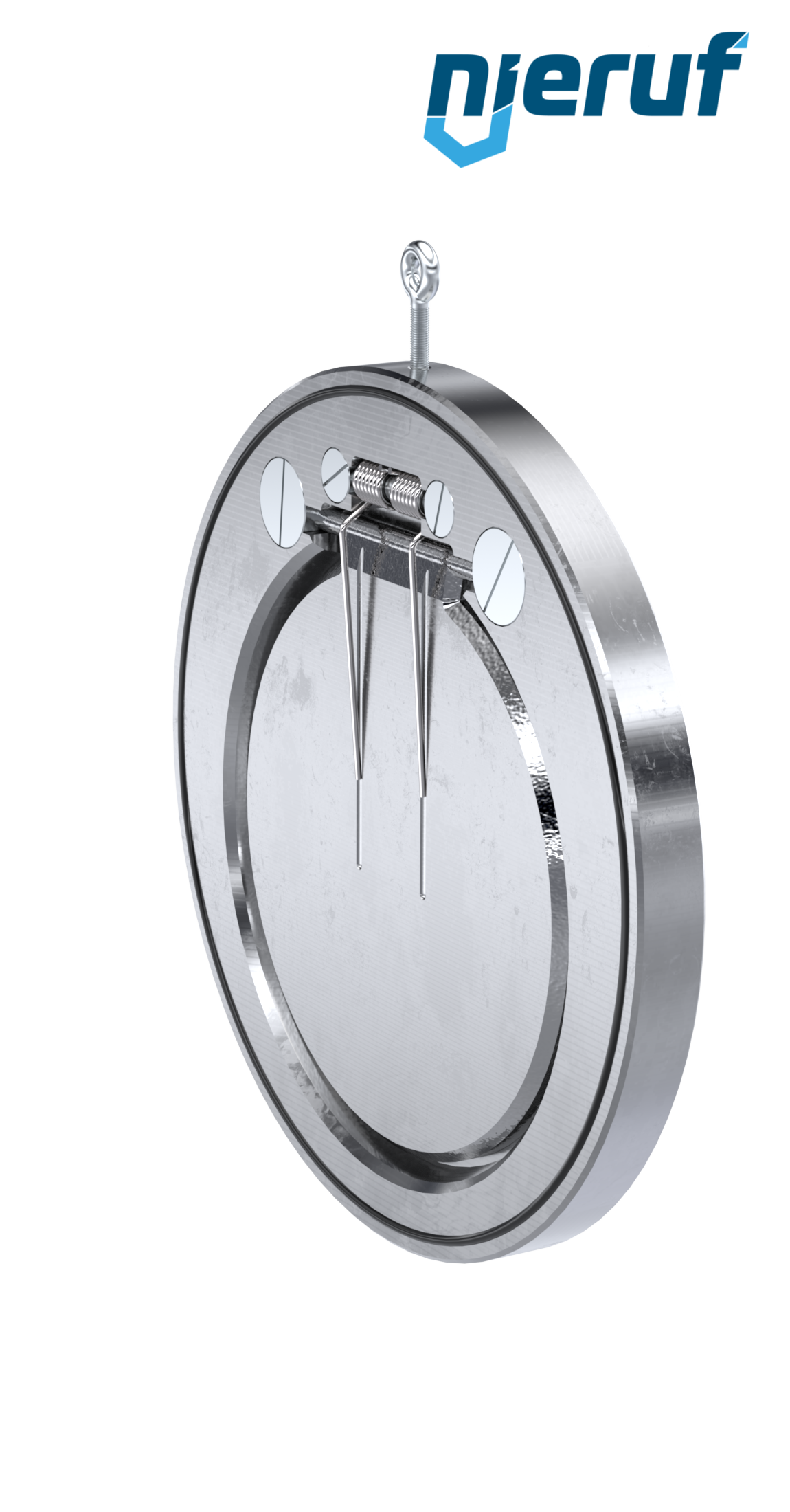

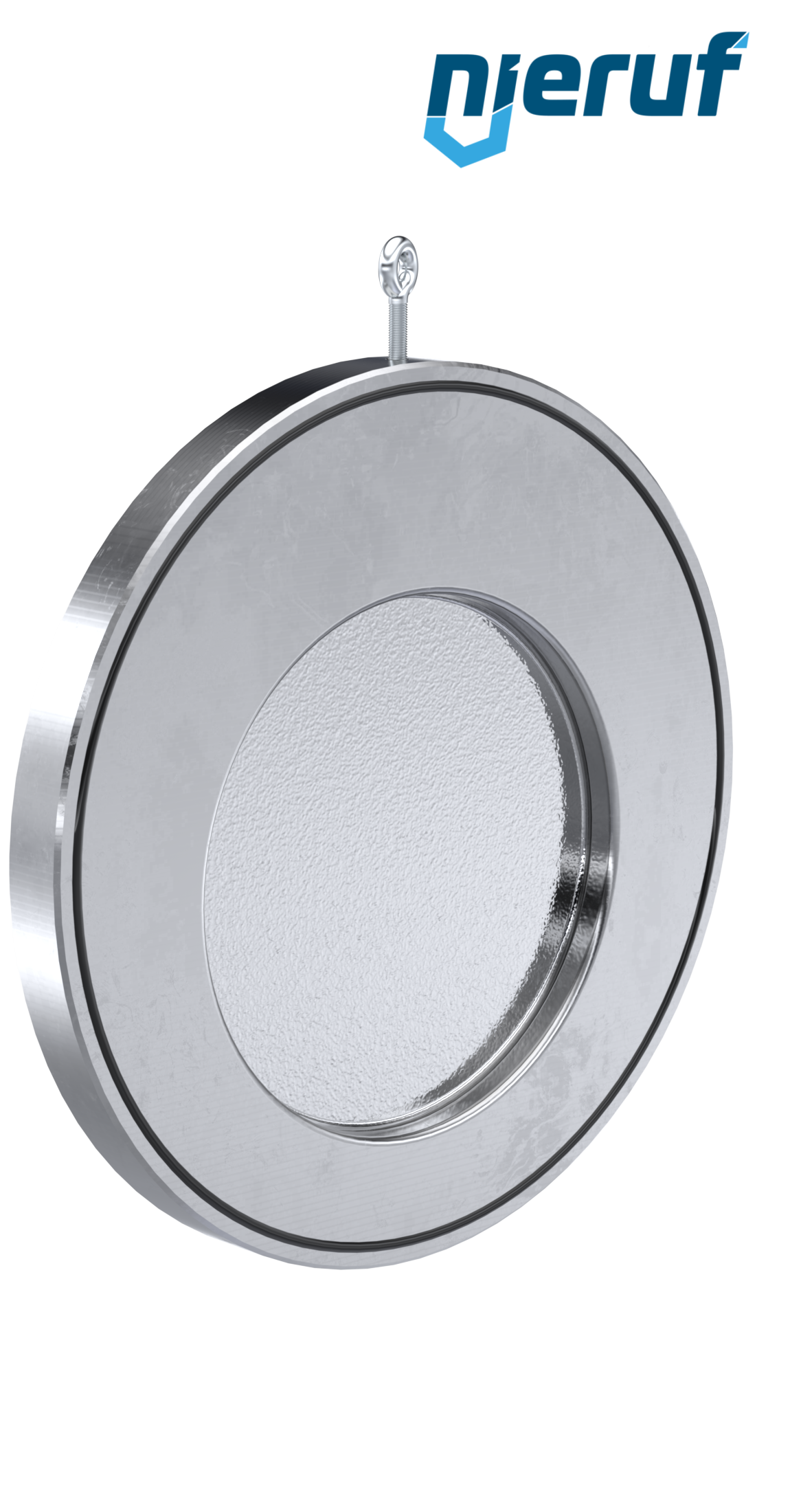

swing check valve with spring DN300 ZR03 steel 1.0460 / A 105, zinc plated FKM (Viton)
swing check valve with spring DN300 PN 10 DIN EN 1092-1 Form B made of steel 1.0460 / A 105, zinc plated seal FKM (Viton)
| product | swing check valve with spring |
|---|---|
| type | ZR03 |
| manufacturer | NieRuf |
| design | swing check valve |
| diameter | DN300 |
| body material | steel 1.0460 / A 105, zinc plated |
| disc material | steel A 216 WCB / A 105, zinc plated |
| seal | FKM (Viton) |
| temperature | -10°C up to +230°C |
| connection | flange |
| flange | PN 10 DIN EN 1092-1 Form B |
| pressure range | 0 - 16 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | with spring made of stainless steel |
| installation position | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve with spring DN300 ZR03 steel 1.0460 / A 105, zinc plated FKM (Viton)
Article no.
: ZR03000216
product:
swing check valve with spring
type:
ZR03
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN300
body material:
steel 1.0460 / A 105, zinc plated
disc material:
steel A 216 WCB / A 105, zinc plated
seal:
FKM (Viton)
temperature:
-10°C up to +230°C
connection:
flange
flange:
PN 10 DIN EN 1092-1 Form B
pressure range:
0 - 16 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
with spring made of stainless steel
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
