ZR05000109

swing check valve DN65 ZR05 plastic PVC-U EPDM

€64.60*

€76.87 VAT included.

Delivery time: in stock

Delivery information

Express delivery*:

Shipping on: Monday, 13. October

Guaranteed delivery until Tuesday, 14. October, 12 o'clock

Order in within by express delivery

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: ZR05000109

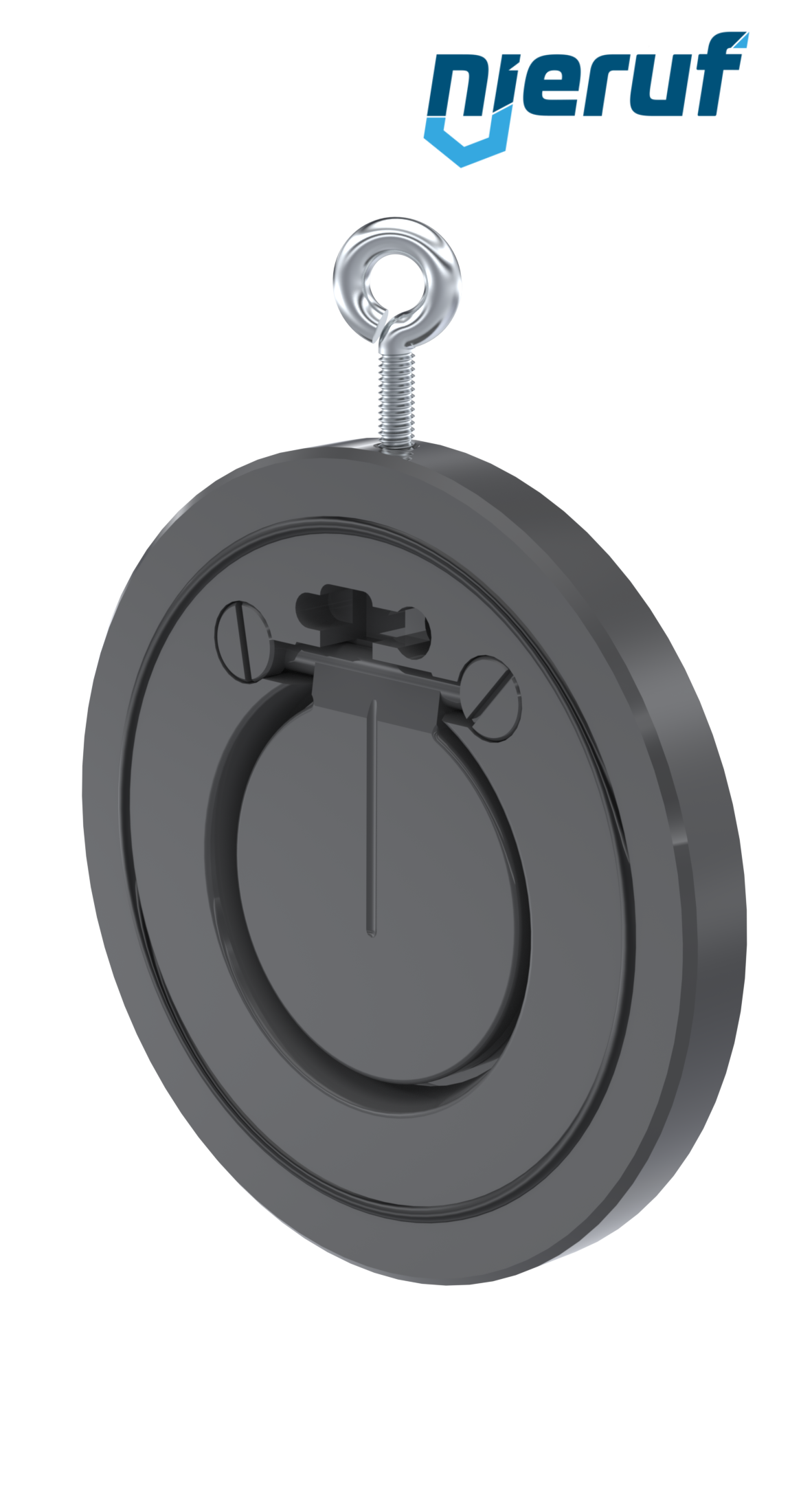

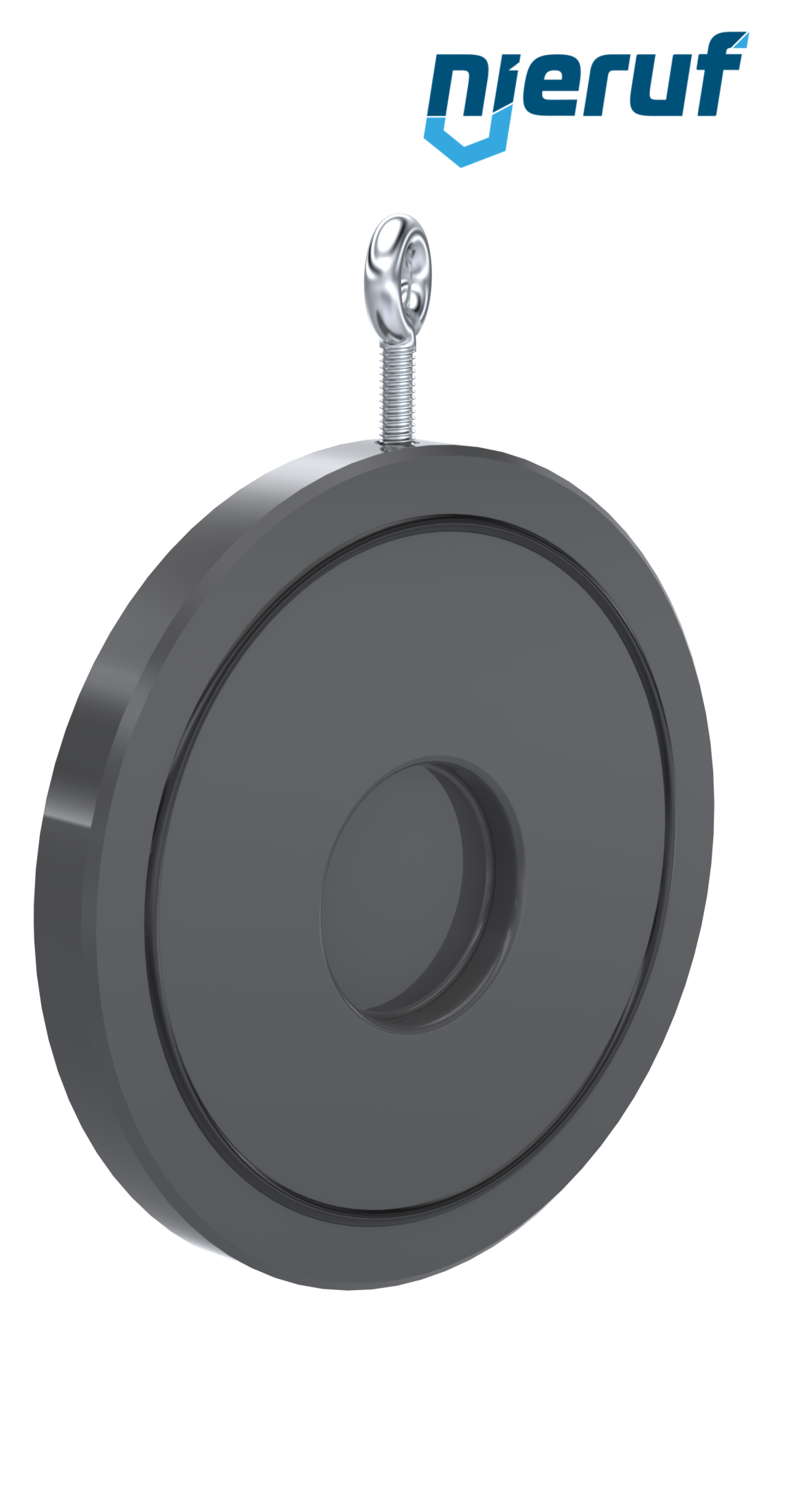

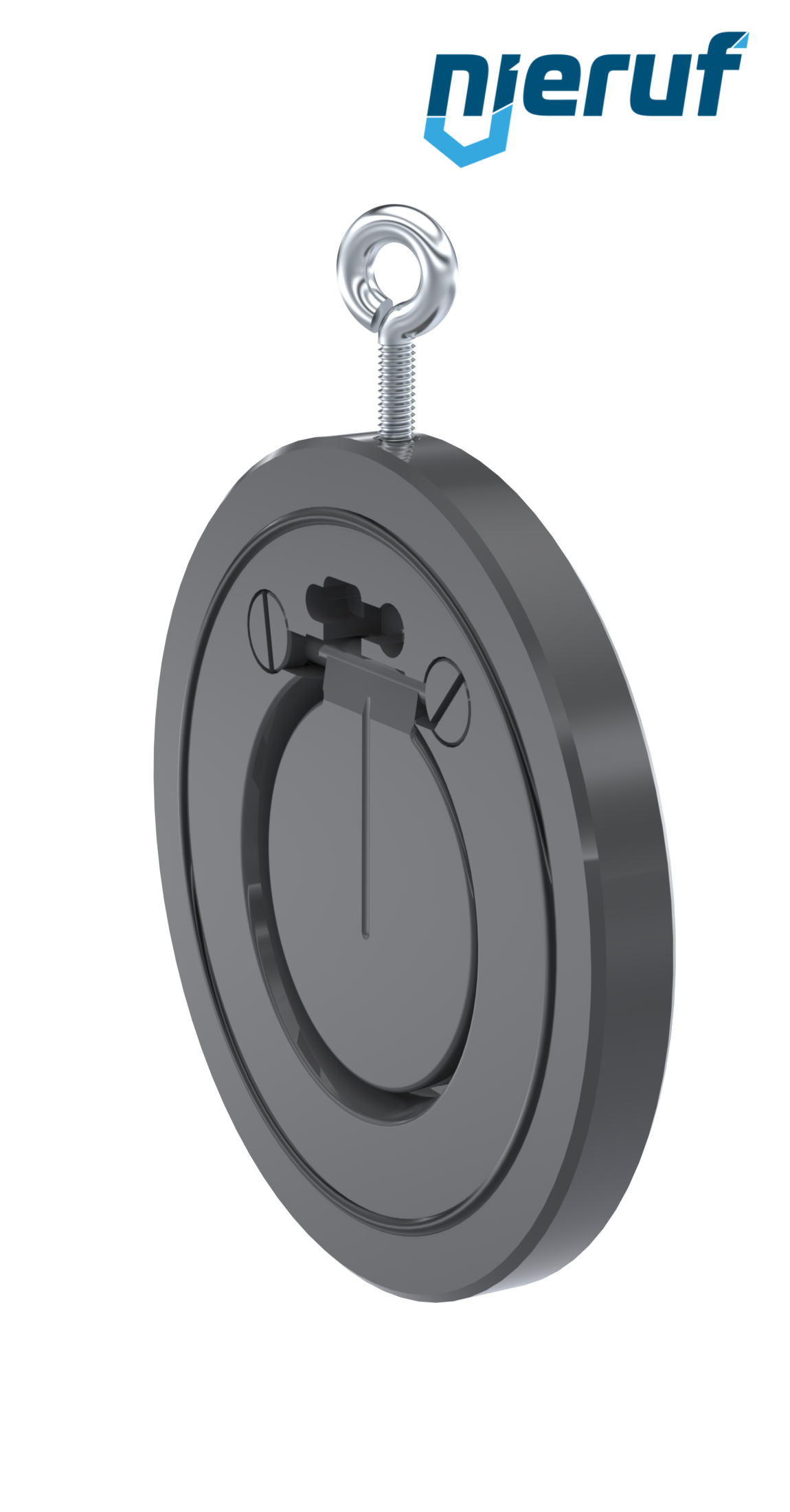

swing check valve DN65 ZR05 plastic PVC-U EPDM

swing check valve DN65 PN 10/16 DIN EN 1092-1 Form B plastic PVC-U seal EPDM for liquid and gaseous media

product: swing check valve
type: ZR05
manufacturer: NieRuf
design: swing check valve
diameter: DN65
body material: plastic PVC-U
disc material: plastic PVC-U
seal: EPDM
temperature: 0°C up to +60°C
connection: flange
flange: PN 10/16 DIN EN 1092-1 Form B
pressure range: 0 - 10 bar
media: liquid and gaseous media
tightness acc. to DIN EN 12266: leak rate A
option: without spring reset
installation position: direction of flow horizontal (disc must be free-hanging), vertical from below
product feature: short face to face

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

swing check valve DN65 ZR05 plastic PVC-U EPDM

Article no. : ZR05000109
product: swing check valve
type: ZR05
manufacturer: NieRuf
design: swing check valve
diameter: DN65
body material: plastic PVC-U
disc material: plastic PVC-U
seal: EPDM
temperature: 0°C up to +60°C
connection: flange
flange: PN 10/16 DIN EN 1092-1 Form B
pressure range: 0 - 10 bar
media: liquid and gaseous media
tightness acc. to DIN EN 12266: leak rate A
option: without spring reset
installation position: direction of flow horizontal (disc must be free-hanging), vertical from below
product feature: short face to face

No spare parts were found for the item number .
