ZR05000112
swing check valve DN125 ZR05 plastic PVC-U EPDM
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Tuesday, 06. October
Guaranteed delivery until Wednesday, 07. October, 12 o'clock
Questions about the article?
Our employee Richie Rost
will be happy to help you

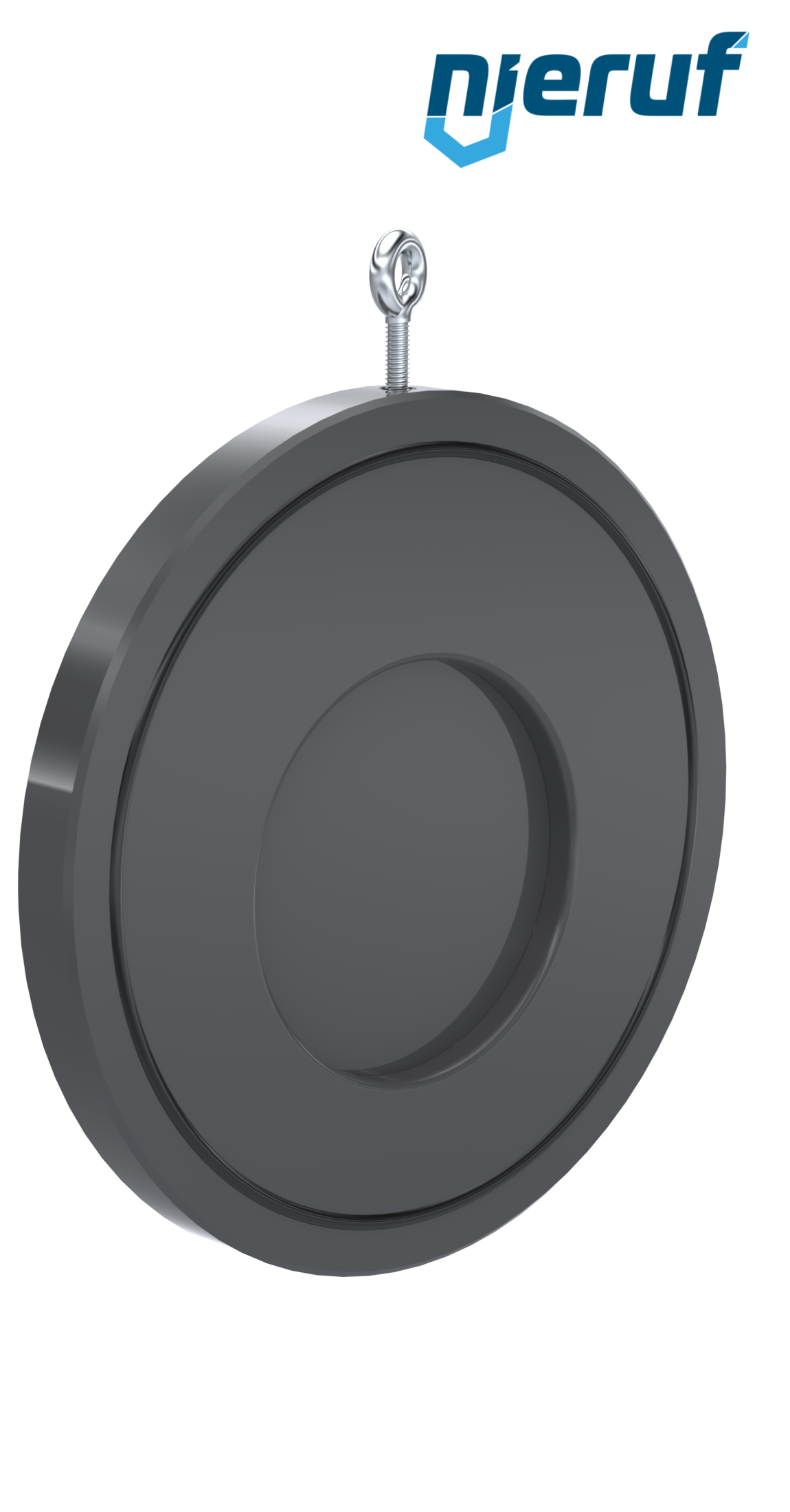

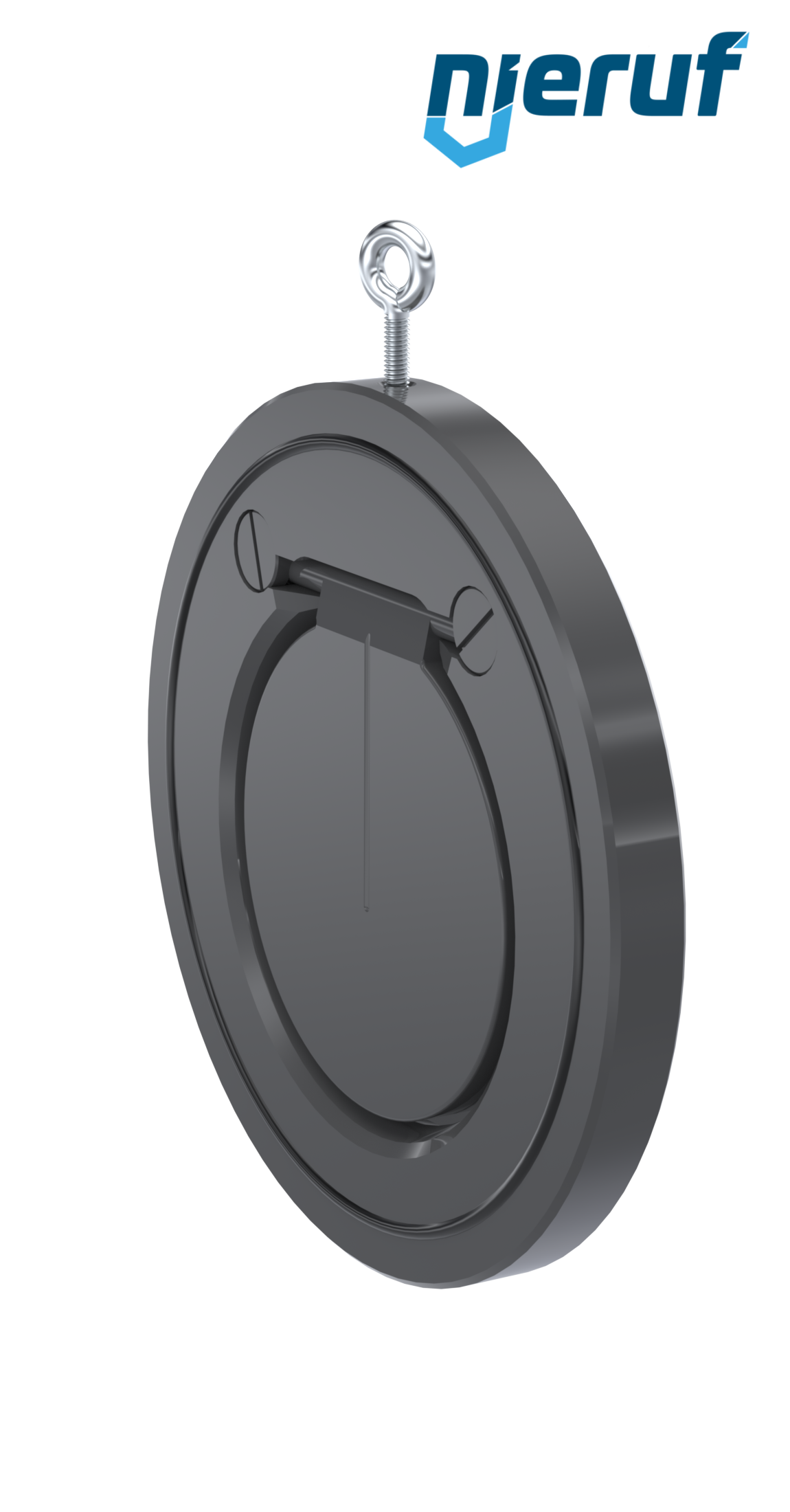

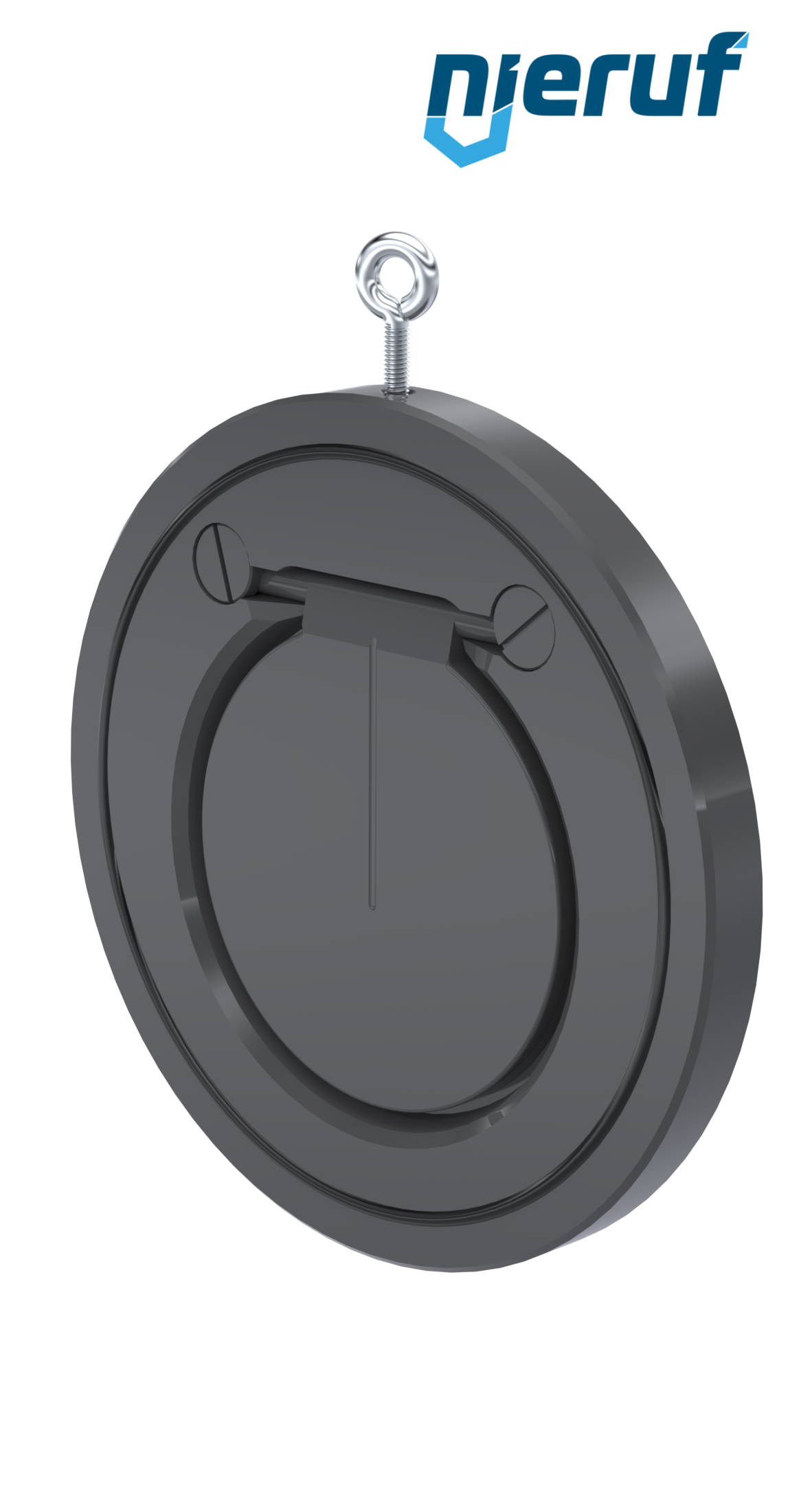

swing check valve DN125 ZR05 plastic PVC-U EPDM
swing check valve DN125 PN 10/16 DIN EN 1092-1 Form B plastic PVC-U seal EPDM for liquid and gaseous media
| product | swing check valve |
|---|---|
| type | ZR05 |
| manufacturer | NieRuf |
| design | swing check valve |
| diameter | DN125 |
| body material | plastic PVC-U |
| disc material | plastic PVC-U |
| seal | EPDM |
| temperature | 0°C up to +60°C |
| connection | flange |
| flange | PN 10/16 DIN EN 1092-1 Form B |
| pressure range | 0 - 10 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | without spring reset |
| installation position | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve DN125 ZR05 plastic PVC-U EPDM
Article no.
: ZR05000112
product:
swing check valve
type:
ZR05
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN125
body material:
plastic PVC-U
disc material:
plastic PVC-U
seal:
EPDM
temperature:
0°C up to +60°C
connection:
flange
flange:
PN 10/16 DIN EN 1092-1 Form B
pressure range:
0 - 10 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
without spring reset
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
Equipment
pipe bend (welded) 90° 139,7 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 168,3 x 2,9 to 60,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
