ZR01000408
swing check valve DN50 ZR01 steel 1.0460 / A 105, zinc plated NBR
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Wednesday, 07. October
Guaranteed delivery until Thursday, 08. October, 12 o'clock
Equipment
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€22.37 VAT included.
joint set swing check valve/flange DN50 - 2" Inch for flange PN10/16 steel
€9.52 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

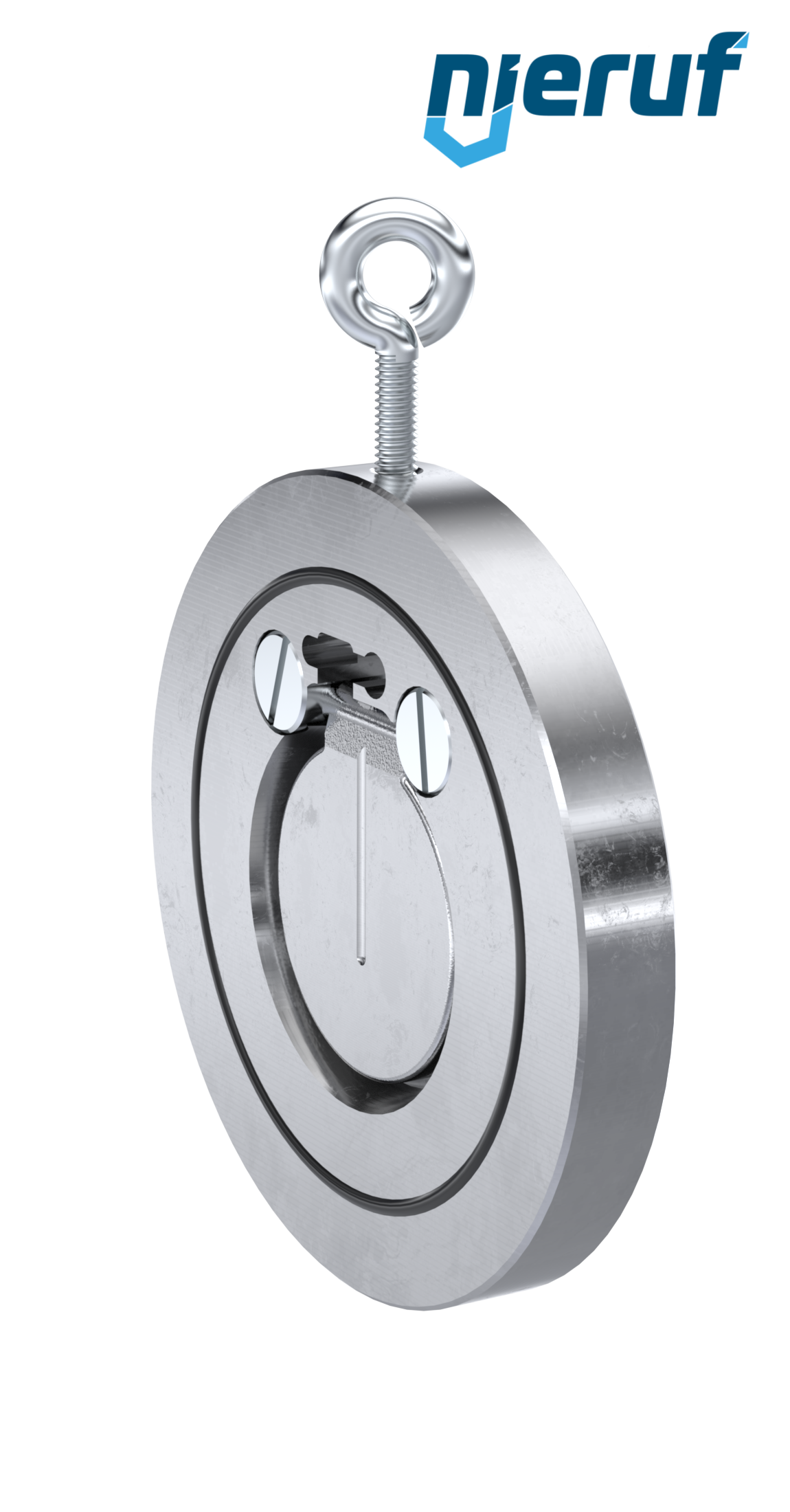

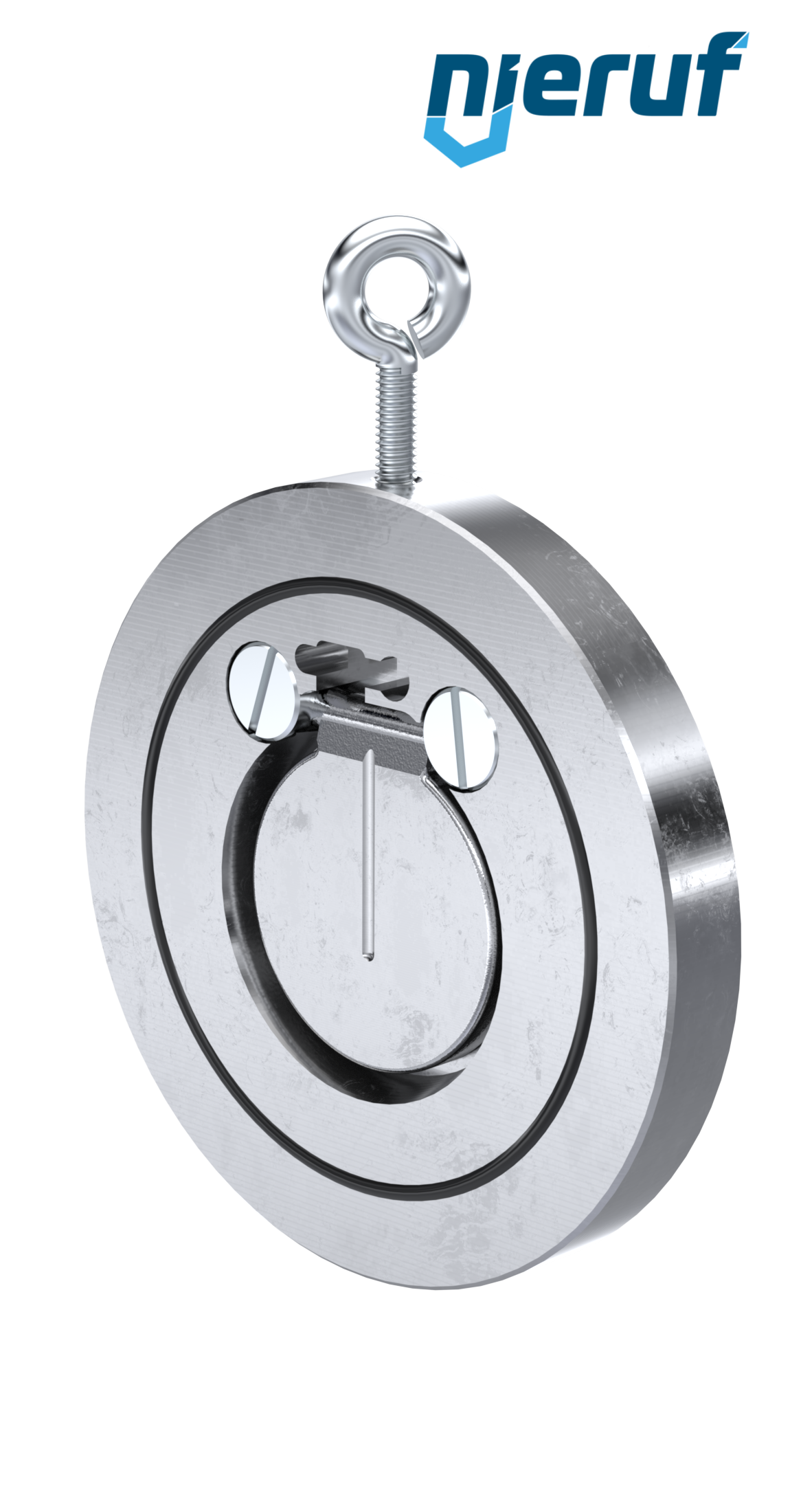

swing check valve DN50 ZR01 steel 1.0460 / A 105, zinc plated NBR
swing check valve DN50 PN 10/16/25/40 DIN EN 1092-1 Form B made of steel 1.0460 / A 105, zinc plated seal NBR for liquid and gaseous media
| product | swing check valve |
|---|---|
| type | ZR01 |
| manufacturer | NieRuf |
| design | swing check valve |
| diameter | DN50 |
| body material | steel 1.0460 / A 105, zinc plated |
| disc material | steel A 216 WCB / A 105, zinc plated |
| seal | NBR |
| temperature | -10°C up to +100°C |
| connection | flange |
| flange | PN 10/16/25/40 DIN EN 1092-1 Form B |
| pressure range | 0 - 25 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | without spring reset |
| installation position | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve DN50 ZR01 steel 1.0460 / A 105, zinc plated NBR
Article no.
: ZR01000408
product:
swing check valve
type:
ZR01
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN50
body material:
steel 1.0460 / A 105, zinc plated
disc material:
steel A 216 WCB / A 105, zinc plated
seal:
NBR
temperature:
-10°C up to +100°C
connection:
flange
flange:
PN 10/16/25/40 DIN EN 1092-1 Form B
pressure range:
0 - 25 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
without spring reset
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
Equipment
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
Lead time: in stock
joint set swing check valve/flange DN50 - 2" Inch for flange PN10/16 steel
Lead time: in stock
pipe bend (welded) 90° 60,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 76,1 x 2,3 to 60,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
