ZR02000215

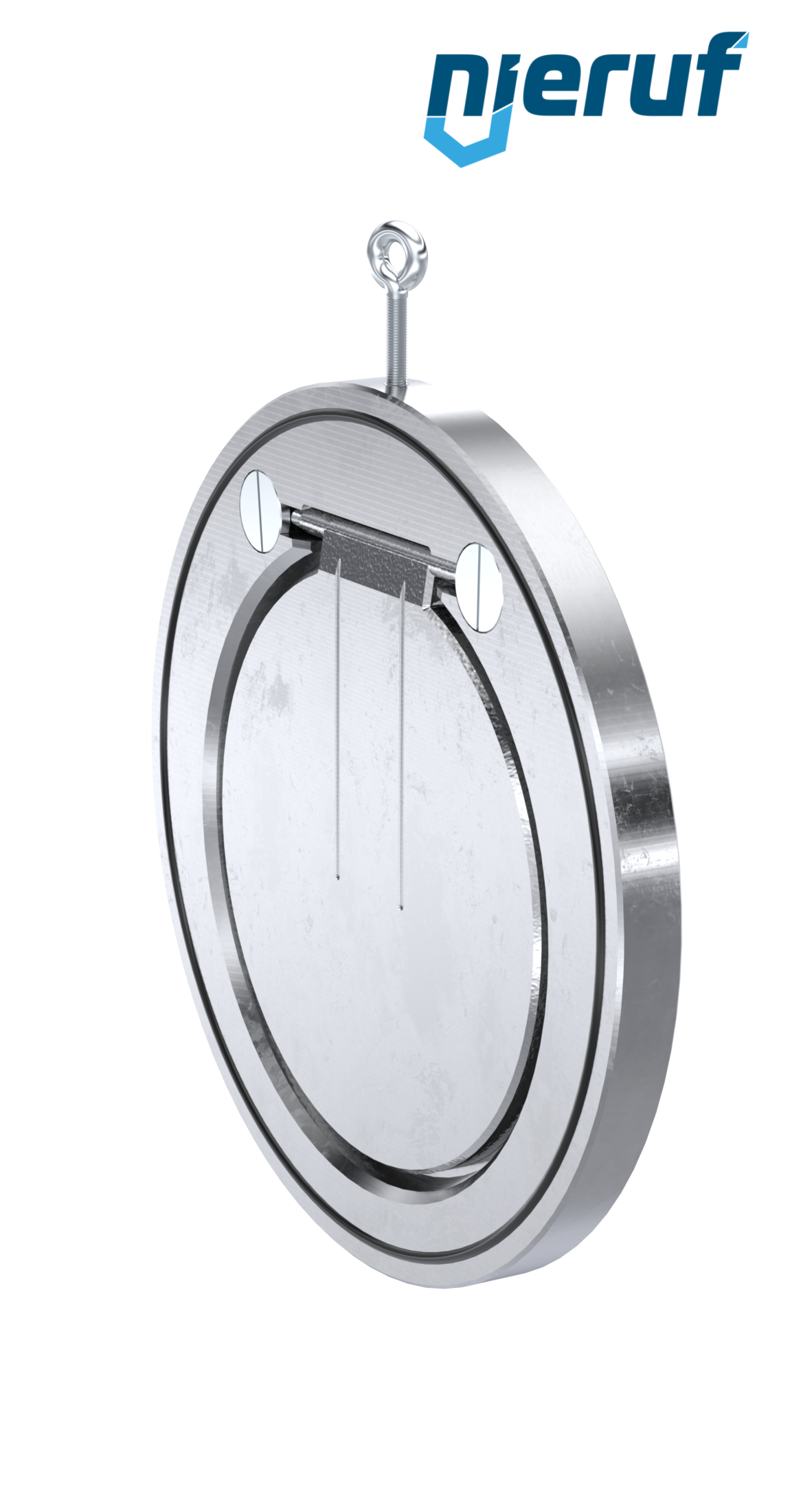

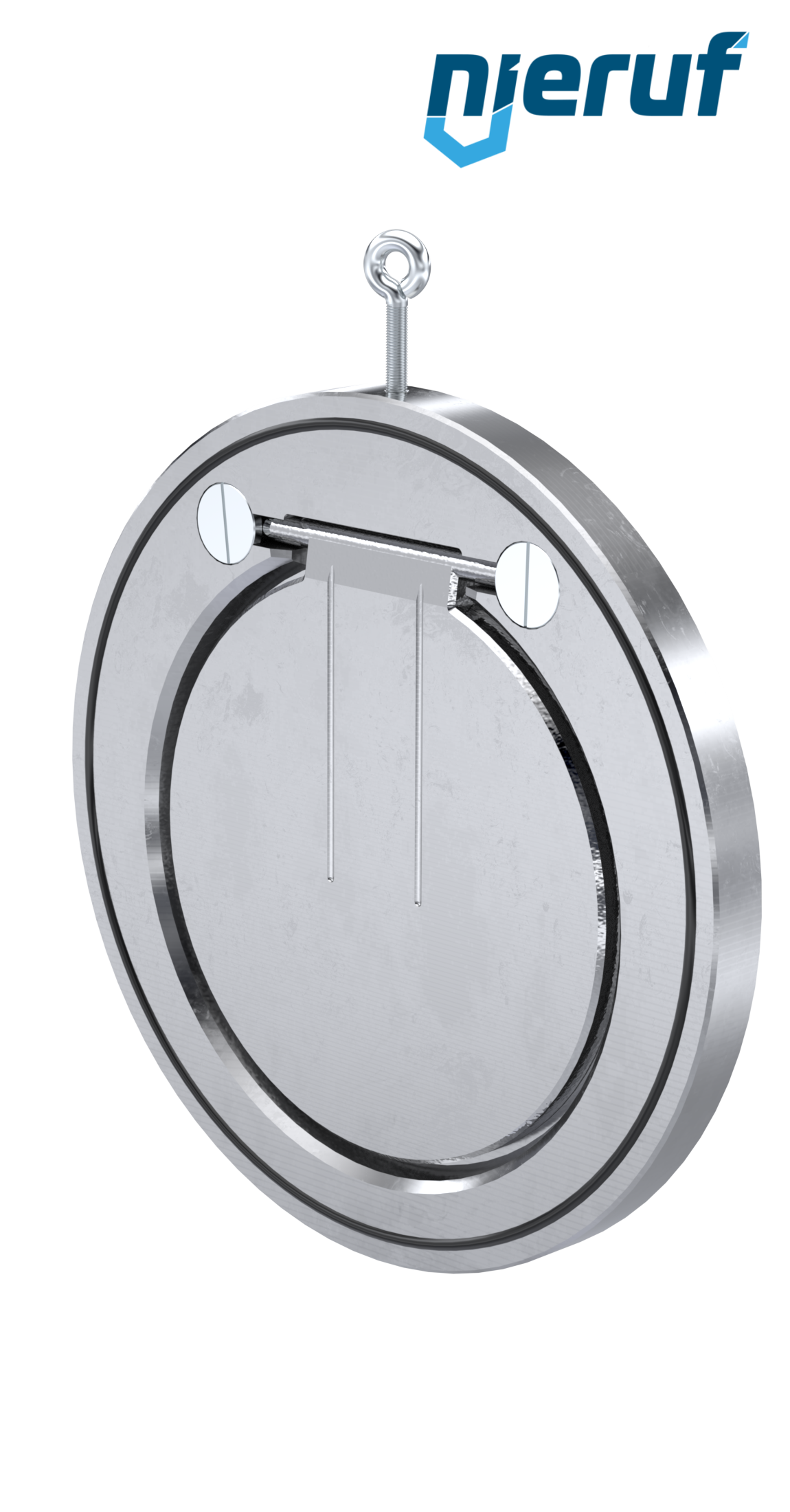

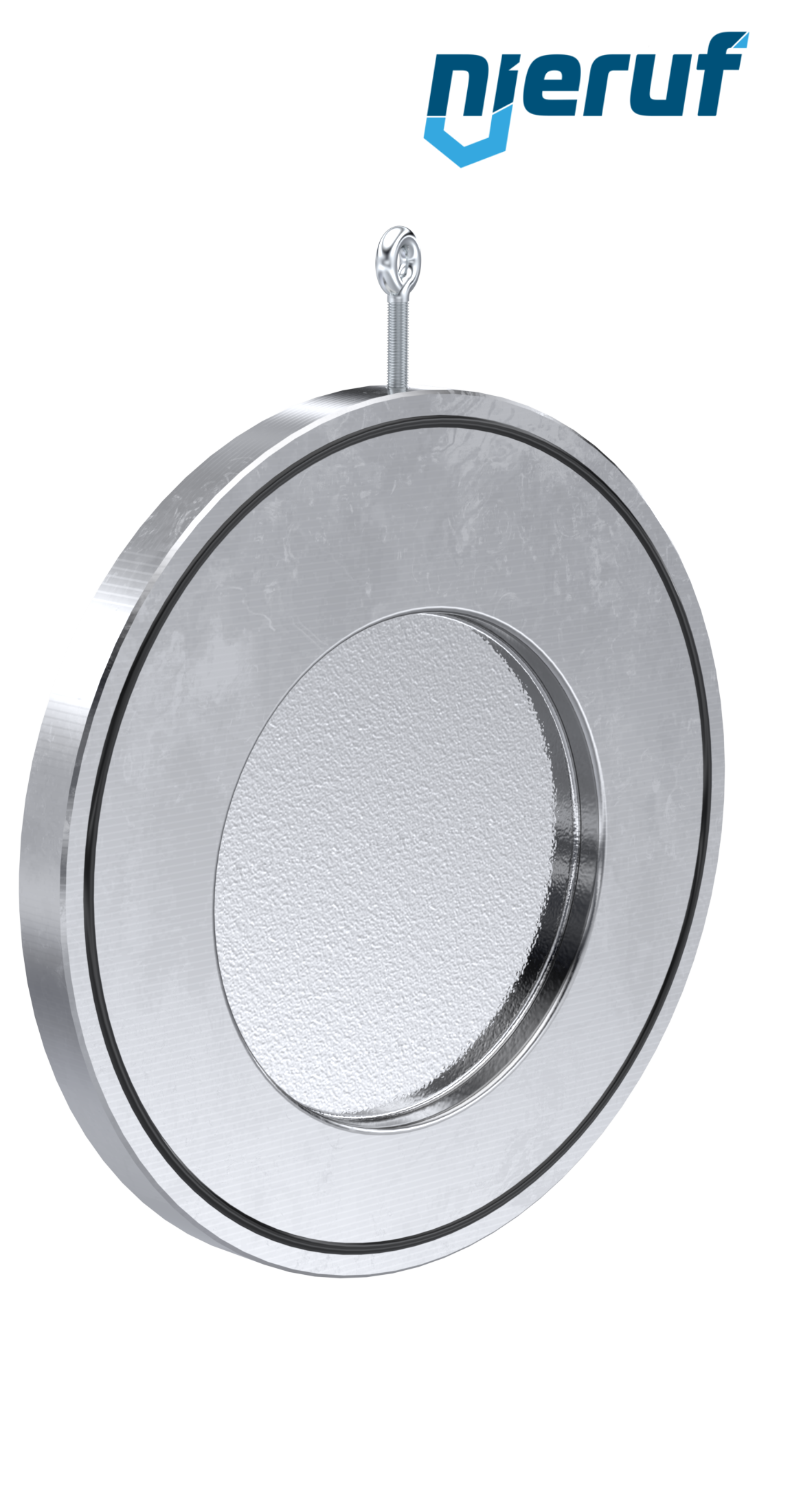

swing check valve DN250 ZR02 stainless steel A351 CF8M FKM (Viton)
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Wednesday, 07. October
Guaranteed delivery until Thursday, 08. October, 12 o'clock
Equipment
joint set swing check valve/flange DN250 - 10" Inch for flange PN10 stainless steel
€49.98 VAT included.
Welding neck flange DN250 PN10 EN1092-1 11 B1 1.4541
€281.08 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
swing check valve DN250 ZR02 stainless steel A351 CF8M FKM (Viton)
swing check valve DN250 PN 10/16 DIN EN 1092-1 Form B made of stainless steel A351 CF8M seal FKM (Viton) for liquid and gaseous media
| product | swing check valve |
|---|---|
| type | ZR02 |
| manufacturer | NieRuf |
| design | swing check valve |
| diameter | DN250 |
| body material | stainless steel A351 CF8M |
| disc material | stainless steel A351 CF8M |
| seal | FKM (Viton) |
| temperature | -30°C up to +230°C |
| connection | flange |
| flange | PN 10/16 DIN EN 1092-1 Form B |
| pressure range | 0 - 16 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | without spring reset |
| installation position | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve DN250 ZR02 stainless steel A351 CF8M FKM (Viton)
Article no.
: ZR02000215
product:
swing check valve
type:
ZR02
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN250
body material:
stainless steel A351 CF8M
disc material:
stainless steel A351 CF8M
seal:
FKM (Viton)
temperature:
-30°C up to +230°C
connection:
flange
flange:
PN 10/16 DIN EN 1092-1 Form B
pressure range:
0 - 16 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
without spring reset
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
Equipment
Welding neck flange DN250 PN10 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set swing check valve/flange DN250 - 10" Inch for flange PN10 stainless steel
Lead time: 3 - 5 working days
