ZR01000315
swing check valve DN250 ZR01 steel 1.0460 / A 105, zinc plated PTFE
- Lead time
- 3 - 5 working days
Equipment
joint set swing check valve/flange DN250 - 10" Inch for flange PN10 steel
€81.40 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

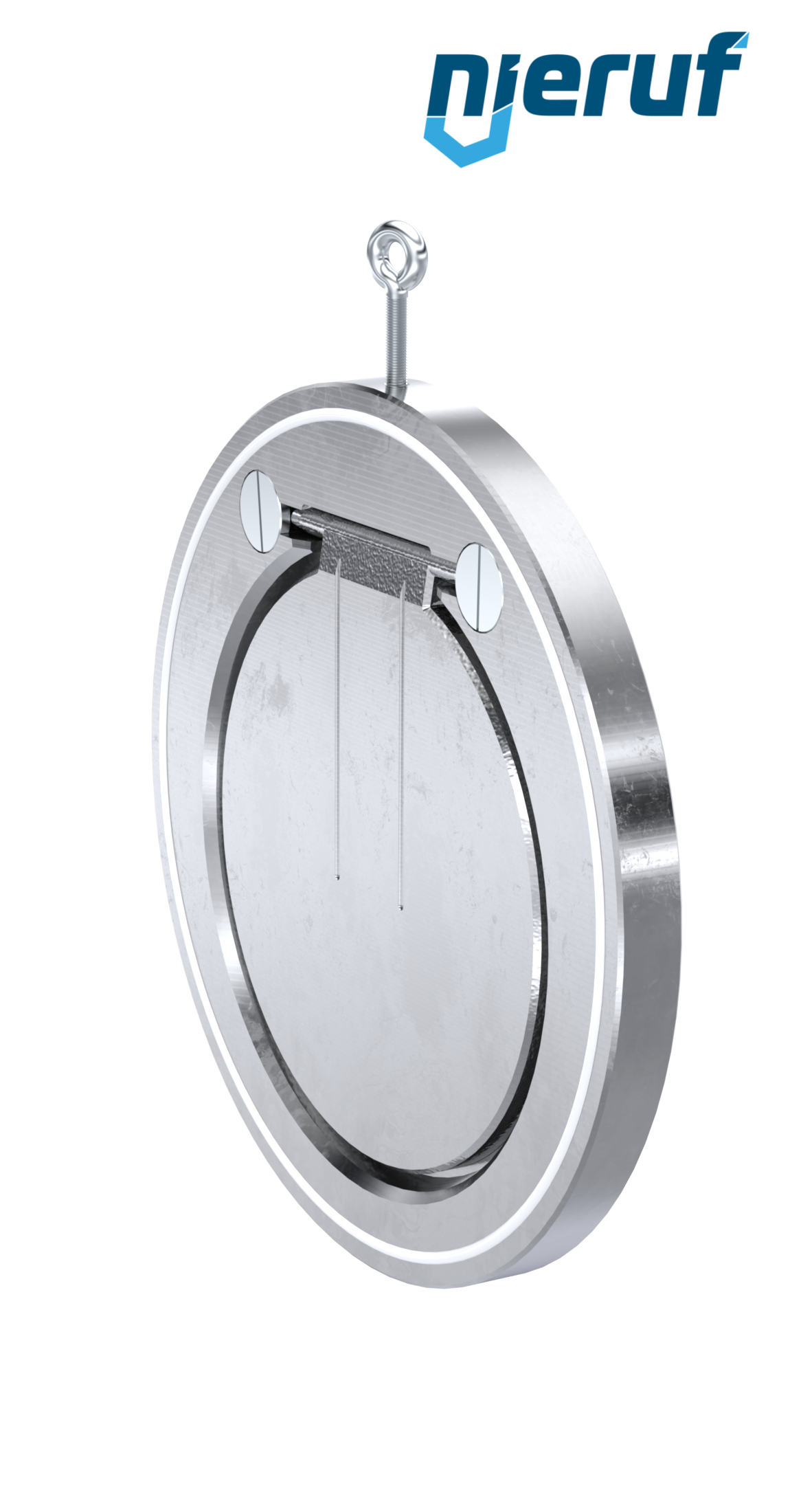

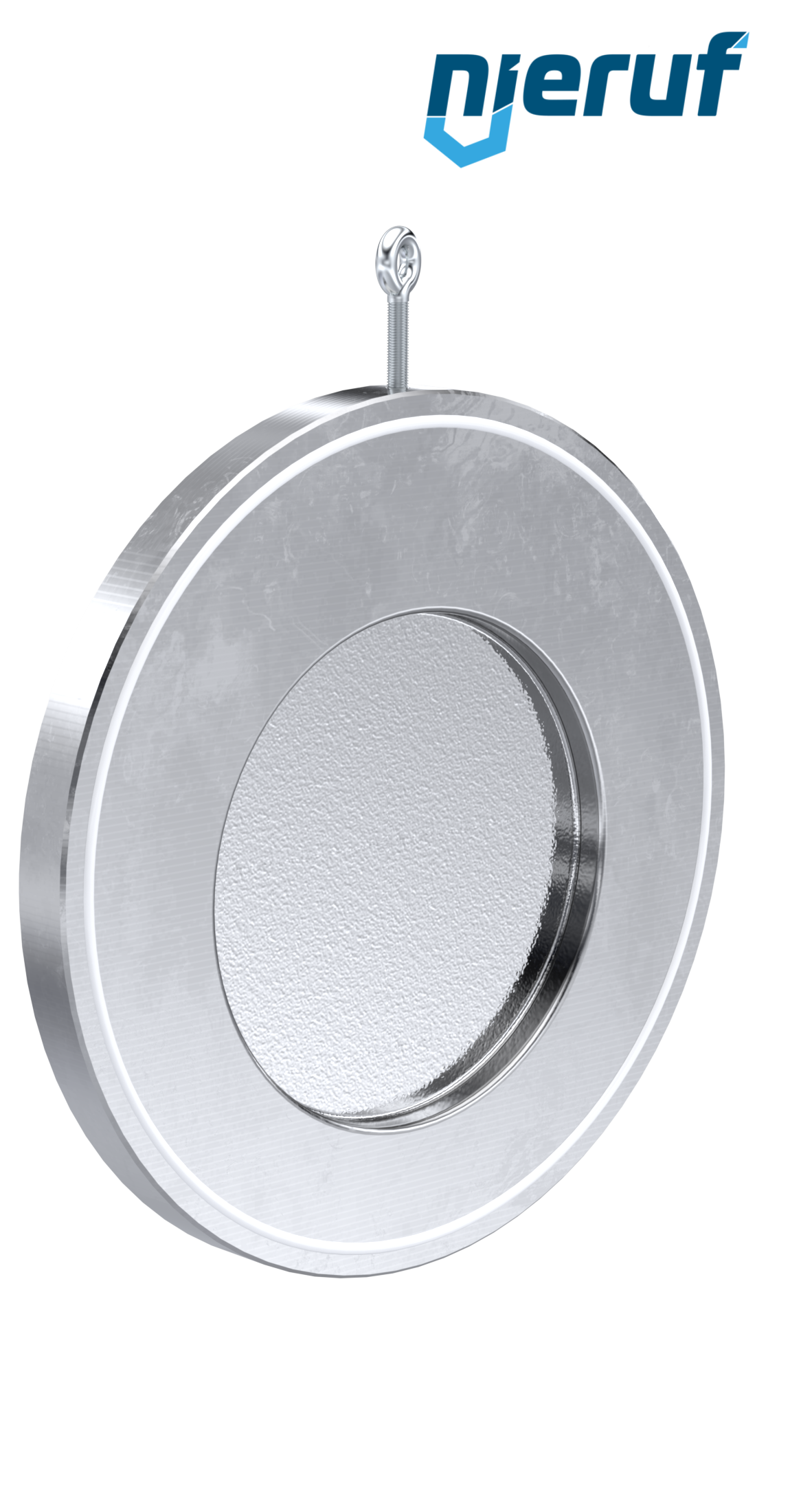

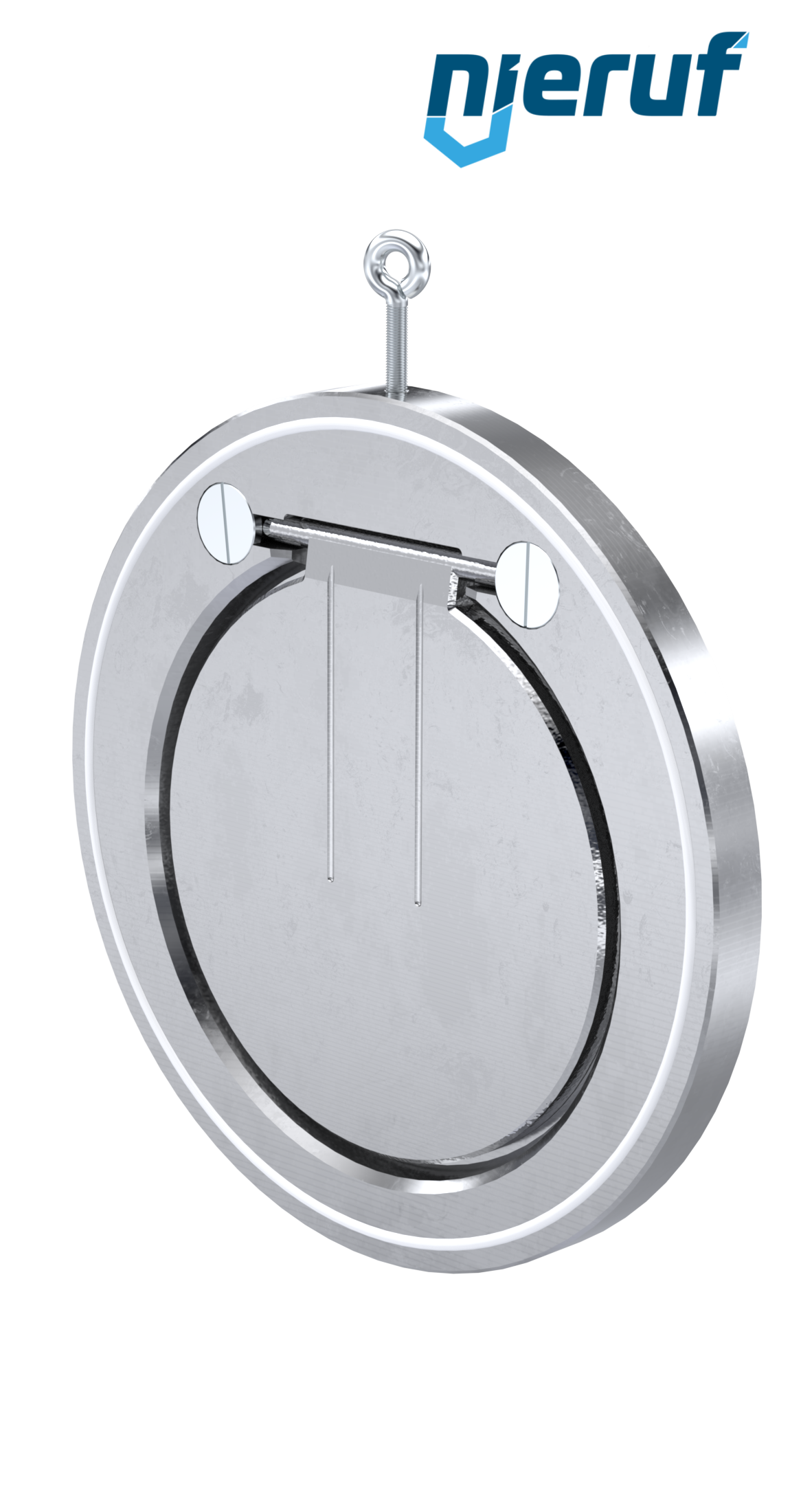

swing check valve DN250 ZR01 steel 1.0460 / A 105, zinc plated PTFE
swing check valve DN250 PN 10/16 DIN EN 1092-1 Form B made of steel 1.0460 / A 105, zinc plated seal PTFE for liquid and gaseous media
| product | swing check valve |
|---|---|
| type | ZR01 |
| manufacturer | NieRuf |
| design | swing check valve |
| diameter | DN250 |
| body material | steel 1.0460 / A 105, zinc plated |
| disc material | steel A 216 WCB / A 105, zinc plated |
| seal | PTFE |
| temperature | -10°C up to +250°C |
| connection | flange |
| flange | PN 10/16 DIN EN 1092-1 Form B |
| pressure range | 0 - 16 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | without spring reset |
| installation position | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve DN250 ZR01 steel 1.0460 / A 105, zinc plated PTFE
Article no.
: ZR01000315
product:
swing check valve
type:
ZR01
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN250
body material:
steel 1.0460 / A 105, zinc plated
disc material:
steel A 216 WCB / A 105, zinc plated
seal:
PTFE
temperature:
-10°C up to +250°C
connection:
flange
flange:
PN 10/16 DIN EN 1092-1 Form B
pressure range:
0 - 16 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
without spring reset
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
Equipment
joint set swing check valve/flange DN250 - 10" Inch for flange PN10 steel
Lead time: in stock
