EF01010006

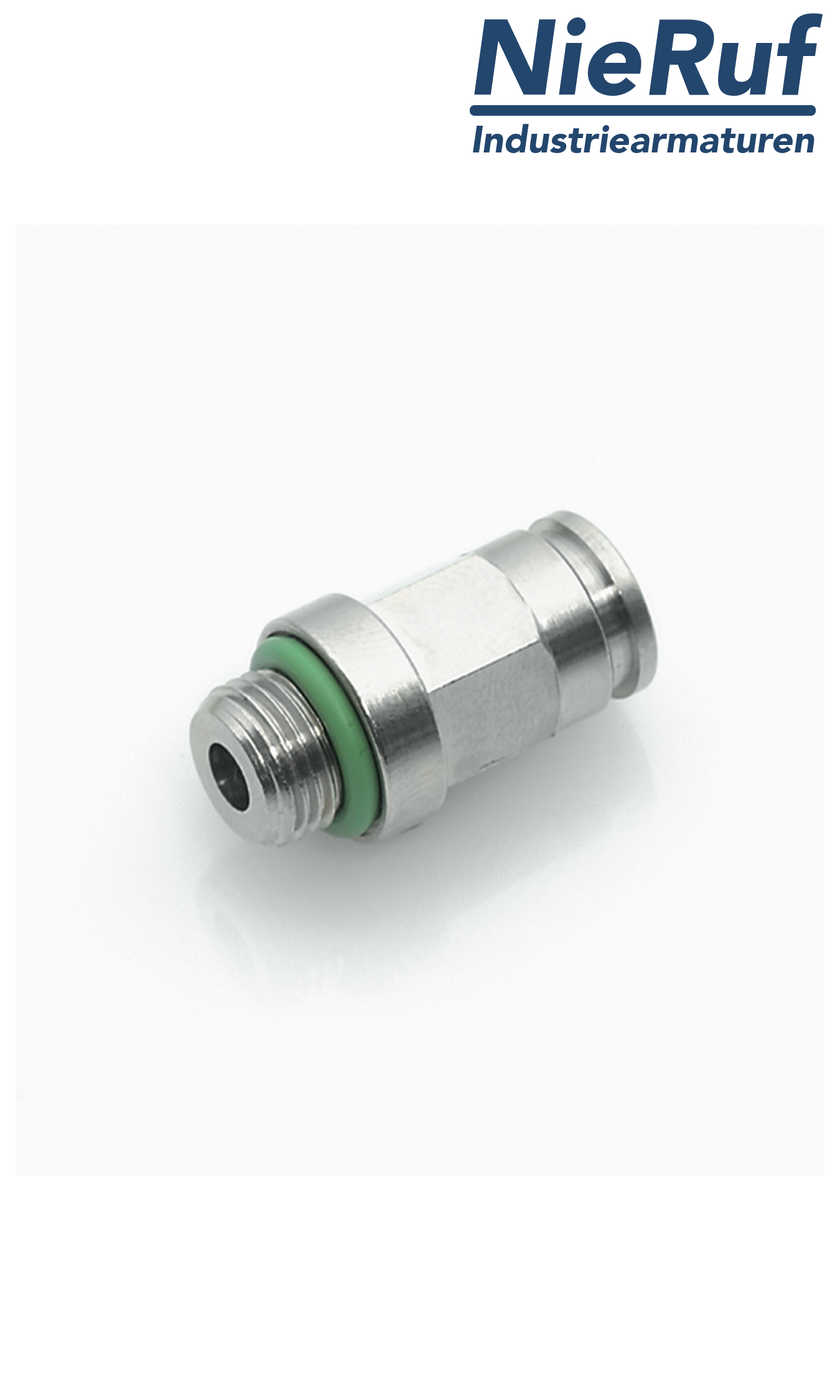

Straight male adaptor EF01 brass FKM G1/8" D6mm
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Monday, 05. October
Guaranteed delivery until Tuesday, 06. October, 12 o'clock
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Straight male adaptor EF01 brass FKM G1/8" D6mm
port connection Straight male adaptor made of brass with FKM-seal G1/8" D6mm for lubricated & non-lubricated compressed air up to 16 bar
| product | port connection |
|---|---|
| type | EF01 |
| manufacturer | NieRuf |
| design | Straight male adaptor |
| thread connection | G1/8" |
| tube connection 1 | D6mm |
| body material | brass Ms58 nickel-plated |
| seal | FKM |
| collet | stainless steel 1.4401 |
| pressure ring | brass Ms58 nickel-plated |
| thread | cylindrical |
| media | lubricated & non-lubricated compressed air |
| max. working pressure | up to 16 bar |
| product feature | Straight male adaptor to connect or to plug pipes in pneumatic- or pressure air applications. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Straight male adaptor EF01 brass FKM G1/8" D6mm
Article no.
: EF01010006
product:
port connection
type:
EF01
manufacturer:
NieRuf
design:
Straight male adaptor
thread connection:
G1/8"
tube connection 1:
D6mm
body material:
brass Ms58 nickel-plated
seal:
FKM
collet:
stainless steel 1.4401
pressure ring:
brass Ms58 nickel-plated
thread:
cylindrical
media:
lubricated & non-lubricated compressed air
max. working pressure:
up to 16 bar
product feature:
Straight male adaptor to connect or to plug pipes in pneumatic- or pressure air applications.
